16 inch YLCSD400 2500CBM/HOUR Cutter Suction Dredger Working In India
1.Background
In 2024, We meet this customer at the Maritime exhibition. After talking with the customer, we know that the customer will purchase some sets of cutter suction sand dredgers for using in local rivers for dredging the river sand and maintain the navigation ability of the local rivers. Our Customer got this dredging project from the local goverment. The dredged material are mainly the sand and mud.
2.Technical specification
This 16 inch cutter suction dredger's model is YLCSD400. It is equipped with the anchor boom and spud carraige which can increase 30% of working efficiency than those river cutter suction dredgers without the anchor boom and spud carriage.The clear water flow per hour of this cutter suction sand dredging ship is 2500cubic meter per hour.The dredging depth of this sand dredging ship is 14meters.Its discharge distance is 1500 meters. The engine manufacturers of this river cutter suction sand dredging ship is China Chongqing Cummins Engine Co.,Ltd. The main engine power of this sand dredging ship/vessel/boat is 895kw,while the auxiliary engine power of this sand dredging machine is 224kw. The cutter head diameter and shaft power of this 16 inch hydraulic cutter suction dredging euipment is 1500mm@100kw. The dredging pump of this cutter suction dredging equipment is manufactured in Shijiazhuang City, Hebei Province,China.
Item Name | Descriptions /Specifications |
Model | YLCSD-400 |
Water flow of cutter suction sand dredger | 2500m³/h |
Sand or solid capacity of cutter suction dredger | 370 - 500 m³/h |
Discharge distance of sand dredger | Max. 2000m |
Slurry concentration, % | 15 - 20% |
Dredging depth maximum of dredger | 14 m |
Minimum dredging depth of river sand dredgers | 1.1 m |
Inner Diameter of suction pipe of river suction sand dredger | 450 mm (18 inch) |
Inner Diameter of discharge pipe of river suction sand dredging ship | 400 mm (16 inch) |
Average Draught of 16 inch cutter suction sand dredger | 1.1 m |
Maximum draught of YLCSD400 cutter suction sand dredger | 1.2 m |
Total weight of sand dredging boat | 150Ton |
Total installed power of mud dredging vessel | 993KW |
Fuel tank capacity of mud dredging boat | 30000L |
3. Successful Cases

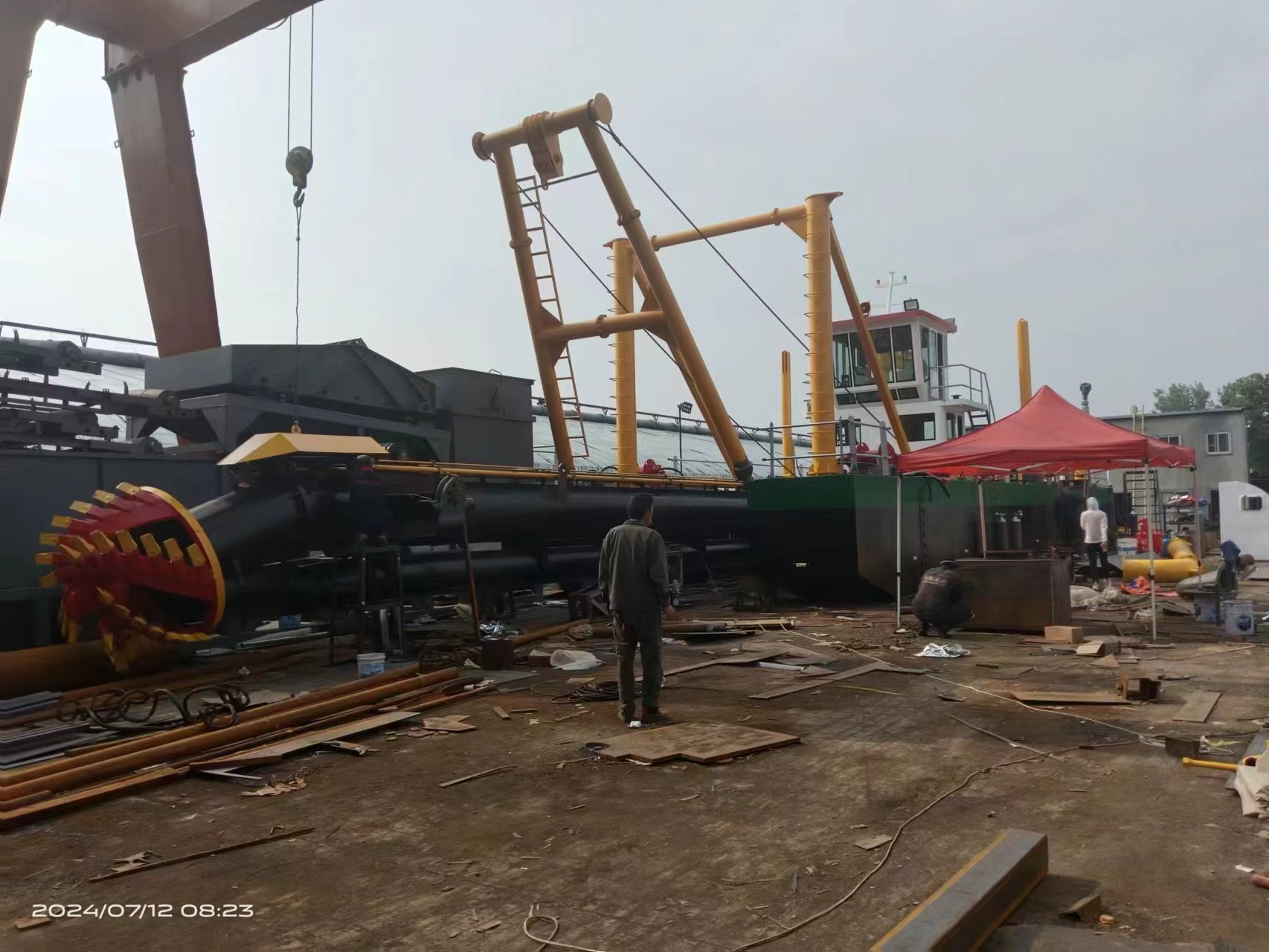

16 inch cutter suction dredger

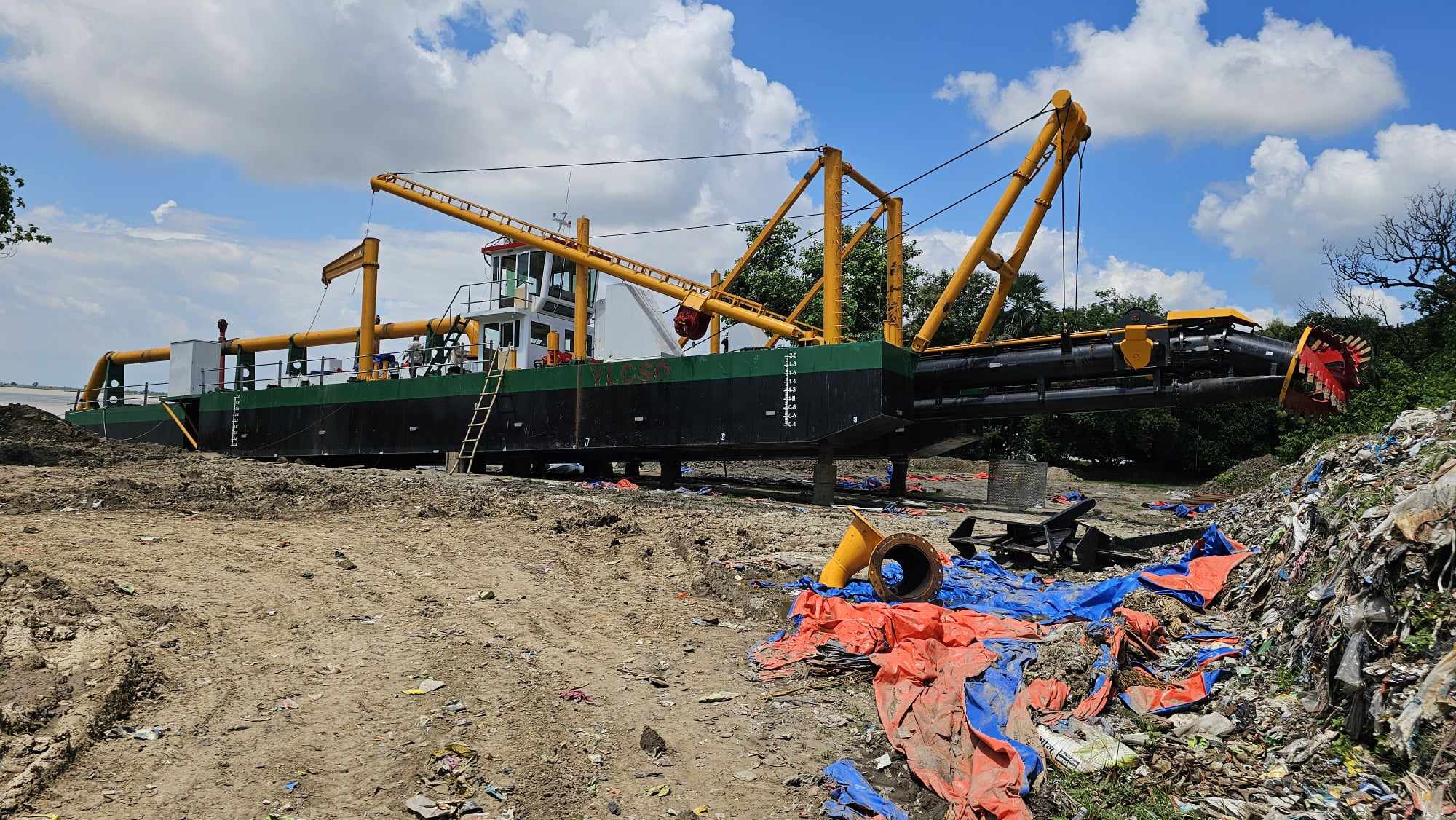

YLCSD400 cutter suction sand dredger

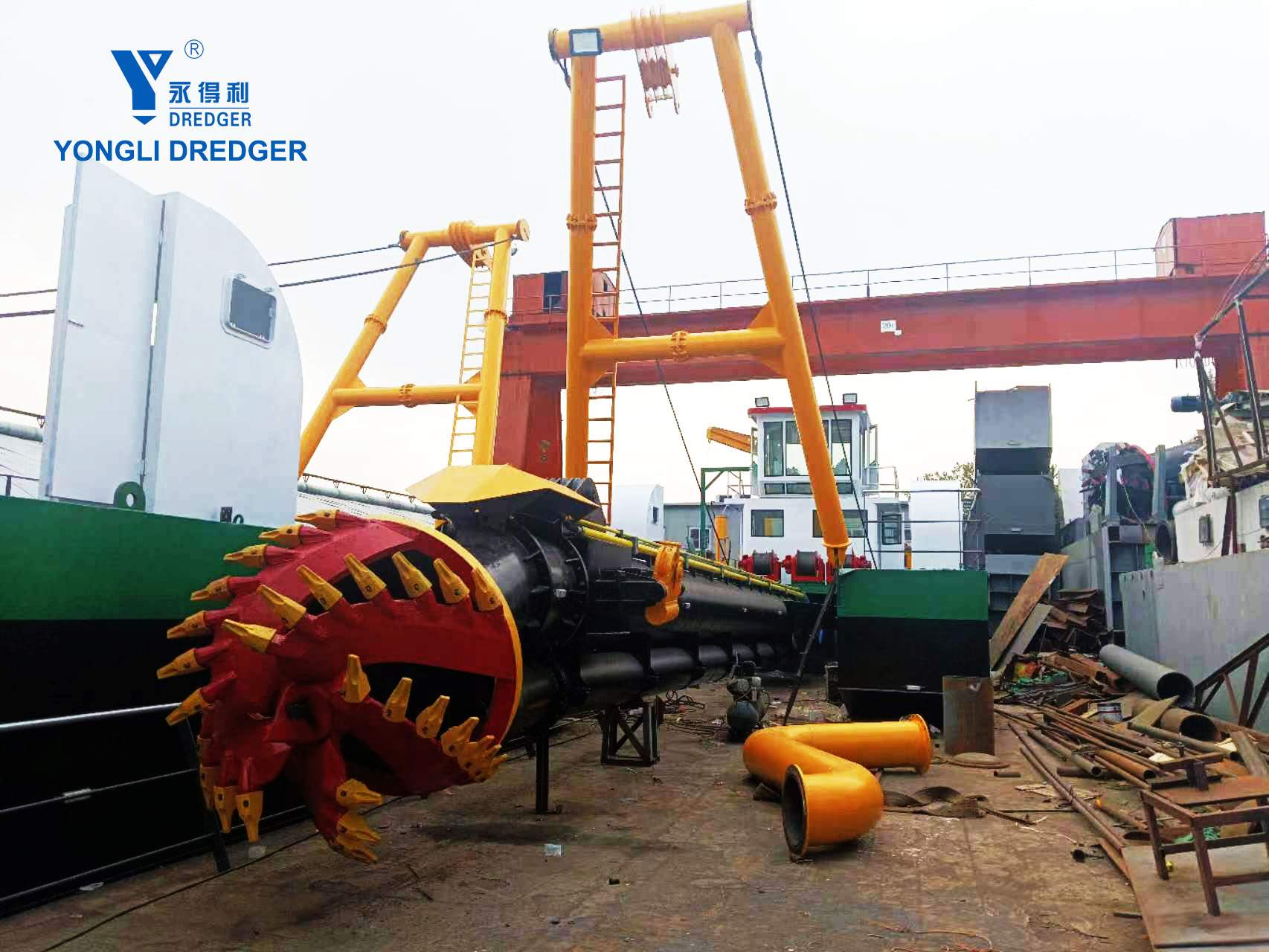

16 inch river suction sand dredger
4.Request For Reply
1) How many cubic meter per hour for the 16 inch cutter suction sand dredger?
2) How many meter of dredging depth for this river used sand suction dredger?
3) How many meters for the discharge distance of this sand dredging ship?
4) for the engine brand of this sand dredging vessel, do you prefer weichai or cummins brand?
5) If you need the anchor boom and spud carraige for this sand dredging equipment?
