Bucket Chain Diamond Dredger 100m3/h working in Congo
1. The Bucket Chain Diamond Dredger Specification
The bucket chain diamond dredger is working well in Congo. Here share the Technical Specification.
Size(L*W*H) | 32m×2.0m×1.26m(Left） 32m×2.3m×1.26m(right） |
Inner keel | 60×40 angle steel |
Side channel steel | 14#channel steel |
Compartment | 2.0m×1.26m 2.3m×1.26m |
Deck | Anti skid steel plate |

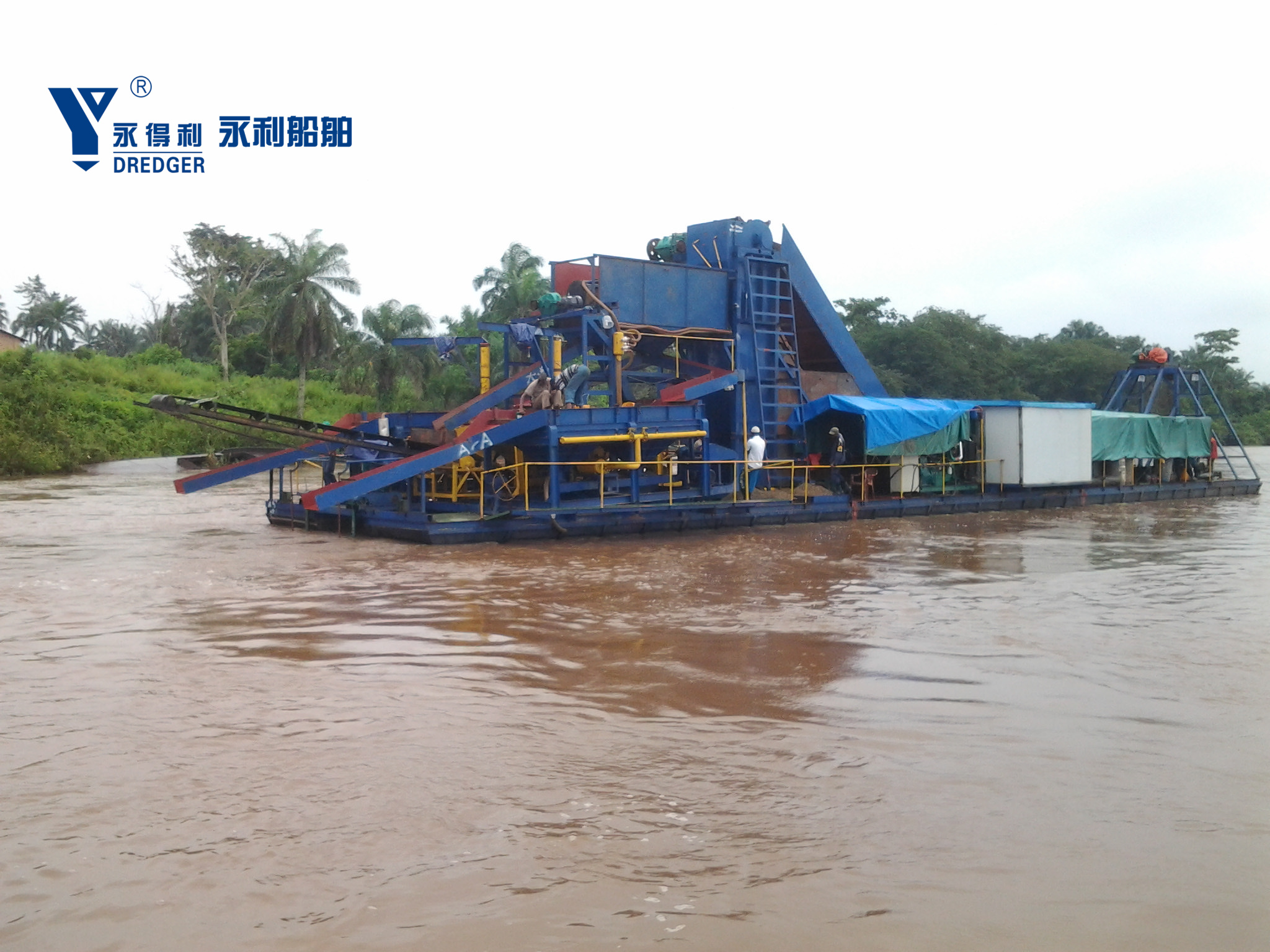

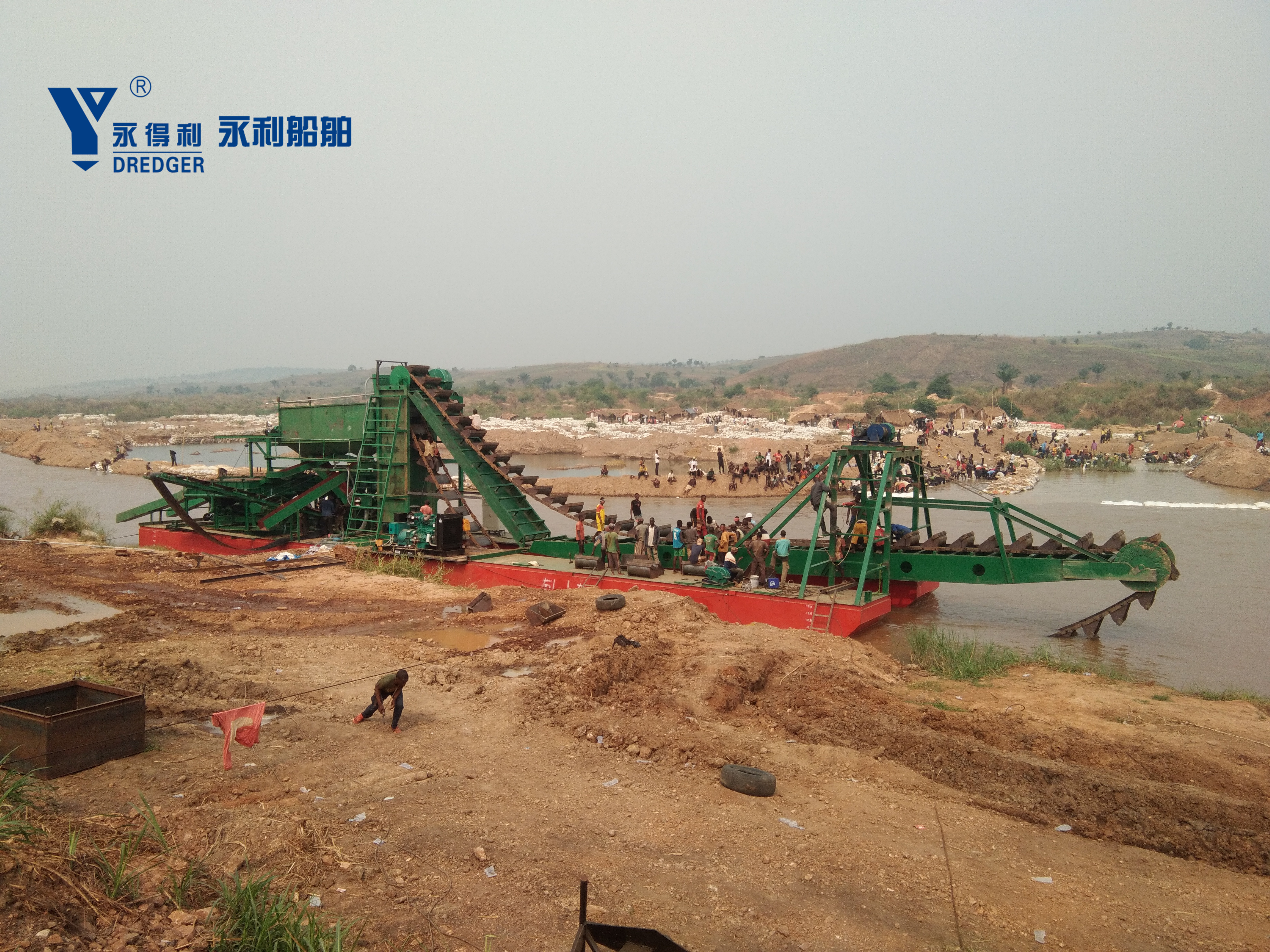

2. Bucket Chain Diamond Dredger Pictures
3. Bucket Chain Gold Diamond Dredger Product Features
The dredger could be divided into bucket type and pump suction type. Bucket type dredger is applied for waterways with high percentage of clay and gravels, while pump suction type can only be used for terrains with low percentage of clay and gravel.
The key part for the diamond dredger is pulsating jigger. The deal capacity decide the quantity of jigger. We learn the jigger’s technology from one engineer of South Africa. Now the diamond dredger is widely used in Congo and other Africa countries.
The dredger is composed of several gravity concentrators.The concentration ratio could reach as high as 1:1000,and the recovery efficiency about 90% after series of separating.
4. Bucket Chain Gold Diamond Dredger Advantages
1)High-Efficiency Continuous Excavation:
The continuous bucket chain provides a steady, uninterrupted flow of material, leading to higher daily production volumes compared to intermittent dredging methods.
Buckets are fabricated from abrasion-resistant steel and are designed for optimal digging geometry and minimal spillage.
2)Heavy-Duty Construction & Durability:
Built for resilience in harsh marine and riverine conditions. The main frame, ladder, and bucket chain are constructed from high-tensile steel to withstand abrasive sands, gravels, and rocks.
Critical components are oversized and protected for extended service life and reduced downtime.
4)Integrated Screening & Processing:
Material is discharged directly onto a vibrating screen or trommel to separate oversized waste rock from valuable concentrates.
The system can be customized with sluices, jigs, or pulsators specifically configured for high-density gold and diamond recovery, ensuring maximum capture rates.
5)Operational Flexibility & Stability:
Can be mounted on pontoons, a spud-barge, or a hull for operation in various water depths.
Equipped with powerful winches and spuds for precise positioning and advancement along a mining claim.
6)Superior Recovery for Heavy Minerals:
The gentle, continuous lift of the bucket chain is ideal for retaining fine gold and large, precious stones that might be lost in more turbulent suction-based systems.
Allows for thorough washing and disaggregation of clay-bound materials.
