04 sets of work boats are ready for shipment
1.About Us

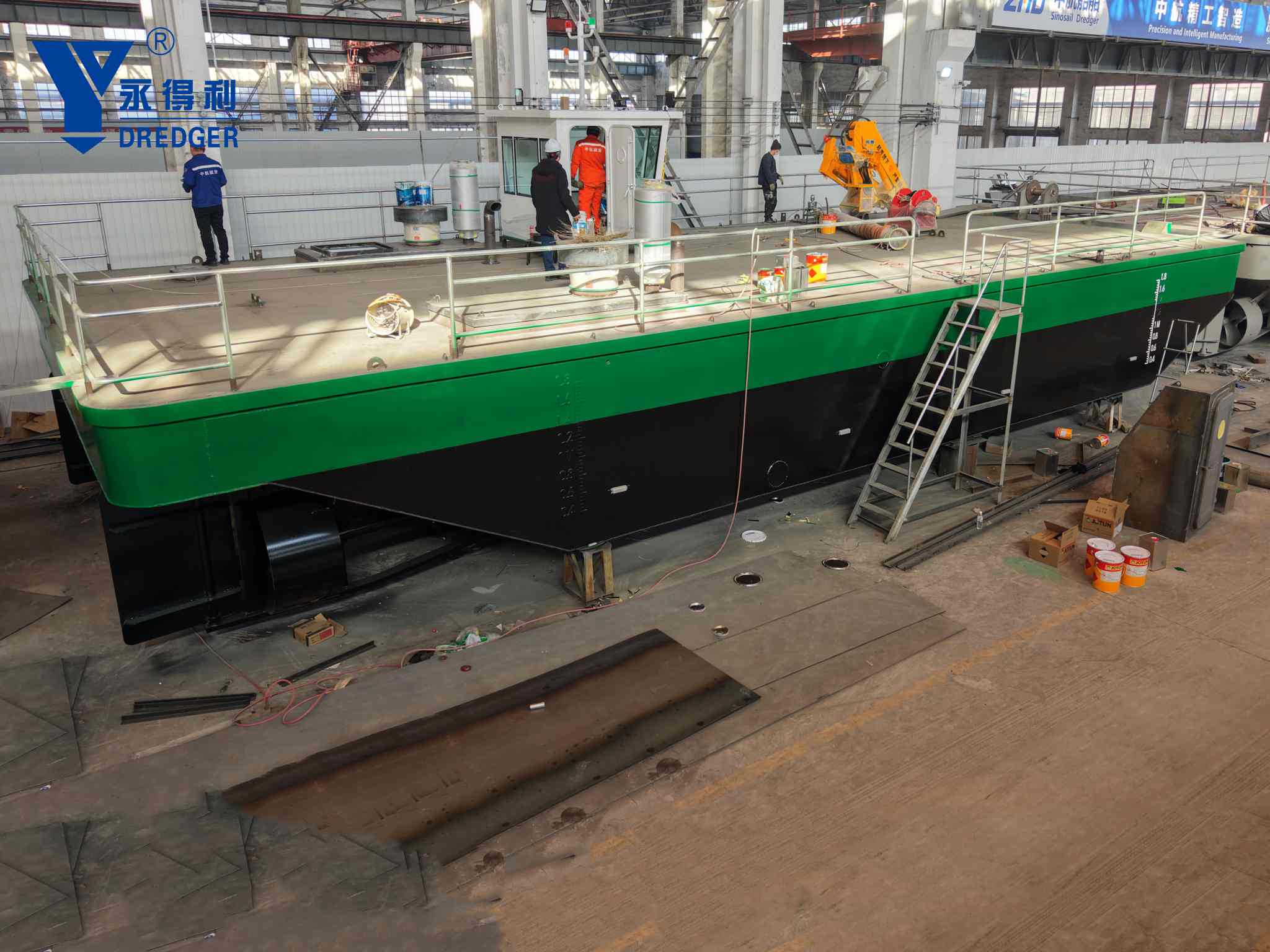

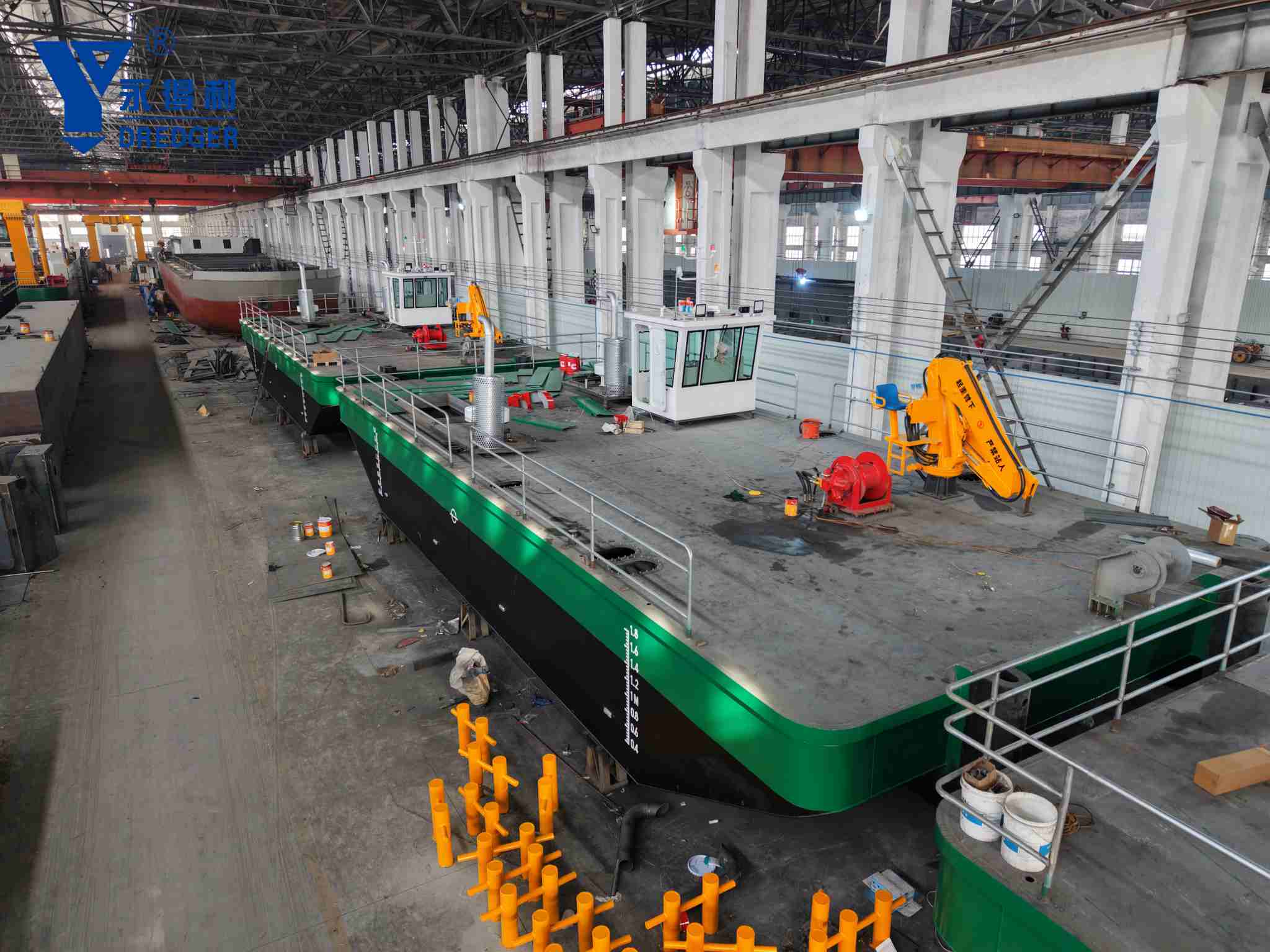

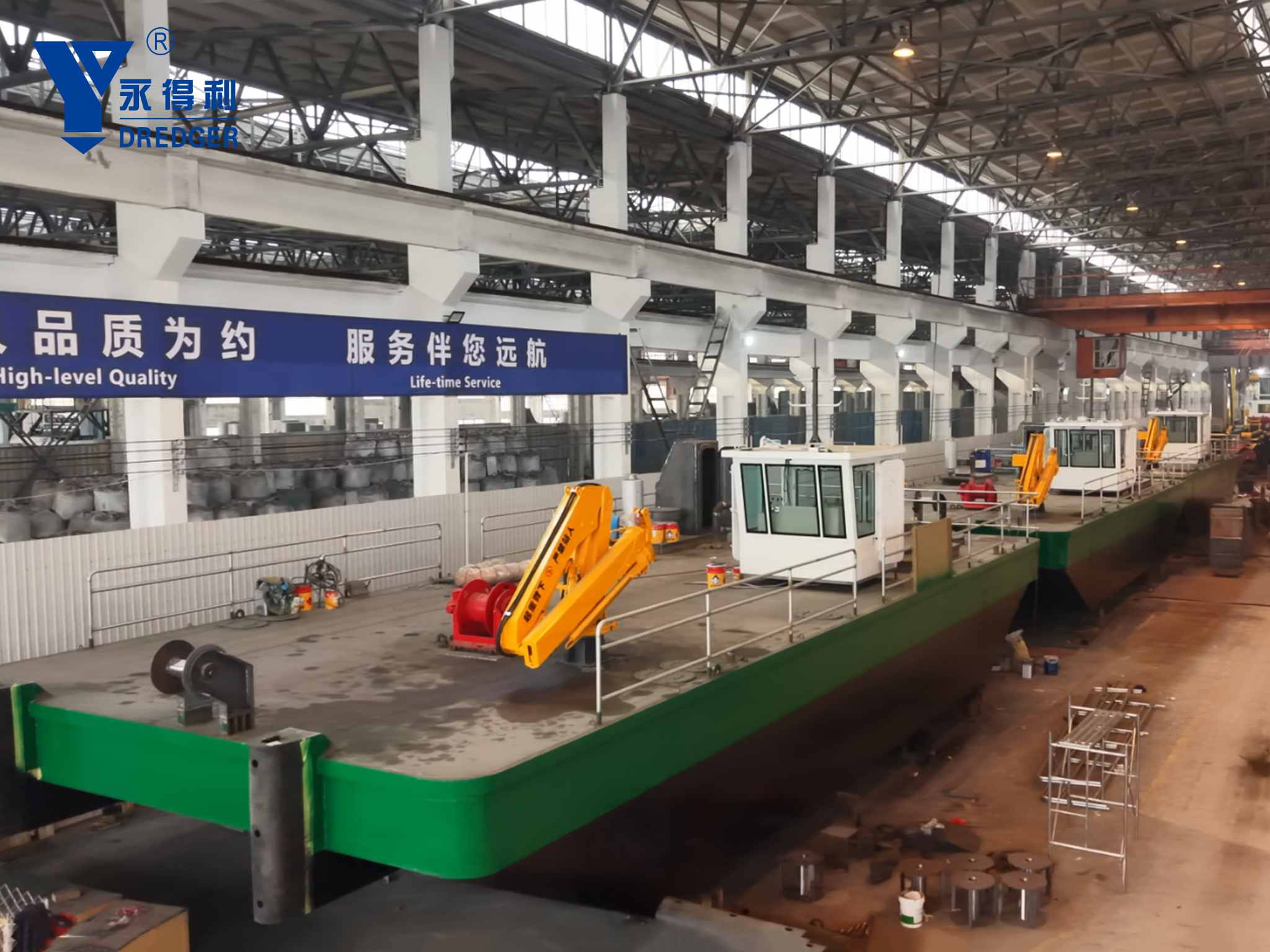

Latest news about Yongli Work boat: we just finish the production and trail operation of 04 sets work boats for the Nigeria Customer. The work boat/tug boat will be used as one kind of serivica boat for the cutter suction dredgers.
The function of this work boat/tug boat/2 propellers wotk boat: trasnport the diesel and workers between the bank and the dreder; it can tug the dredger for long distance sailing; we can use its crane to lifting the hdpe pipelines and this will increase the installing efficiency; it can help the cutter suction dredger with anchorage.
The work boat price is about US Dollar one hundred and ninety thousand only. we usually take about 40 days to finish the production of one set of tug boat.
Its detailed technical specification about the 2 propellers work boat are as following:
1.Hull of 2 propellers work boat
Name | Specification |
dimension | 18.0m×7.6m×2.2m |
bottom plate | 8mm |
side plate | 8mm |
deck plate | 10mm |
front top plate | 12mm |
pile top box | 10mm（With reinforce rib inside） |
pile support | φ325mm（through-bottom structure） |
fuel tank | 40Ton |
2.Engine of work boat/tug boat
Name | Specification |
Brand | Cummins, China |
Model | NTA855-M |
Rated Power | 336KW/450HP |
speed | 1800r/min |
cylinder | 6 |
quantity | 2 set |
3.Gearbox
Name | Specification |
origin | Hangzhou,China |
model | FD300 |
ratio | 3:1 |
clutch method | electric control |
quantity | 2 set |
4.Propeller
Name | Specification |
central shaft | Dia. 125mm |
paddle | Dia. 1100mm |
max. speed | 533r/min |
quantity | 2 set |
5.Control actuator
Name | Specification |
model | ZH-200 |
control method | electric control, hydraulic operation |
voltage | 24V |
quantity | 1 set |
6.Anchor windlass
Name | Specification |
winch capacity | 60KN |
wire cable | 100m（Dia. 22mm） |
quantity | 1 set |
7.Operation and control system
Name | Specification |
operating pannel model | ZH-200 |
operation cabin | 1.6m×1.5m×2.2m |
1.5P A/C | 1 set |
chair | rotating type |
quantity | 1 set |
8.Lighting system
Name | Specification |
front light | 2 pcs |
rear light | 1 pc |
signal light | 4 pcs |
lamp in operation cabin | 1 pc |
light in engine room | 2 pcs |
9. Generator Set
Name | Specification of work boat/tug boat |
engine made | Cummins engine |
alternator power | 50KW 50Hz |
quantity | 1 set |
10.Hydraulic system
Name | Specification |
hydraulic pump | ZH200 |
quantity | each 1pc |

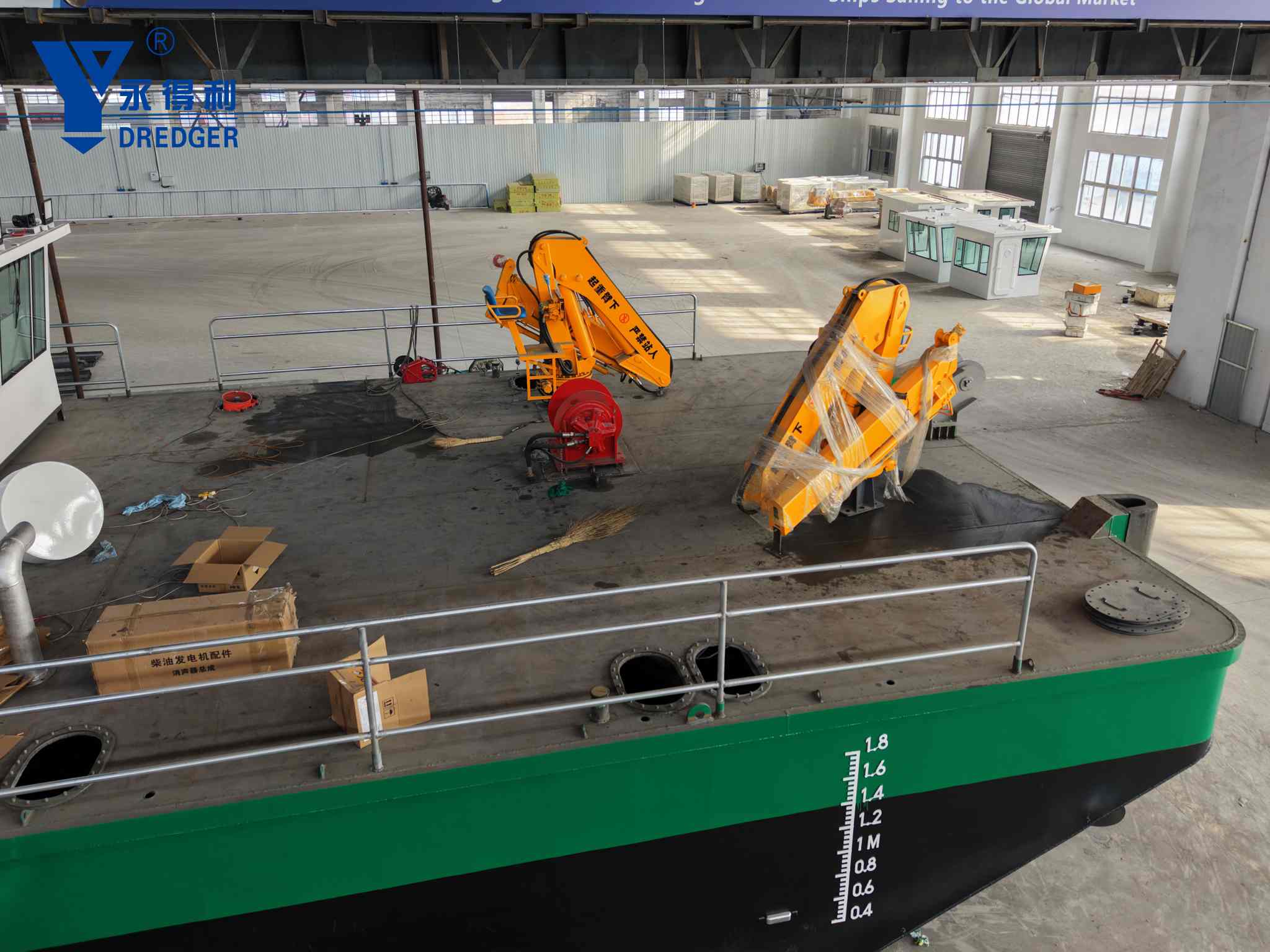

11. Folding Crane(Knuckle boom crane)
Name | Specification |
Lifting capacity of 2 propellers wotk boat | 5 tons |
Quantity | 1 set |
12.Anchor of work boat/ 2 propellers work boat
Name | Specification |
weight | 250kgs |
Quantity | 1 pc |
13.Others
Name | Specification |
Railing | 1set |
Bollard | 1set |
Zinc Anode | 1set |
anti-crash rubber block | 1set |
