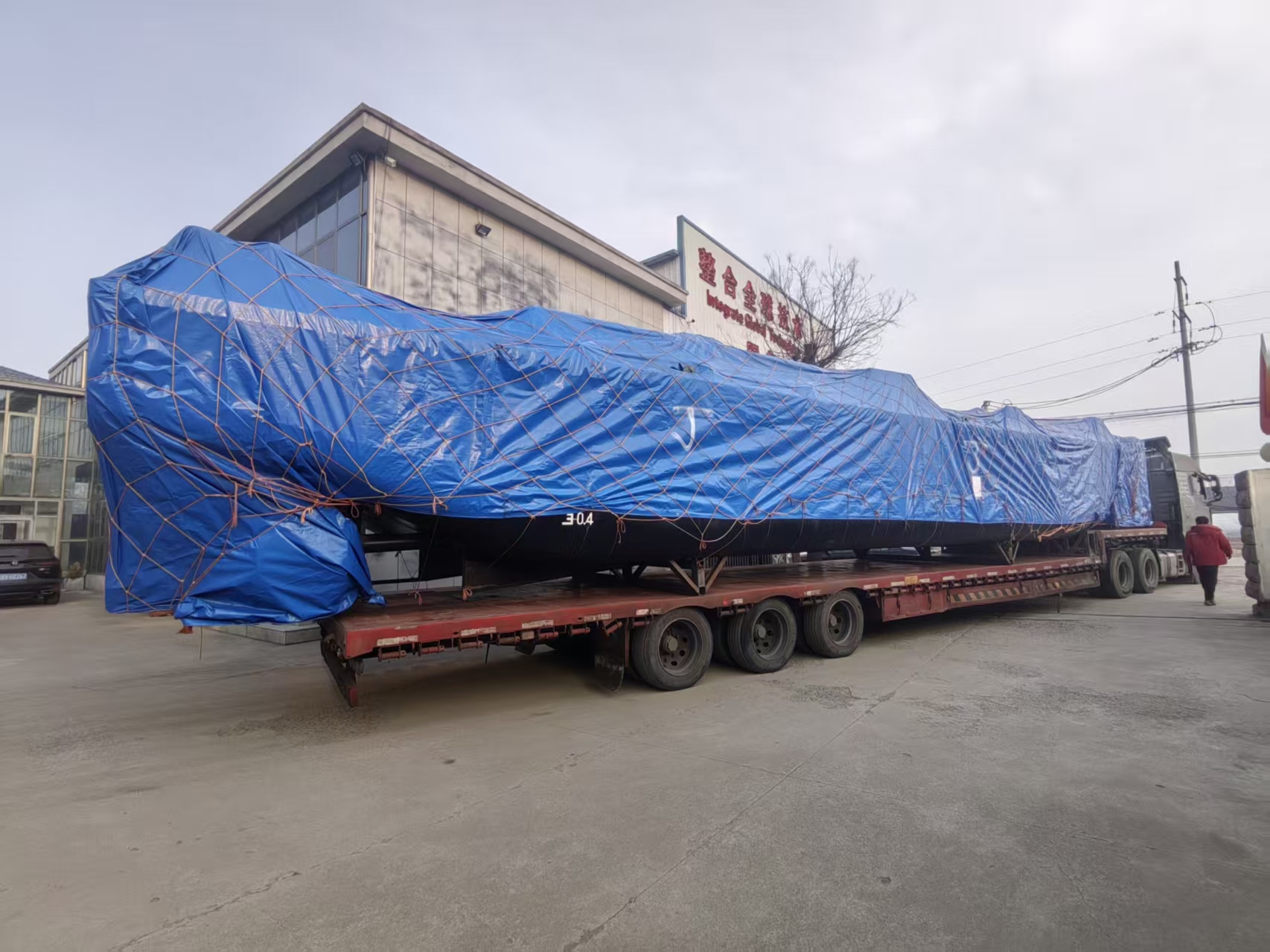

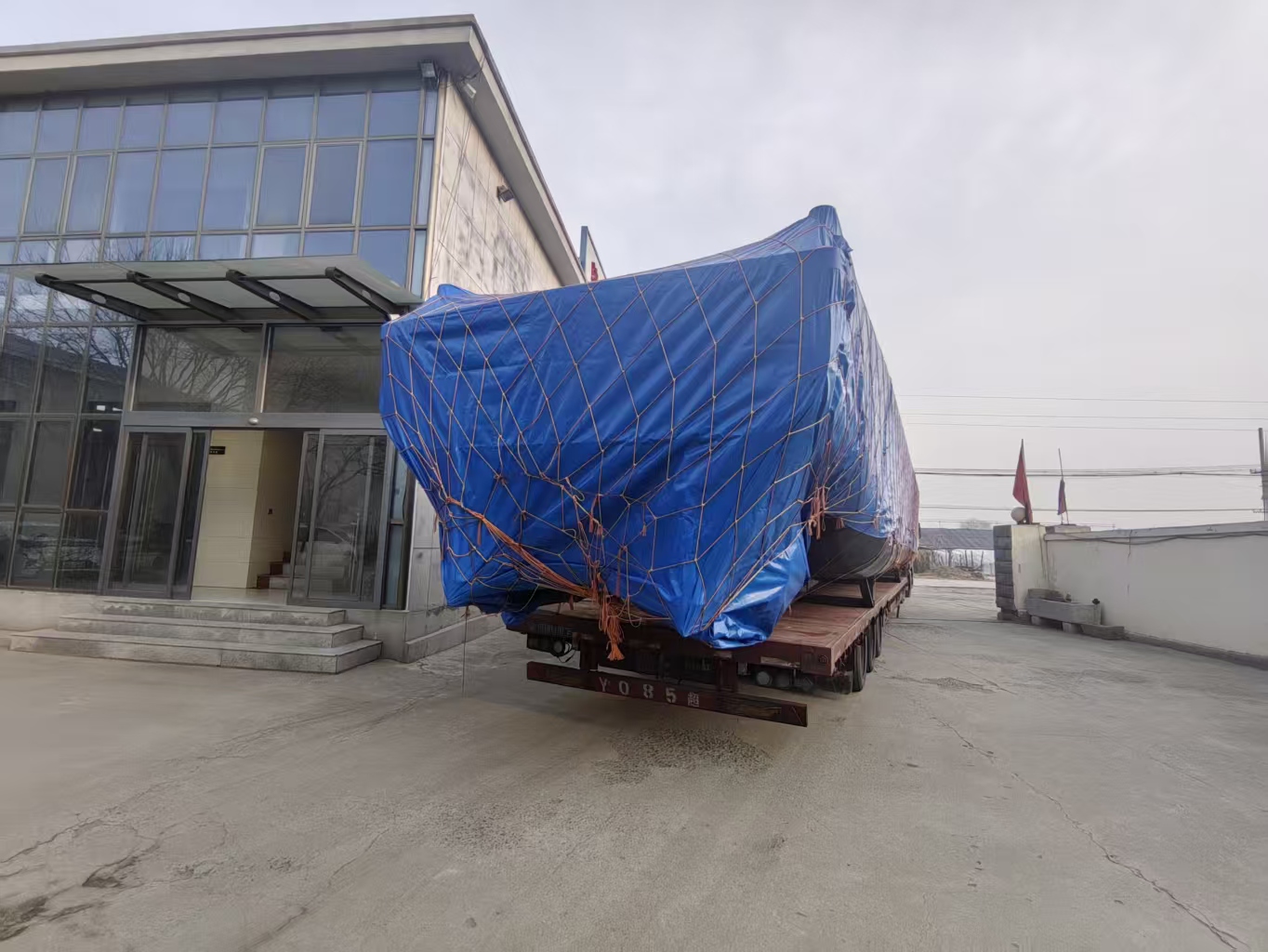

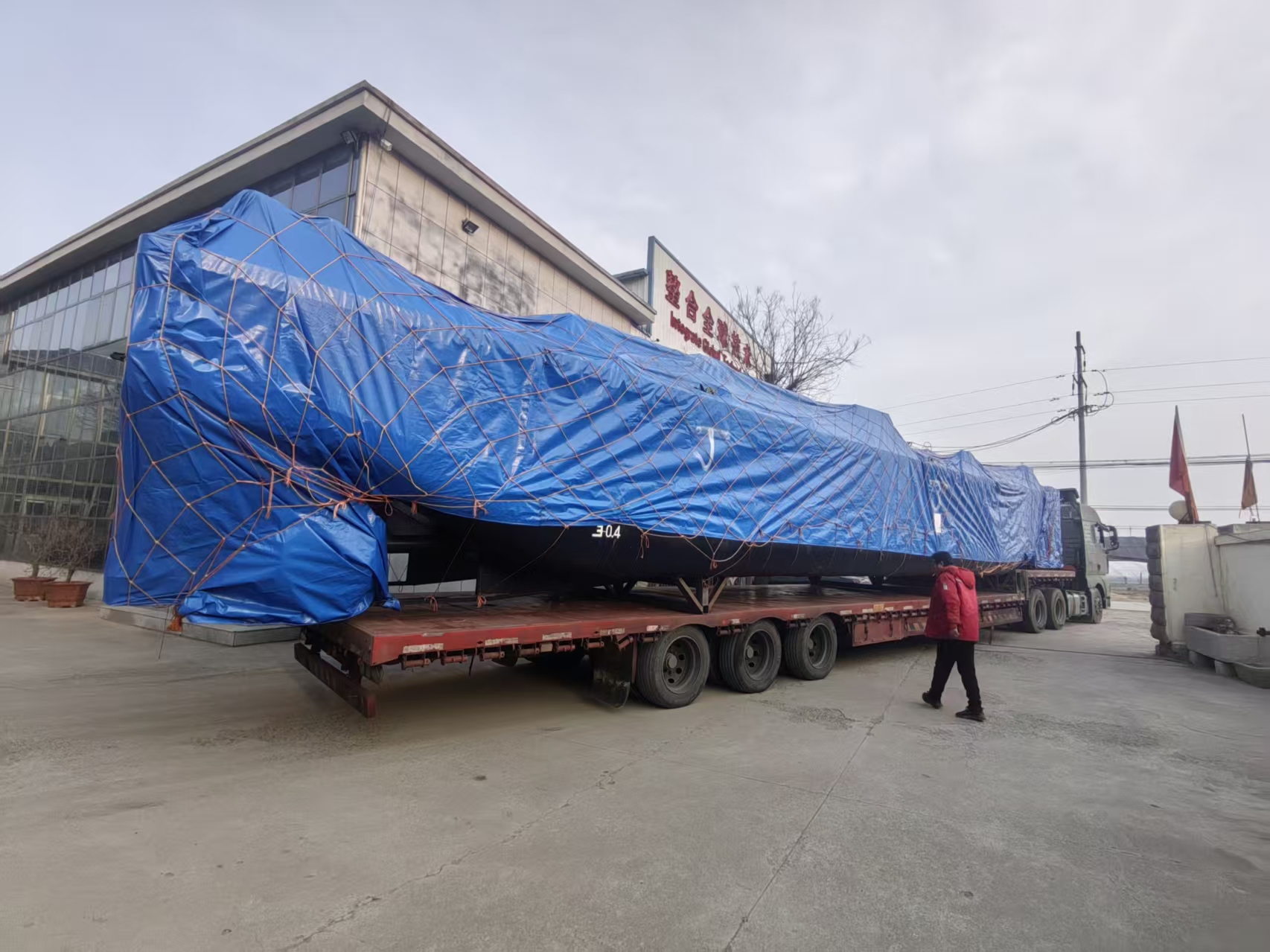

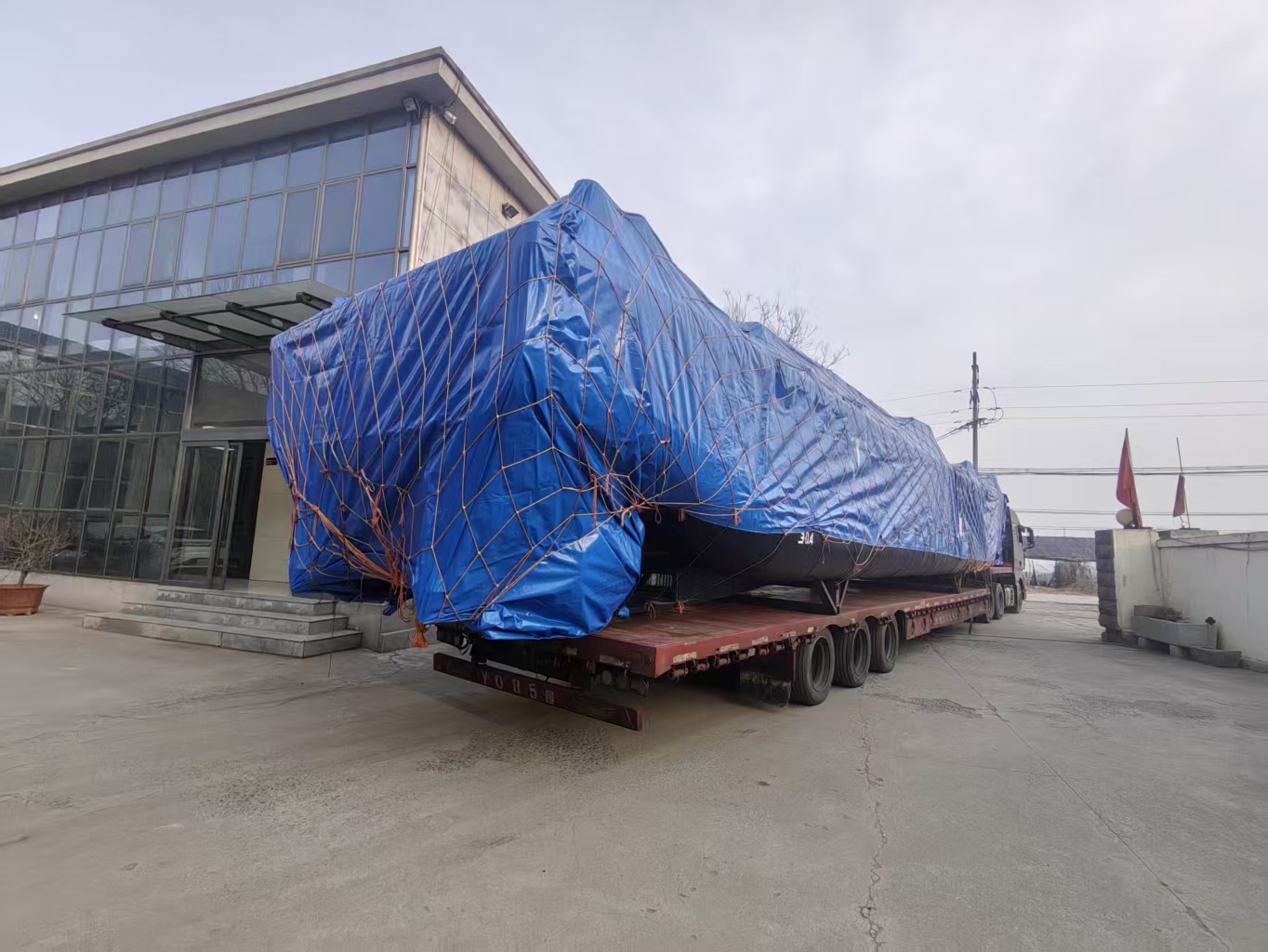

1 set of 2 propellers work boat is transported to the port today
1. Picture Shows
work boat/tug boat/service boat
work boat/tug boat/service boat
work boat price/work boat/tug boat/serivce boat
work boat price/work boat/tug boat/service boat
2.Technical Specification
1.Hull of work boat/tug boat/service boat/ multi-cat boat
Name | Specification |
dimension | 16m×3.6×1.8m |
bottom plate | 6mm |
side plate | 6mm |
deck | 6mm |
draft | 0.8m |
designed transport fuel tank capacity | 10T |
2.Engine of work boat/tug boat/service boat/multi-cat boat
Name | Specification |
Brand | Cummings,China |
Model | NT855-M |
Rated Power | 201KW |
speed | 1800r/min |
cylinder | 6 |
quantity | 2 sets |
fuel consumption per hour | 68L/H |
3.Gearbox
Name | Specification |
origin | Hangzhou,China |
model | FD120 |
ratio | 3:1 |
clutch method | electric control |
quantity | 2台 set |
4.Propeller of work boat/tug boat/serivce boat/multi-cat boat
Name | Specification |
central shaft | Diameter 95mm |
paddle | Diameter 750mm |
max. speed | 533r/min |
quantity | 2 sets |
5.Steering Gear
Name | Specification |
model | YL-200 |
control method | electric control, hydraulic operation |
control voltage | 24V |
quantity | 1 set |
6.Anchor equipment
Name | Specification |
hydraulic crane winch | 4T |
wire cable | 50m（Diameter 18mm） |
quantity | 1 set |
7.Operation and control system
Name | Specification |
model | YL-200 |
operation cabin | 1.6m×1.5m×2.2m |
1.5P A/C | 1 set |
chair | rotating type |
quantity | 1 set |
8.Lighting system
Name | Specification |
front light | 2 pcs |
rear light | 1 pcs |
rotating light | 1 pcs |
signal light | 4 pcs |
lamp in operation cabin | 1 pcs |
light in engine room | 2 pcs |
9.Generator
Name | Specification |
model | 24GF |
power | 15KW |
10.Hydraulic system of work boat/tug boat/service boat/multi-cat boat
Name | Specification |
hydraulic pump | XLYB-E67/97-3525VQ -1-AA |
Hoisting winch valve block | 2 pcs |
3. Application or Function
1) The work boat/tug boat/multi-cat boat/service boat can pull the cutter suction dredger or other ships for long distance transportation in the water. It can supply the navitgation power for those ships without self-propelling capacity.
2) This tug boat/work boat/multi-cat boat/service boat can transport the diesel, daily usage goods and other things from the bank to the working cutter suction dredger.
3）This tug boat/work boat/multi-cat boat/service boat can lift the hdpe pipelines,rubber hose,floater and so on. This increases the efficency of laying pipelines. At the same time, the deck crane on the tug boat/work boat/multi-cat boat/service boat can lift the parts inside the engine pontoon of the cutter suction dredgers. It is convinent for supplying the maintenance job for the cutter suction dredger/dredging ship.
4) if you want to know more about the work boat price,please feel free to contact with us!
