Africa gold dredger introduction
The bucket chain dredger / gold dredger is equipped with drum screens, agitation chutes, fixed chutes, jigs, centrifuges and other equipment to complete the gold selection production line. The chain bucket dredgers produced by our factory can be customized in size according to customer needs, equipped with resting rooms, studios, and other places. According to the customer's budget, complete reasonable configurations and seek maximum benefits for the customer.
This portable gold dredger is chain bucket type dredging equipment, which can complete mining, screening, cleaning, grading and other processes at the same time. Equipped with diesel engine or generator sets, It can finish the work like sand and gravel screening, sand gold wash and so on.
The hot dredger has great ability to adapt to different environment. It is the perfect machinery to dredge the sand the rock for its simple structure and convenience to maintain, especially for the site which is filled with rock and hard soil. And it can also be used in other aspects like salt pond dredging, hard bank exploiting, channel cleaning. The machinery is the non-replaceable choice for sand and rock supplier all over the world for its advantage like reliable function, long working life and lower investment( no need the excavator), good working capacity(500-3000 cbm/day).
Africa gold dredger features
1. Processing Capacity:Dredging capacity 150 cubic meters per hour,fineness of recovery can reach <100 mesh.
2. Feeding Size: < 40 cm
3. Water Consumption: 200 m³/h
4. Overall Dimension: Overall length: 28m Overall width: 6.5m Overall height: 5.9m Displacement: 120 T
5. Delivery time: About 4-5 weeks
Bucket chain dredger / portable gold dredger/ hot dredger parameter
| MODEL | CAPACITY | POWER | WATER CONSUMPTION | DEPTH | RECOVERY |
| YL-100 | 100t/h | 60-100kw | 100-200m³/h | 1-25 | 85-90% |
| YL-150 | 150t/h | 80-150kw | 150-250m³/h | 1-25 | 85-90% |
| YL-200 | 200t/h | 100-200kw | 200-300m³/h | 1-25 | 85-90% |
| YL-250 | 250t/h | 120-250kw | 250-400m³/h | 1-25 | 85-90% |
| YL-300 | 300t/h | 300-500kw | 350-600m³/h | 1-25 | 85-90% |
Hot dredger show

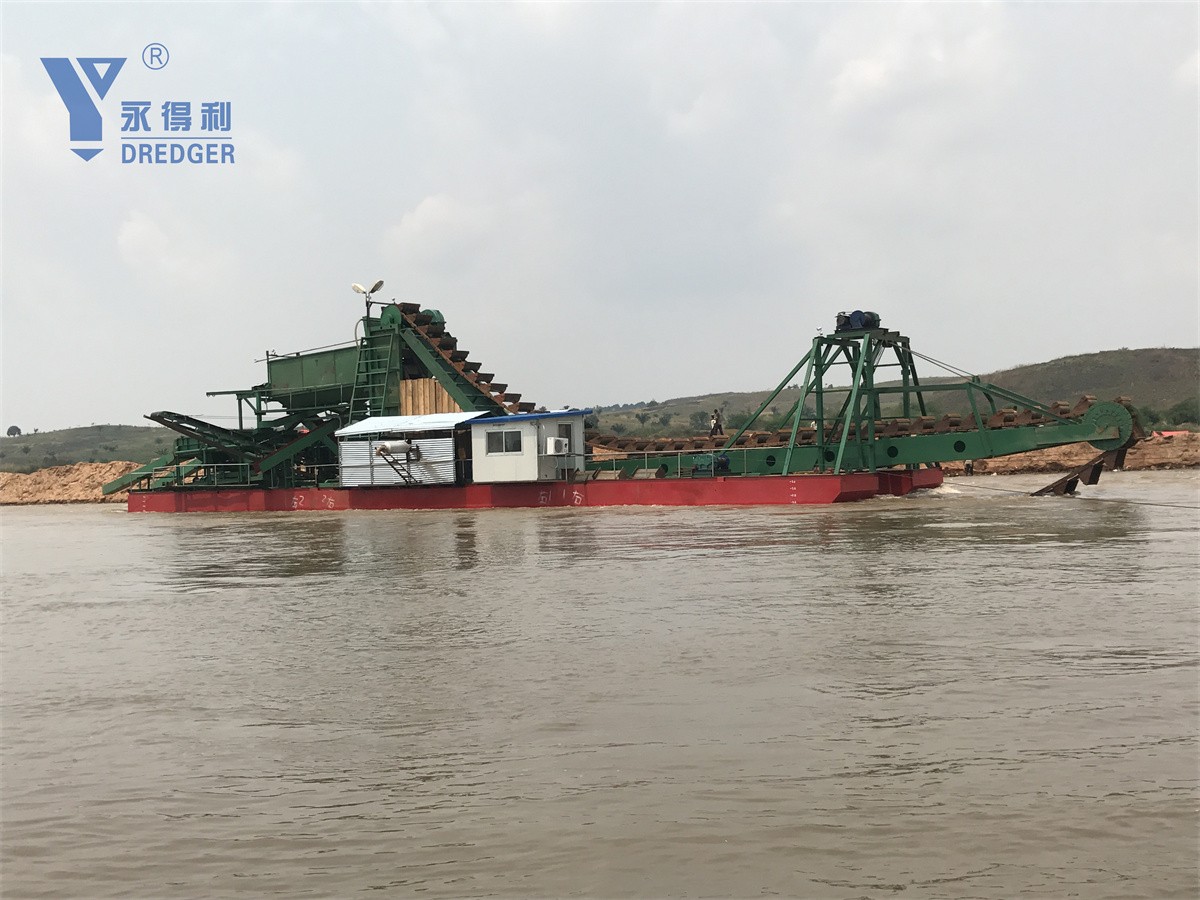

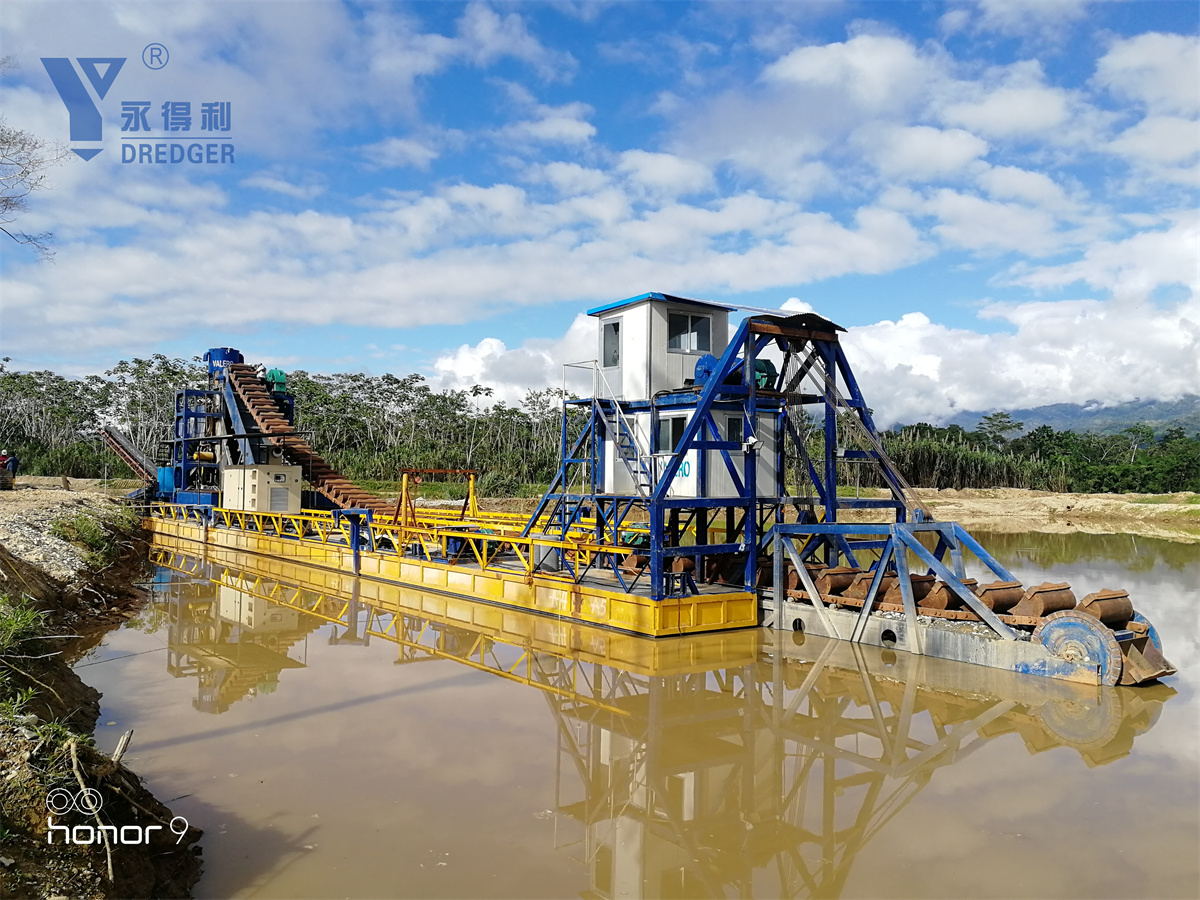

bucket chain dredger
hot dredger

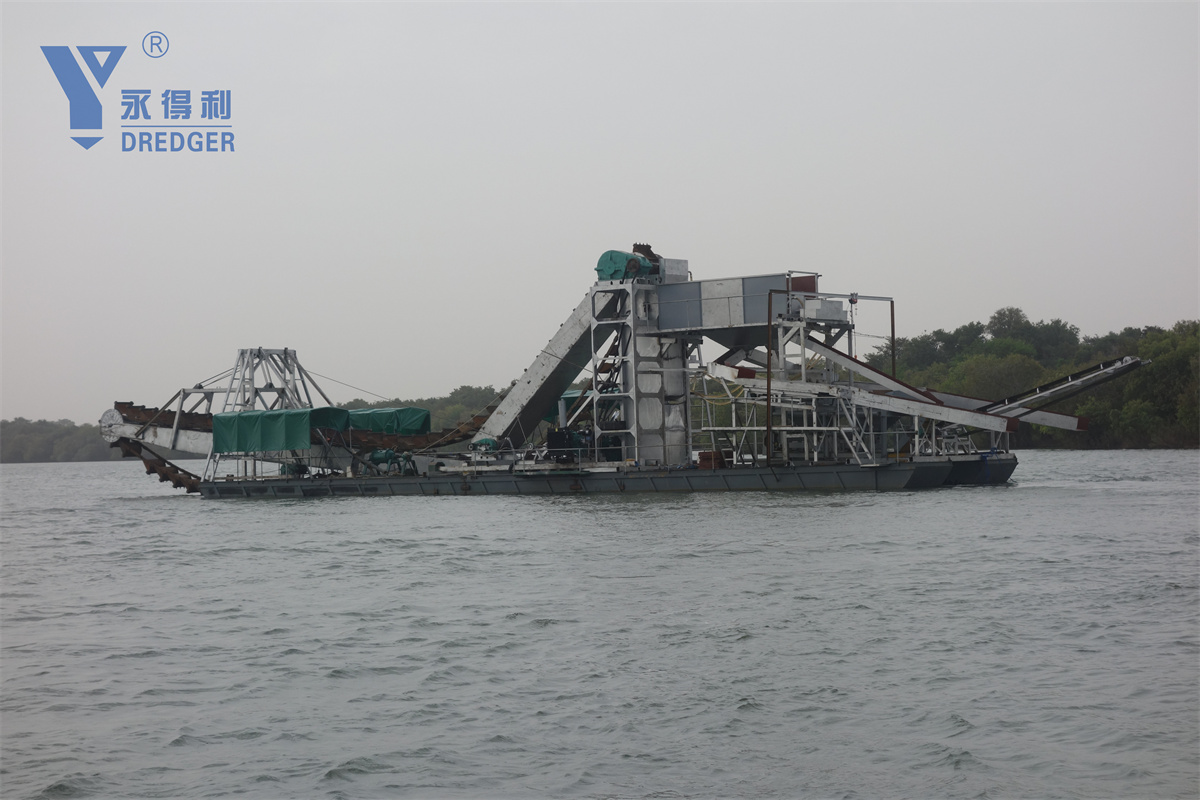

Africa gold dredger

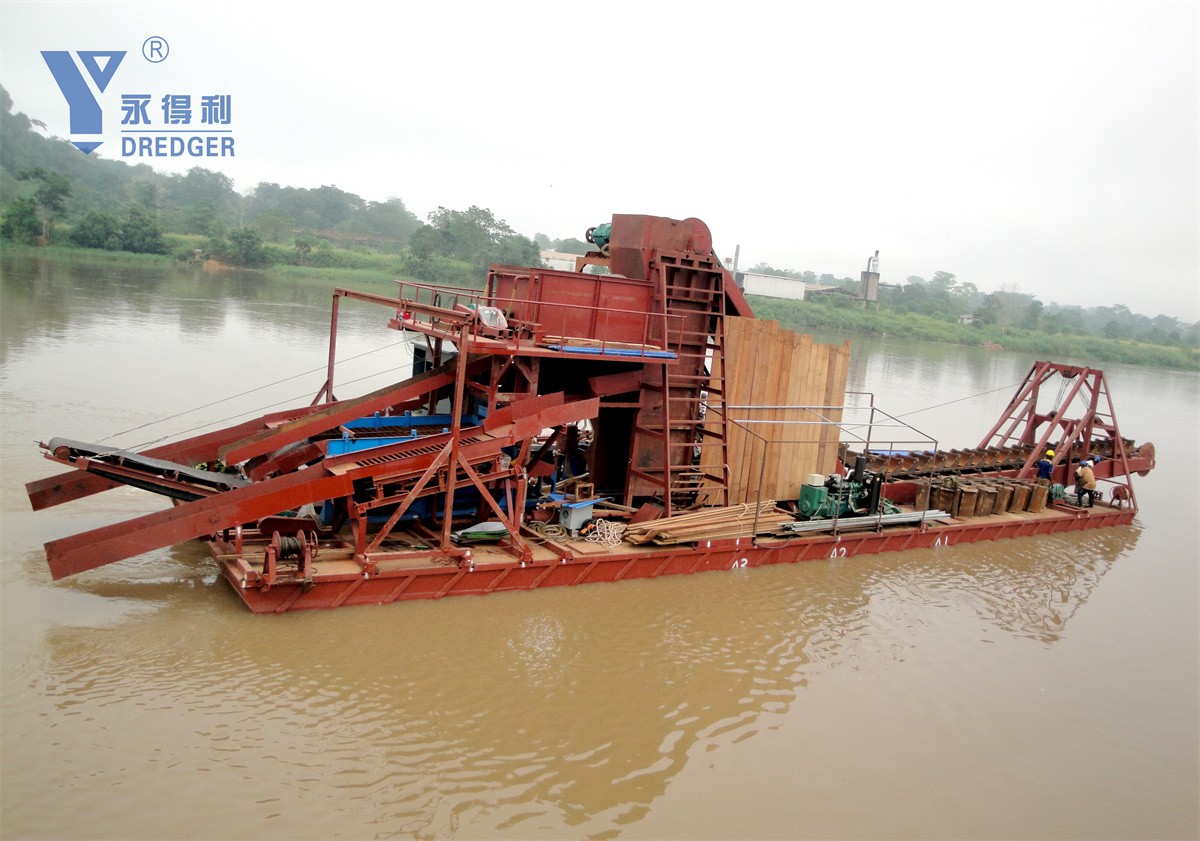

portable gold dredger
Gold dredger factory introduction
Qingzhou Yongli Mining And Dredging Machinery Co., Ltd , is one of China leading company of sand & gold & diamond mining equipments, which has more than 25 years' experience in designing,producing ,manufacturing and selling cutter suction dredgers, jet suction dredgers,bucket chain dredger, diamond/gold dredgers, pulsating sluice box, sand/ gold washing plant, sand washing & screening machinery, transport barge,work boat, amphibious multi-functional dredger and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Russia,South Africa,South, Middle East, India, Kyrgyzstan and other regions.
