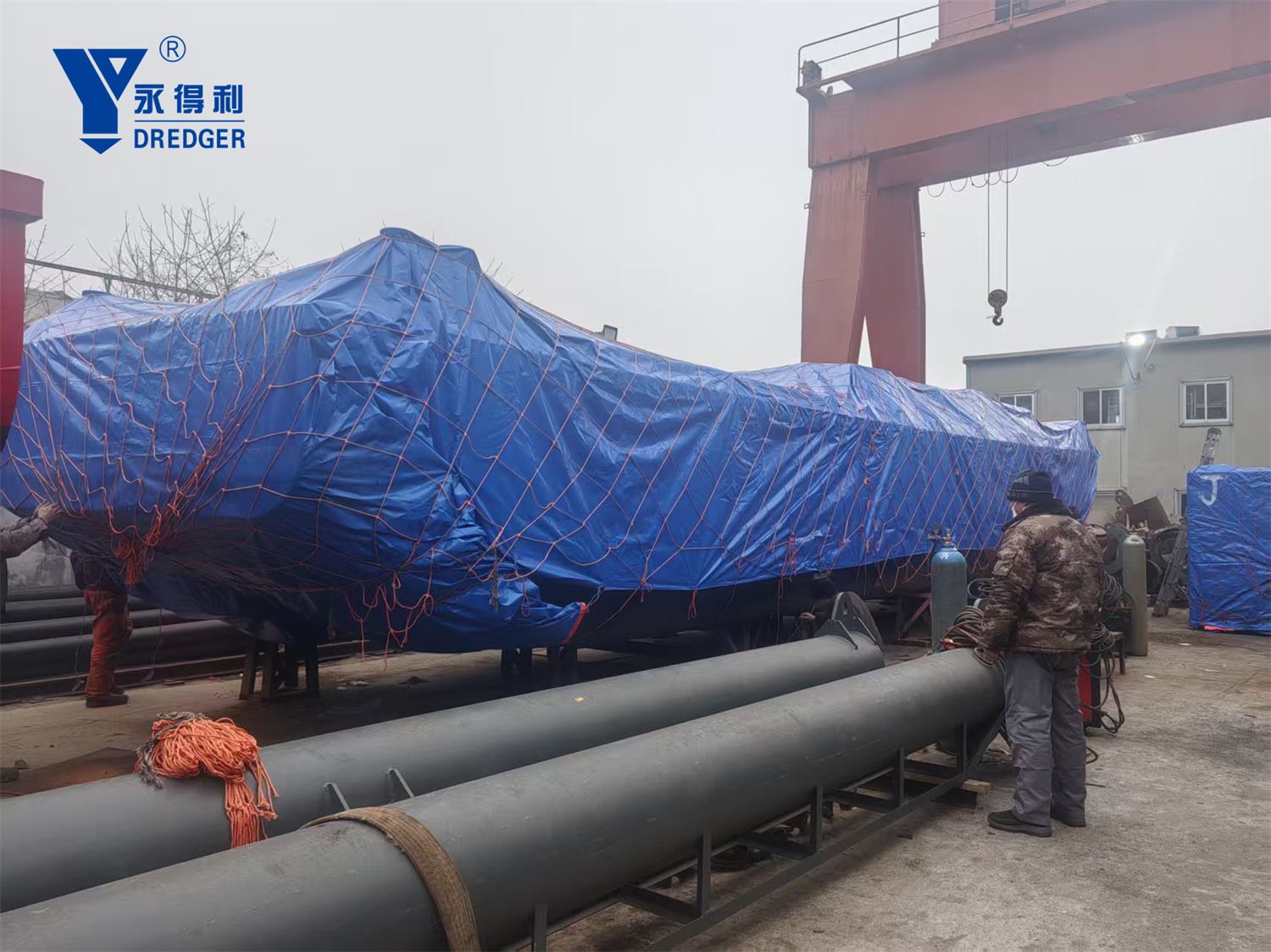

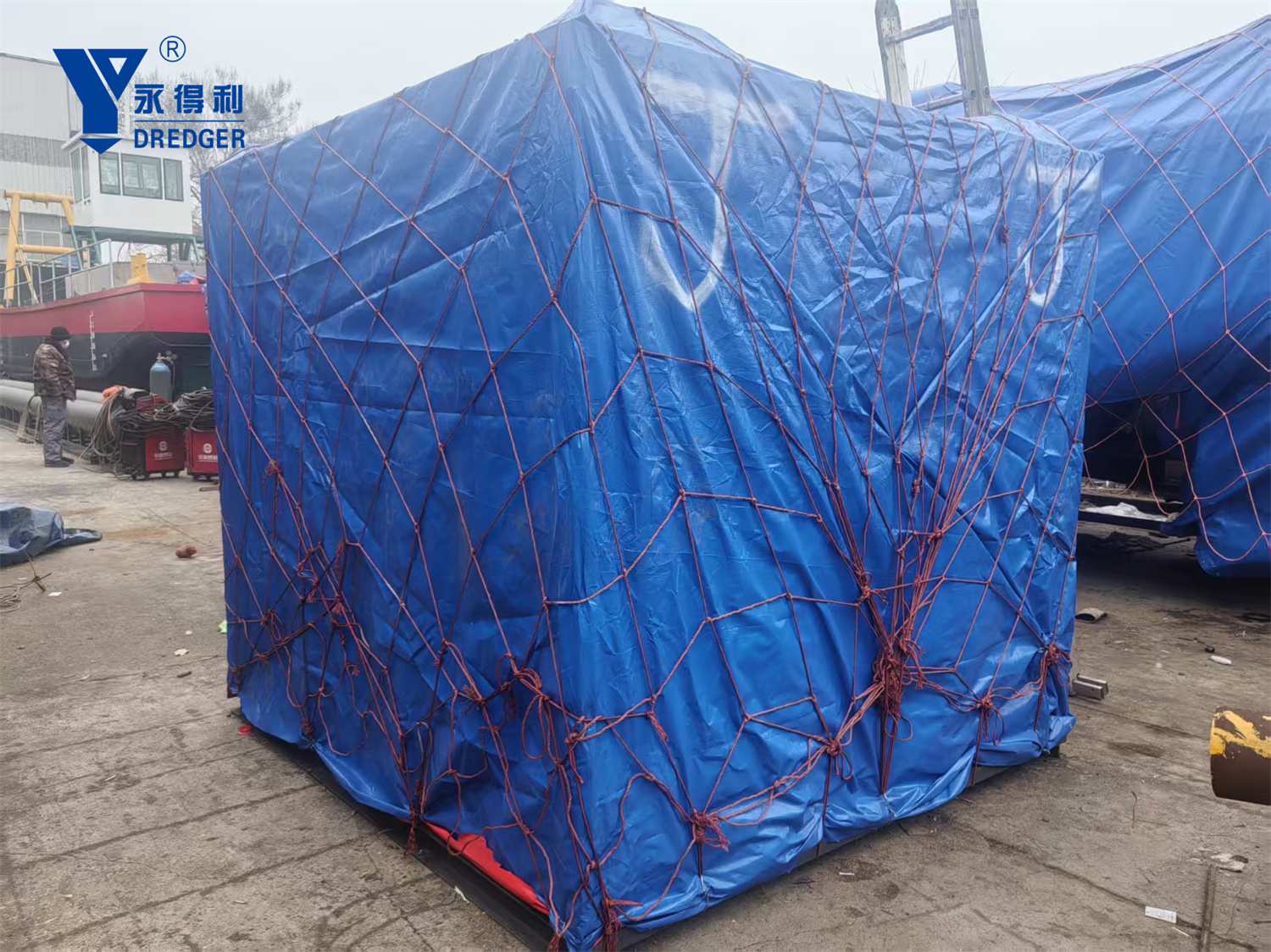

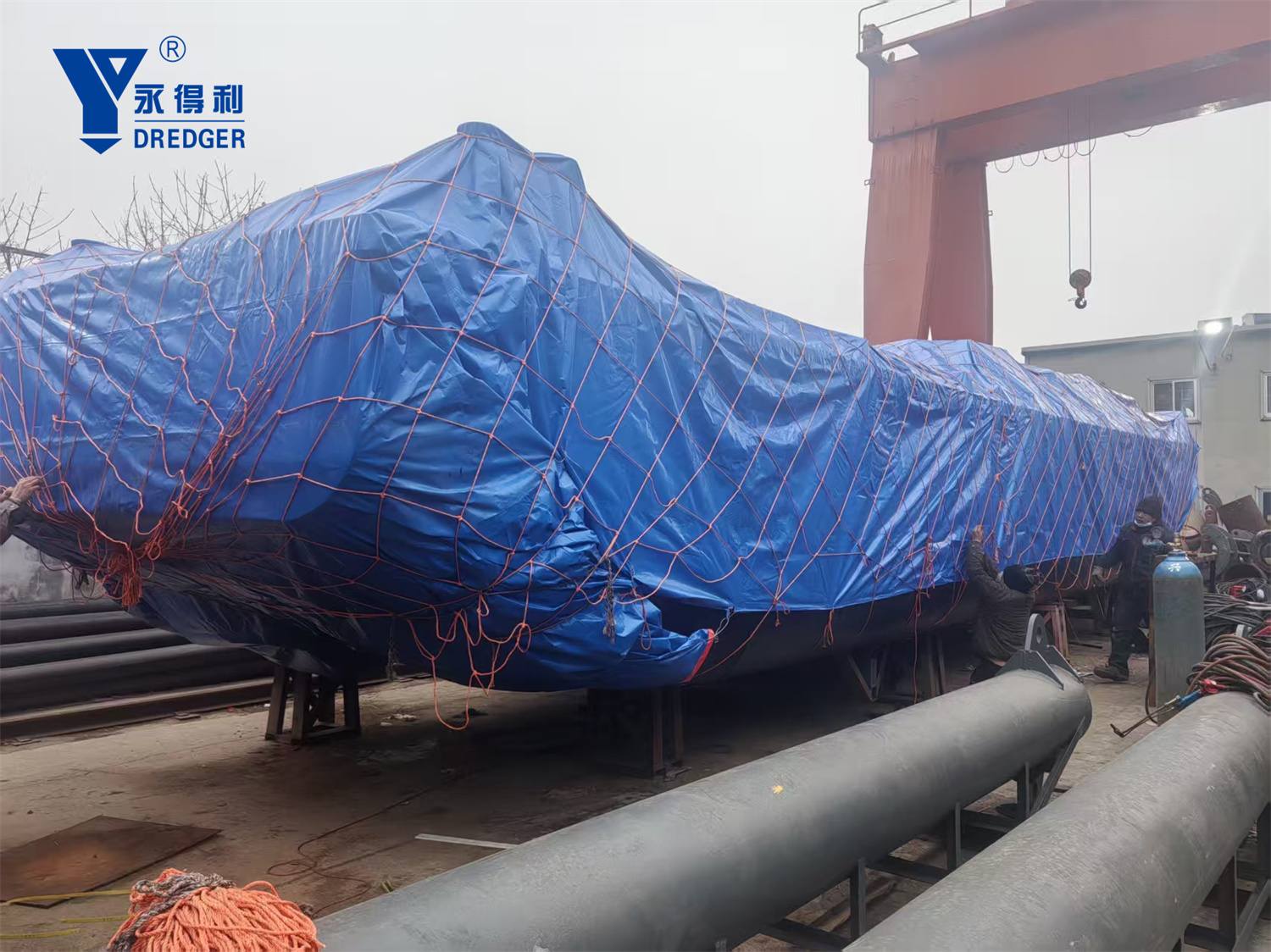

2 propellers work boat is being packaged
1.Technical specification
1.Hull of work boat/tug boat/multicat boat
Name | Specification |
dimension | 16m×3.6×1.8m |
bottom plate thickness | 6mm |
side plate plate thickness | 6mm |
deck plate thickness | 6mm |
designed transport fuel tank capacity | 10T |
2.Engine of China work boat/work boat/tug boat/multicat boat
Name | Specification |
Brand | Cummings,China |
Model | NT855-M |
Rated Power | 201KW |
speed | 1800r/min |
cylinder | 6 |
quantity | 2 sets |
3.Gearbox of China work boat/work boat/tug boat/multicat boat
Name | Specification |
origin | Hangzhou,China |
model | FD345 |
ratio | 3:1 |
clutch method | manual operation |
quantity | 2 sets |
4.Propeller of tug boat/work boat/China work boat/multicat boat
Name | Specification |
central shaft | Diameter 95mm |
paddle | Diameter 800mm |
maximum speed | 600r/min |
quantity | 2 sets |
5.Steering Gear
Name | Specification |
model | YL-200 |
control method | electric control, hydraulic operation |
control voltage | 24V |
quantity | 1 set |
6.Operation and control system
Name | 规格型号 Specification |
model | YL-200 |
operation cabin | 1.6m×1.5m×2.2m |
1.2P A/C | 1 set |
chair | rotating type |
quantity | 1set |
7.Lighting system of tug boat/work boat/China work boat/multicat boat
Name | Specification |
front light | 2 pcs |
rear light | 1 pc |
rotating light | 1 pc |
signal light | 4 pcs |
lamp in operation cabin | 1 pc |
light in engine room | 2 pcs |
8.Diesel generator
Name | 规格型号 Specification |
Brand | Cummings,China |
model | 4BT3.9-G2 |
power | 20KW/380V/220V/50HZ |
9.Hydraulic system of work boat/tug boat/muticat boat/China work boat
Name | Specification |
hydraulic pump | 65、50 type |
Hoisting winch valve block | 2 pcs |
Rotation angle | 360° |
Quantity | 1 set |
2. Request for reply
In order to supply you with one fit model of tug boat/work boat/China work boat/multicat boat,would you please kindly reply me below questions:
1) do you need one propeller or 2 propellers for the tug boat/work boat/China work boat/multicat boat?
2) If you neeed the deck crane for this tug boat/work boat/China work boat/multicat boat?
3) For the engine brand,do you prefer weichai or cummins brand for this tug boat/work boat/China work boat/multicat boat?
Except the tug boat, we can also supply other products such as cutter suction dredger,jet suction dredger,bucket chain dredger,gold and diamond dredger,drilling suciton dredger,amphibious dredger,amphibious excavator,gold washing plant,sand washing plant,backhoe dredger,work boat, transport barge,split hopper barge and so on.
Our company was established in 1997, and we have the export experience of nearly 17 years.
If you want to know more details or work boat price,please feel free to contact with us.

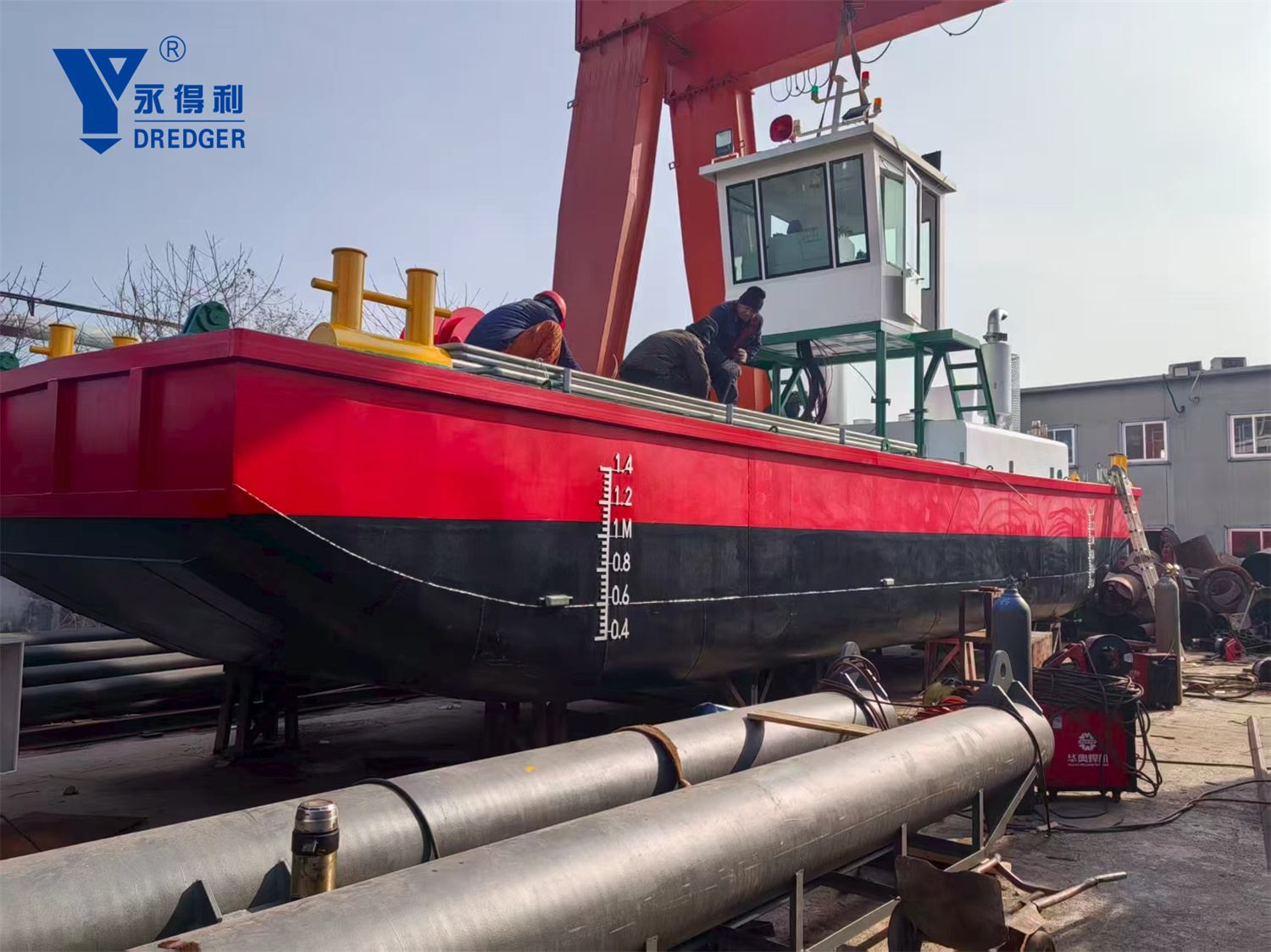

3. Picture Shows
work boat price
work boat price
work boat price
work boat price
