2 sets of 100m3/hour sand washing plant is working in Philippines

2 sets of 100m3/hour sand washing plant is working in Philippines

  In the beginning of 2018, we exported 2 sets of sand washing plant to Dumaguete,Philippines. The sand washing plant deal capacity is 100 m3/hour (150 tons per hour). You can use the wheel loaders, excavator or dumper to feed the raw ore into the hopper. The main parts of the sand washing plant are bottom frame, feeding hopper,convey belt, rotary screen, wheel type sand washing machine, speed reducer, electrical motor ,water pump and so on.

 The total power for the whole sand washing plant is 41KW.  The total water consumption per hour for the plant is 100 cubic meter.

 If you are interested in the sand washing plant/machine,plz feel freet to contact with us .

Below are the pictures that Our enginner took at the local working site in Philippines.

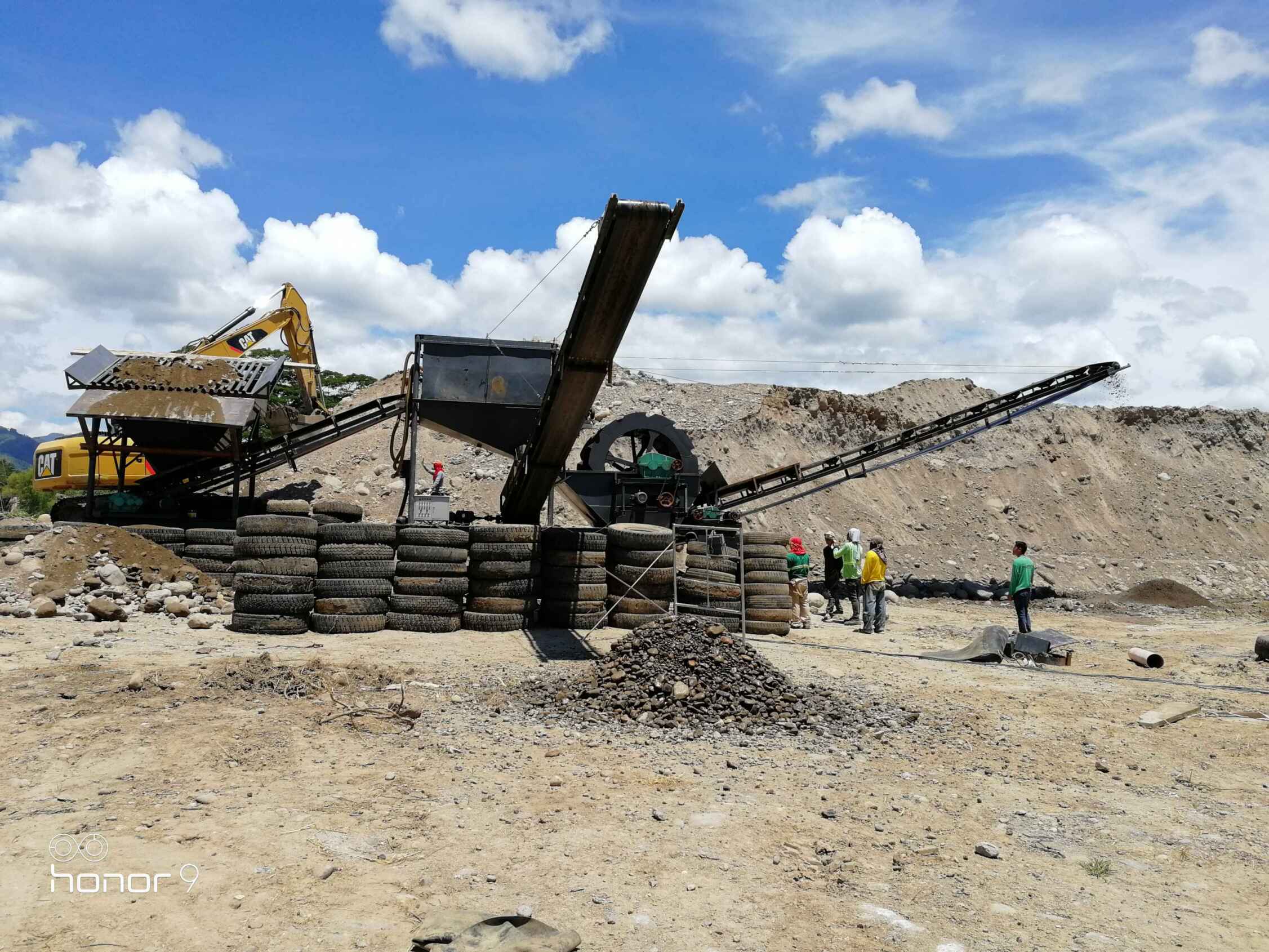

SAND WASHING PLANT IN PHILIPPINES

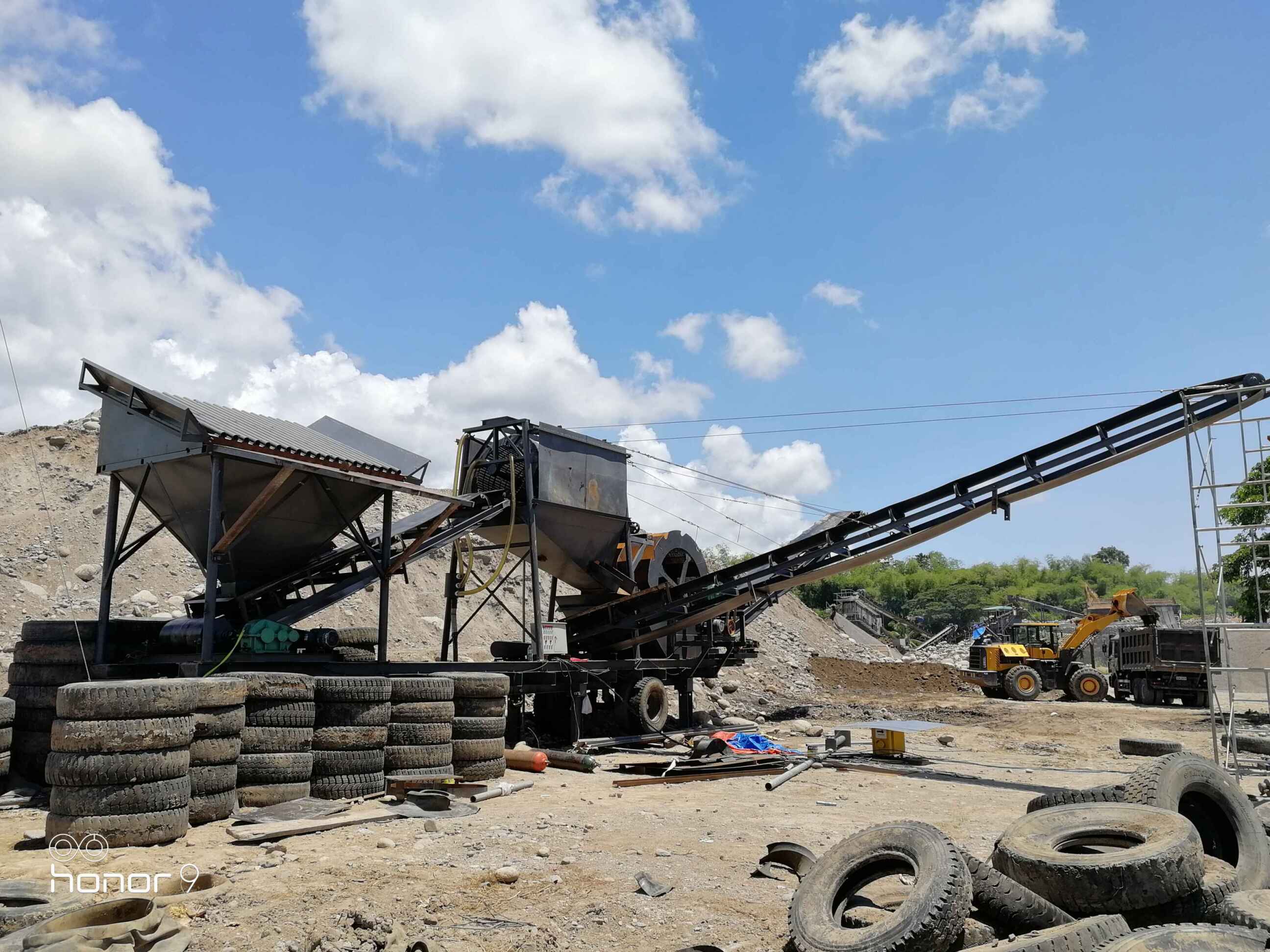

SAND WASHING MACHINE IN PHILIPPINES

1. How many tons per hour or how many cubic meter per hour for this sand washing equipment?

2. What kind of equipment will you use to feed the raw sand mining into our sand washing machinery? By wheel loader or excavator?

3. In the raw sand mining, the percentage ratio of the sand and stone?

4. How big size for the stone in the raw sand mining?

5. What is the local industrial voltage ?

6. If you need the diesel generator, weichao or cummins brand?

Operating a wheel-type sand washing and screening equipment requires proper startup, precise control, and regular maintenance.

The specific steps are as follows:

I. Pre-start Preparation

1. Equipment Inspection: Confirm all parts are intact, with no loose screws and no blockages in the drain holes.

2. Lubrication System: Check the reducer oil level and ensure the V-belt tension is appropriate.

3. Power Supply and Wiring: Confirm the motor power supply is 380V, 50HZ, AC three-phase four-wire system.

II. Operating Procedures

1. Start-up Sequence: First, turn on the water pump, adjust the water flow to a suitable level, and then start the motor.

2. Material Feeding Control: Feed material evenly, avoiding overload or underfeeding.

3. Operation Monitoring: Observe the equipment's operating status, ensuring there is no abnormal noise or vibration.

III. Shutdown and Maintenance

1. Shutdown Procedure: First, stop feeding material, drain any remaining material, and then turn off the motor and water spray valve.

 2. Regular Inspection: Check blade wear monthly and add grease quarterly.

3. Lubrication and Maintenance: Change the gearbox lubricating oil monthly and check bearings every two months.

IV. Precautions

1. Safe Operation: Operation by untrained personnel is strictly prohibited, as is operation under the influence of alcohol.

2. Parts Replacement: Replace worn parts promptly to prevent damage to small components.

3. Environmental Adaptability: Select appropriate lubricating oil and grease according to the temperature.
