50 tons per hour mobile gold washing plant for alluvial sand mining
1. Technical Specification
NO | Name | Parameter | Quantity | Notes |
1 | Bottom base with tyres | Length:17.5m Width:2.50m Height:3.5m | 1 set | 8 tyres |
2 | Feeding Hopper | Length2.5m x width2.2m | 1 pc | Plate thickness 8mm |
3 | Screen on the top of feeding hopper | Length2.5m x width 2.2m | 1 pcs | spacing：15cm vibrating electrical motor ：0.25kw vibrating force ：5kn
|
4 | Cutter Trommel classifying screen | Tromme Length :3.5m, diameter1.4m Classifying screen Length :1.4m,diameter1.8m Electric motor: 15kw Speed reducer: ZQ500 | 1 pcs | Inner screen hole 25mm， Outer screen hole 6mm |
5 | steel sluice for the stones | Length 4.0m Width 0.6m
| 1 set | This sluice will be used for discharging the waste stones. |
6 | Pulsating sluice box | Length 5.8m Width 1.5m height:0.8m Electric motor: 3kw Speed reducer: ZQ250 | 1 set |
|
7 | Fixed sluice box | Length5.0m Width 1.5m
| 1 set | Covered with gold catching grass and gold catching carpet |
8 | Water supply pump | IS100-125-315C Electric motor: 18.5kw | 1 set | Head 50m，100m³/h |
9 | Submersible pump for cleaning the table of pulsating slucie box | 3kw | 1set | Flow 20m³/h |
10 | Electrical operate system |
| 1set |
|
11 | Electrical Cable |
| 1set |
|
12 | Water distributor |
| 1 pcs |
|
13 | Inner Water pipe |
| 1set |
|
14 | Generator | 50kw | 1 set |
|
15 | Total power | 39.5kw | ||
16 | Total water consumption | 120m³/h | ||
17 | Package | 2 pcs x40 feet HQ container | ||
2. Picture Shows of gold washing plant

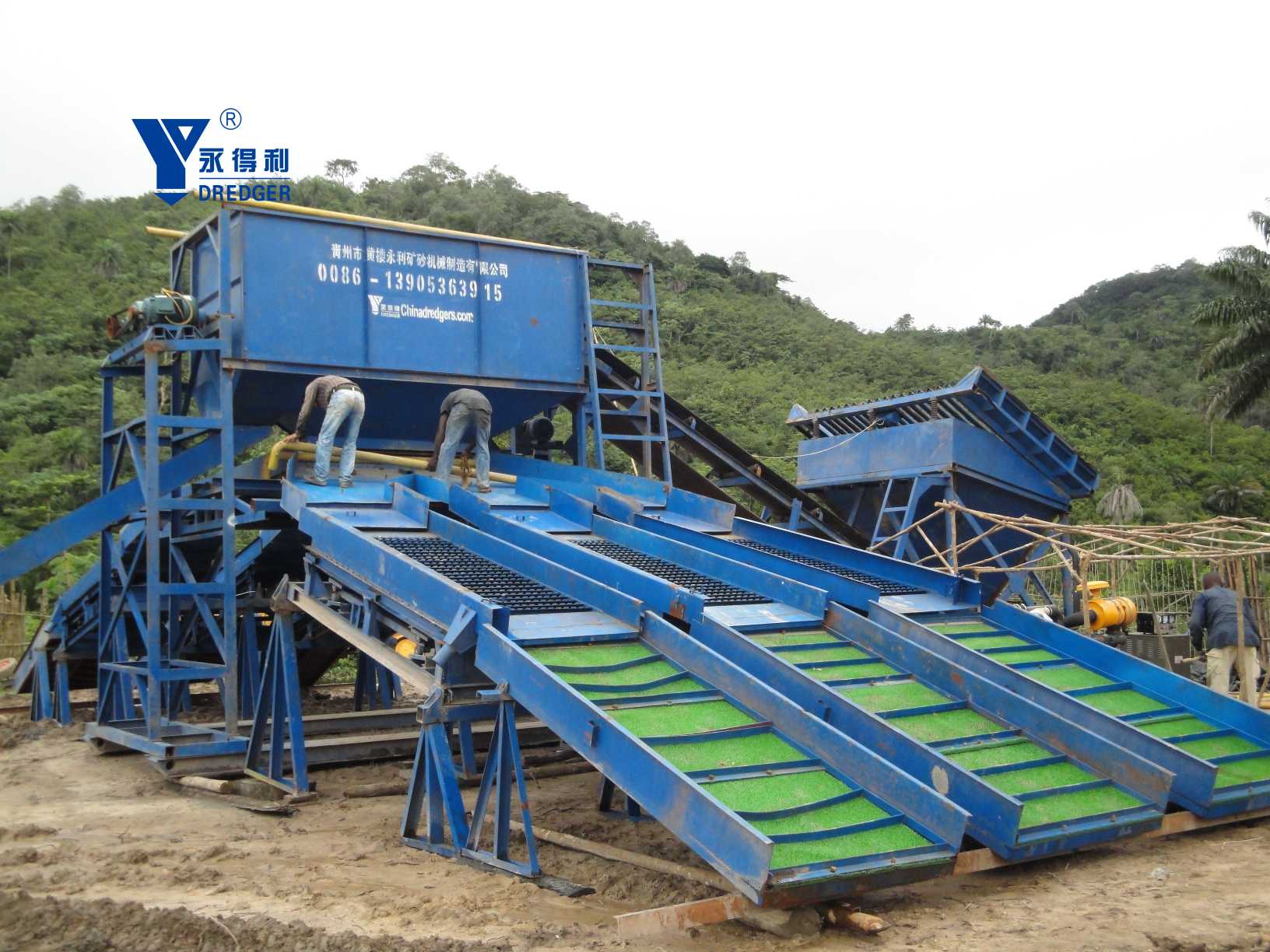

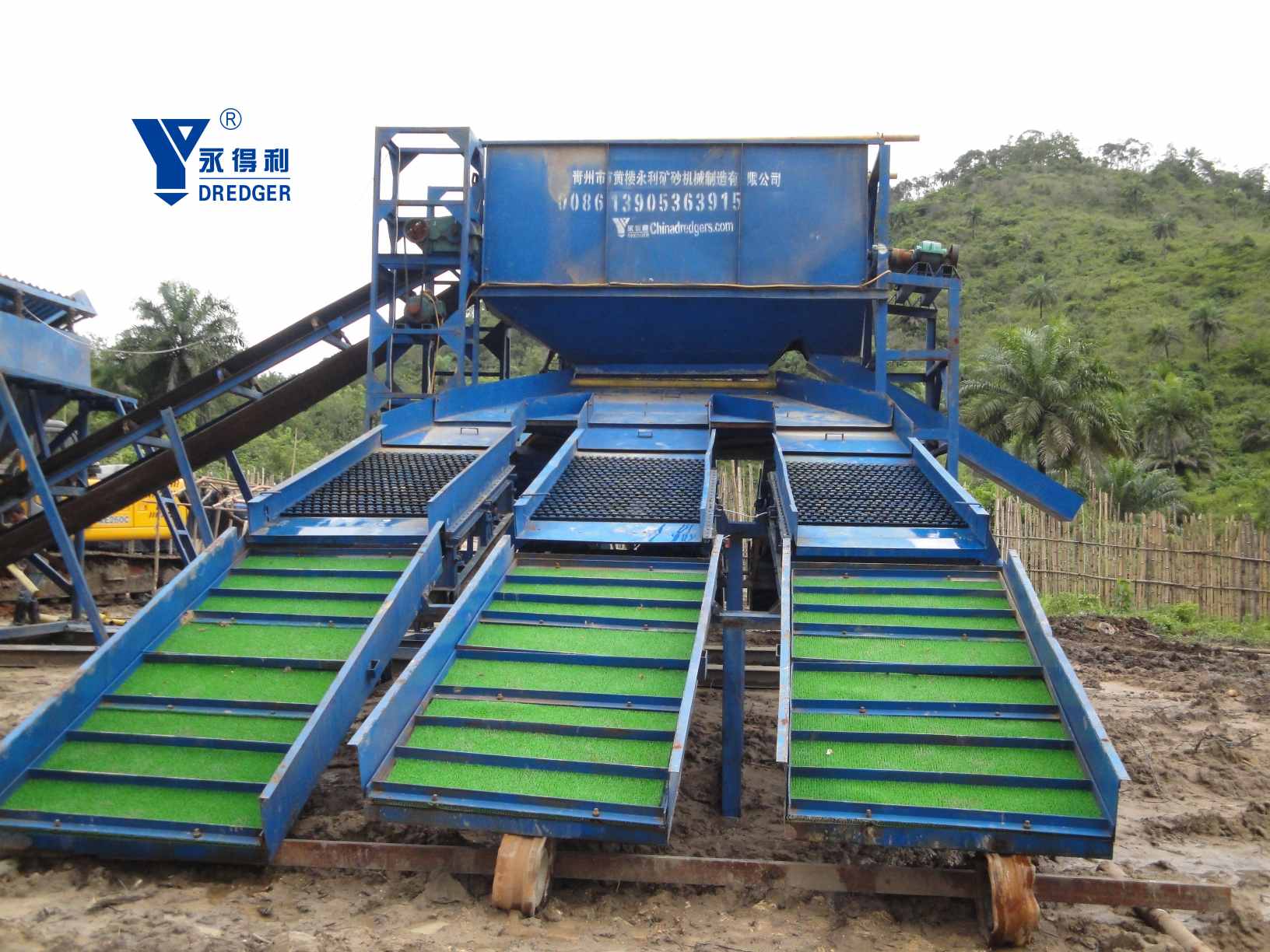

gold washing plant
gold washing plant for sale
gold washing plant price

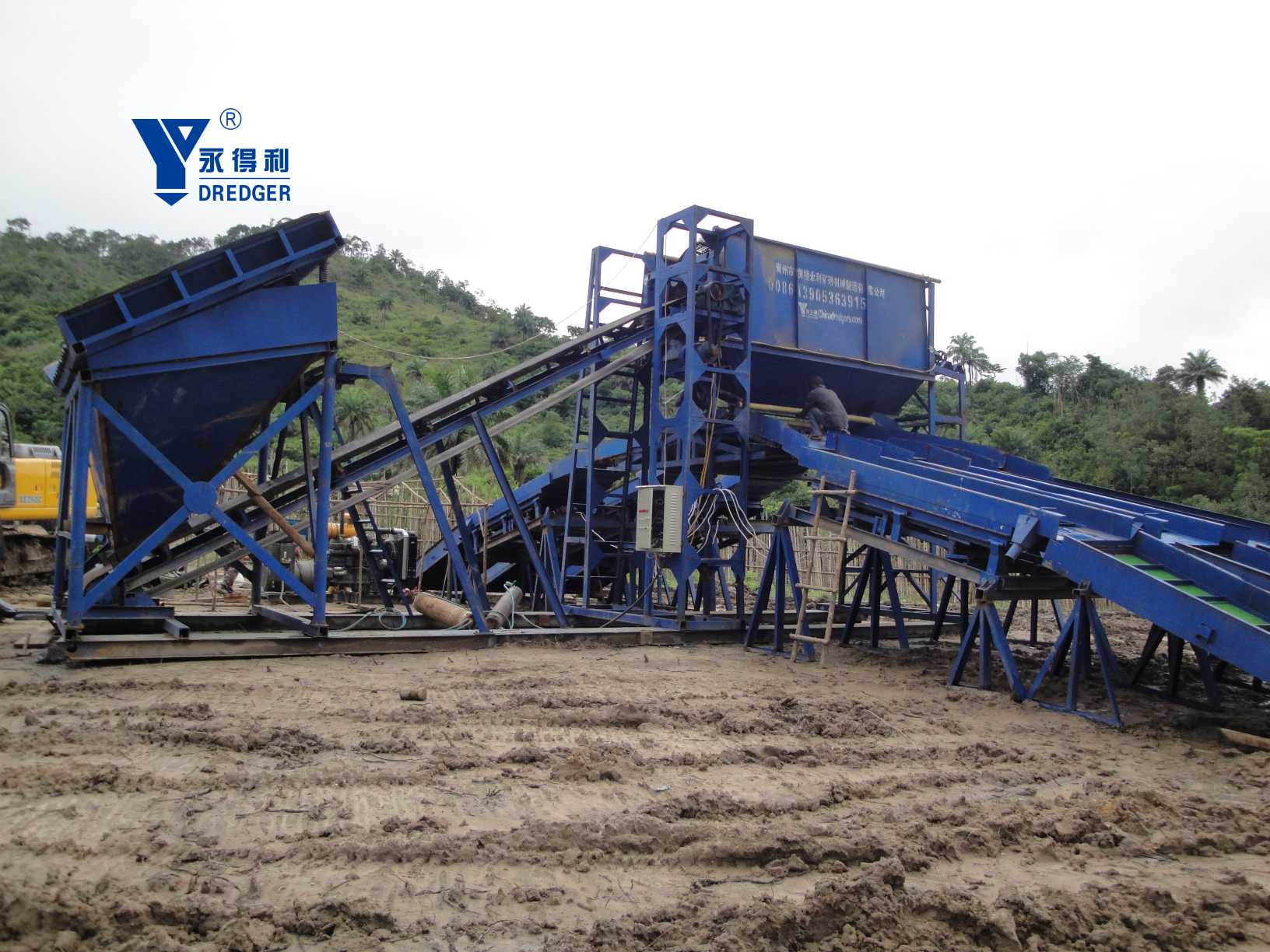

mobile gold washing plant
3.Request for reply about how to choose the gold washing plant
1) How many tons per hour for your deal capacity ?
2) In your raw mining area,the sand,stone and sand percentage ratio? if there are gold particle in the mud, we need to design the cutte teeth drum to break the mud and release the gold particle.
3)How big size for the gold particle in the raw mining?
4) for the diesel generator of this mobile gold washing plant,will you choose weichai or cummmins brand for this mobile gold washing plant?
5) If you could supply some pictures or videos of your raw mining?
4. Our services for this mobile gold washing plant
1) Our team will desgin,produce and manufacture the gold washing plant based on the detailed requirements of the customers.
2) we will send our engineers to help the customers with the installation,trail operation and training the local worker how to operate the mobile gold washing plant.
3) We can supply long terms after sales services.
