Bucket Chain Gold Dredger Are Just Finished Installing

Bucket Chain Gold Dredger Are Just Finished Installing

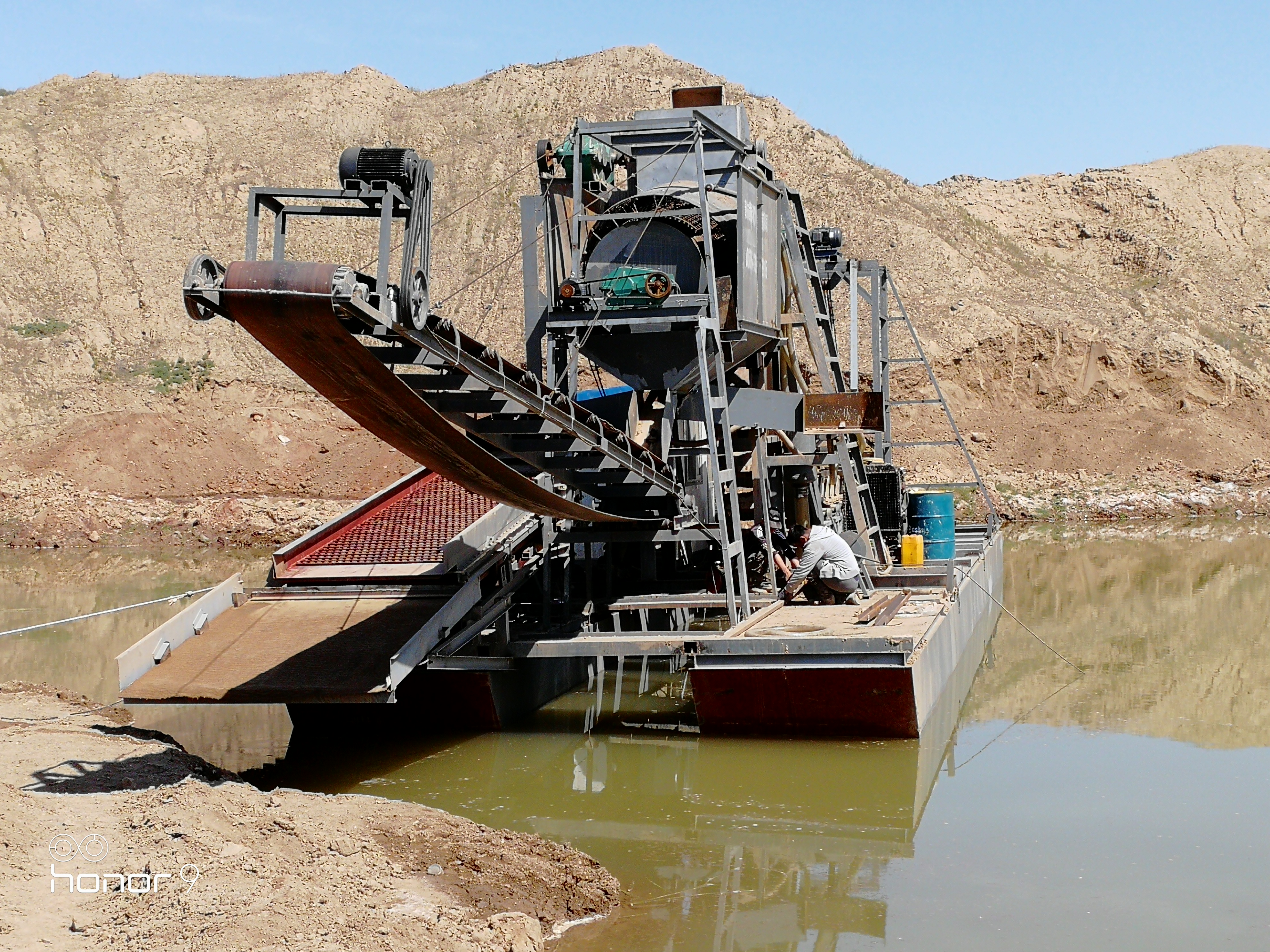

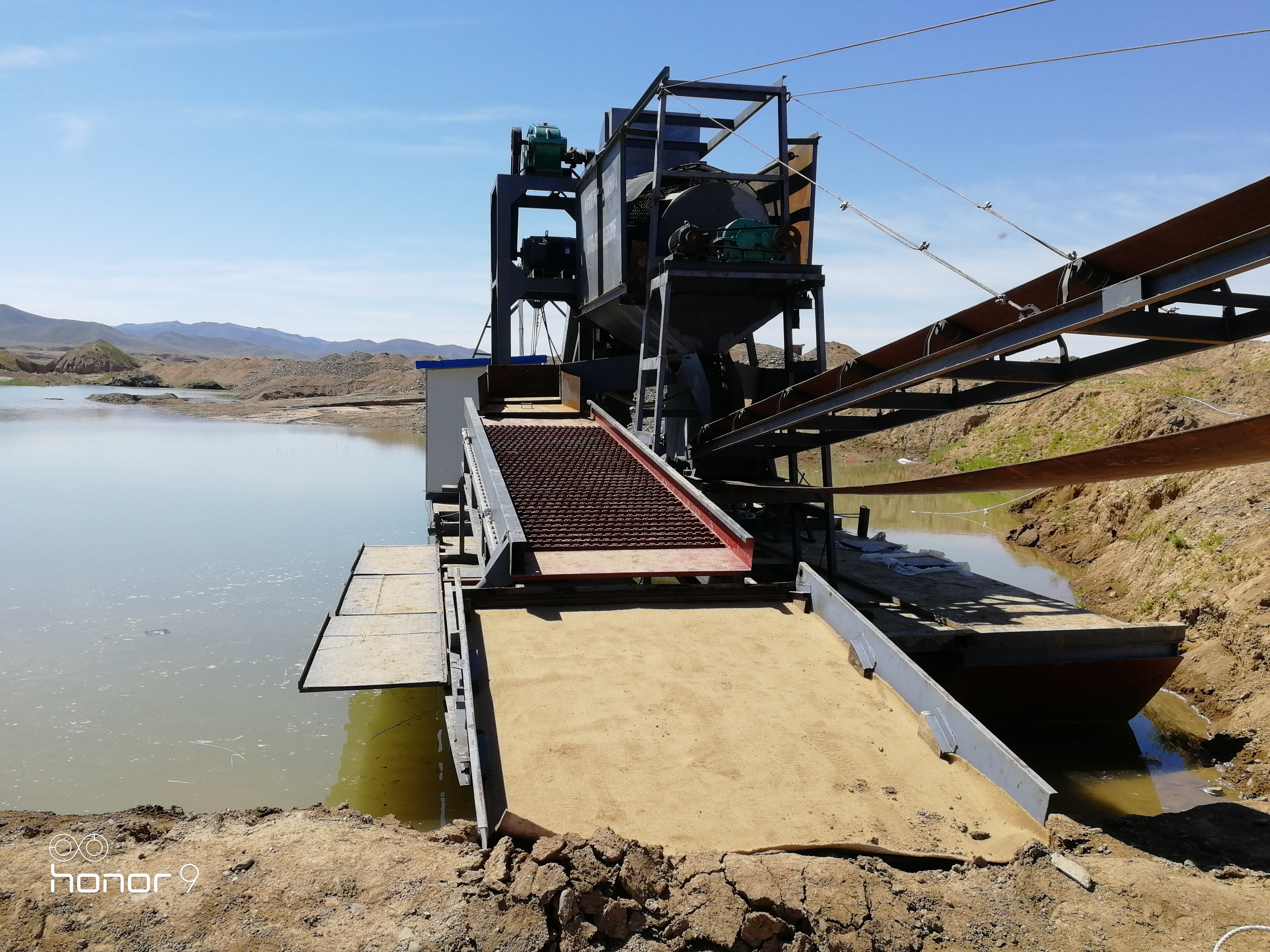

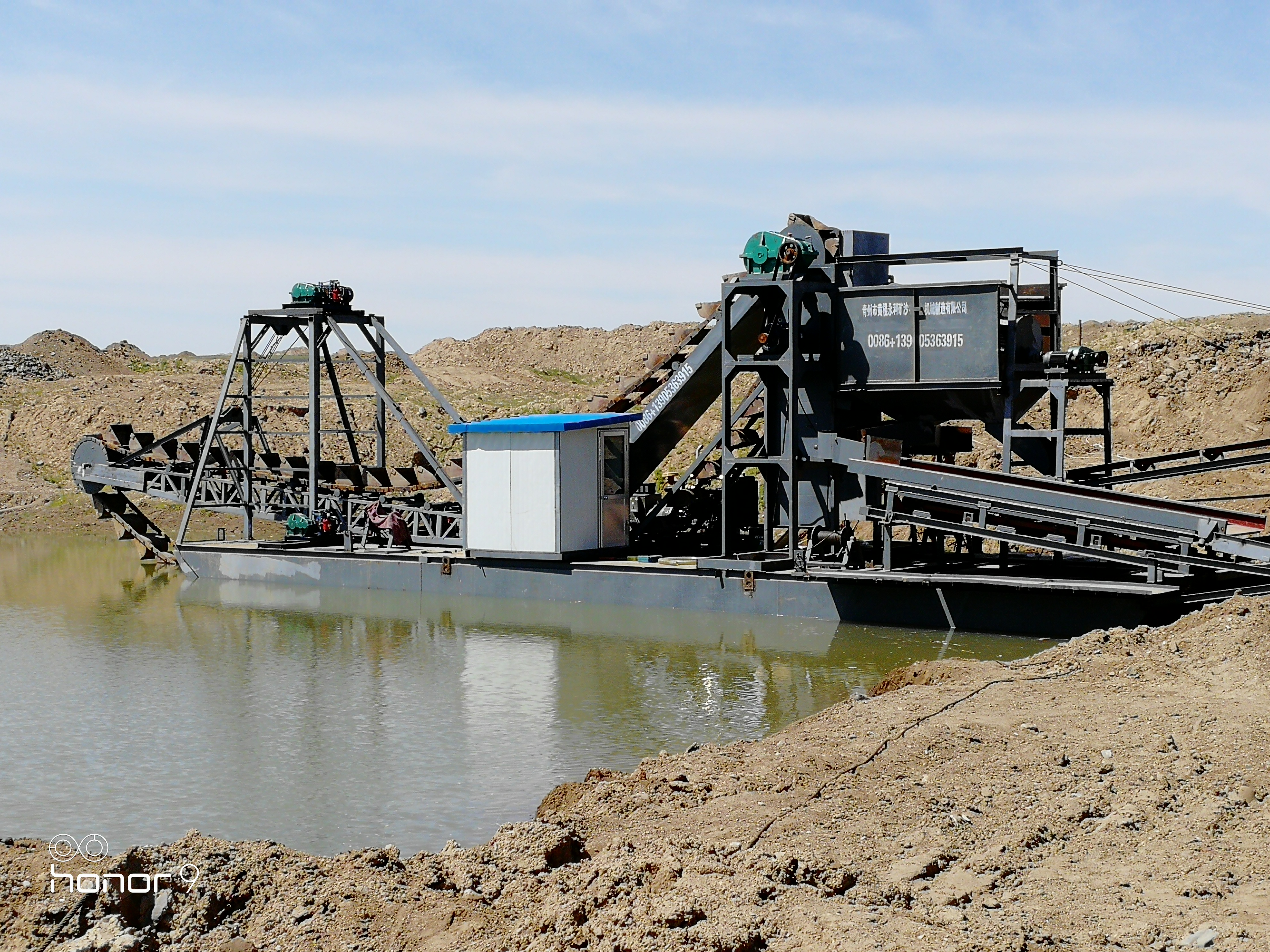

   This bucket chain gold dredger are just being finished installation in Mongolia. Its performance is like this: sand capacity:60 tons per hour,dredge depth:8m. Total engine power for the whole dredger is 72.5kw. The 2 sets of pulsating sluice box play the main role of panning gold. This dredger is mainly designed  for alluvial gold mining. The recovery percentage of the pulsating sluice box and fixed sluice box can reach 90 to 95%. With the help of the pulsating sluice box, this gold dredging vessel can recovery the gold particle size which is from 0.074mm to 8mm. The deal capacity of the pulsating sluice box is 40 to 45 tons per hour. Its electrical motor power is 3kw.

If you are interested in it or want to know the price of our bucket chain gold dredging ship, Please feel free to contact with us.

  In order to supply you with one fit model of gold  dredging ship/vessel/boat, Wish you could kindly reply below questions:

1. How many cubic meter ( tons) of sand do you want to deal with per hour?

   2. How many meters for your dredge depth for this gold dredging equipment?

   3. The percentage of  sand & pebbles& mud?

   4. The gold grain size in the raw mining ?

   5. For the diesel generator of this gold dredging machinery,do you prefer weichai or cummins brand?

We could supply you with one fitttest product solution based on your replies.

Bucket chain gold dredger

Gold dredging ship

Gold dredging vessel

Mongolia's placer gold deposits are mainly distributed along its northern border, in the western basin bordering China, and in regions such as the Altai, Khövsgöl, and southern Mongolia. Specifically:

The North Khentii placer gold belt is the most important distribution area, including the Zaamar and YorooGol mining areas, with gold-bearing layers primarily located in alluvial gravel layers.

The Bayankhongor placer gold belt also has large-scale deposits, such as the Jargalant deposit group.

The Hangayn gold belt is located in the west, including the UlynGol and Urd Tamir catchment basins, with placer gold deposits occurring in the upstream areas of Zun Sodoiyn Am and Sharhad.

These deposits are mostly associated with rivers, riverbeds, and alluvial plains, with gold grains hosted in gravel layers.

II. Influencing Factors

Geological Characteristics: Gold mineralization is associated with copper, molybdenum, and other mineralizations. Placer gold deposits are mainly hosted in terrigenous clastic sandstones, schists, and Permian terrigenous clastic rocks and volcanic sedimentary rocks.

Deposit Types: Vein deposits (such as Narantolgoi and Bumbat) have high gold grades (5.7-746 g/t), while mineralized zone deposits (such as the Boroo deposit) have gold grades of 0.1-30 g/t.
