Bucket chain dredger / gold recovery equipment introduction
The bucket chain dredger / diamond washing equipment / bucket sand dredger / gold washing plant could be divided into bucket type and pump suction type.Bucket type dredger is applied for waterways with high percentage of clay and gravels,while pump suction type can only be used for terrains with low percentage of clay and gravel.
Iron ore needs to be retrieved firstly by magnetic separator if the percentage is high in the raw ore,then gold,diamond,zirconium will be concentrated.
The key part for the gold washing plant/bucket sand dredger is pulsating jigger.The deal capacity decides the quantity of jigger.We learn the jigger's technology from one engineer of South Africa.Now the diamond dredger is widely used in Africa.
Product features
Bucket chain dredger / gold recovery equipment / diamond washing equipment / bucket sand dredger / gold washing plant is used for river gold , diamond , tin and sand iron powder so on . The bucket chain gold dredger use the buckets, driven by guide wheels on continuous rotation on the bucket bridge. sand .mud and stone so on are digged by the bucket with chain from the water above .Bucket rotates around the underwater dredging wheel, scooping up the solid in the riverbed. then into the separating system, solids larger than 10 mm will go into the tail-box, tailing discharged to place far away from gold dredger. Less than 10 mm of material from the flow channel into the Gold Sands separation system, based on the difference between the relative density of sand and gold, gold will fall into the bottom since of the high density,sand and other material will float on the surface,and discharged to the tail system by water.
Parameters
Cases

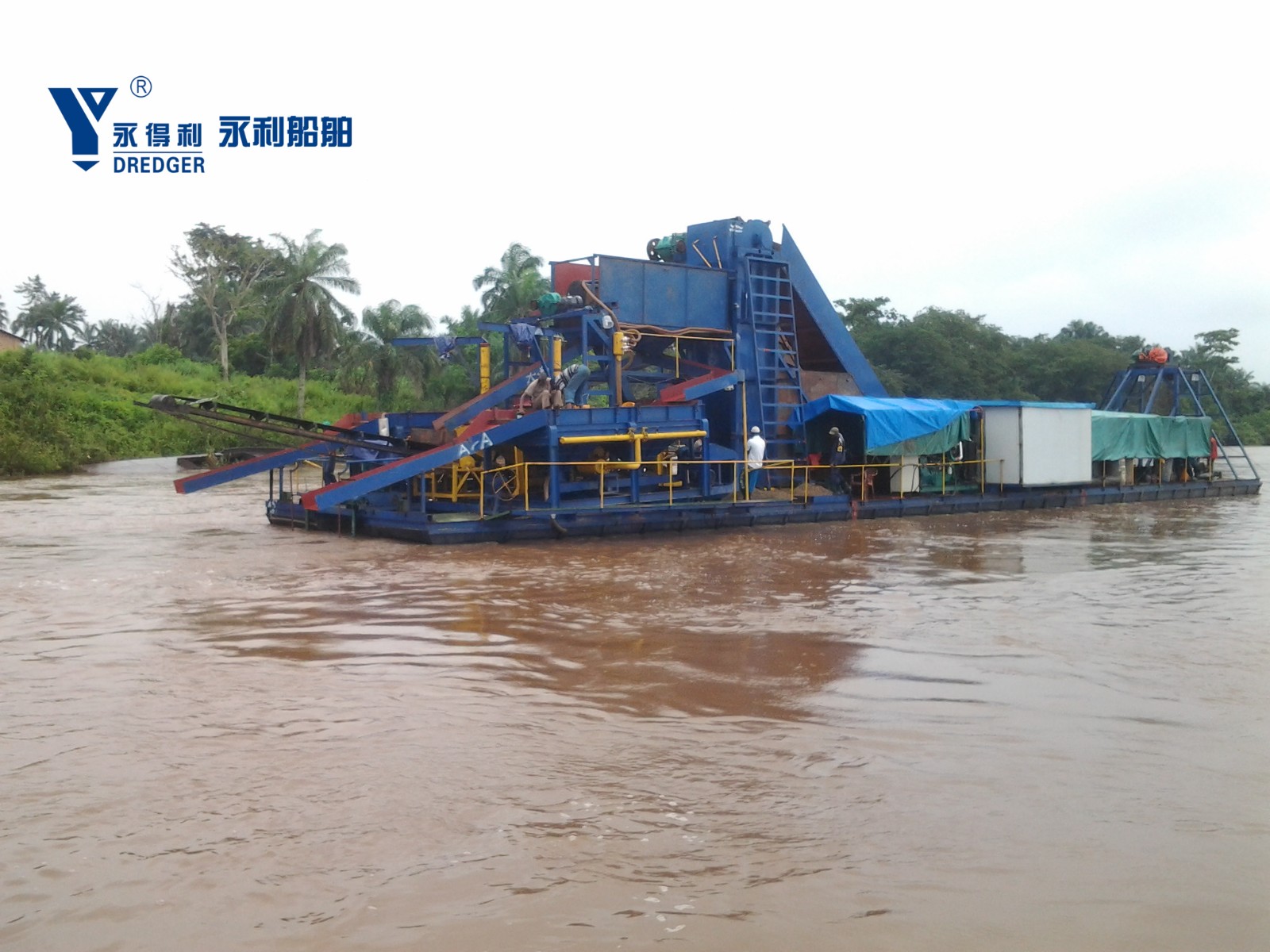

bucket chain dredger

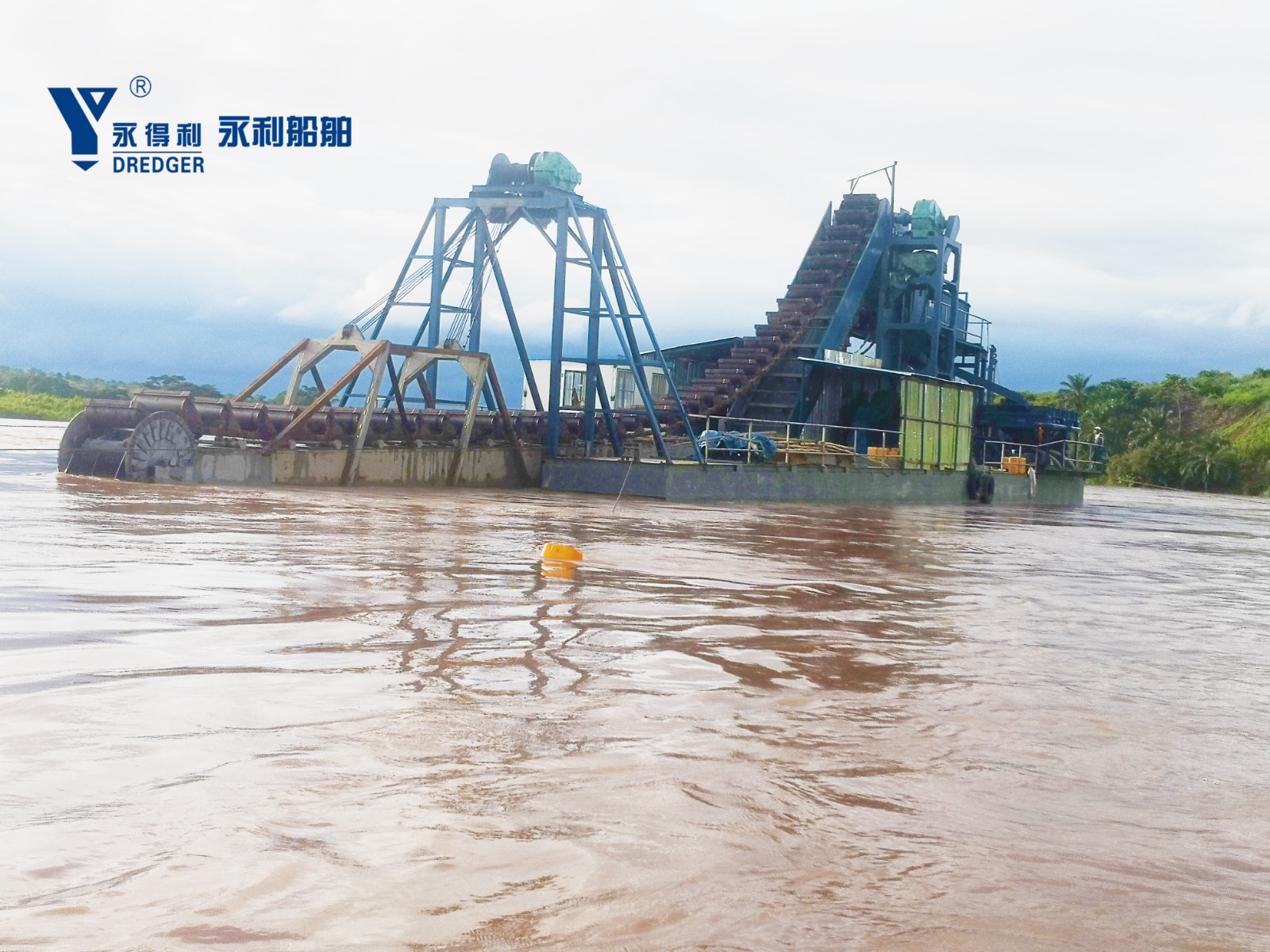

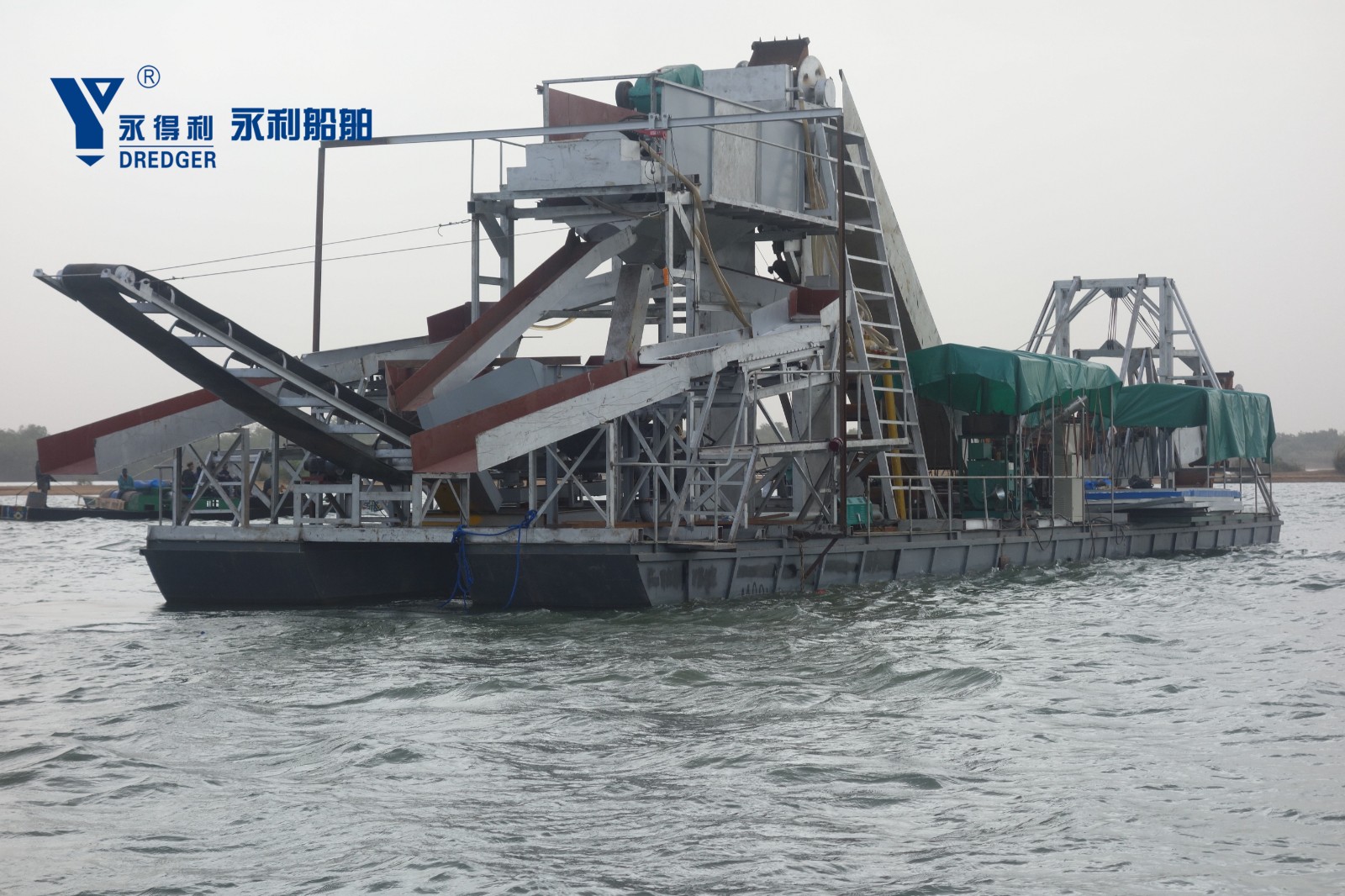

gold recovery equipment

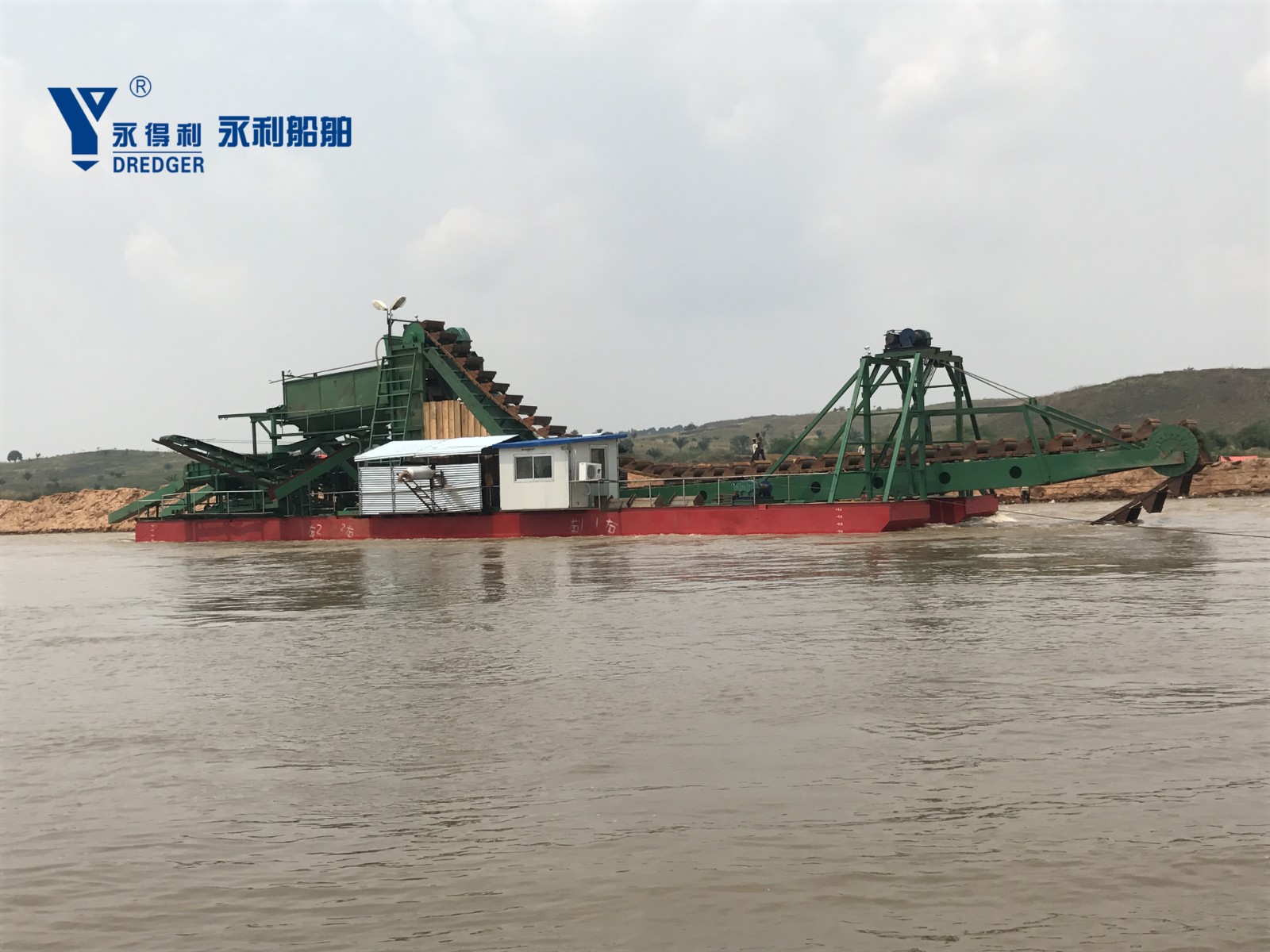

diamond washing equipment
gold washing plant
What we need to know
1.How many cubic meter( tons) per hour for the deal capacity?
2.How many meters for the dredging depth?
3.In the dredging raw mining,the sand ,stone,clay percentage ratio?
4.If there are gold in the clay, we need to design the cutter teeth drum.if there isn’t gold in the clay,we will not design the cutter teeth drum.
5.How big size for the gold particle in the raw mining?
6.For the diesel generator, do you prefer weichai or cummins brand?
7.Can you supply some pictures or videos of your mining area?
