News of cutter suction dredger

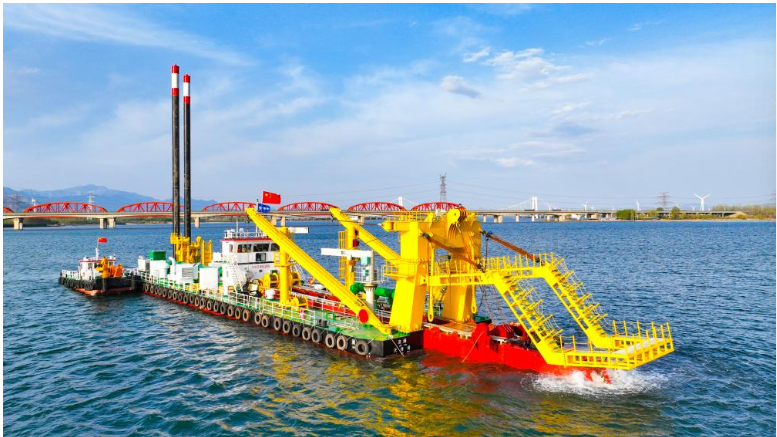

The world's largest all-electric, detachable, and environmentally friendly China dredger, "Junlan," independently designed and developed by CCCC Tianjin Dredging Co., Ltd., was officially deployed on April 22, 2025, for the pilot dredging project at the Guanting Reservoir. This marked the vessel's inaugural launch and operational use.
Initial surveys revealed sedimentation issues in the Guanting Reservoir, leading to a decline in its flood control, water supply, and ecological conservation functions. Dredging and capacity expansion were identified as essential measures to restore its operational effectiveness.
The "Junlan" vessel is a customized dredging solution specifically designed for the Guanting Reservoir. Yang Zhengjun, Director of the Dredging Technology and Equipment R&D Center at CCCC Tianjin Dredging, explained that the vessel features a frequency-conversion electric drive system for both its cutter head excavation and dredge pump transportation. The cutter head boasts a drive power of 600 kilowatts, with a maximum dredging depth of 25 meters.
According to confirmation from the China Dredging and Reclamation Association, the "Junlan" vessel is currently the world's largest fully electric, detachable, and environmentally friendly cutter suction dredger among completed dredgers internationally.
Yang Zhengjun highlighted that the "Junlan" vessel possesses several "unique and exceptional capabilities." Among these, it is equipped with the most powerful electric drive excavation and transportation system in the field of detachable dredging equipment. During operations, its cutter head functions like an "underwater diamond drill," capable of effortlessly excavating medium- to high-strength soils. Its excavation efficiency is three times that of previous equipment, with a standard dredging capacity of 2,000 cubic meters per hour—equivalent to emptying a standard swimming pool every hour.
The transportation of slurry generated during dredging is often a challenging issue. To address this, the "Junlan" vessel is outfitted with a domestically developed, internationally advanced new-type dredge pump. By combining an underwater pump and an inboard pump in a "series relay" configuration, it can transport silt continuously over a distance of up to five kilometers in one go.
The vessel is also equipped with an "intelligent brain" that can autonomously optimize operational parameters based on different soil types, enabling remote control and monitoring. Additionally, the vessel can utilize shore power, achieving zero carbon emissions. Its independently developed and designed new environmentally friendly cutter head allows for precise excavation of contaminated sediment without disturbing the surrounding water. Furthermore, the entire vessel adopts a modular design, enabling amphibious deployment through "Lego-like assembly."
"The first deployment of the 'Junlan' vessel fills a gap in China's portfolio of fully electric, detachable, and environmentally friendly cutter suction equipment, while also representing that China's design and manufacturing capabilities for high-performance environmentally friendly cutter suction dredgers have reached internationally advanced levels," said Gao Wei, Secretary-General of the China Dredging and Reclamation Association.
The pilot dredging project at the Guanting Reservoir aims to remove 11.5387 million cubic meters of contaminated sediment from the reservoir bed. The deployment of the "Junlan" vessel is expected to significantly accelerate the progress of the project, improving both the water quality and functionality of the Guanting Reservoir.
China dredger introduction

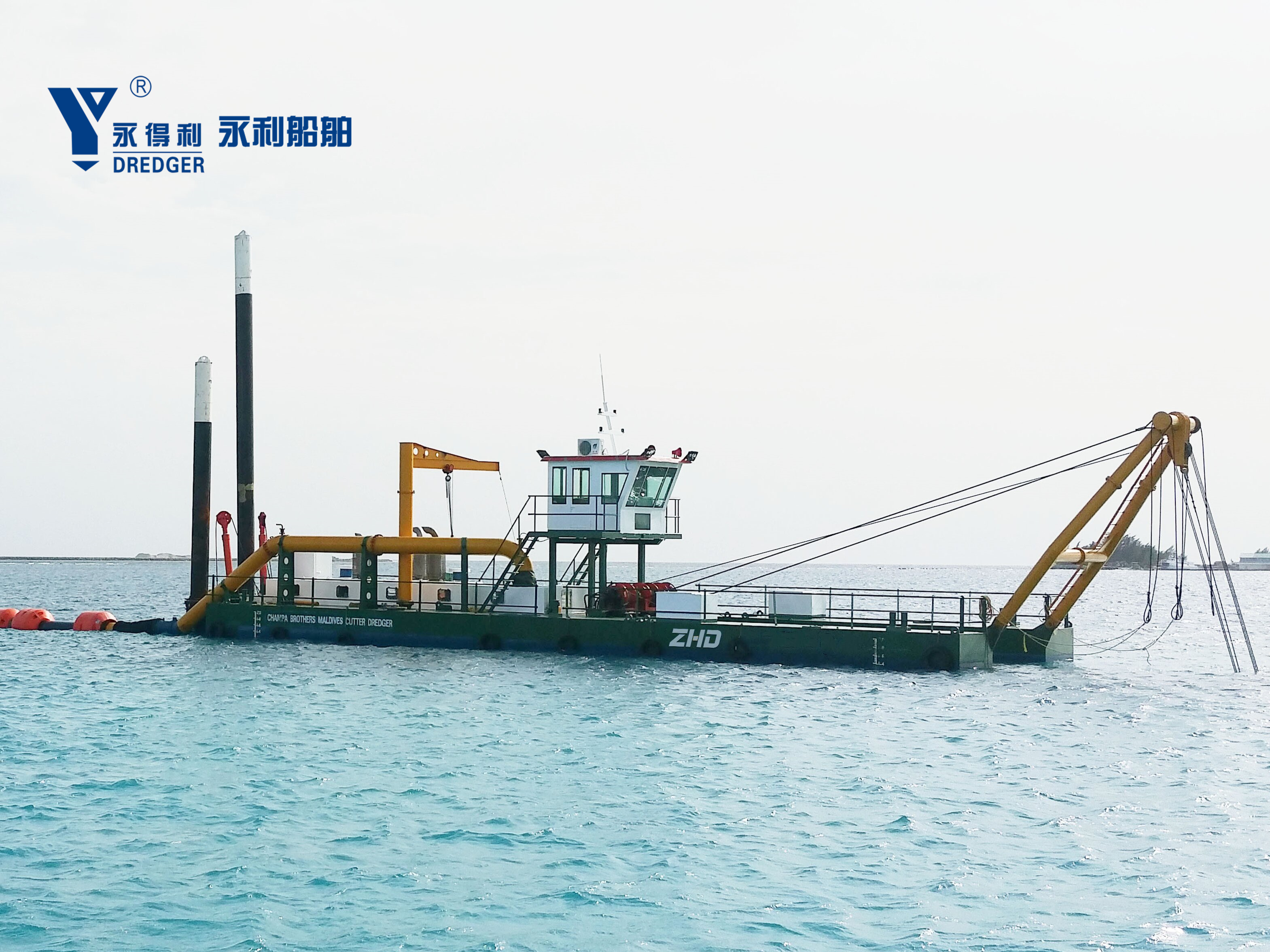

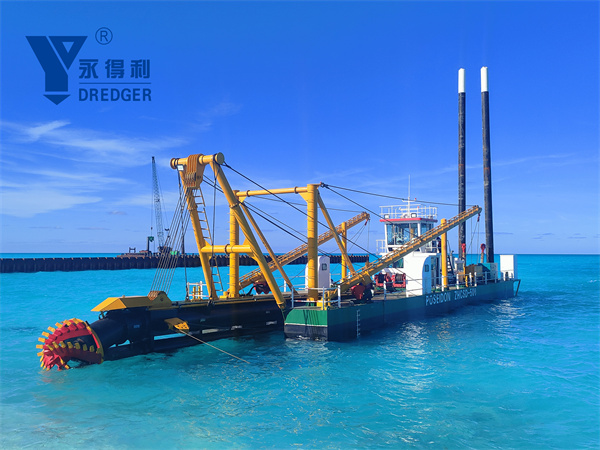

China dredger cutter suction dredger of steel construction,the non self-propelled,dis-mountable type,is able to berth and dredge at any waters both in the coastal area and inland rivers.
River dredger hull consists of a main pontoon and two side pontoons which is to be easy to dismantle for transportation by road,rail or water,and is to be easy to reassemble at project site.The engines and dredge pump are located in the center pontoon.Two side pontoons serve as fuel tanks,ballast tanks and storage tanks.
Sand dredger is powered by diesel engines.The main diesel engine is to drive the dredge pump and the auxiliary engine is to drive hydraulic system,including cutter,swing and ladder winches,anchor winches and the spud cylinders etc.
River dredger features
1)Reliable hydraulic system with self-protection, high efficiency and low cost.
2)Simple, rapid assembly and dismantling, a good underwater dredging machine.
3)We can produce 4"inch to 24"inch dredgers with max. dredging depth 25m. The dredger can be customized.
4)Has passed ISO9001, CE ,CCS certificate & The Certification of the Survey.
5)Adapt submerged arc welding technology, strong stability and beautiful in design.
6) Special marine steel plate, strong & durable.
7) Pump & gear box combined together, reduce the maintenance.
Dredger manufacturer
Qingzhou Yongli Mining And Dredging Machinery Co. Ltd,is leading company of China mining equipment. We are the professional manufacturer who has been dedicated in R&D, designing, producing, assembling and testing services.
Main productions: cutter suction dredger, gold dredger, diamond dredger, gold washing plant, sand dredger and other mining equipment. We are located in Qingzhou city with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
In recent years, our company has introduced a series of advanced equipment including gas cutting machine, automatic welding machine, electric welder and other equipment. In 1999, according to special terrains and working condition in China, Africa and Southeast Asia, adopting the Europe and America technology, we successfully developed the zirconium, gold, diamond, tin ore, iron ore mining machinery and tailing recovery plant.
