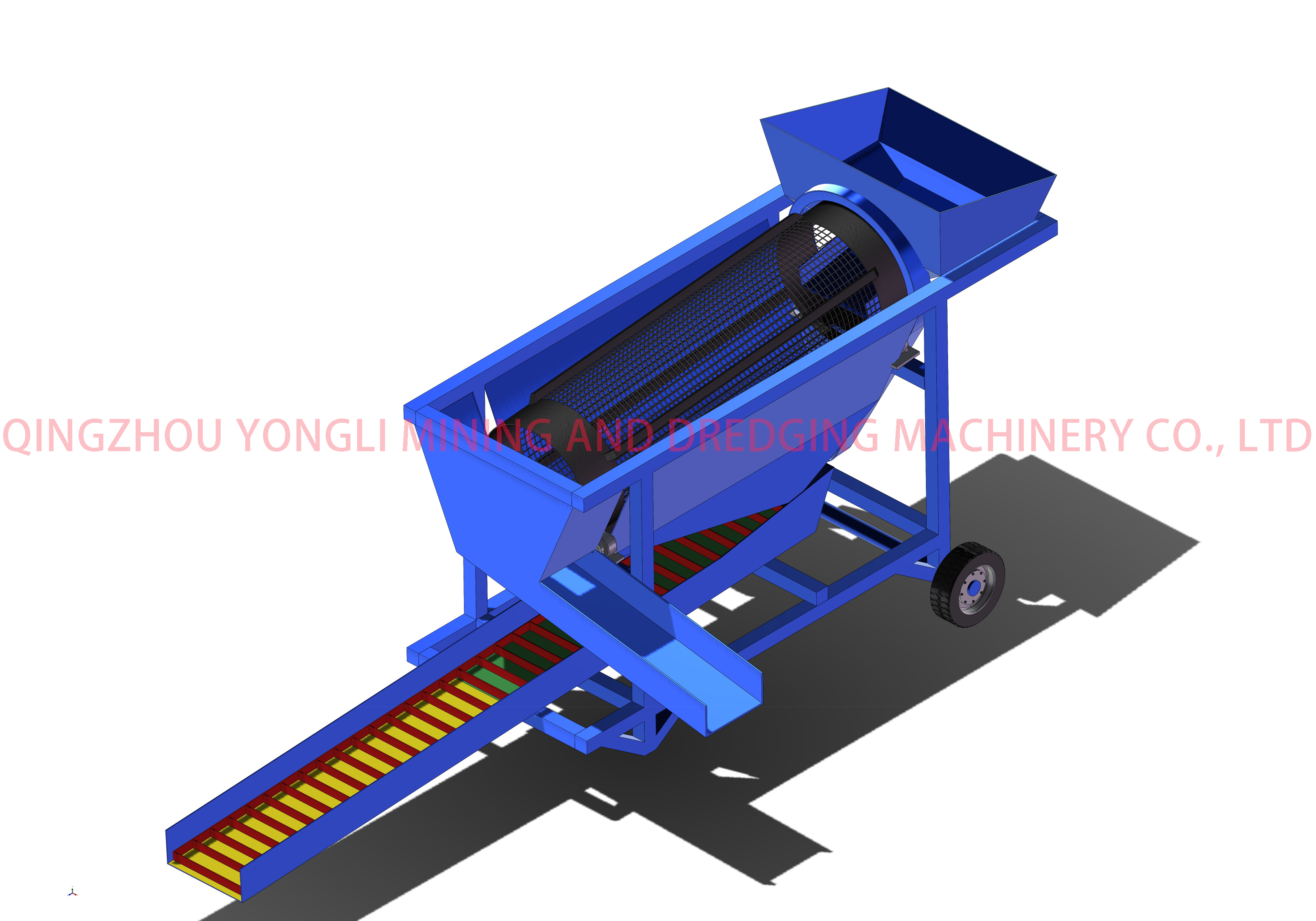

Fixed Type Mini Gold Washing Plant 5 Tons per hour
This is a fixed gold recovery plant with a capacity of 5 tons per hour, designed for efficient and continuous gold extraction. It is widely deployed by mining operators, contractors, and investors at alluvial or hardrock mining sites. The equipment runs stably during daily operation, feeding raw ore into the integrated processing system, where materials are screened, separated, and concentrated to capture fine gold particles. It delivers high recovery rate, low operation cost, and easy maintenance, helping users maximize output while reducing labor and energy consumption.
Gold Washing Plant Parameters
| Item | Parameters | QTY |
| Model | YLLS‑5 | 1 SET |
| Treatment Capacity | 5 T/h | — |
| Overall Dimensions | L3.5 × W1.6 × H2.5 m | 1 SET |
| Feeding Hopper | 0.5 m³ | 1 PC |
| Structural Materials | 80 mm × 80 mm square steel | — |
| Trommel Screen | L2.2 m × φ0.7 m (Valid Length 1.8 m) | 1 SET |
| Fixed Sluice Box | L5.0 m × W0.5 m × H0.2 m Front end: 2 m with Mitsubishi Japan gold‑absorbing mat Rear end: 3 m with felt | 1 SET |
| Installed Power | 2.2 KW motor + Model 250 speed reducer | 1 SET |
| Water Supply Pump | 50QW20‑20Power: 3 KW, Flow: 20 m³/h, Head: 20 m | 1 SET |
| Water Supply Pump | 50QW10‑15Power: 1.5 KW, Flow: 4 m³/h, Head: 15 m | 1 SET |
| Heavy Ore Box | 1 m³ | 1 SET |
| Generator Set | ChangChai 10 KW | 2 SETS |
Gold Washing Plant Product Description
The YLLS‑5 is a compact, integrated, fixed-type gold processing plant with a stable capacity of 5 tons per hour. It combines feeding, screening, washing, gold trapping, and tailings discharge into one complete system, making it ideal for small‑to‑medium scale alluvial gold mining operations.
Gold Wash Plant Main Functions
Automatic feeding and preliminary screening via trommel screen to remove clay, mud, and oversized impurities.
High‑efficiency gold recovery using a long fixed sluice box equipped with Mitsubishi gold‑absorbing mat and high‑density felt.
Stable mechanical structure with low failure rate, supporting continuous daily operation.
Integrated water pump and generator configuration for flexible use in areas without stable power or water supply.
Gold Washing Plant Key Advantages
High gold recovery rate: Front‑end Mitsubishi gold‑absorbing mat and rear‑end felt greatly improve fine gold capture.
Compact & movable structure: Overall dimensions L3.5×W1.6×H2.5m, easy to install, transport, and commission on site.
Low operating cost: Powered by 2.2KW motor with reliable reducer, low energy and labor consumption.
Complete configuration: Equipped with feeding hopper, trommel screen, sluice box, water pumps, heavy ore box, and 10KW generator sets.
Simple operation & maintenance: User‑friendly design requires no professional technical team.
Gold Washing Plant Applications
Alluvial gold mining in rivers, beaches, valleys, and placer deposits
Small‑scale mine sites, remote mining areas, and temporary ore processing points
Projects requiring independent power supply (supported by 10KW ChangChai generators)
Investors, mining contractors, and small‑scale mining operators seeking stable, cost‑effective gold extraction equipment
