self propelled 24m*12m*2m backhoe dredger for sale
1. Basic Introduction
A backhoe dredger (BHD) is a stationary dredging vessel that consists of a powerful hydraulic excavator mounted on a sturdy pontoon or barge. Unlike the cutter suction dredgers that use pumps to vacuum material, a backhoe dredger uses a mechanical bucket to physically scoop and lift sediment from the waterbed, functioning much like a land-based excavator.
The main components of backhoe dredger: pontoon, propeller, excavator, engine,gearbox,excavator and so on.
How it Works
1. Stabilisation: The pontoon is firmly anchored to the seabed using three large spuds (long, retractable legs) to resist the massive digging forces.
2. Excavation: The operator uses the articulated arm to draw the bucket backwards through the soil (hence the name "backhoe") to fill it.
3. Discharge: Once full, the arm lifts the bucket above the water and rotates the excavator on a turntable to discharge the material into a transport barge moored alongside.
2.Technical Specification
1 | Main Dimension | ||
Name | Specification | Notes | |
Hull length | 24m | ||
Hull width | 12m | ||
Hull height | 2m | ||
Bottom plate thickness | 8mm | ||
Deck plate thickness | 8mm | ||
side plate thickness | 6mm | ||
Keel specification | T profiles and angle steel | ||
2 | Deck Compartment | ||
Name | Specification | Notes | |
Volume | 80T | ||
compartment length | 9.5m | ||
compartment width | 8m | ||
compartment height | 0.7m | ||
steel plate thickness | 8mm | ||
Keel specification | Angle steel | ||
3 | excavator | ||
Name | specification | Notes | |
excavator | XUGONG 200 | bucket volume ：1.0 m³ | |
Maximum digging depth | 6460mm | ||
Operation weight | 21200kgs. | ||
excavator power | CUMMINS 125kw | ||
Excavator bottom specification | L 2m×W2m×plate thickness 16mm | 1 pcs | |
4 | Spud | ||
| Name | specification | Notes |
spud length | 12m | 2 pcs | |
wall thickness | 20mm | 2 pcs | |
Lifting motor for spud | 200 motor | 2 sets | |
Spud tilting hydraulic cylinder |
| 2 pcs | |
5 | Power for the whole ship | ||
| Name | Specification | Notes |
Main engine power | CUMMINS NT855-M-201kw | 2 SETS | |
Engine speed | 1800r/min |
| |
gearbox | FD300，ratio 3:1 | 2sets | |
alternator | 30kw | 1set | |
propeller | YL-300 | 2sets | |
hydraulic actuator | YL-300 | 1 set | |
Hydraulic pump station |
| 1 set | |
6 | Other equipment | ||
| Name | Specification | Notes |
operating room |
| 1 set | |
railings |
| 1 set | |
Bollard |
| 6 pcs | |
3.Picture Shows

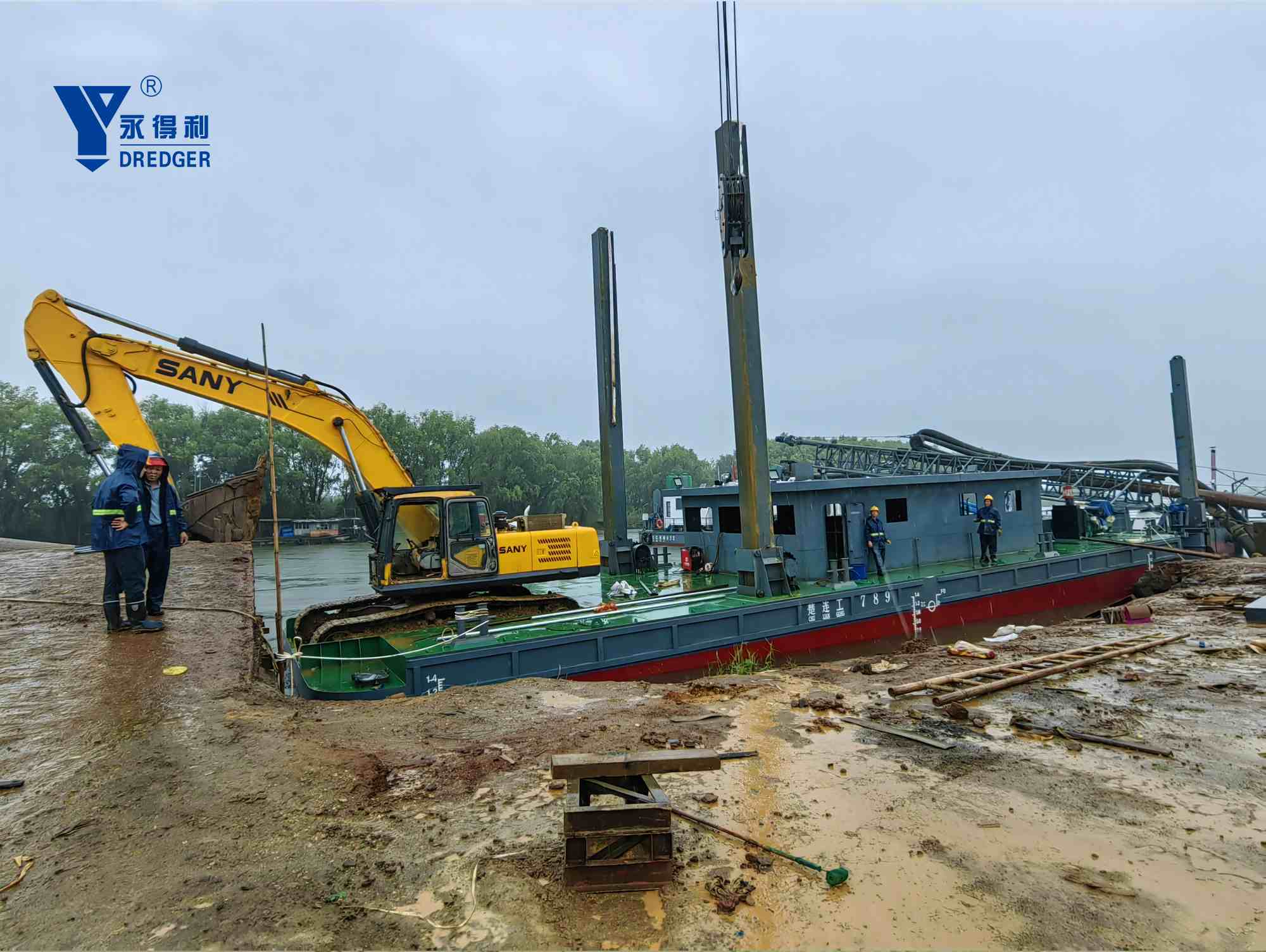

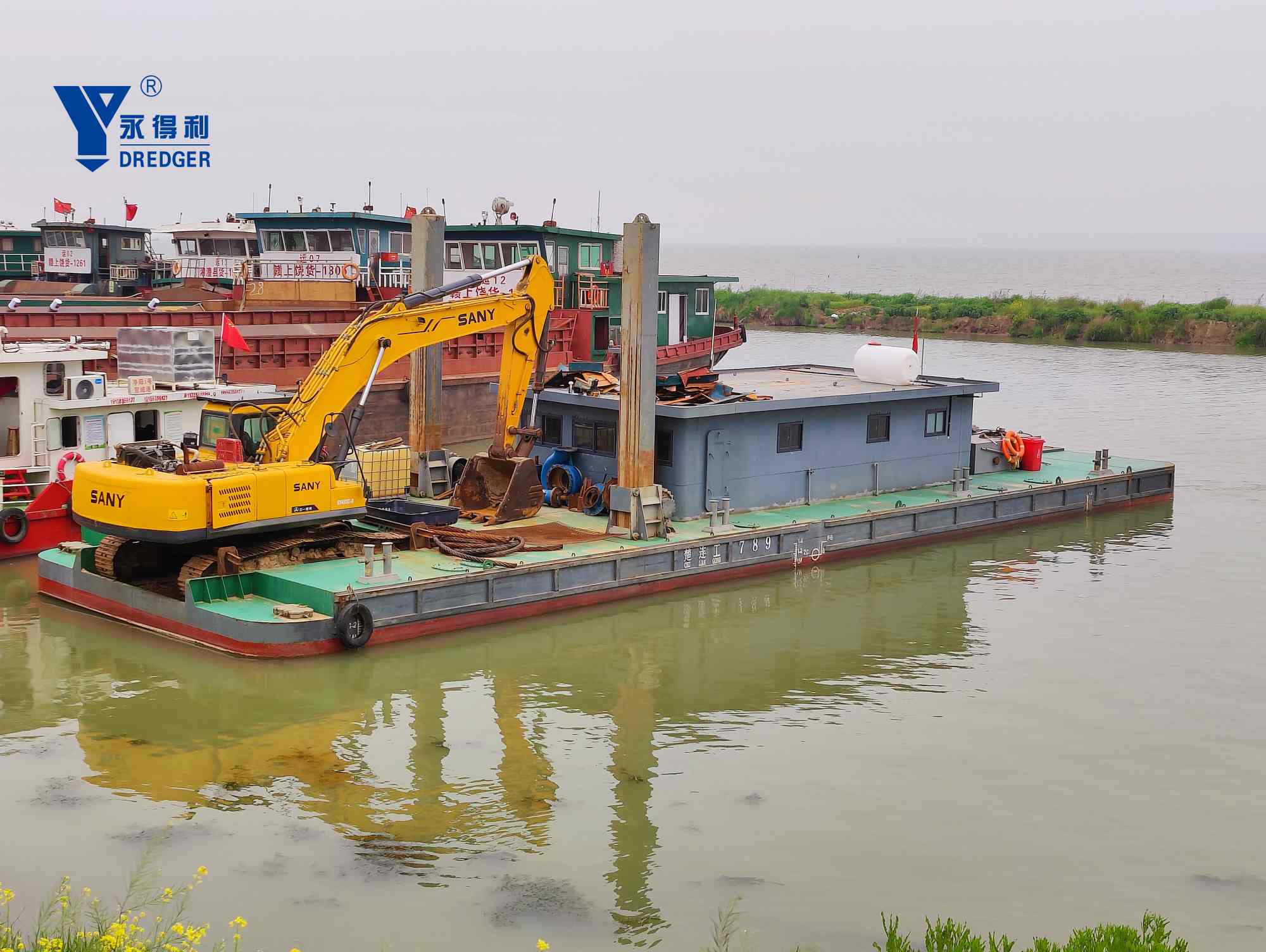

Backhoe dredger price/Backhoe dredger for sale
