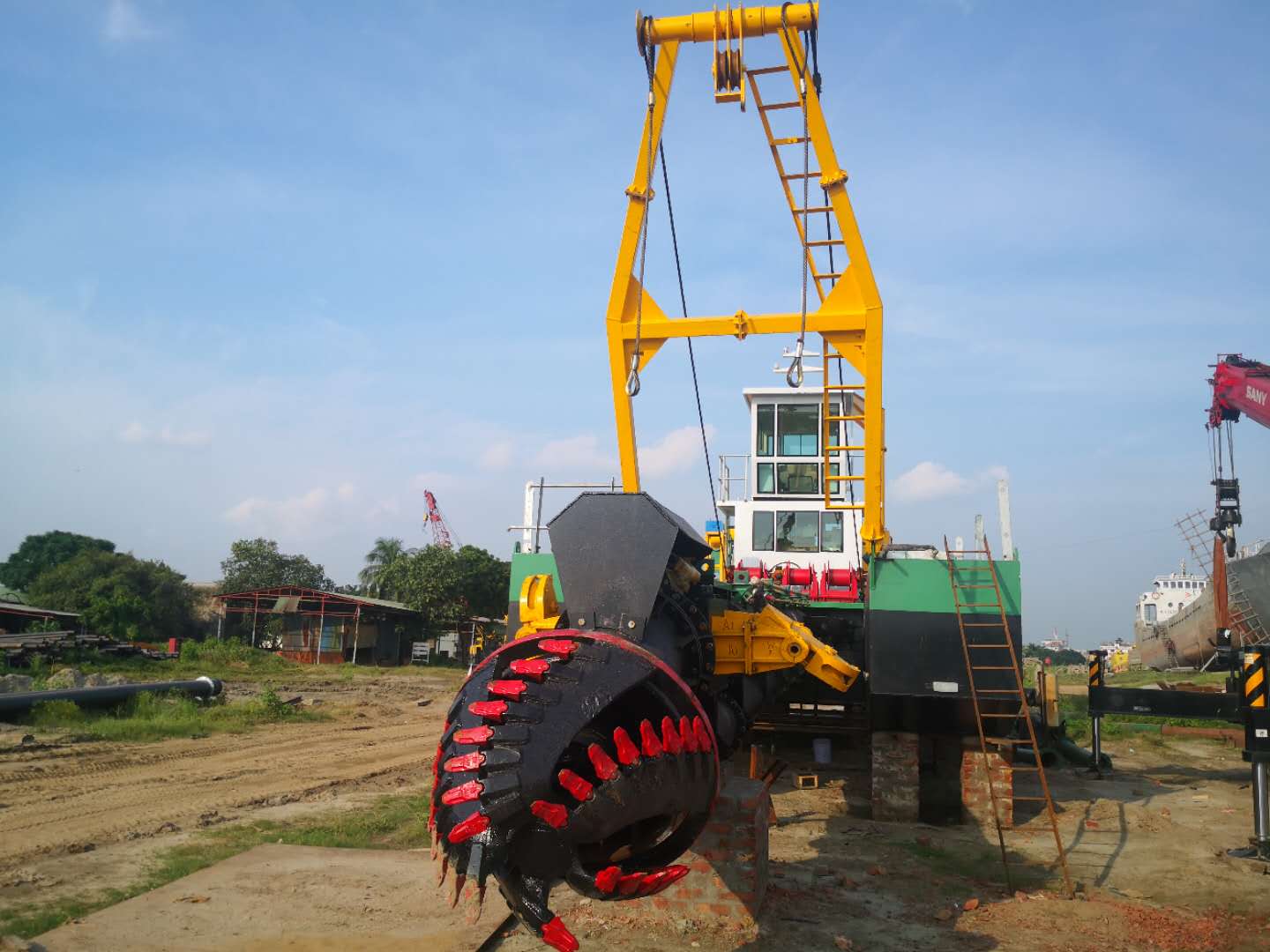

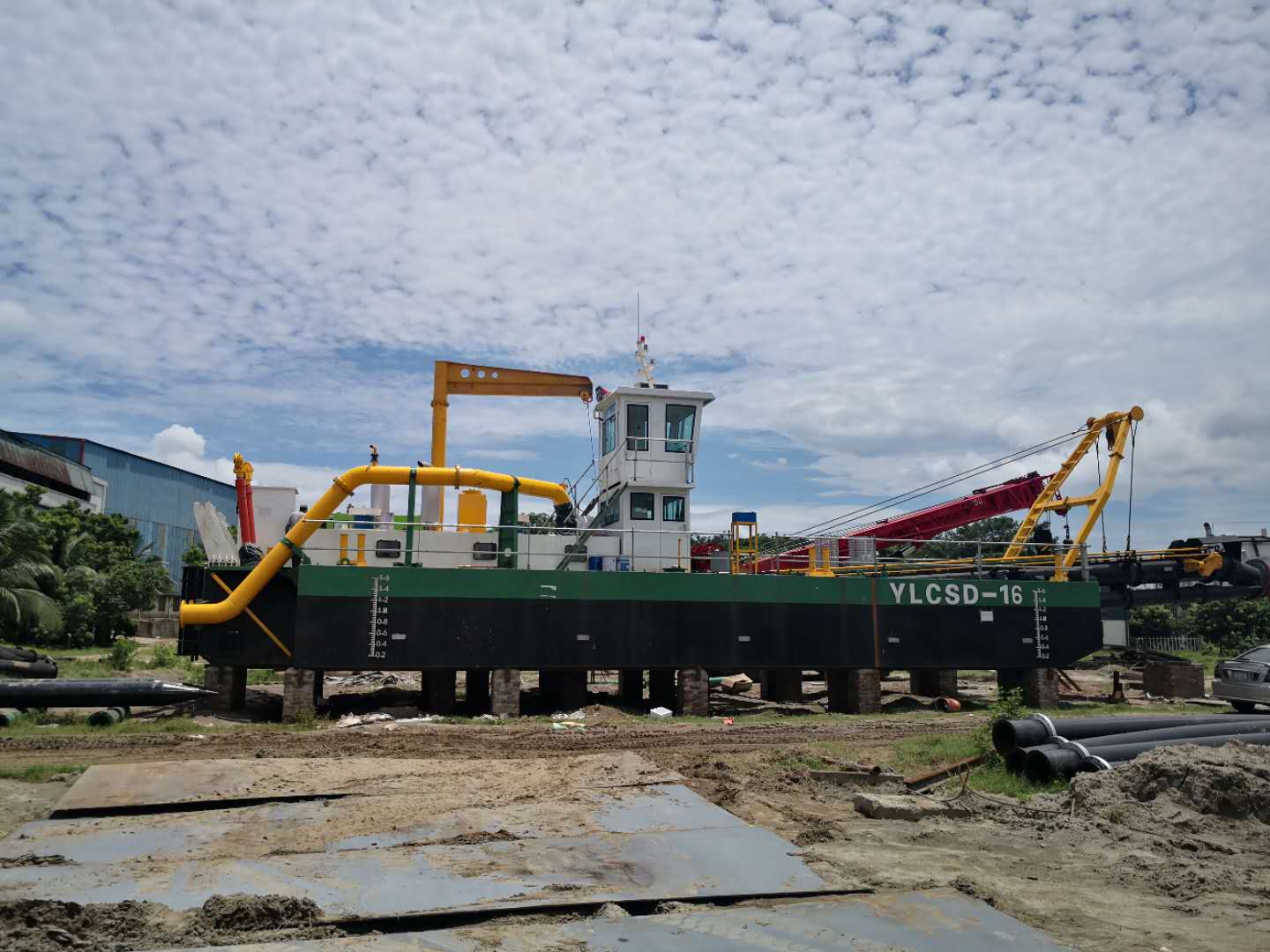

1. Technical specification of 10 inch cutter suction dredger
Overall length*width*height | 40*7.2*2.0m |
Dredge depth | 15-20m |
Clear water flow | 1000m3/hour |
Slurry concentration | 15%-20% |
| Sand capacity per hour | 150-200m3/hour |
Average draft | 0.8m |
Maximum draft | 1.2m |
Discharge distance | 0-1500m |
Engine brand | Cummins |
Installed power | 477kw |
2. Main Components

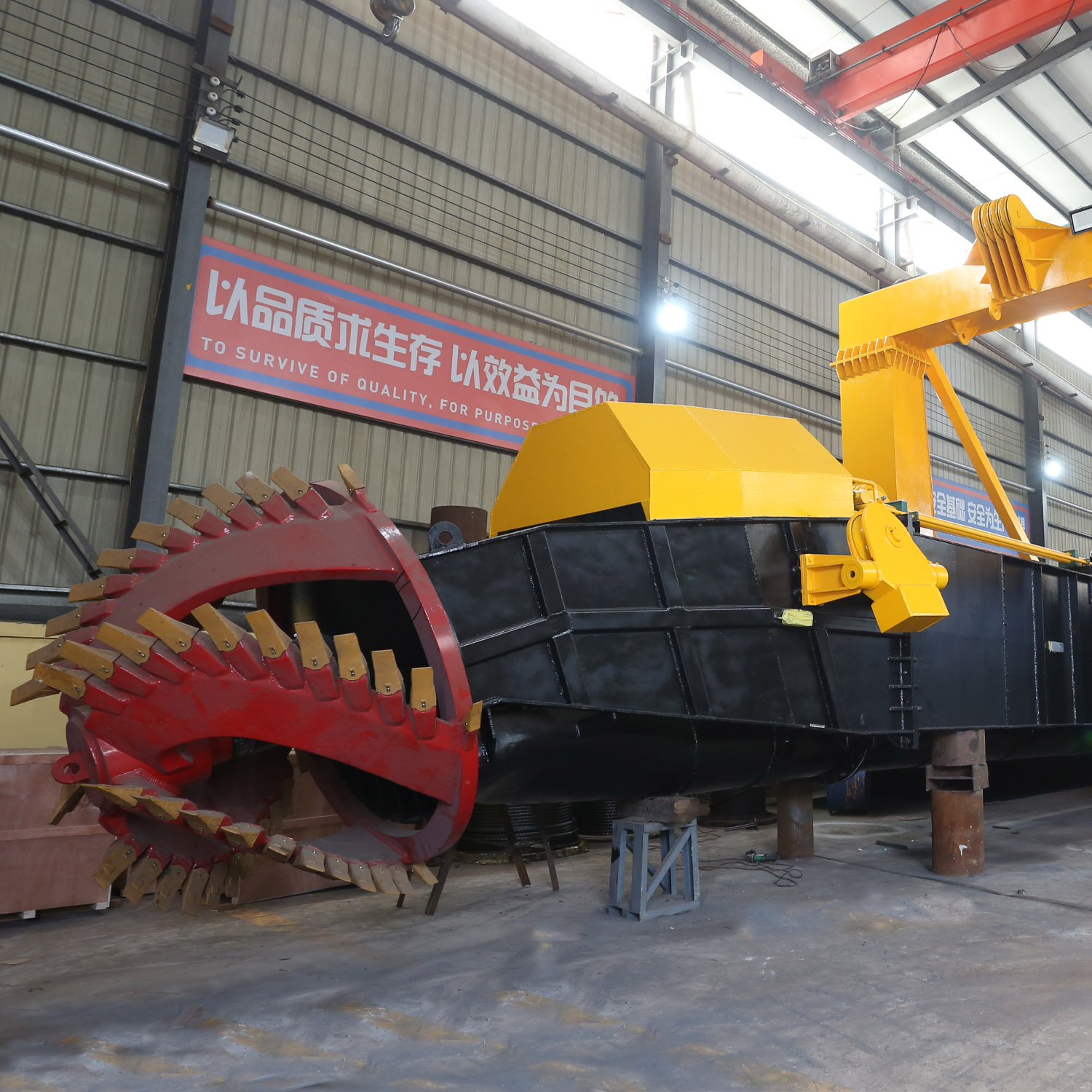

cutter head

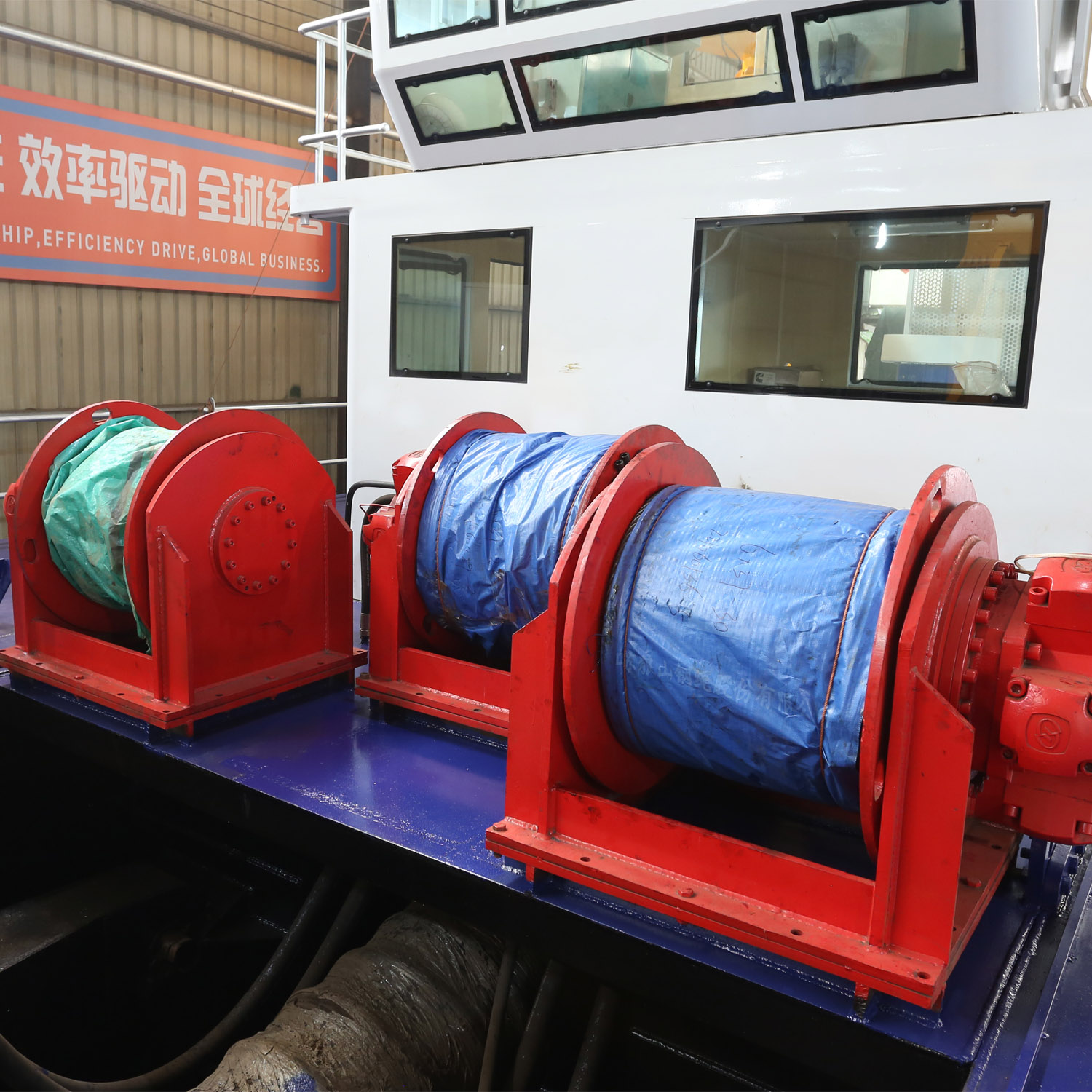

hydraulic winch

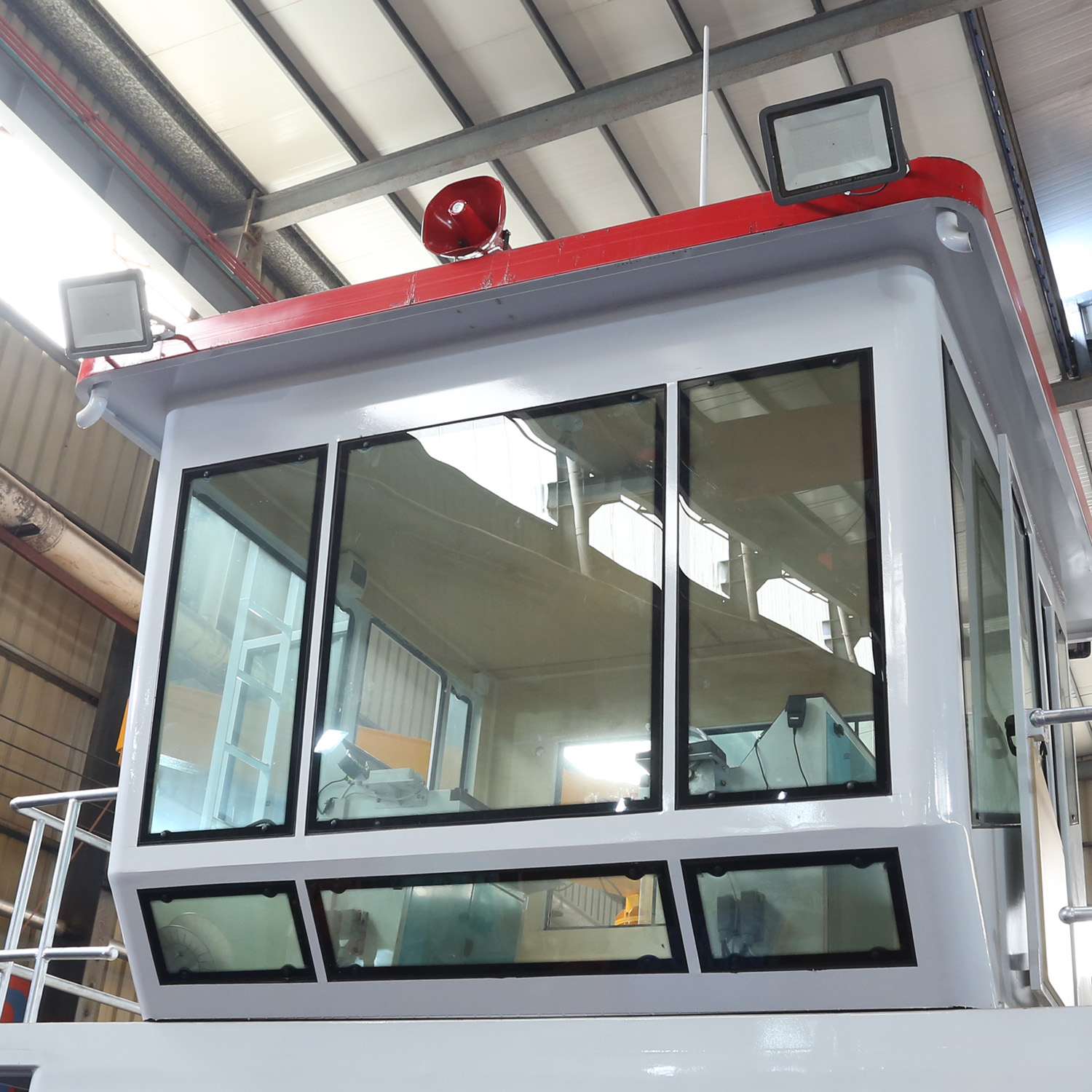

Operating Cabin

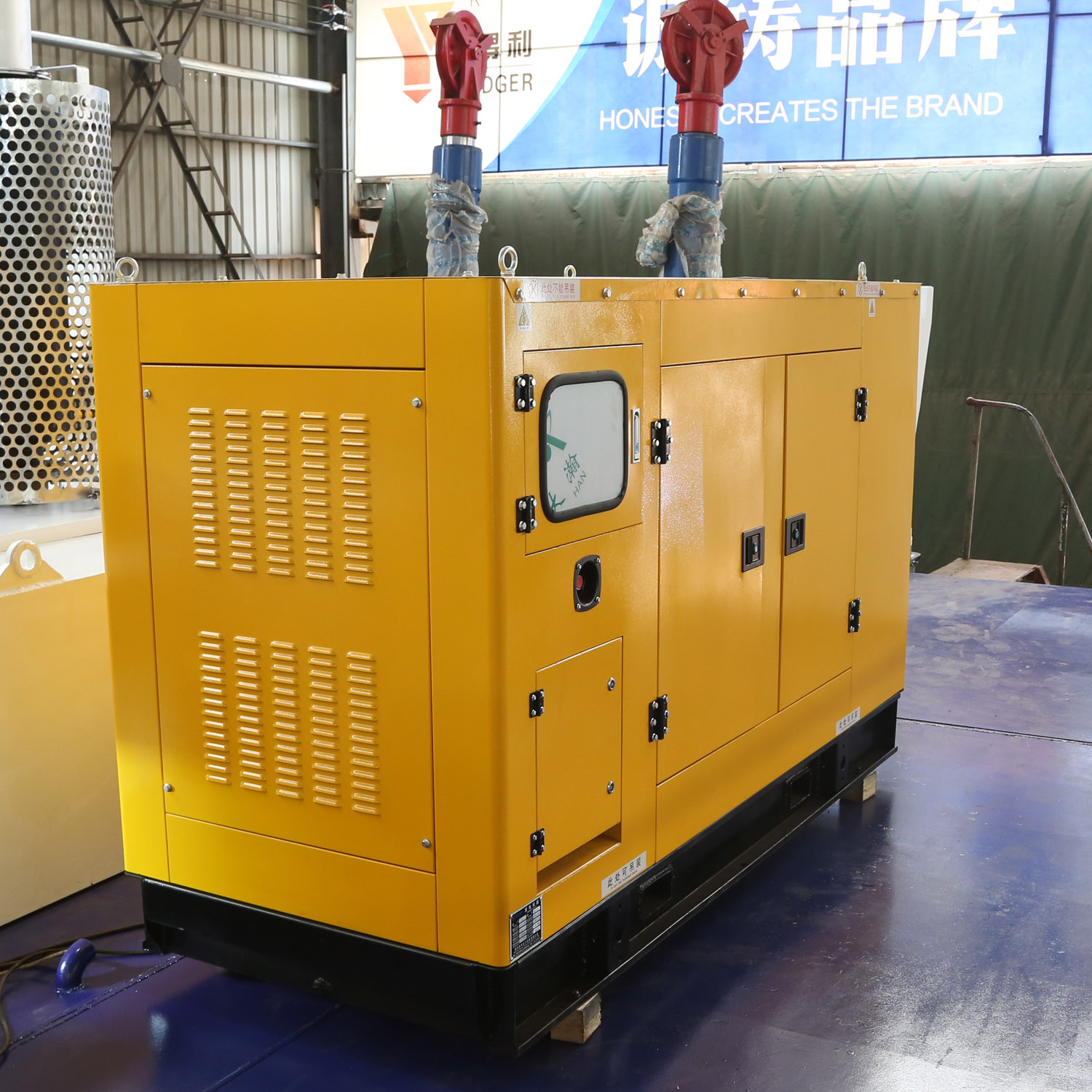

Diesel generator

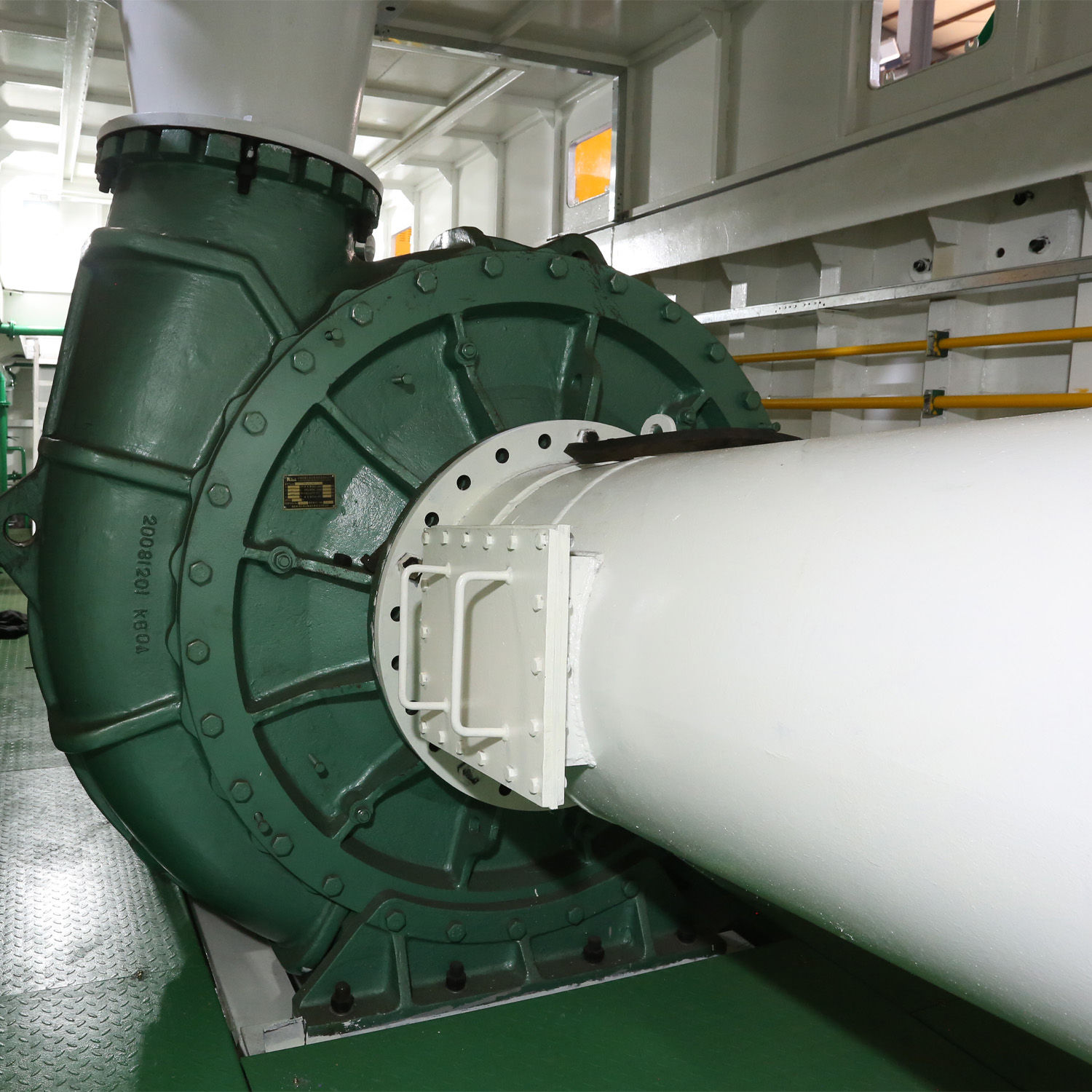

dredging pump

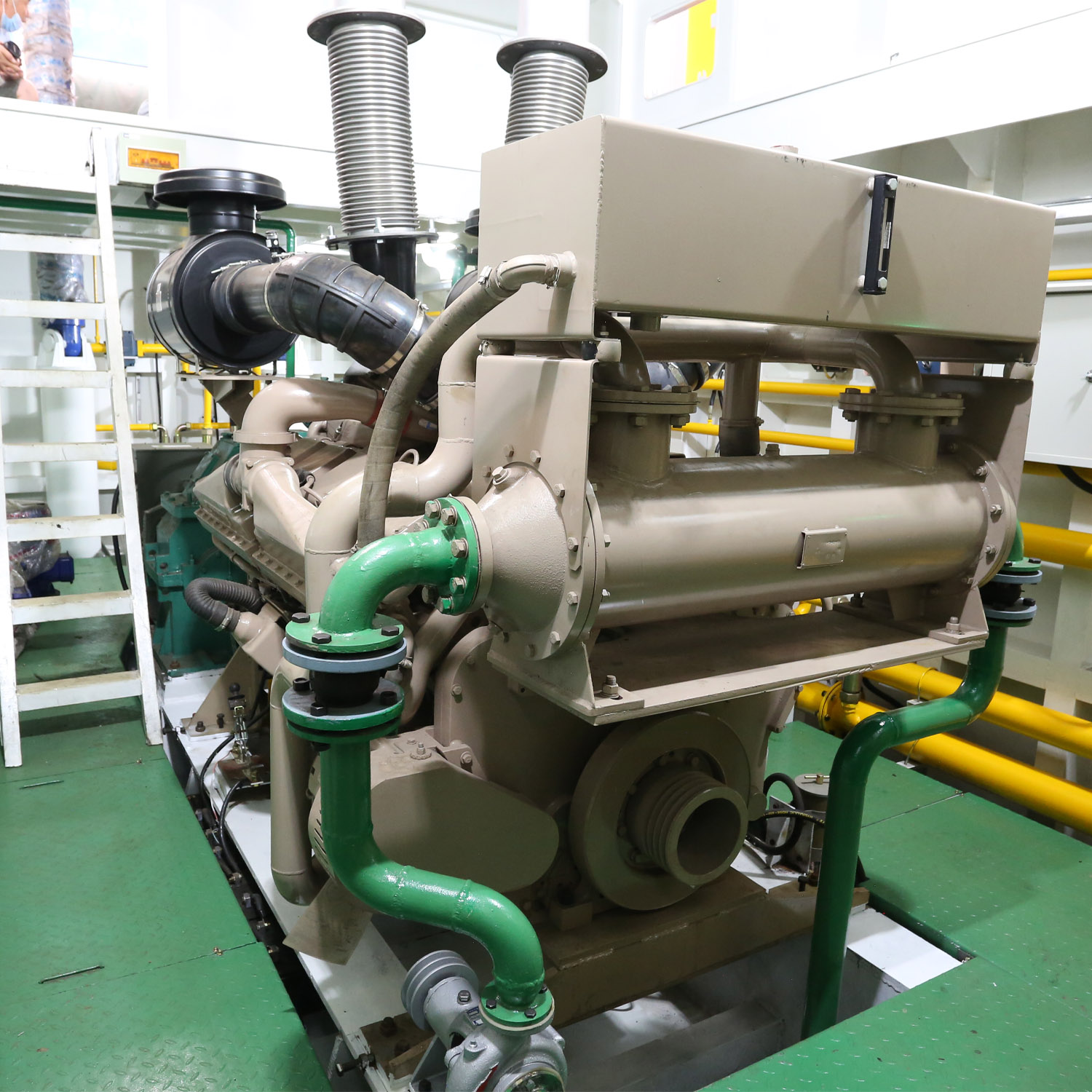

diesel engine

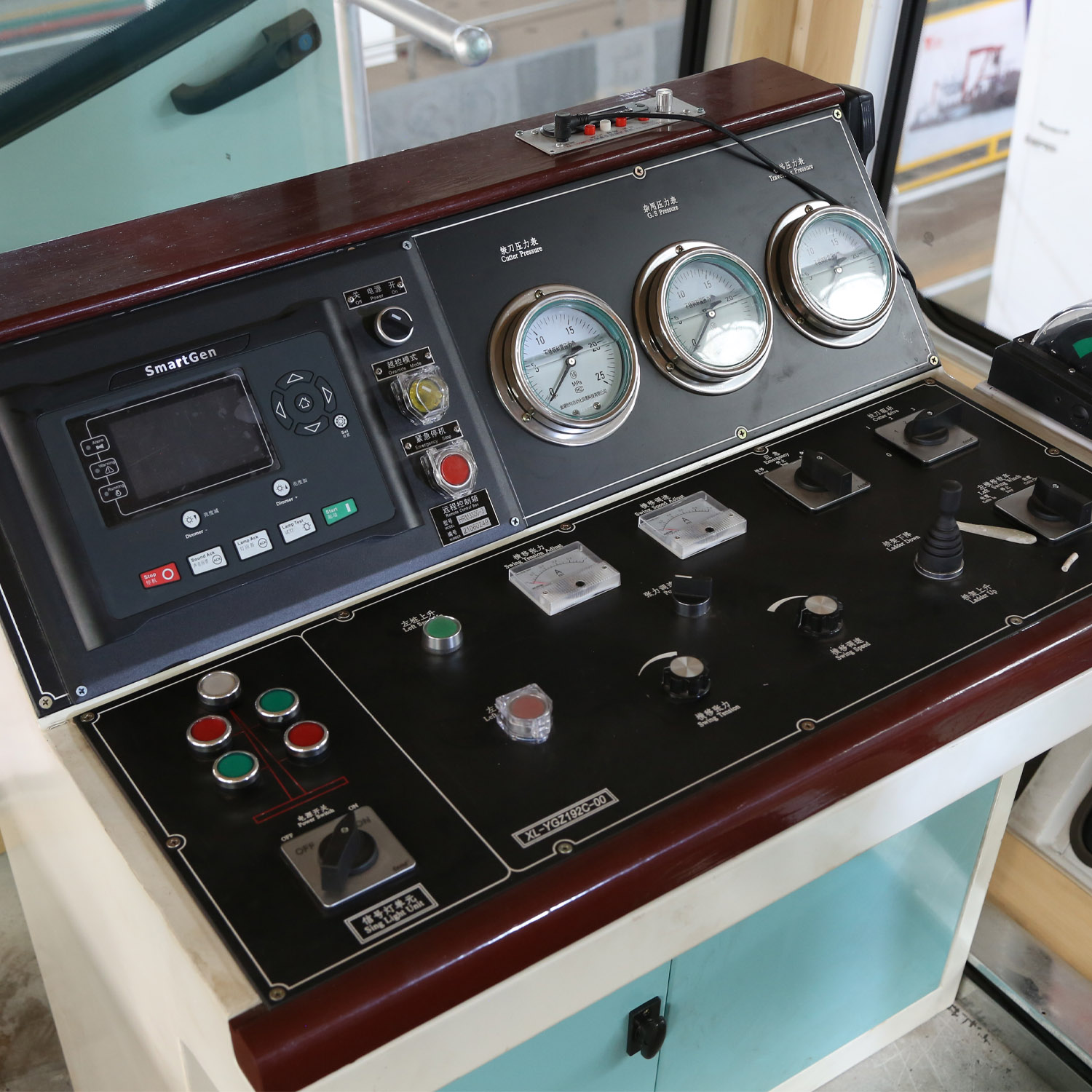

Operating Table

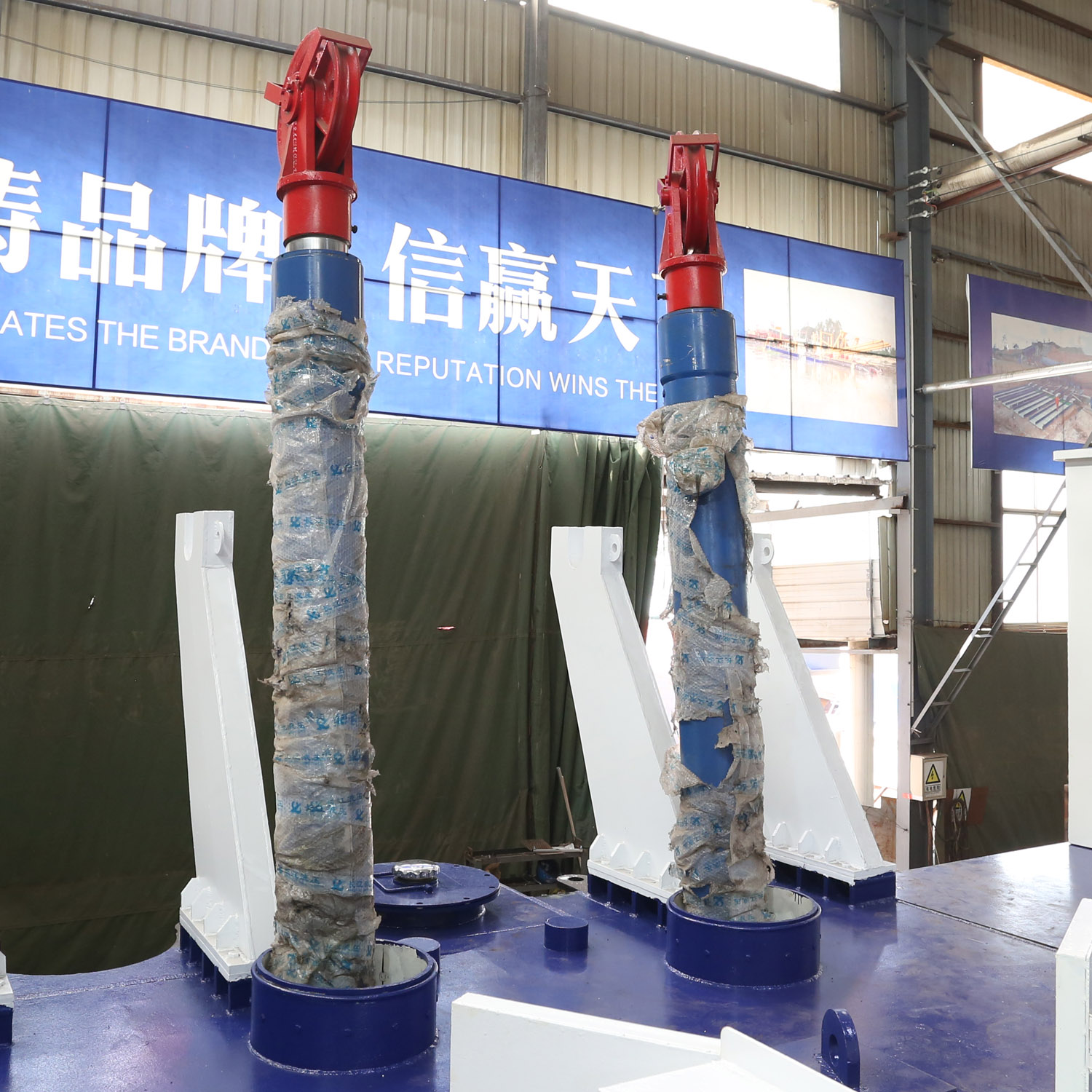

Hydraulic cylinder
3. Cooperation Partener
4. Woring Principle
The working principle of a cutter suction dredger is as follows:
1. Positioning and Anchoring: The dredger is fixed in the working position by spuds and anchor winches to ensure hull stability.
2. Cutting and Excavation: The rotating cutter head breaks up underwater materials such as mud, sand, and rocks, and sucks them in through the suction port.
3. Transport and Discharge: The mud mixture is transported to designated areas, such as reclamation sites or treatment facilities, via a suction pump and pipeline.
4. Movement: The hull is propelled by the alternating forward movement of the spuds, while the cutter head is swung laterally using side cables.
5. Company and Products advantages
Qingzhou Yongli Mining and Dredging Machinery Co.,ltd have the dredging and mining production experience more than 30 years.
And we had exported to more than 60 countries.
1.The Cutter Suction Dredger of steel construction , the non self-propelled, dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers.
It can also be designed to self-propelled according to customers’ requirement.
2.Its hull consists of a main pontoon and two side pontoons which is to be easy to dismantle for transportation by road, rail or water, and is be easy to reassemble at project site. The engines and dredge pump are located in the center pontoon. Two side pontoons serve as fuel bunkers, ballast tanks and storage tanks.
3. The dredger is powered by diesel engines. The main diesel engine drive the dredge pump and the auxiliary engine is to drive hydraulic system, including cutter,swing and ladder winches,anchor winches and the spud rams etc.
6. Our Services
1. We will fully design and produce the cutter suction dredger based on the detailed requirements of the customers.
2. We will send our experienced engineers to help our customers with the installation,trial operation the dredger and train your local workers.
3.Our products warranty is usually one year for the main parts of the cutter suction dredger. We will supply long term spare parts and maintenance service for our customers.
