Product Description

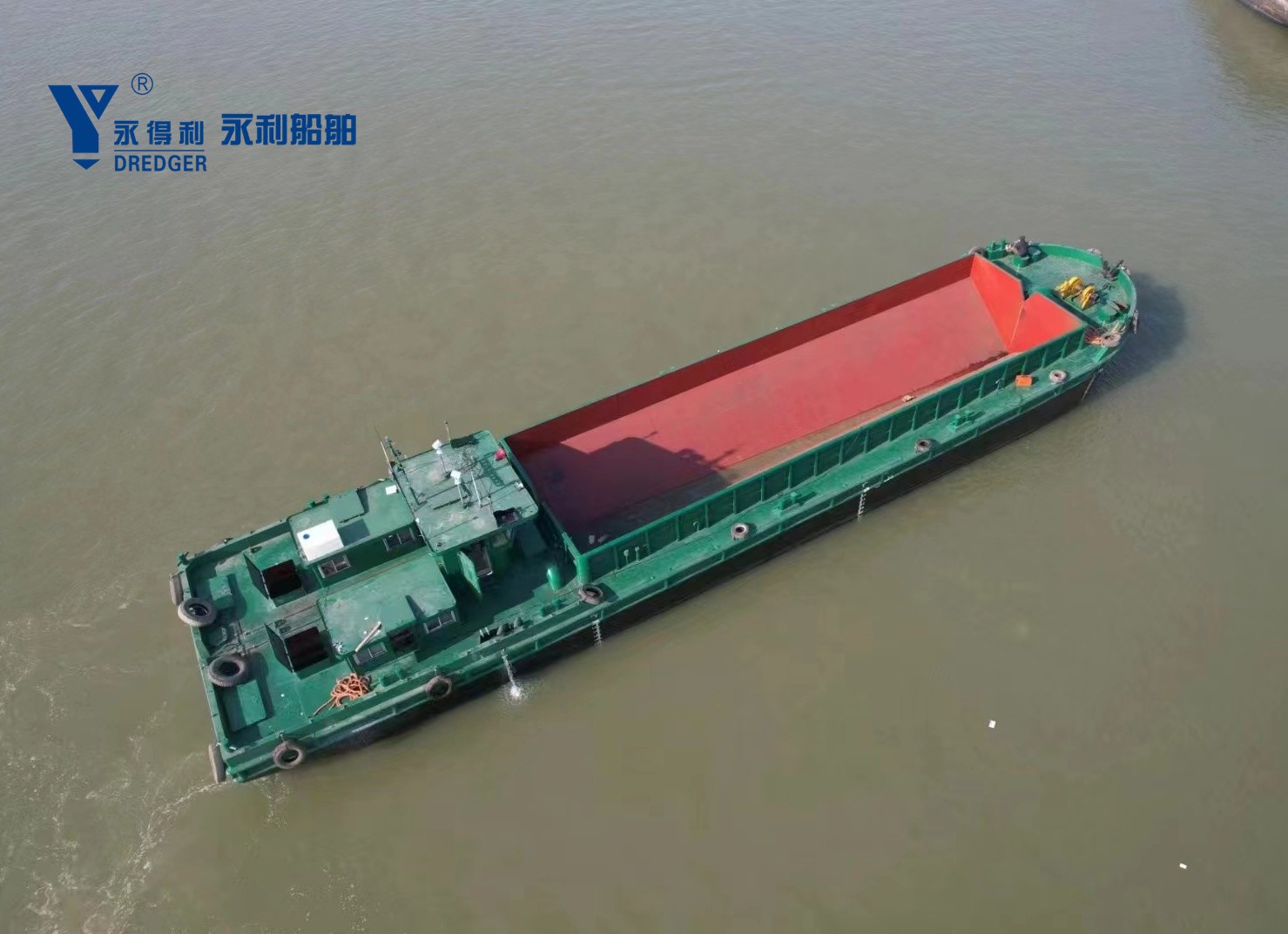

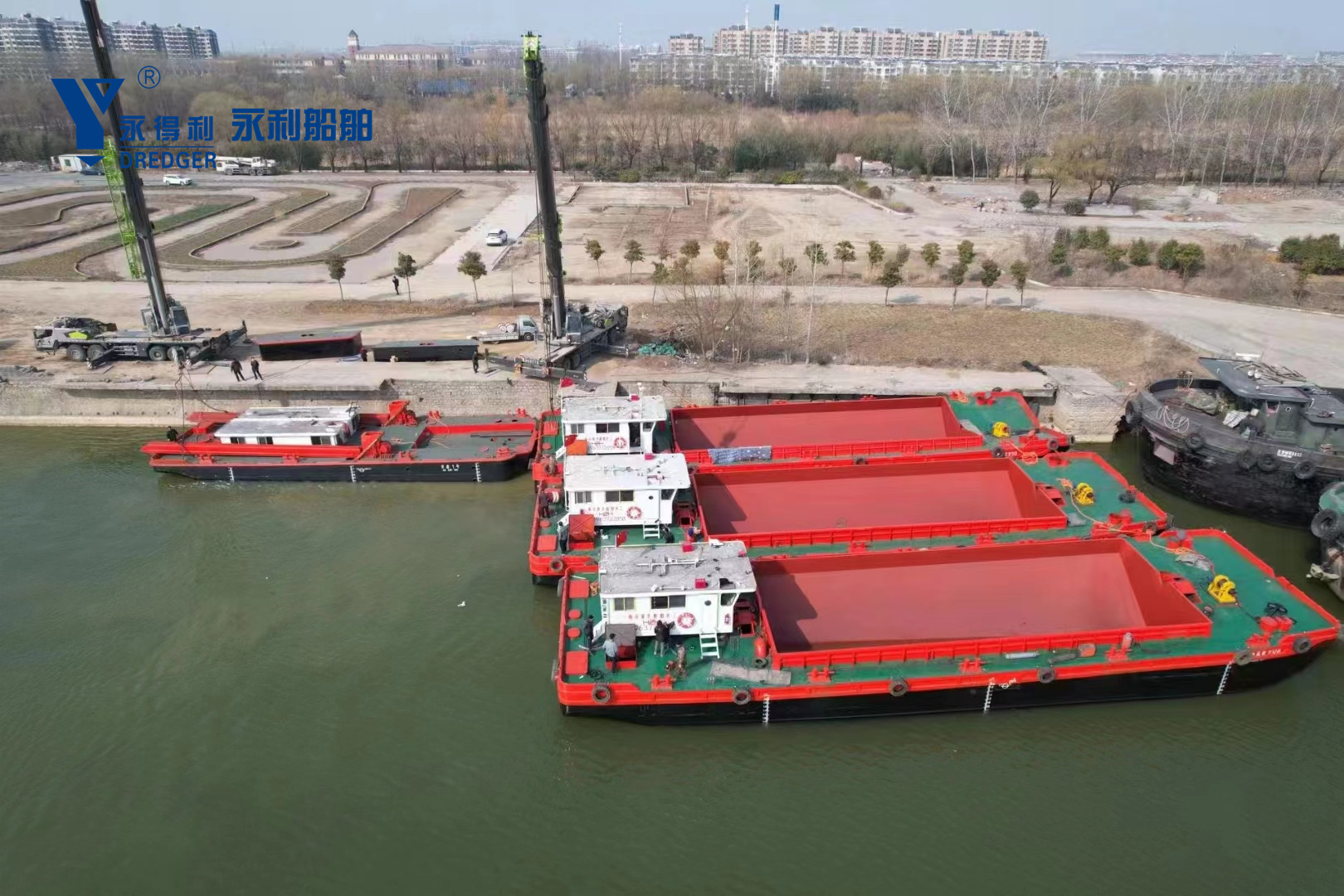

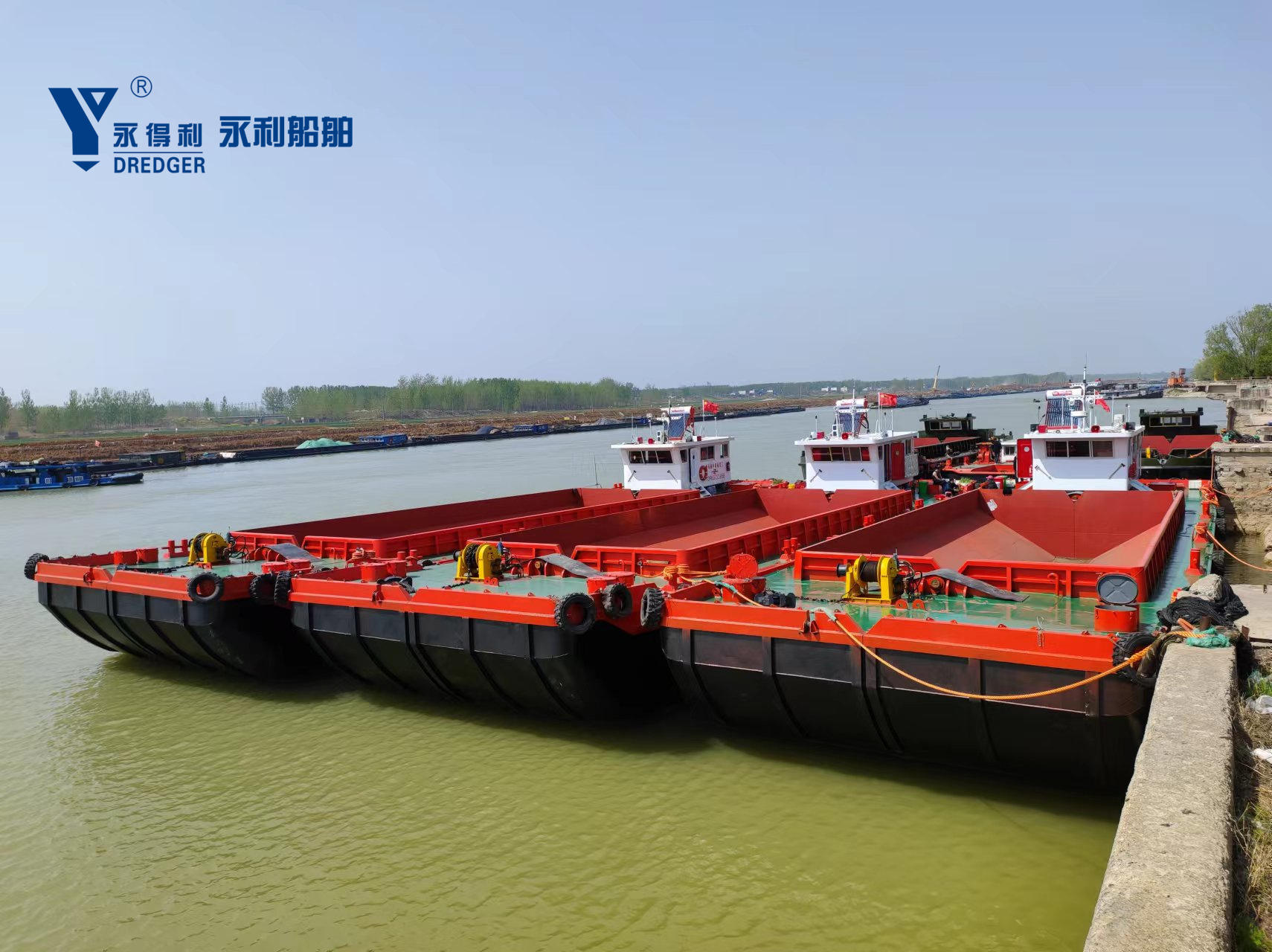

Split Hopper Barge is designed to carry all kinds of dredged material, and the split hopper barge is a single-deck vessel with the hopper in the middle and a steel hull that opens along the center plane. Split hopper barge capable of Spoil up-take from the dredge, Backfilling of trenches with underwater pipelines, Spoil transport and offloading to dump underwater sited, System of floating technical facilities for underwater pipeline burial and offshore dredging, the Multipurpose vessel for marine engineering and diving activities, beach replenishment and coast, pipeline protection projects.
A split hopper barge is a dredging vessel that can split over its longitudinal axis to discharge cargo. Allow for such an operation; the barge consists of two half-hulls connected by hinges at the top and hydraulic cylinders at the bottom. The hinges and cylinders must transfer any forces at the half hulls interface. The hinges and hydraulic cylinders' design limits are assumed to govern the barge's workability.
Applications
1.Efficient loading and unloading, the open body mud barge can achieve rapid unloading by opening the hull.
2.Suitable for different work environments, it can be applied in any water area such as rivers, lakes, and seas.
3.Flexible operation, the open body mud barge usually has a small turning radius and can flexibly turn in narrow water areas.
4.Strong transportation capacity, large capacity loading, and good stability.
5.Convenient transportation, modular construction, and assembly for use after transportation by car to enclosed water areas.
Key Configurations
1.Hydraulic Splitting System
The core power mechanism that drives the hull to open and close, consisting of powerful hydraulic cylinders and control valves.
2.Deck Hinges
The critical structural components that connect the two hull halves, serving as the pivot axis for splitting.
3.Hopper / Cargo Hold
The cargo hold used for loading dredged materials like mud, sand, and rocks. Its volume (hopper capacity) is a primary parameter of the barge.
Technical Specification
| Model | YL-SH1000 split hopper barge |
| Length Overall | 60.3m |
| Width | 11m |
| Depth | 4m |
| Draft | 3.4m |
| Frame Space | 0.50m |
| Navigation Area | inland river/coastal |
| Passenger Capacity | 4 |
| Diesel Engine Power | 1000kw (Cummins or Weichai) |
| Generator Set | 64kw |
| Hydraulic Station | 30kw |
| Design Speed | 9-11kn |
| Capacity | 1000m3 |
Certifications

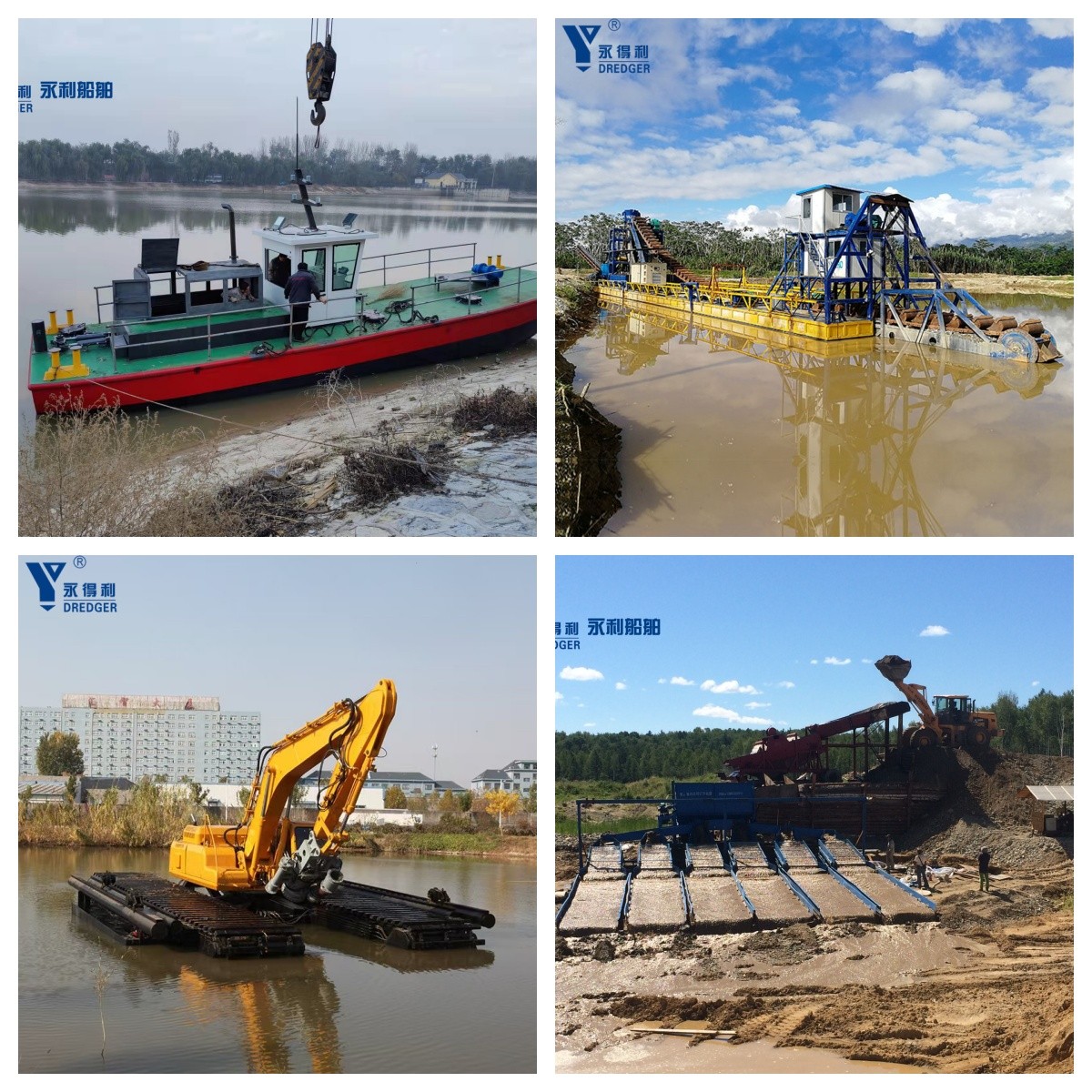

Related Products
