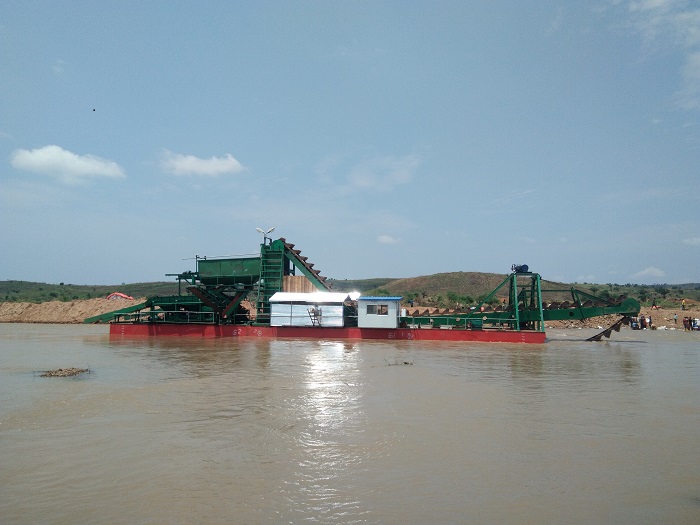

1.Brief Introduction of Bucket Chain Diamond Dredger
A bucket chain diamond dredger is equipped with some dredging buckets and pulsating jiggers, which is a device that picks up sediment by mechanical means, often with many circulating buckets attached to a wheel or chain. Some bucket dredgers are powerful enough to rip out coral to make a shipping channel through coral reefs. The dredger is equipped with the pulsating jiggers for the function of selecting diamond.
2.Technical Specification
Model | Capacity (CBM/H) | Power (KW) | Water (M3/H) | Dredge Depth (M) |
YLBDD-100 | 100 | 65-100 | 100-200 | 1-25 |
YLBDD-150 | 150 | 82-120 | 150-250 | 1-25 |
YLBDD-200 | 200 | 97-150 | 200-300 | 1-25 |
YLBDD-250 | 250 | 108-200 | 250-500 | 1-25 |
3.Company Introduction
Qingzhou Yongli Mining And Dredging Machinery Co., Ltd. is located in Qingzhou City, Shandong Province, one of the ancient nine states. We are a professional manufacturer and supplier of dredging vessels and mining equipment that integrates scientific research, development, design, production, installation and commissioning, and personnel allocation services.
Dredging vessels include: cutter suction dredgers, bucket wheel dredgers, jet suction dredgers, siphon sand dredgers, drilling suction sand dredgers, bucket chain sand dredgers, amphibious dredgers, backhoe dredgers, multifunctional work boats, self-suction and self-unloading barges, transport barges, sand sieving and washing equipment, etc.
The mining equipment includes: floating production platform, bucket chain gold/diamond dredger , jet suction gold/diamond dredger, cutter suction gold/diamond dredger, land-use gold/diamond washing plant, as well as an integrated production line for mining and mineral processing in water and on land. It can also be customized according to the mineral types provided by customers.
We are High and New Technology Enterprise, have obtained the production license for Shipbuilding of Class III Grade Three from CCS China Classification Society, joined the China Dredging Association and Shandong Shipbuilding Industry Association, obtained the ISO9001-2015 quality management system certificate, and obtained more than 30 patent certificates for inventions and utility models from the China National Intellectual Property Administration. The successfully built Yongli series products have obtained the certification from international famous testing organizations like SGS and BV. We have won widespread praise from domestic and foreign customers with our first-class product quality and complete after-sales service system.
We will continue to adhere to the principles of integrity, mutual benefit, and common development. Welcome domestic and foreign customers to visit us for factory inspection and business negotiation!

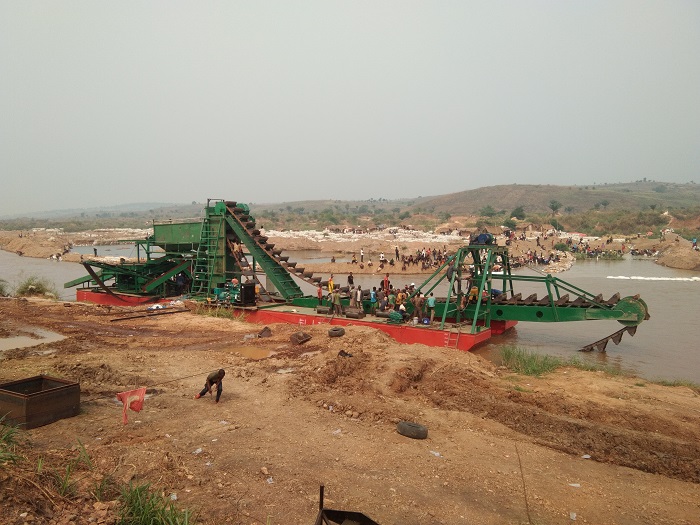

4. Successful cases
Diamond dredger in DRC congo
Diamond dredger in Mali
Diamond dredger in Central Africa
5.Request For Reply
How many tons per hour for the deal capacity?
How many meters for the dredging depth?
In the raw mining,the sand and stone percentage ratio?
How big size for the diamond particle in the raw mining?
For the diesel generator,do you prefer weichai or cummins brand?
