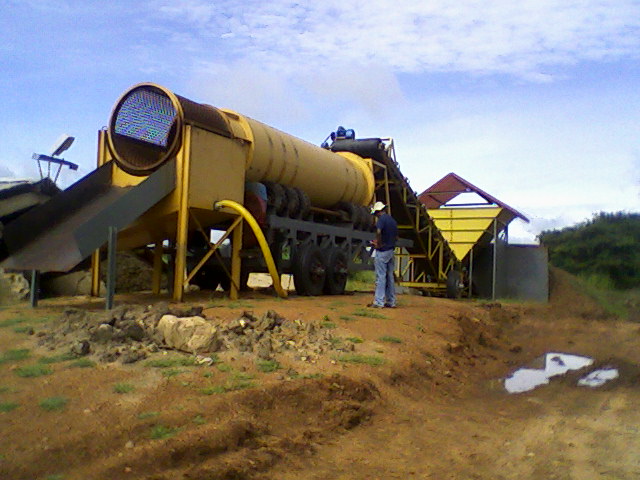

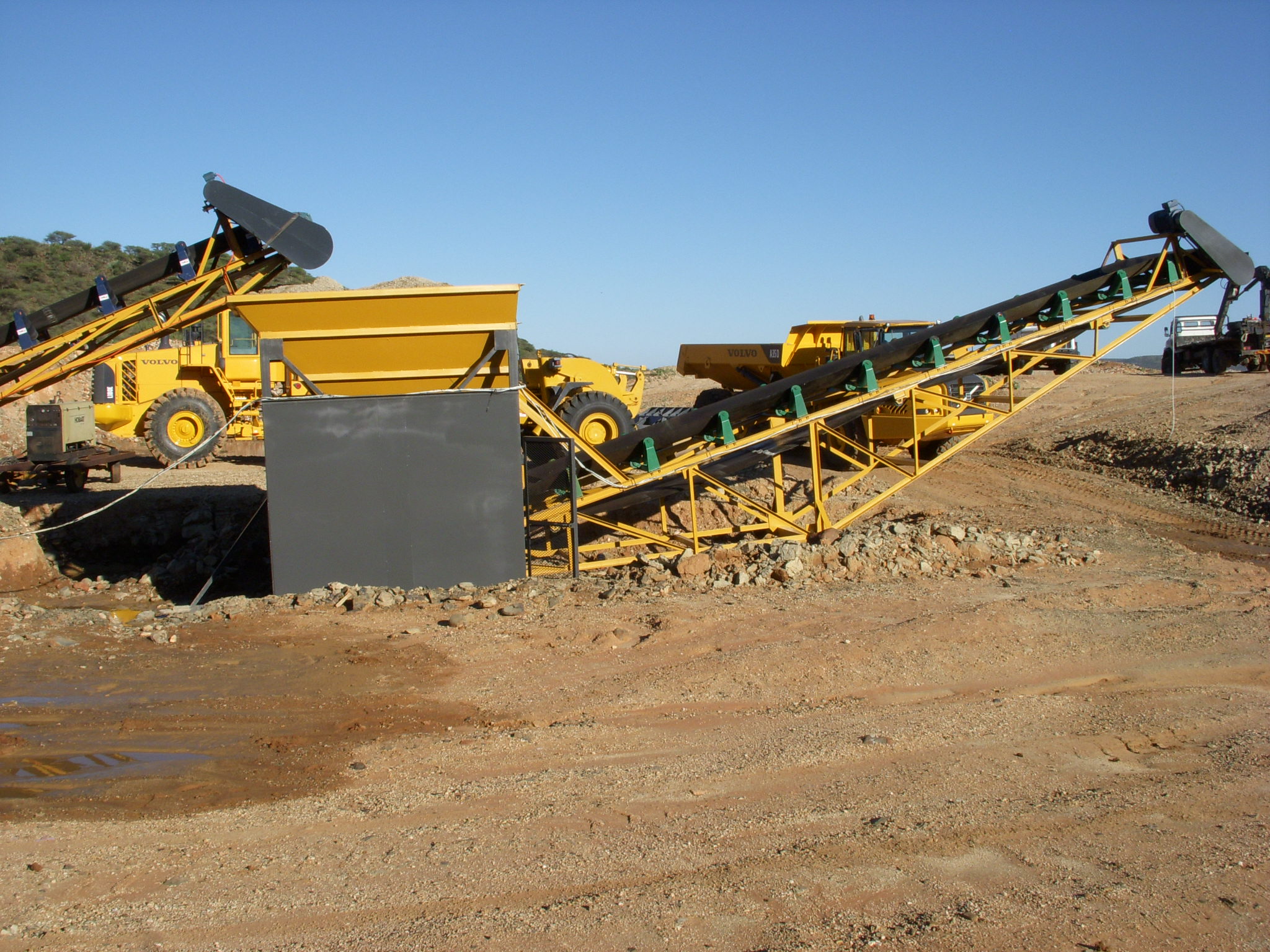

Introduction of diamond washing plant
The trommel screen is to filter out the big stones in the original ore and wash away the mud in the original ore. It provides a simple,efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. The key recovery part of the diamond washing machine is the pulsating jigger. We usually design its mesh size of the jigger based on the different sizes of the diamond particle.
We offer a variety of models, including mini trommel screen that can be operated by one person for small-scale mines and heavy-duty washing plant for big-scale mines. We have passed ISO and CE international certification, safety is guaranteed.
Movable with wheels and fixed non-movable models can be selected according to your mine environment.
Features
Yongli diamond washing plant could be used to diamond mixed with sand in paleochannel,paleo-riverbed,alluvial placer,and zirconium in raw ore.
Iron ore needs to be retrieved firstly by magnetic separator if the percentage is high in the raw ore,then gold,diamond,zirconium will be concentrated,or the effectiveness will be affected.
This set of mining equipment are composed of several gravity concentrators.The concentration ratio could reach as high as 1:1000,and the recovery efficiency about 90% after series of separation.
Parameters
| Model | Capacity(t/h) | Power(kw) | Water consumption(m3/h) | Particle size(mm) | Recovery |
| YLDWP-100 | 100 | 92 | 200 | ≤300 | 90% |
| YLDWP-150 | 150 | 100 | 300 | ≤300 | 90% |
| YLDWP-200 | 200 | 106 | 400 | ≤300 | 90% |
| YLDWP-250 | 250 | 118 | 500 | ≤300 | 90% |
Our main products
Why choose us?
Yongli will do the best in the field and one of the most important things is providing after-sales service and support. We promise to provide every customer with the highest level of service and 24/7 support to make sure that every machinery will run properly and every customer will be fully satisfied.
The following service can be provided by our high-quality team:
------ Signing a long-term after-service agreement with customers;
------ rational and practical design according to clients' project needs and requirements;
------ Engineers will be sent for installation, testing and commissioning of new machine;
------ Operation service & maintenance guidance (Training of new operators);
------ Troubleshooting & diagnosis;
------ Replacement suggestions & spare parts with competitive price;
------ Life time after sales service for all customers.
Our company
Qingzhou Yongli Mining And Dredging Machinery Co. Ltd,is leading company of China mining equipment. We are the professional manufacturer who has been dedicated in R&D, designing, producing, assembling and testing services.
Main products: Cutter suction dredger, jet suction dredger, bucket chain dredger, gold dredger, diamond dredger, gold& diamond &sand washing plant, transport barge, work boat and so on.
In 1999, according to special terrains and working condition in China, Africa and Southeast Asia, adopting the Europe and America technology, we successfully developed the zirconium, gold, diamond, tin ore, iron ore mining machinery and tailing recovery plant.
