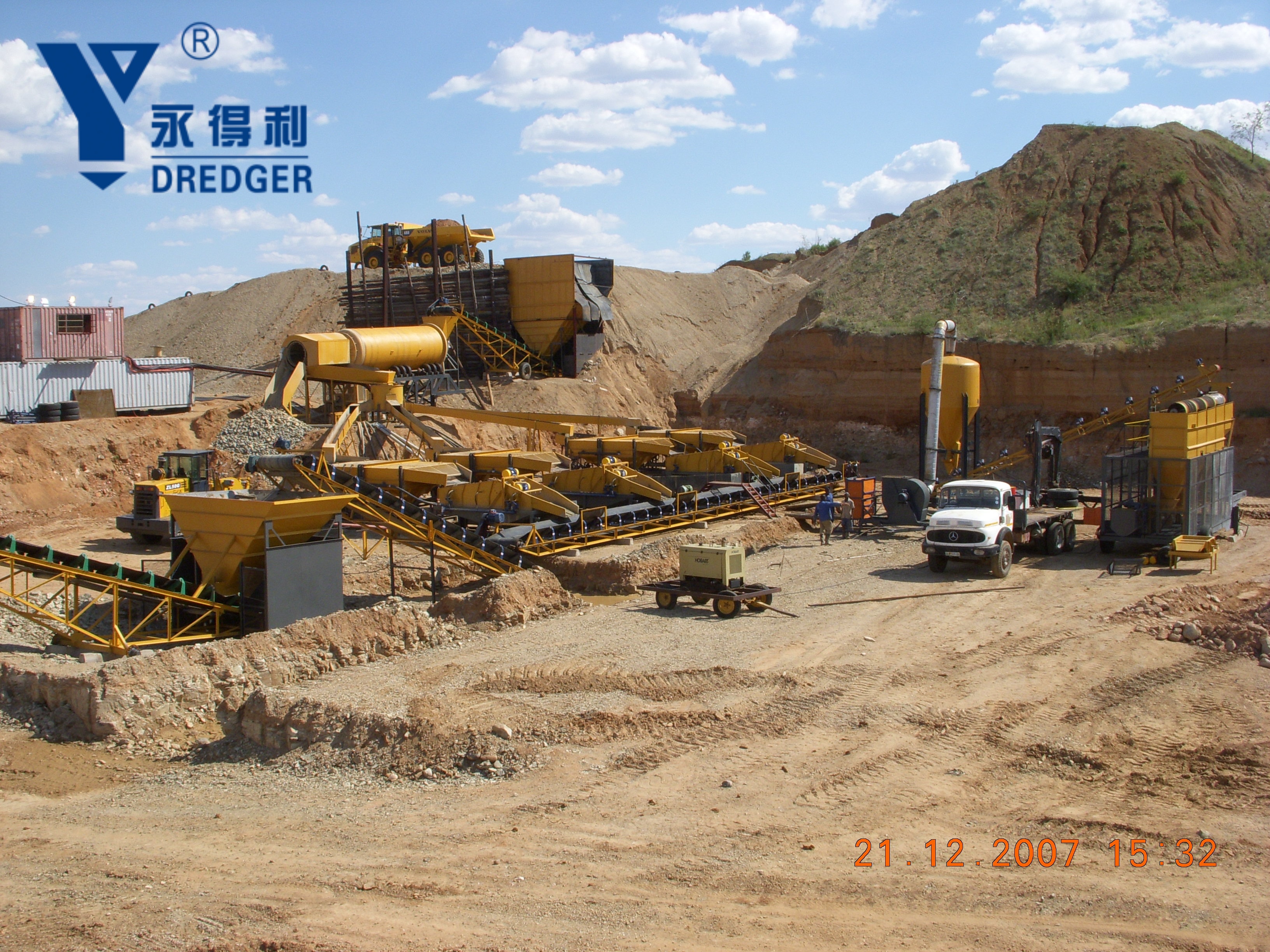

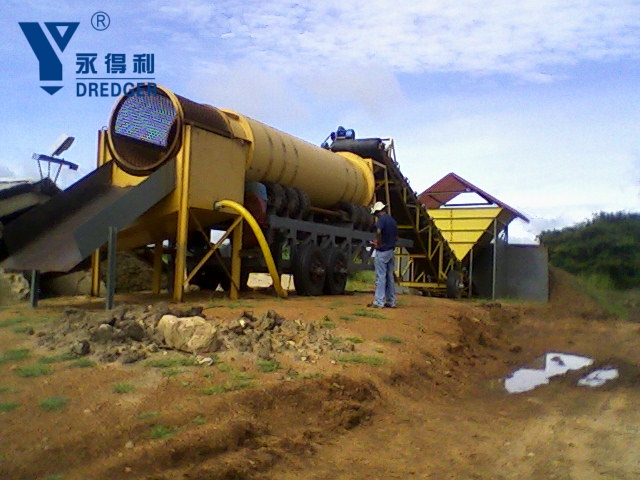

Introduction of diamond washing plant
A Diamond Washing Plant, also known as a Diamond Processing Plant or Mobile Diamond Mine, is a specialized and modular facility designed to extract diamonds from alluvial or eluvial deposits (such as gravel, sand, and clay). Unlike fixed plants, these are often portable or semi-portable, allowing them to be set up close to the mining site, which is crucial for remote locations where most alluvial diamond deposits are found.
The core principle is to separate diamonds from the surrounding waste material (gangue) based on differences in their physical properties, such as density, size, and hydrophobicity.
Application of diamond washing plant
Diamond washing plant could be used to mine diamond mixed with sand in paleochannel,paleo-riverbed,alluvial placer,and zirconium in raw ore.
Iron ore needs to be retrieved firstly by magnetic separator if the percentage is high in the raw ore,then gold,diamond,zirconium will be concentrated,or the effectiveness will be affected.
This set of mining equipment are composed of several gravity concentrators.The concentration ratio could reach as high as 1:1000,and the recovery efficiency about 90% after series of separation.
Features
1.The main advantage of gold and diamond washing plant is easy to move, can be dragged by loader or excavator can easily.
2.Dis-assemble and assemble is convenient, only takes half an hour. can move from one site to another site easily.
3. Processing capacity 5-300 tons per hour.
4. Water consumption 200-600 cubic meters per hour.
5. Total power of the whole machine 30-60 kw.
6. Diamond Recovery rate can be more than 90%
7. We will design the placer diamond washing plant according to your situation and requires.
Related cases
Parameter
| Model | Capacity (t/h) | Power (kw) | Water consumption (m3/h) | Particle size(mm) | Recovery |
| YLDWP-100 | 100 | 92 | 200 | ≤300 | 90% |
| YLDWP-150 | 150 | 100 | 300 | ≤300 | 90% |
| YLDWP-200 | 200 | 106 | 400 | ≤300 | 90% |
| YLDWP-250 | 250 | 118 | 500 | ≤300 | 90% |
We also can supply others upon customers' request.
In order to supply our solution and quotation of diamond washing plant, please inform us:
1. required work capacity per hour?
2. the ratio of sand and stone? Any clay?
3. diamond content or diamond particle size
4. other information about the worksite
