12 inch(1000 cbm/h) Jet Suction Sand Dredger /Dredging Ship
1.Jet Suction Dredger Product Description
A jet suction dredger is a high-efficiency dredging and sand extraction engineering ship that integrates scouring and suction functions. It operates through a coordinated "jet-and-suction" process. The high-pressure water pump generates a water flow, which impacts the underwater sediment through a water gun, suspending it. The sand suction pump then transports the resulting mixture of mud and water via suction pipes and pipelines to a designated location.
How to Choose a jet suction sand dredger? 1. How many cubic meter per hour for the clear water flow ? 2.How many meters for the suction depth? 3.How many meters for the discharge distance? 4.for the engine,do you prefer weichai or cummins?
2.Technical Parameter
| Model | YLJSD-300 | Height | 1.5m |
| Slurry Capacity | 1000m3/h | Dredging Depth | 30m |
| Slurry Concentration | 15-20% | Discharge Distance | 500m to 1500m |
| Length Overall | 10m | Engine | Cummins or Weichai |
| Breadth | 5.0m | Self-propelled | Can be customized |

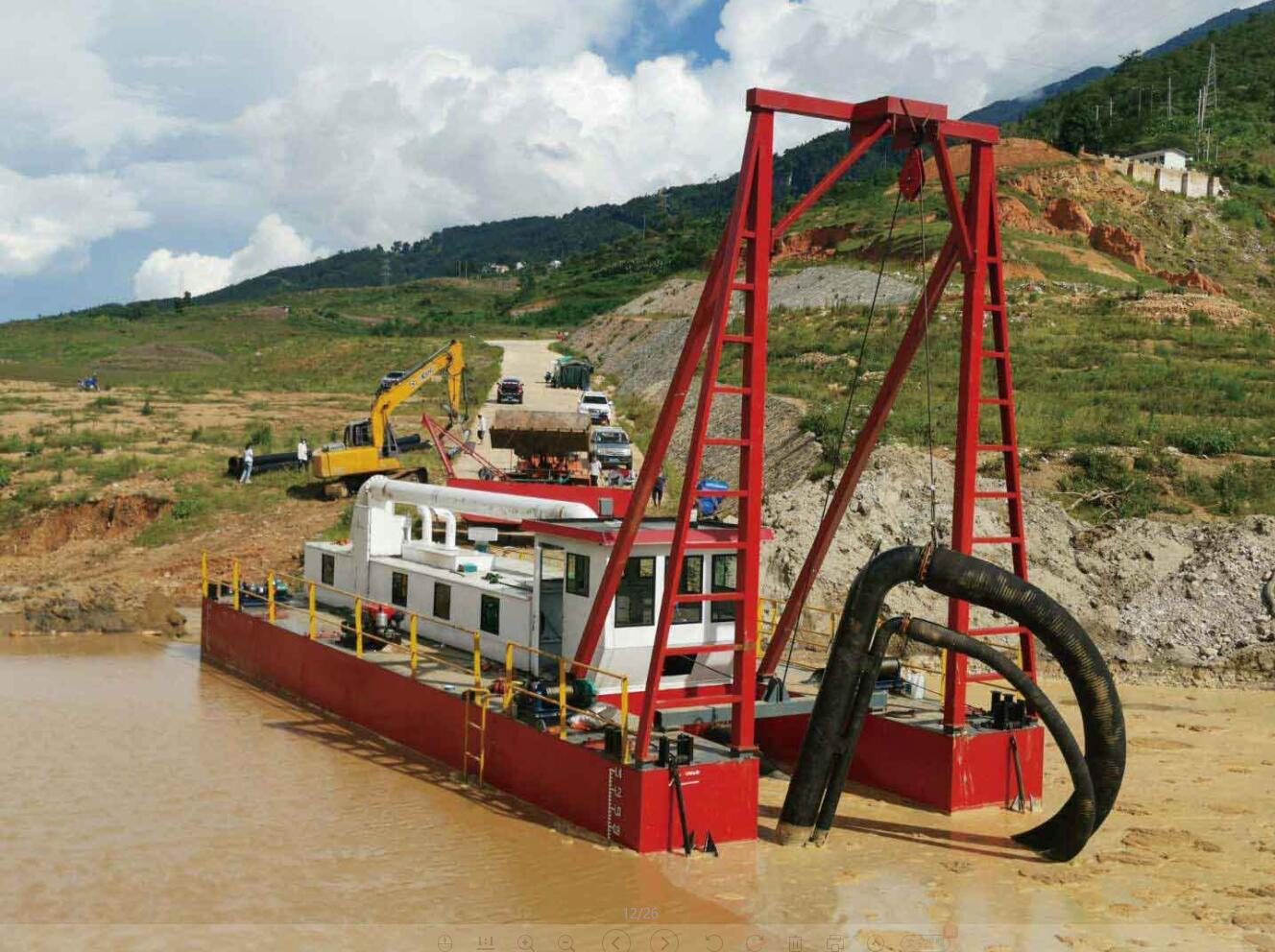

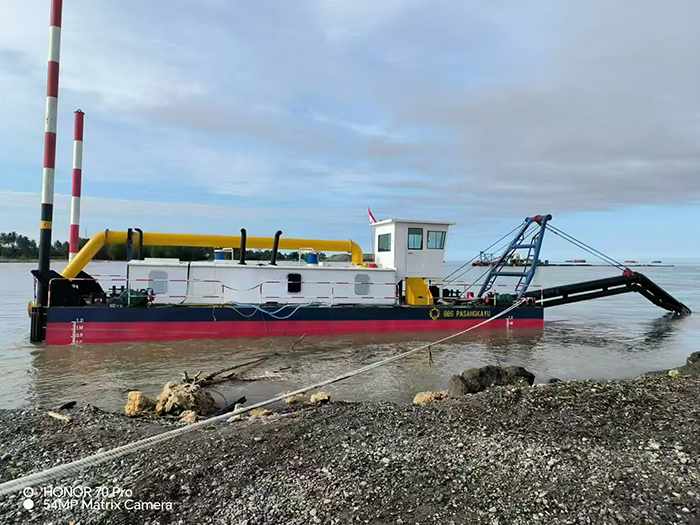

3.Detailed Photos
4.Jet Suction Dredger Product Features
Key Features:
· High-pressure water jets break up the material, while a sand suction pump sucks the water and sand mixture up.
· The capacities ranging from 100m³/h to 1000m³/h will be supplied power by diesel engines.
· Box-structured hull for stability, easy assembling,disassembling and transportation.
Applications:
· Sand mining in rivers,lakes,ponds and coastal areas.
· Environmental remediation to remove contaminated sediments.
Advantages:
· Efficient for loose, fine materials.
· Flexible operation with adjustable suction depth and deal capacity per hour .
