1.Brief Introduction

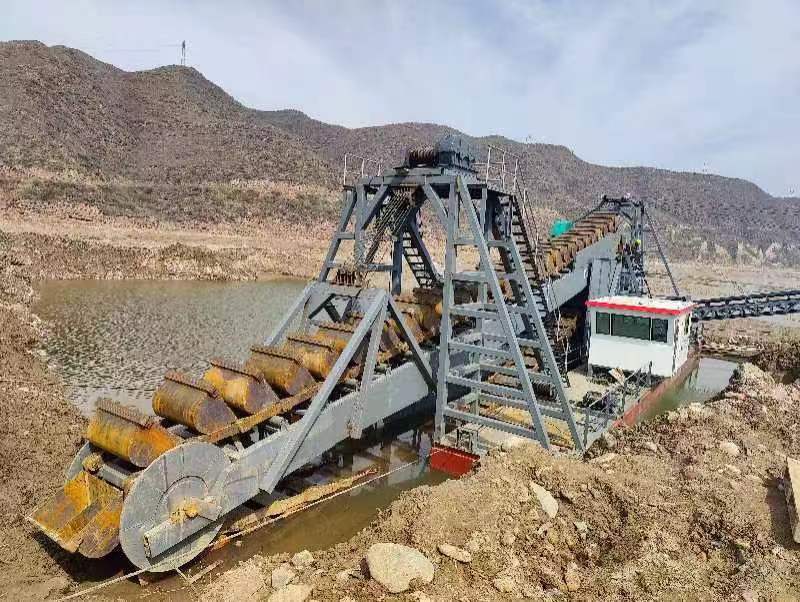

A bucket chain sand dredger is equipped with a lot of dredge buckets, which is a device that picks up sediment by mechanical means, often with many circulating buckets attached to a wheel or chain. Some bucket chain dredgers are powerful enough to rip out coral to make a shipping channel through coral reefs.

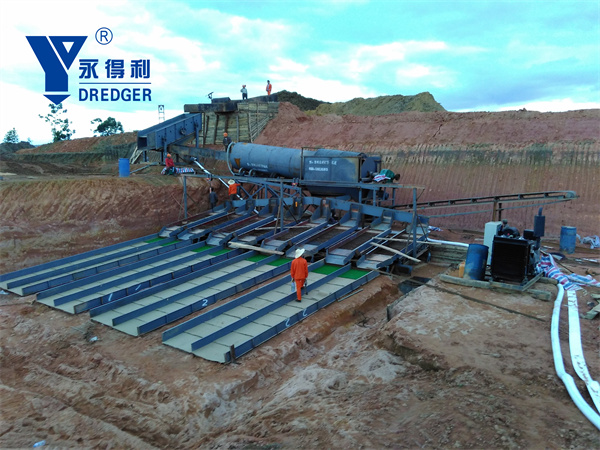

Its sand dredging cost is relativey very low. 2 persons are easy enough to operate the bucket chain gold dredger. It is very fit for dredging the sand layer with a lot of stones. Our bucket chain gold dredgers are usually equipped with pulsating sluice box and fixed sluice box. After getting the heavy sand mining,we will use the shaking table and gold melting furnace to recovery the gold from the sand.
2. Technical Specification
| Pontoon size (Length*Width* Height) | 35.4*2.2*1.41m |
| Square type frame size | 6.0*1.9m |
| Inclined type frame size | 6.0*1.9m |
| Chain plate quantity of bucket chain gold dredging ship | 196 pcs |
| Chain plate pin quantity of bucket chain gold dredging ship | 196 pcs |
| Dredging bucket quantity of gold dredging machine | 98 pcs |
| Trommel screen of gold dredging ship size | length 3 meters ,diameter 2.0m |
| Pulsating sluice box size | 5.8*1.5m |
| Fixed sluice box size | 6*1.0m |
| Waste discharge belt size | 11*0.8m |
3. Request For Reply
a. Deal capacity: How many tons of sand do you want to deal with per hour?
b. How many meters for the dredge depth?
c. In the dredging mixture,the sand and stone percentage ratio?
d. How big size for the gold particle diameter?
e.if you want to us to supply with the diesel generator? We can support weichai,Cummins or Caterpillar and other brands.
4. Main Products
Bucket chain dredger
Cutter suction dredger
Gold washing plant
Amphibious dreder
Backhoe dredger
Amphibious excavator
5.Company Introduction
Qingzhou Yongli Mining And Dredging Machinery Co., Ltd. is located in Qingzhou City, Shandong Province, one of the ancient nine states. We are a professional manufacturer and supplier of dredging vessels and mining equipment that integrates scientific research, development, design, production, installation and commissioning, and personnel allocation services.
Dredging vessels include: cutter suction dredgers, bucket wheel dredgers, jet suction dredgers, siphon sand dredgers, drilling suction sand dredgers, bucket chain sand dredgers, amphibious dredgers, backhoe dredgers, multifunctional work boats, self-suction and self-unloading barges, transport barges, sand sieving and washing equipment, etc.
The mining equipment includes: floating production platform, bucket chain gold/diamond dredger , jet suction gold/diamond dredger, cutter suction gold/diamond dredger, land-use gold/diamond washing plant, as well as an integrated production line for mining and mineral processing in water and on land. It can also be customized according to the mineral types provided by customers.
We are High and New Technology Enterprise, have obtained the production license for Shipbuilding of Class III Grade Three from CCS China Classification Society, joined the China Dredging Association and Shandong Shipbuilding Industry Association, obtained the ISO9001-2015 quality management system certificate, and obtained more than 30 patent certificates for inventions and utility models from the China National Intellectual Property Administration. The successfully built Yongli series products have obtained the certification from international famous testing organizations like SGS and BV. We have won widespread praise from domestic and foreign customers with our first-class product quality and complete after-sales service system.
We will continue to adhere to the principles of integrity, mutual benefit, and common development. Welcome domestic and foreign customers to visit us for factory inspection and business negotiation!
