16 inch (2200 m3/h) Cutter Suction DredgerShip/ Sand Dredging and Gold Mining Used in River
Cutter Suction Dredger Description
lThe cutter suction dredger could be used in inland waterways, lakes,coastal areas for projects of desilting and sand dredging.
lCustomized according to dredging depth, working capacity and discharge distance.
lThe cutter suction dredger is of dismountable structure, and can be divided into mechanical type, semi-hydraulic type, all- hydraulic type according to the different operating methods.
lDredging pump is driven by main diesel engine placed in main central pontoon, and auxiliary engine provides power to cutter head, winches, spuds and lighting system.
Cutter Suction Dredger Parameter
| Model | YLCSD-800 | YLCSD-700 | YLCSD-650 | YLCSD-550 | YLCSD-500 | YLCSD-450 | YLCSD-400 | YLCSD-300 | YLCSD-250 | YLCSD-200 |
| Slurry capacity | 8000m³/h | 7000m³/h | 6000m³/h | 5000m³/h | 3500m³/h | 3000m³/h | 2200m³/h | 1200m³/h | 800m³/h | 500m³/h |
| Slurry concentration | 15-20% | 15-20% | 15-20% | 15-20% | 15-20% | 15-20% | 15-20% | 15-20% | 15-20% | 15-20% |
| Length overal | 41m | 41m | 39m | 39m | 37m | 37m | 36m | 29m | 26m | 22m |
| Breadth | 10m | 9.3m | 9.03m | 8.8m | 7.5m | 7.2m | 6.8m | 6m | 5m | 4.8m |
| Height | 3m | 2.8m | 2.75m | 2.75m | 2.2m | 2.0m | 1.8m | 1.5m | 1.26m | 1.26m |
| Dredging depth | 15m | 15m | 15m | 15m | 15m | 15m | 15m | 12m | 12m | 10m |
| Discharge distance | 1500m | 1500m | 1500m | 1500m | 1500m | 1000m | 1000m | 1000m | 800m | 500m |
| Total Power | 3600kw | 3365kw | 2446kw | 1640kw | 1193kw | 1007kw | 806kw | 648kw | 351kw | 224kw |
| Hyraulic winch | 250kn | 200kn | 150kn | 120kn | 100kn | 80kn | 60kn | 40kn | 40kn | 20kn |
| Cutter power at shaft | 600kw | 450kw | 300kw | 170kw | 115kw | 115kw | 78kw | 45kw | 30kw | 20kw |

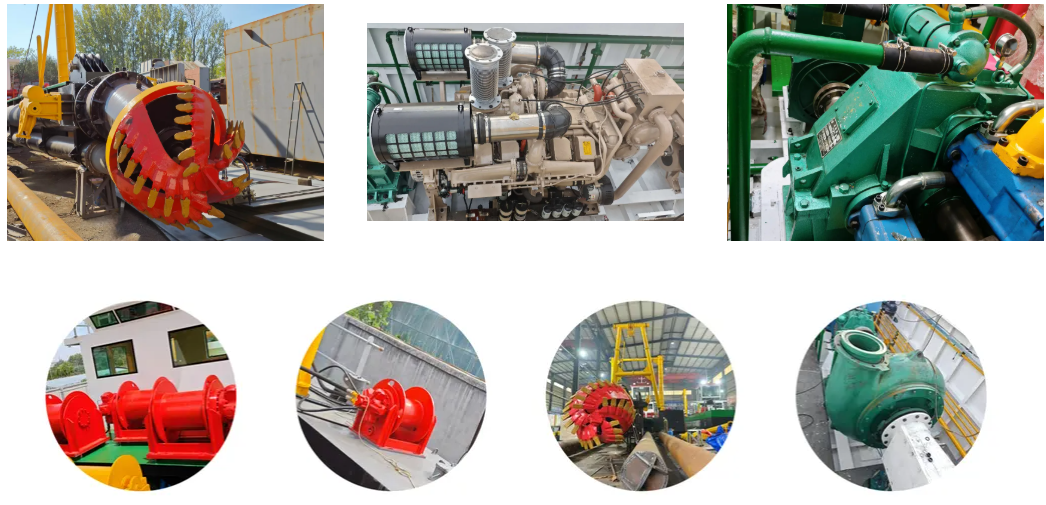

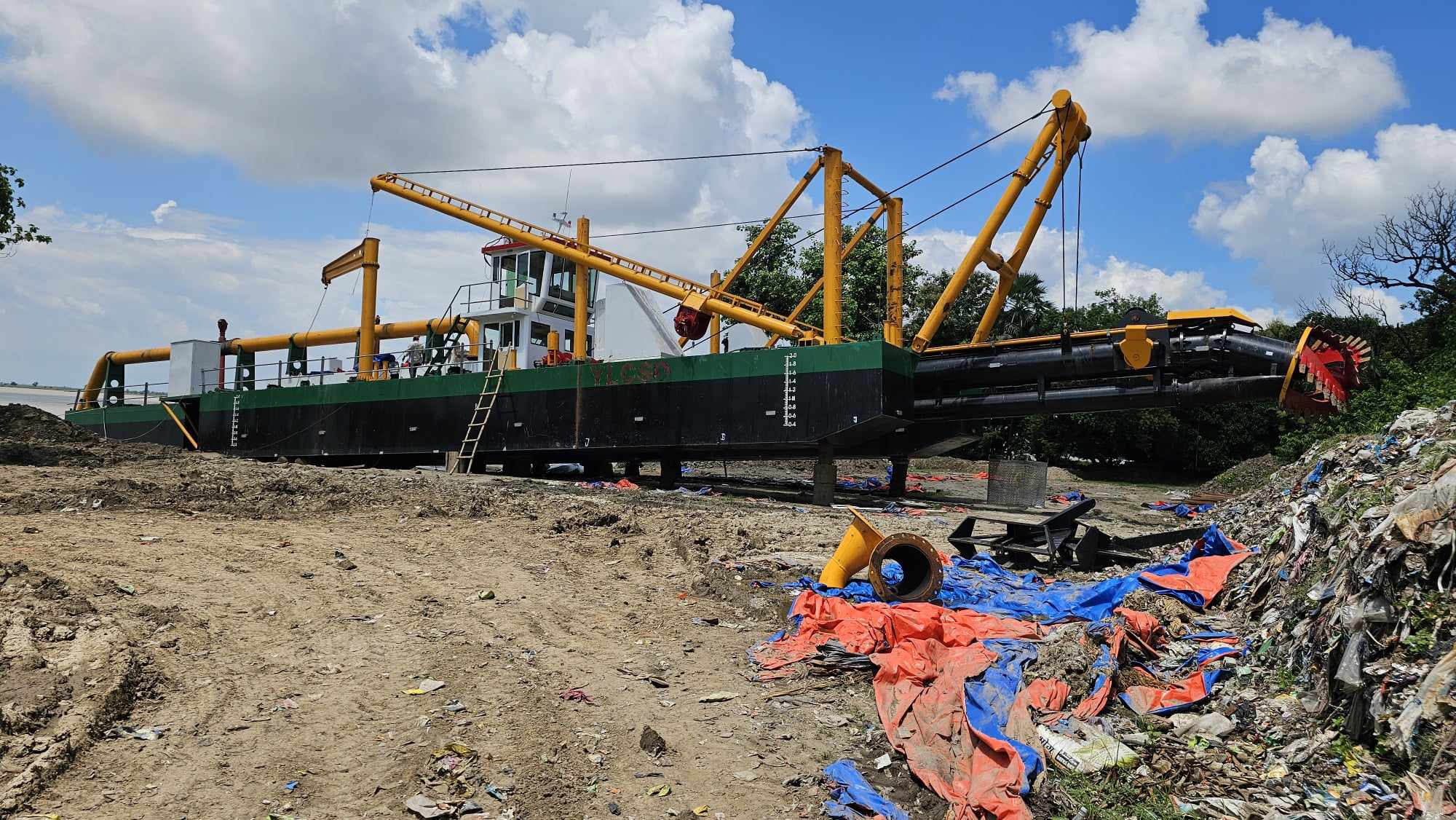

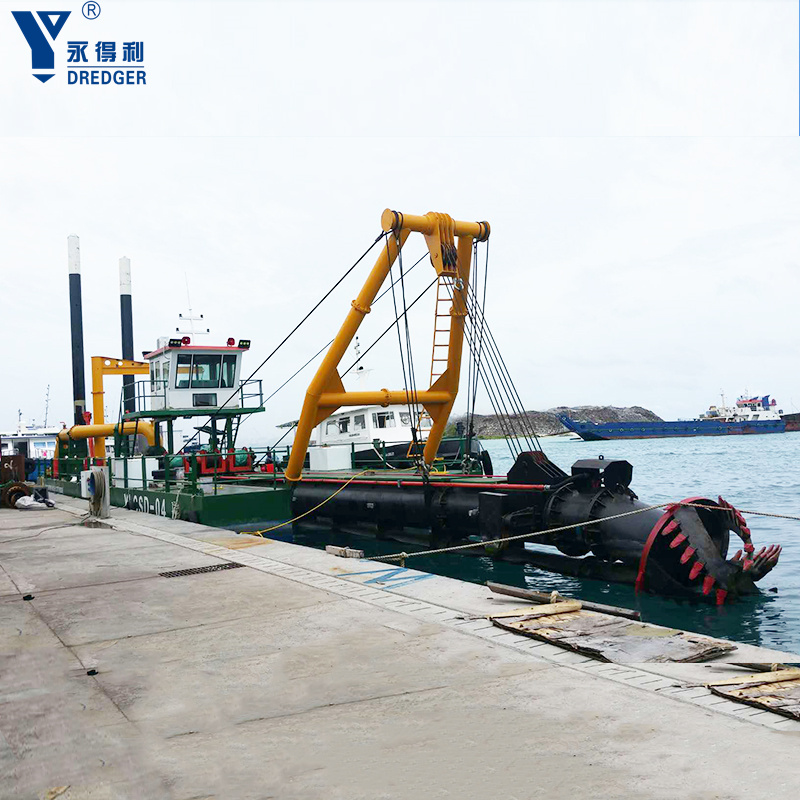

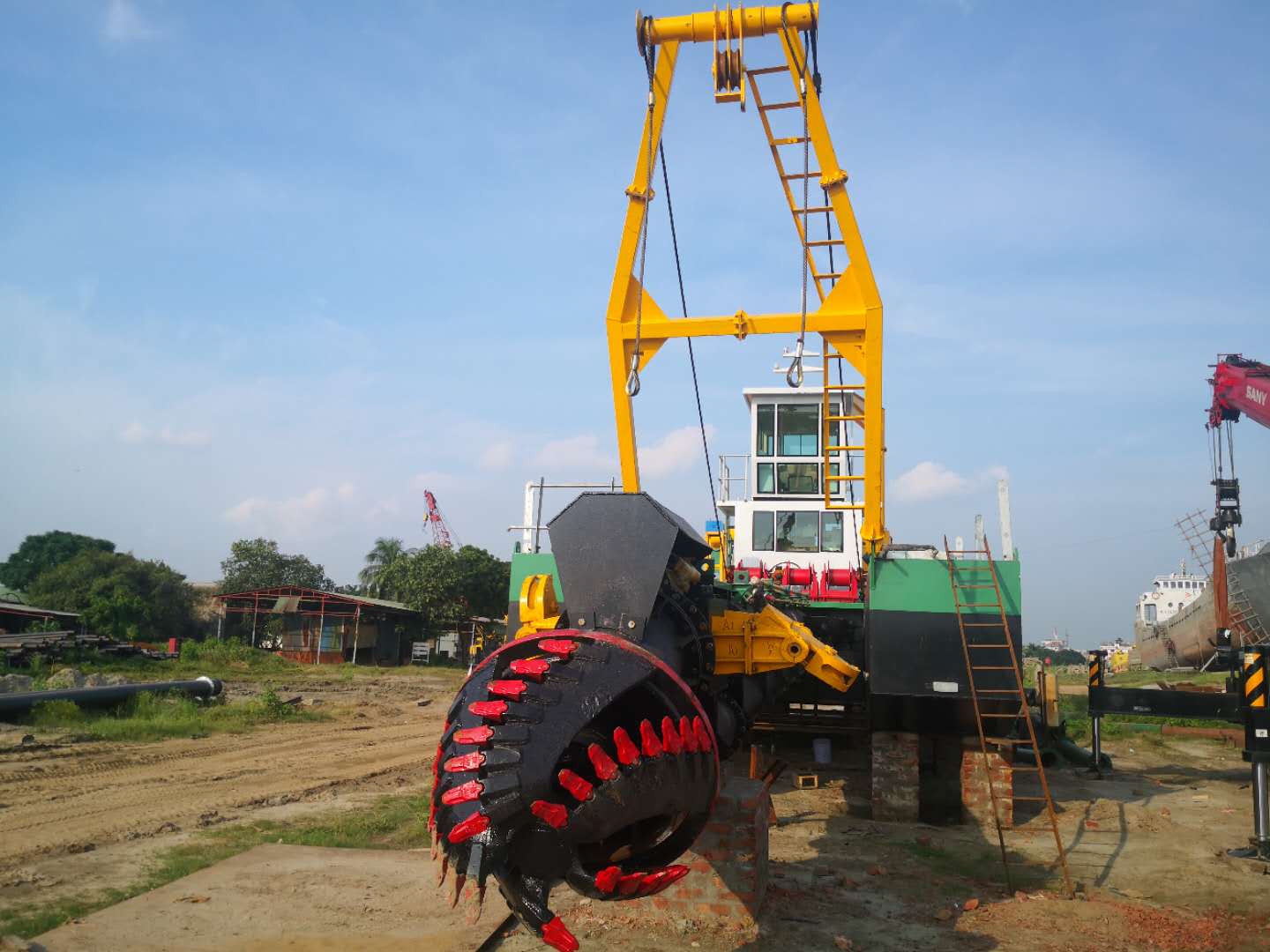

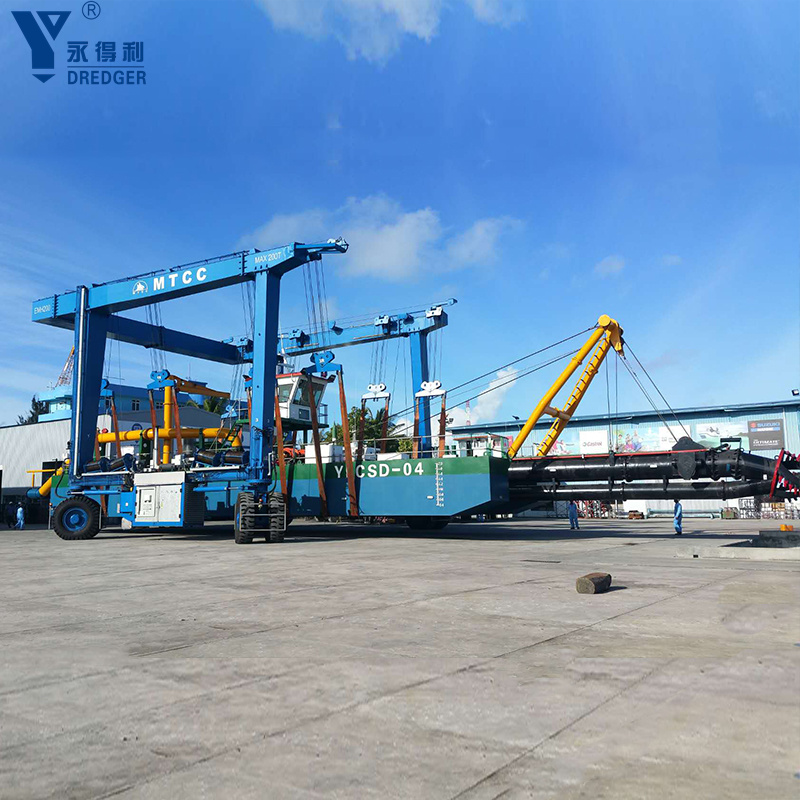

Cutter Suction Detailed Photos
Cutter Suction Dredgers Product Features
l The cutter suction dredger also has advantages of high automation, easy operation, high recovery rate, high concentration ratio, wonderfull particle allowance and long discharge distance. When working , you should lower one spud in the back of the dredger in the steel cable and the locating pulleys fixed on the two sides of the ladder. The dredger will work in fan shape and discharge the solids via gravel pump and discharge pump . Advancing and locating of the cutter suction dredger are all reached by the alternating movement of the two spuds.
l Standard design, allowing for short delivery time and competitive pricing
l Spare parts available from stock
l Durable heavy-duty marine engine
l Efficient fuel consumption
l Fresh-water engine cooling system
l Dredge pump driven through integrated bearing block , clutch and reduction gearbox
l Reliable hydraulic system
l Completely assembled and fully tested afloat before delivery
l Dismountable and transportable by road,rail or sea
l Ready for operation on arrival at site
l One-man operation
l Wide range of services and auxiliary equipment available

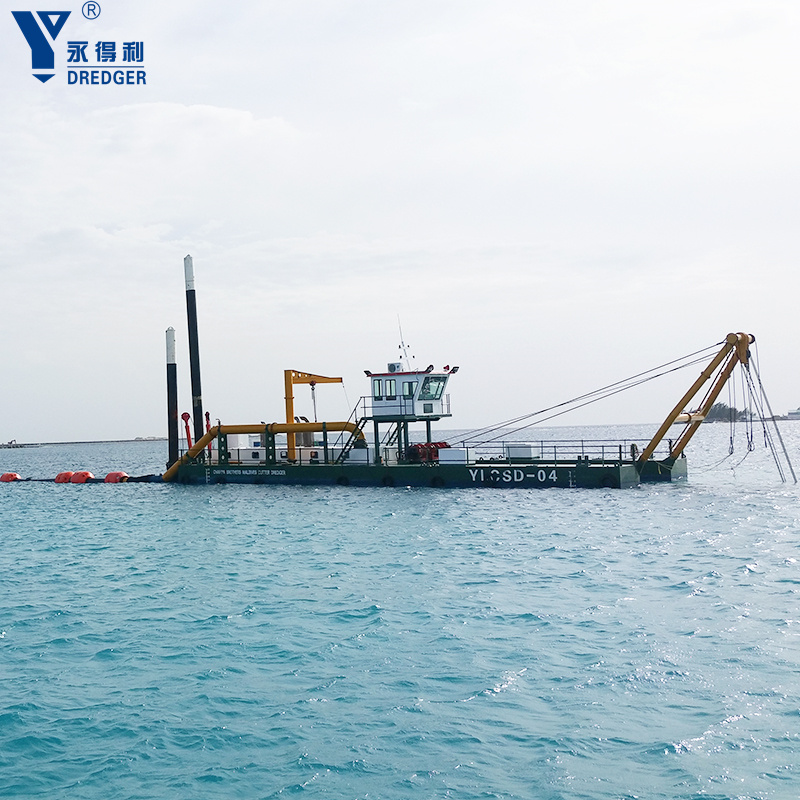

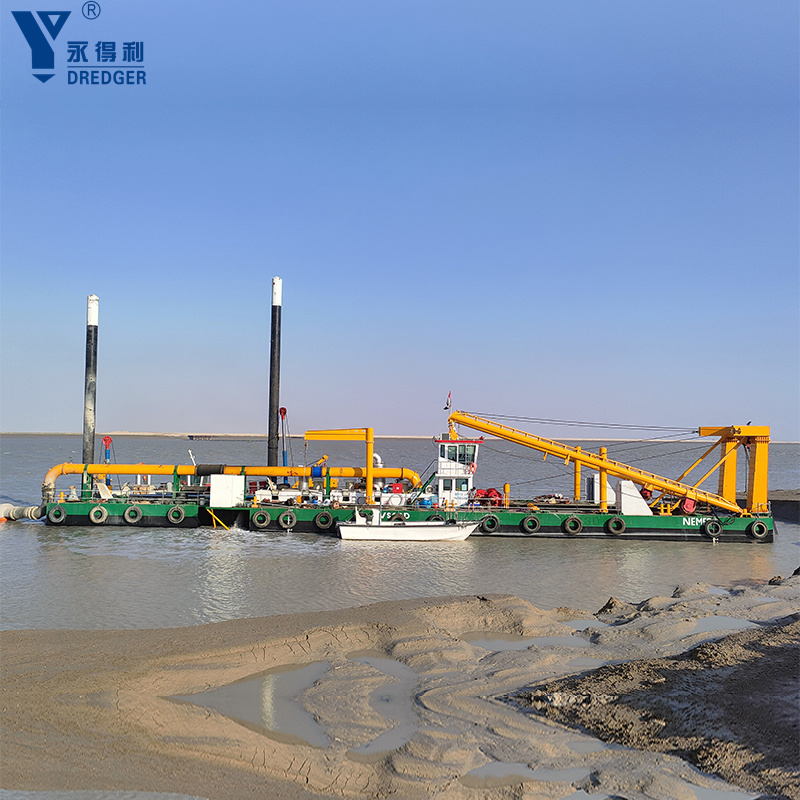

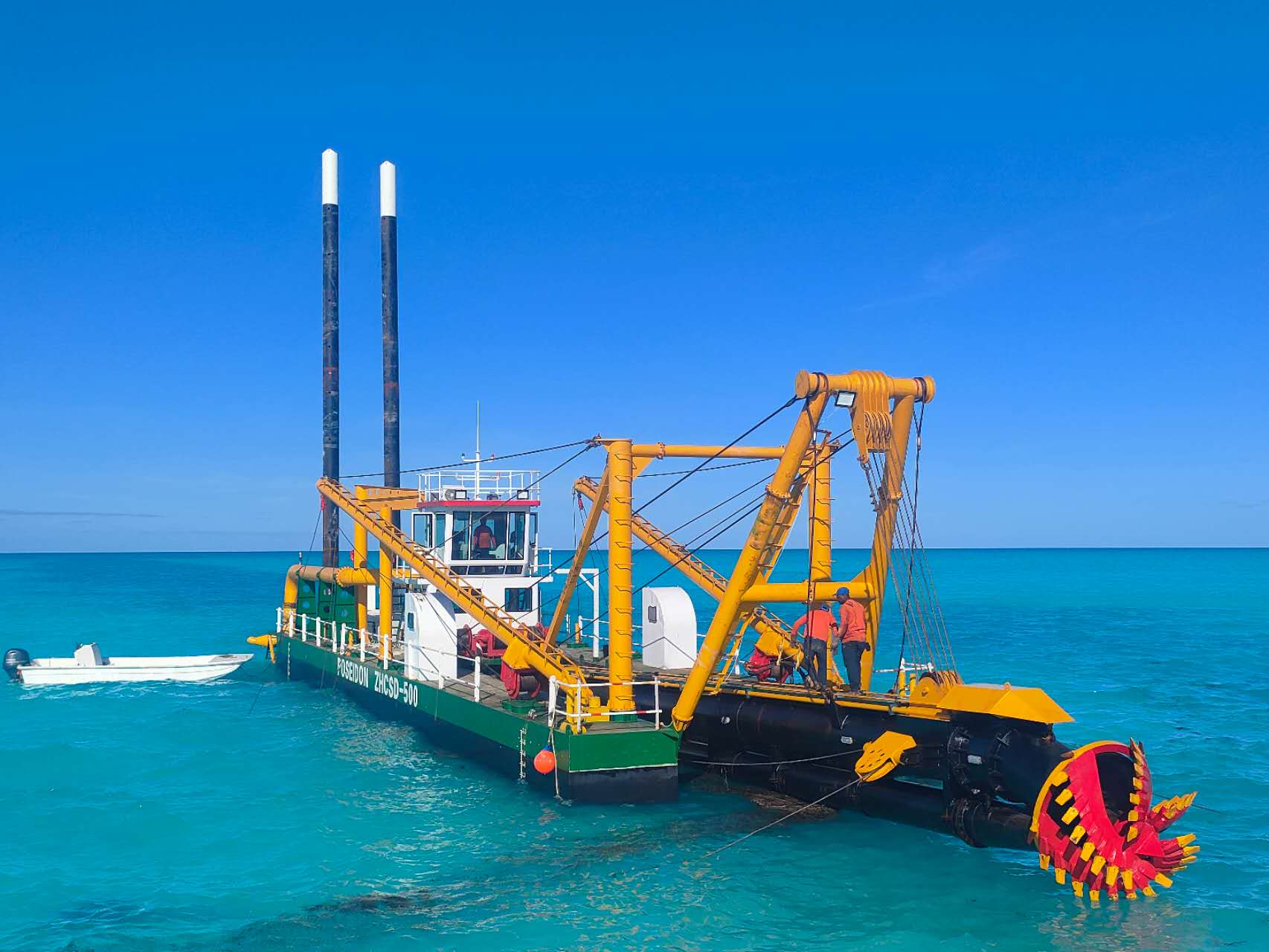

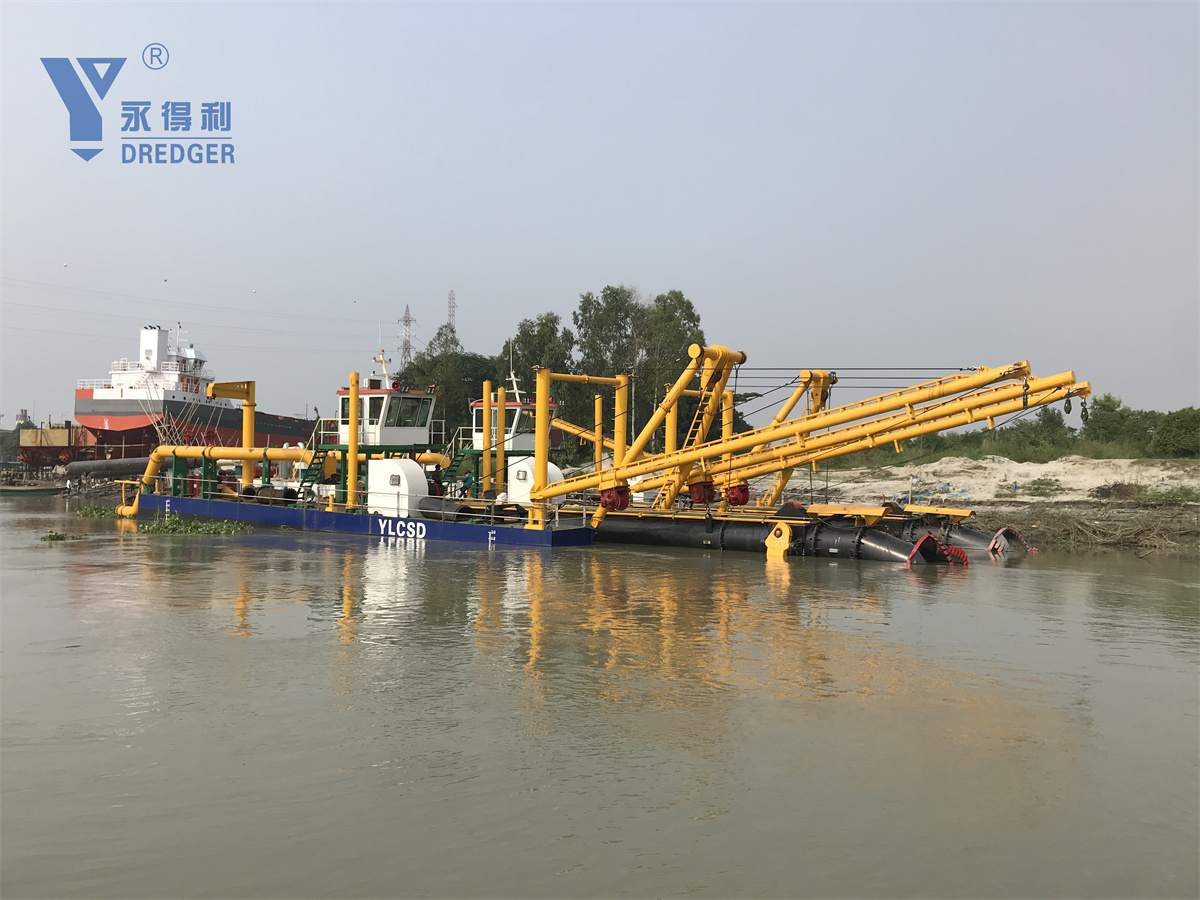

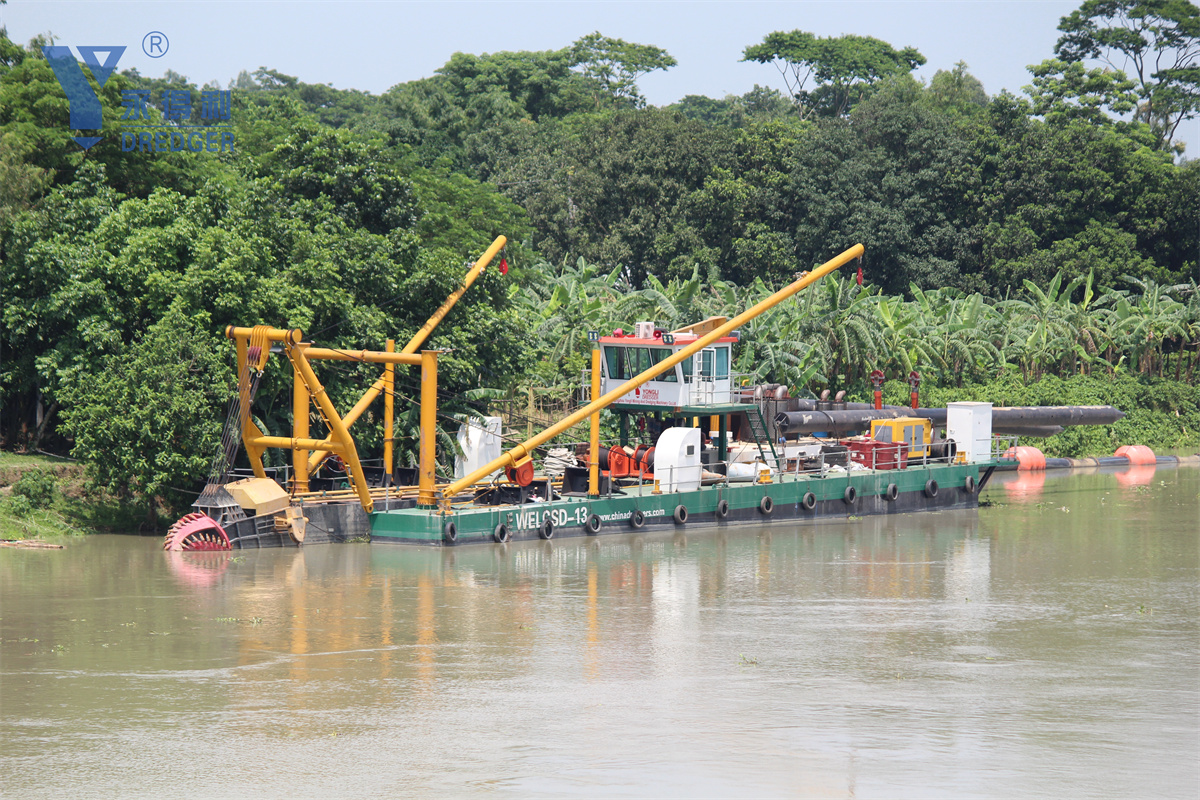

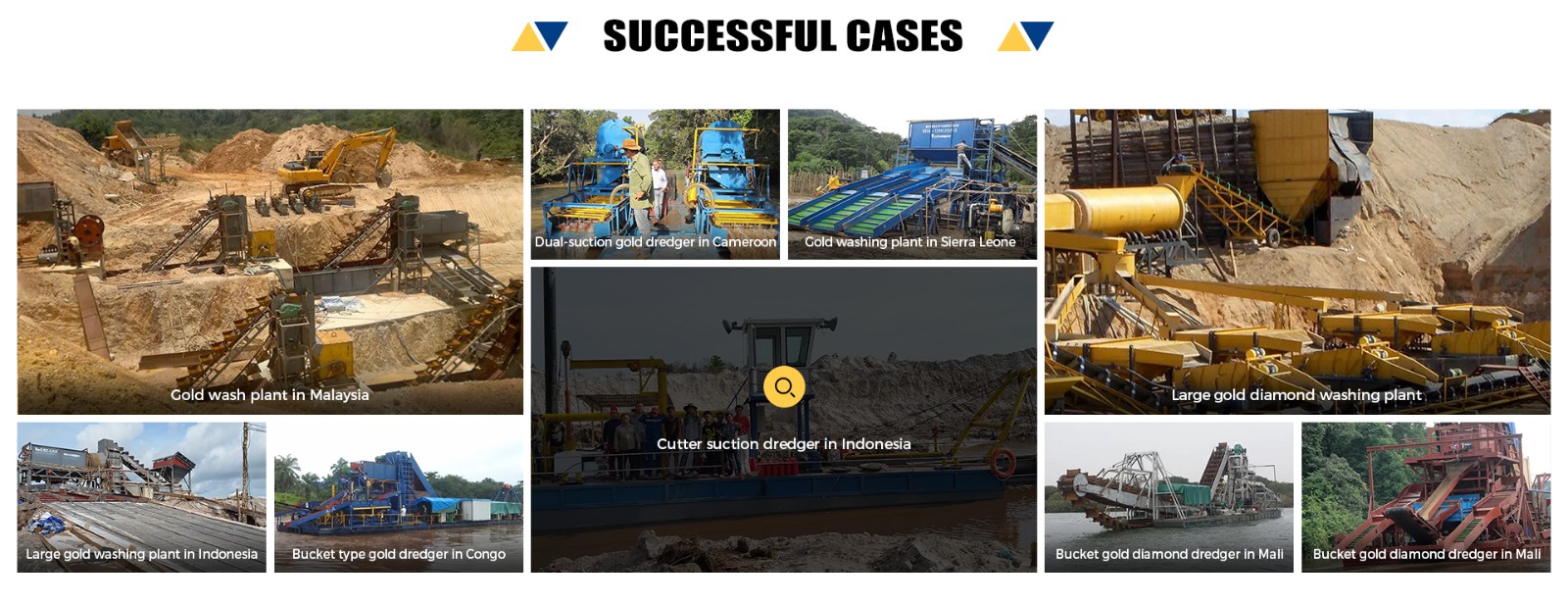

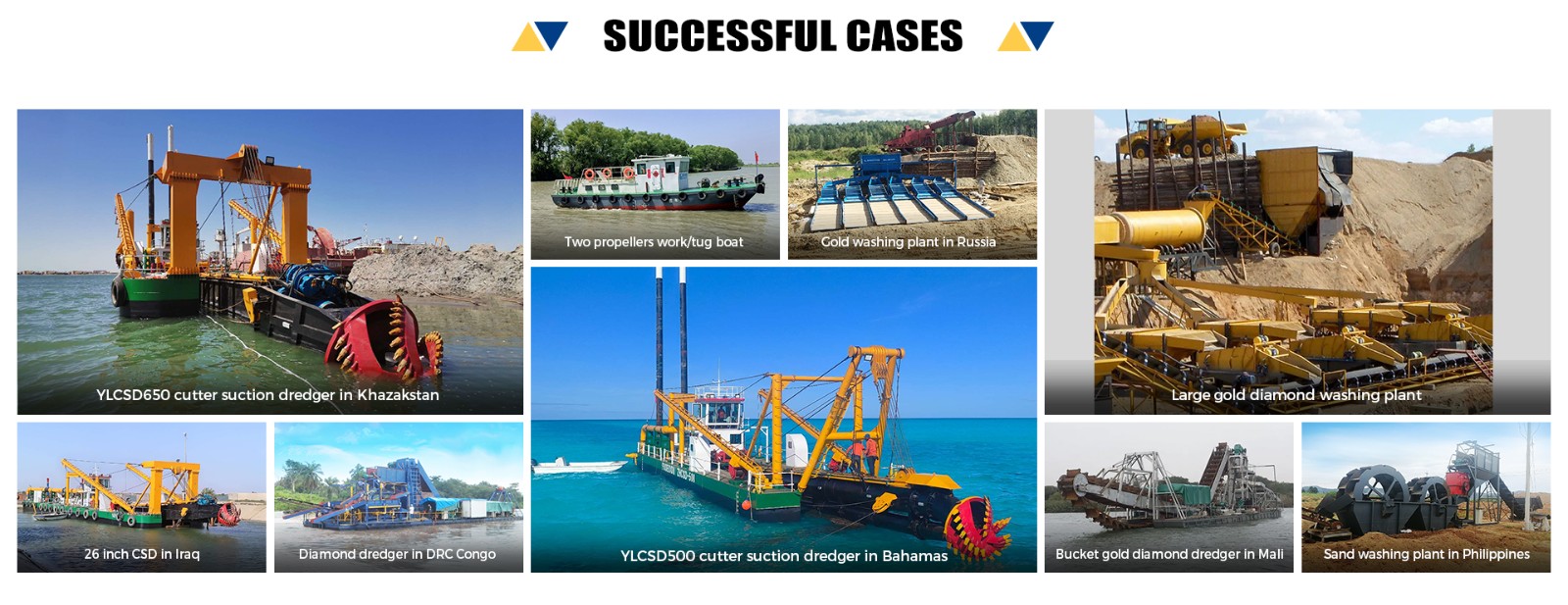

Some of our successful Cases
Our Cooperative Equipment Partner
Certifications
Company Profile
Qingzhou Yongli Mining And Dredging Machinery Co. Ltd,is leading company of China mining equipment. We are the professional manufacturer who has been dedicated in R&D, designing, producing, assembling and testing services.
Main products: Cutter suction dredger, jet suction dredger, bucket chain dredger, gold dredger, diamond dredger, gold& diamond &sand washing plant, transport barge, work boat and so on.
In 1999, according to special terrains and working condition in China, Africa and Southeast Asia, adopting the Europe and America technology, we successfully developed the zirconium, gold, diamond, tin ore, iron ore mining machinery and tailing recovery plant.
