16inch(2200cbm/h) Cutter Suction Dredger Vessel/ Sand Dredging Machine Used in River
Product Description
The cutter suction dredger of steel construction,the non self-propelled,dis-mountable type,is able to berth and dredge at any waters both in the coastal area and inland rivers.
The cutter suction dredger's hull consists of a main pontoon and two side pontoons which is to be easy to dismantle for transportation by road,rail or water,and is to be easy to reassemble at project site.The engines and dredge pump are located in the center pontoon.Two side pontoons serve as fuel tanks,ballast tanks and storage tanks.
The dredger is powered by diesel engines.The main diesel engine is to drive the dredge pump and the auxiliary engine is to drive hydraulic system,including cutter,swing and ladder winches,anchor winches and the spud cylinders etc.
Parameter
| Model | YLCSD-400 | Height | 1.8m |
| Slurry Capacity | 2200m3/h | Dredging Depth | 15m or more |
| Slurry Concentration | 15-20% | Discharge Distance | 1500m or more |
| Length Overall | 36m | Engine | Cummins or Weichai |
| Breadth | 6.8m | Self-propelled | Can be customized |

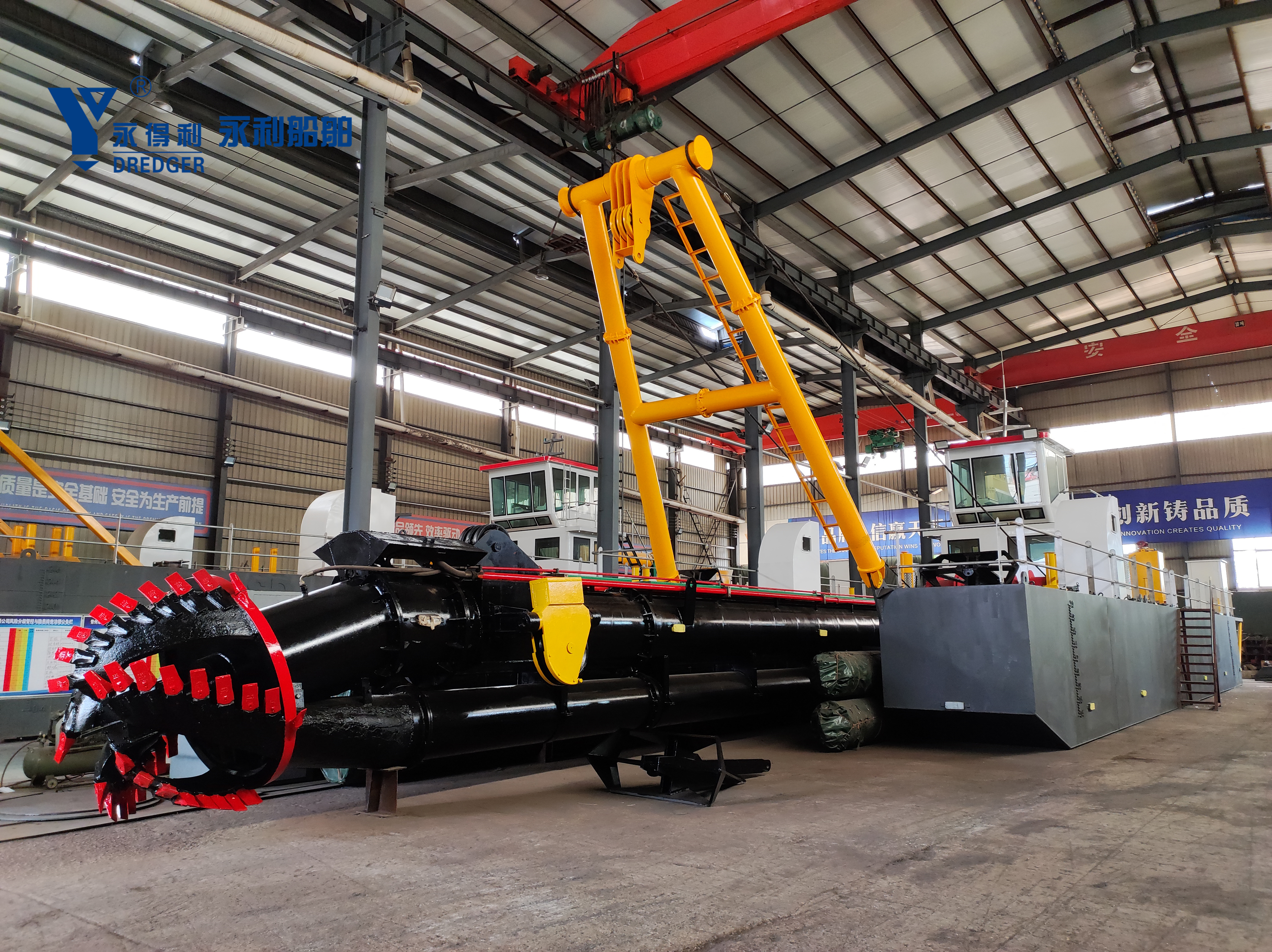

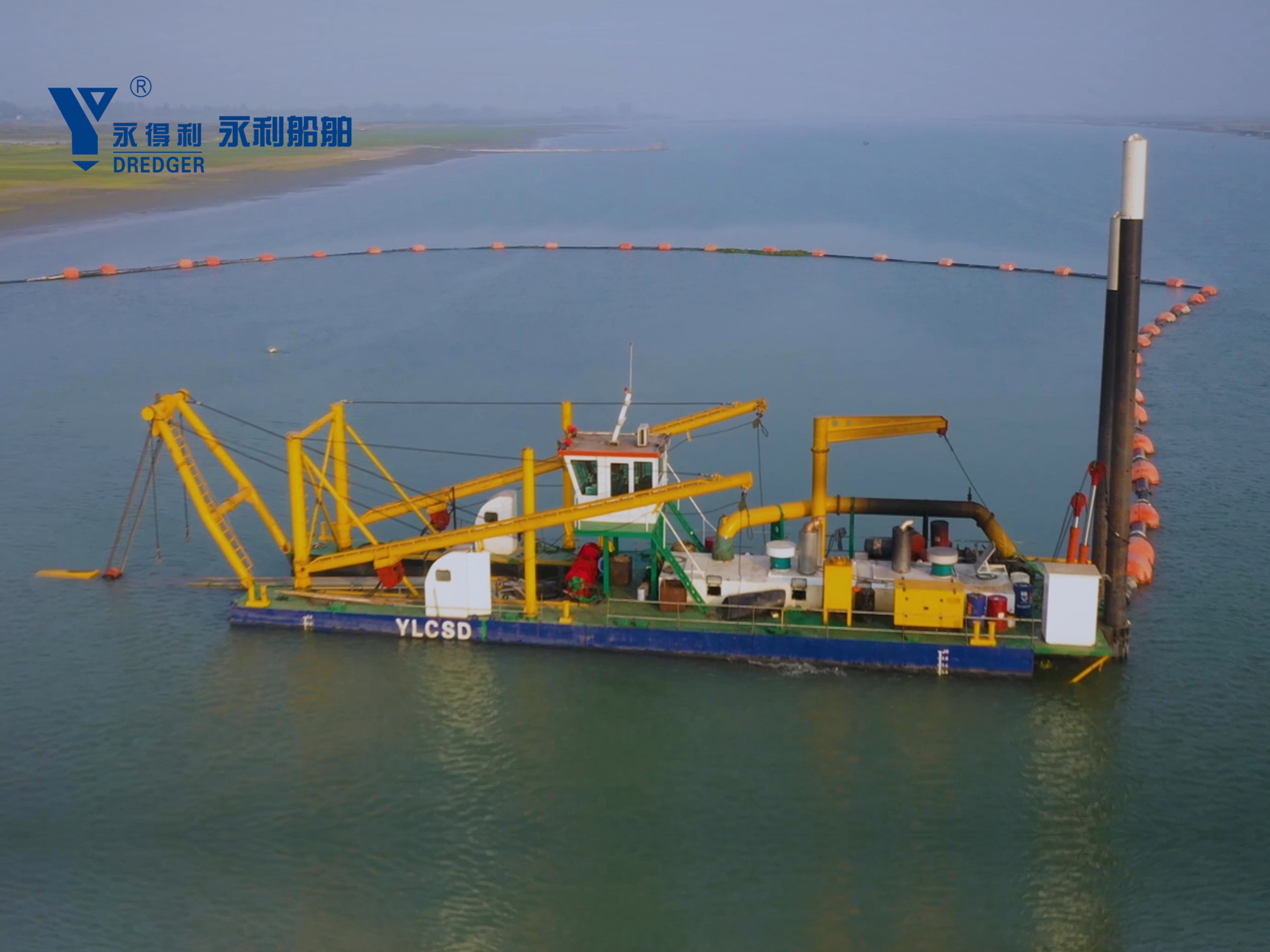

Detailed Photos
Product Features
1)Reliable hydraulic system with self-protection, high efficiency and low cost.
2)Simple, rapid assembly and dismantling, a good underwater dredging machine.
3)We can produce 4"inch to 24"inch dredgers with max. dredging depth 25m. The dredger can be customized.
4)Has passed ISO9001, CE ,CCS certificate & The Certification of the Survey.
5)Adapt submerged arc welding technology, strong stability and beautiful in design.
6) Special marine steel plate, strong & durable.
7) Pump & gear box combined together, reduce the maintenance.
Our Cooperative Equipment Partner
Certifications
Why choose us?
Yongli will do the best in the field and one of the most important things is providing after-sales service and support. We promise to provide every customer with the highest level of service and 24/7 support to make sure that every machinery will run properly and every customer will be fully satisfied.
The following service can be provided by our high-quality team:
------ Signing a long-term after-service agreement with customers;
------ Rational and practical design according to clients' project needs and requirements;
------ Engineers will be sent for installation, testing and commissioning of new machine;
------ Operation service & maintenance guidance (Training of new operators);
------ Troubleshooting & diagnosis;
------ Replacement suggestions & spare parts with competitive price;
------ Life time after sales service for all customers.
Company Profile
Qingzhou Yongli Mining And Dredging Machinery Co. Ltd,is leading company of China mining equipment. We are the professional manufacturer who has been dedicated in R&D, designing, producing, assembling and testing services.
Main products: Cutter suction dredger, jet suction dredger, bucket chain dredger, gold dredger, diamond dredger, gold& diamond &sand washing plant, transport barge, work boat and so on.
In 1999, according to special terrains and working condition in China, Africa and Southeast Asia, adopting the Europe and America technology, we successfully developed the zirconium, gold, diamond, tin ore, iron ore mining machinery and tailing recovery plant.
