1.Product Features
1.This set of gold washing equipment could be used to extract alluvial gold,diamond,zirconium and tailings after ball milling.
2. Iron ore needs to be retrieved firstly with magnetic separator if the percentage is high in the raw ore.Gold,diamond,zirconium will be concentrated later or the effectiveness will be affected.
3. This set of gold washing equipment are composed of several gravity concentrators.The concentration ratio could reach as high as 1:1000,and the recovery efficency about 90% after series of separation.
4. The key parts of gold washing plant/machine/equipment:
a. feeding ore hopper
b. classifying screen with cutter teeth drum
c. pulsating sluice box
d. diesel generatior & water supply system( centrifugal water pump and water pipes)
e. waste discharge convey belt
f. fixed sluice box with gold catching grass and gold catching carpet
g. we can also supply the skaing table and gold melting furnace based on the customer's requirements.
2. Technical Specification
| Movable bottom size of gold washing equipment (length*width) | 15m*0.8m |
| Feeding hopper specification (length*width) | 3.5m*2m quantity:1 pcs |
| Classifying screen of gold washing plant | length 3.0m diameter:1.6m |
Pulsating sluice box of gold washing machine (length*width) | 5.8m*1.5m quantity:2 sets |
| Fixed sluice box of gold washing plant(Length*width) | 5m*2m quantity:2 sets |
| Waste convey belt of gold washing equipment | 10m*0.8m power:7.5kw |
| Water supply pump details | flow:200m3/h head:28m power:22kw |
| Electrical cable | 1 set |
| water distributor | 1 set |
| Diesel generator | 60kw 50hz |
3. Our Supplier
4.Request For Reply
1) How many tons per hour for your deal capacity?
2) In your raw mining,the sand and stone percentage ratio?
3)How big size for the gold particle in the raw mining?
4) For the diesel generator,do you prefer weichai or cummins brand?
5. Main Products
6.About Us

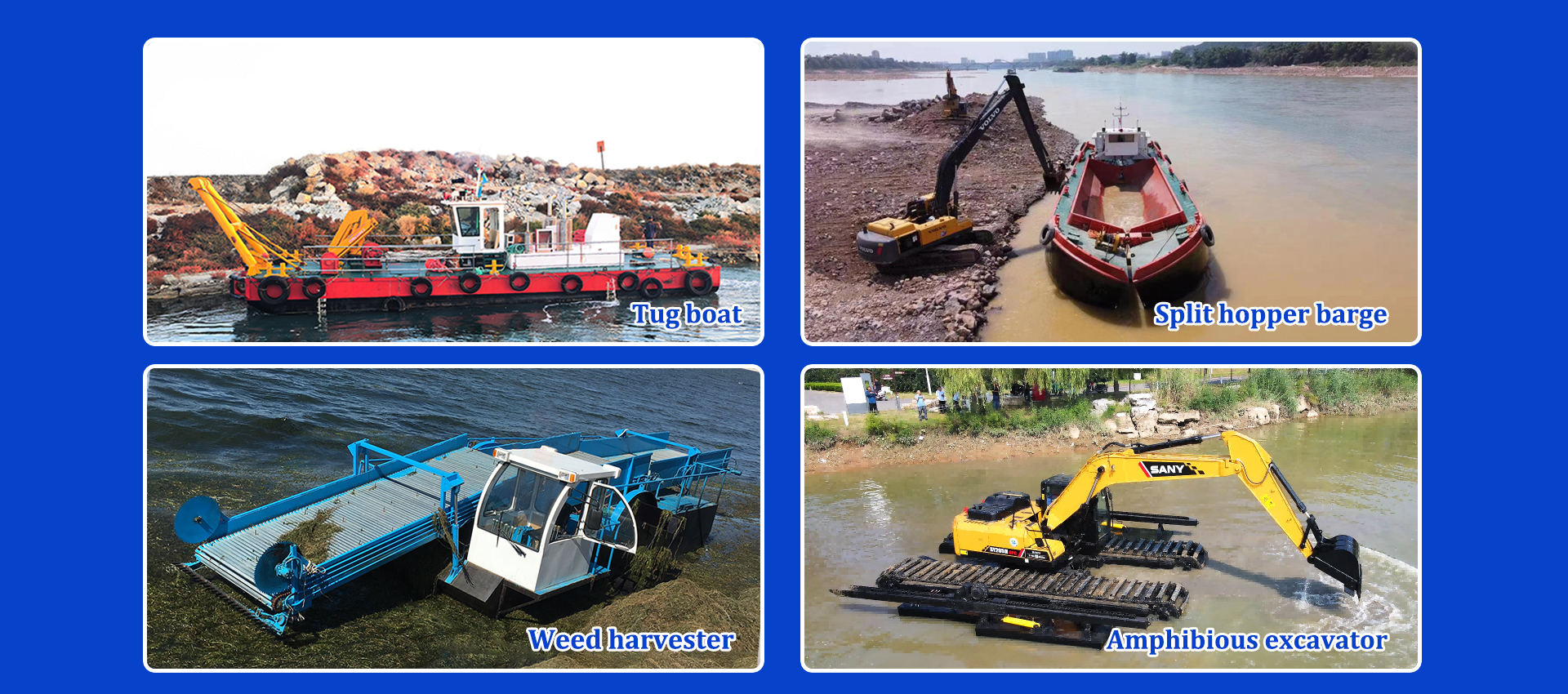

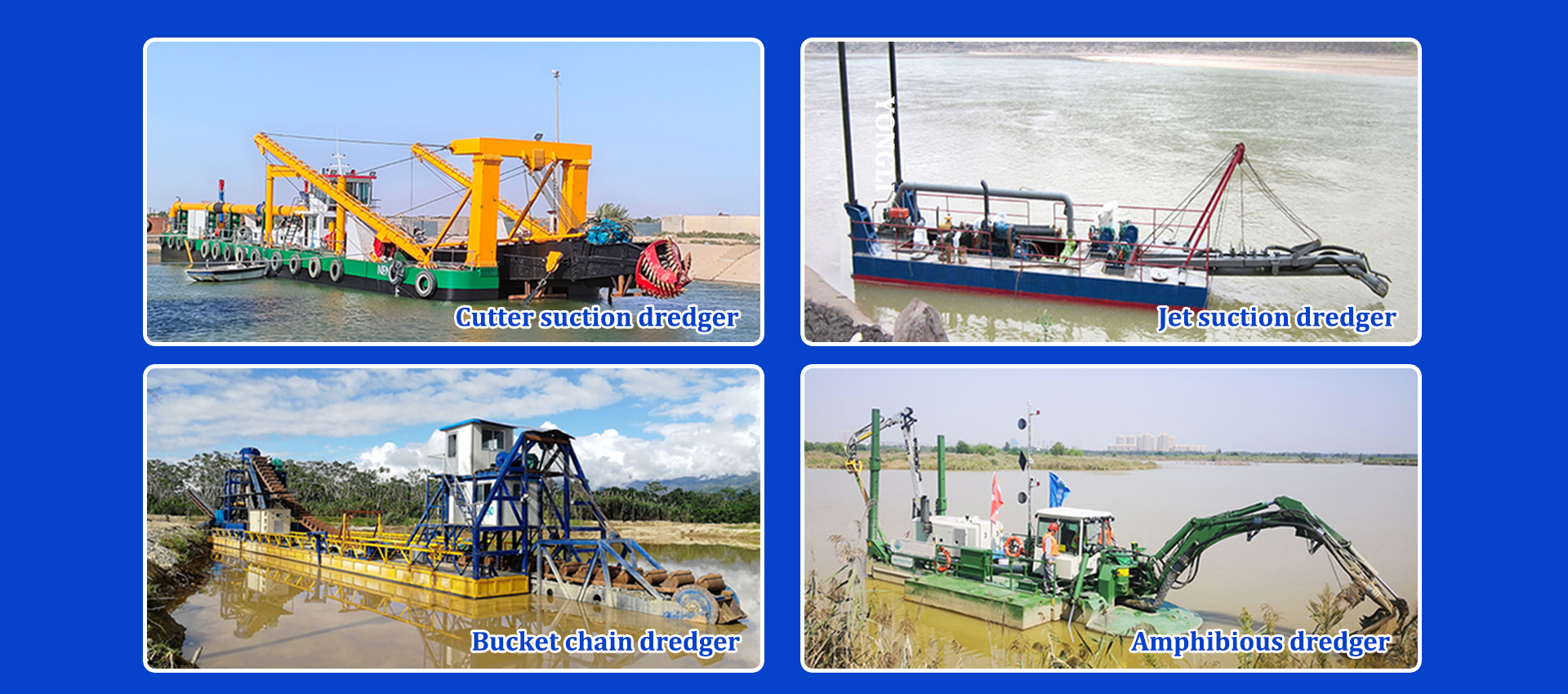

Yongli Shipbuilding offers a comprehensive range of dredging vessels, including cutter suction dredgers, bucket wheel dredgers, trailing suction dredgers, chain bucket dredgers, and backhoe dredgers; jet suction dredgers, siphon dredgers, and drilling dredgers; as well as amphibious vessels, multi-functional workboats, barges, piling vessels, floating work platforms, self-loading and self-unloading vessels, transport vessels, and cleaning vessels, catering to diverse customer needs.

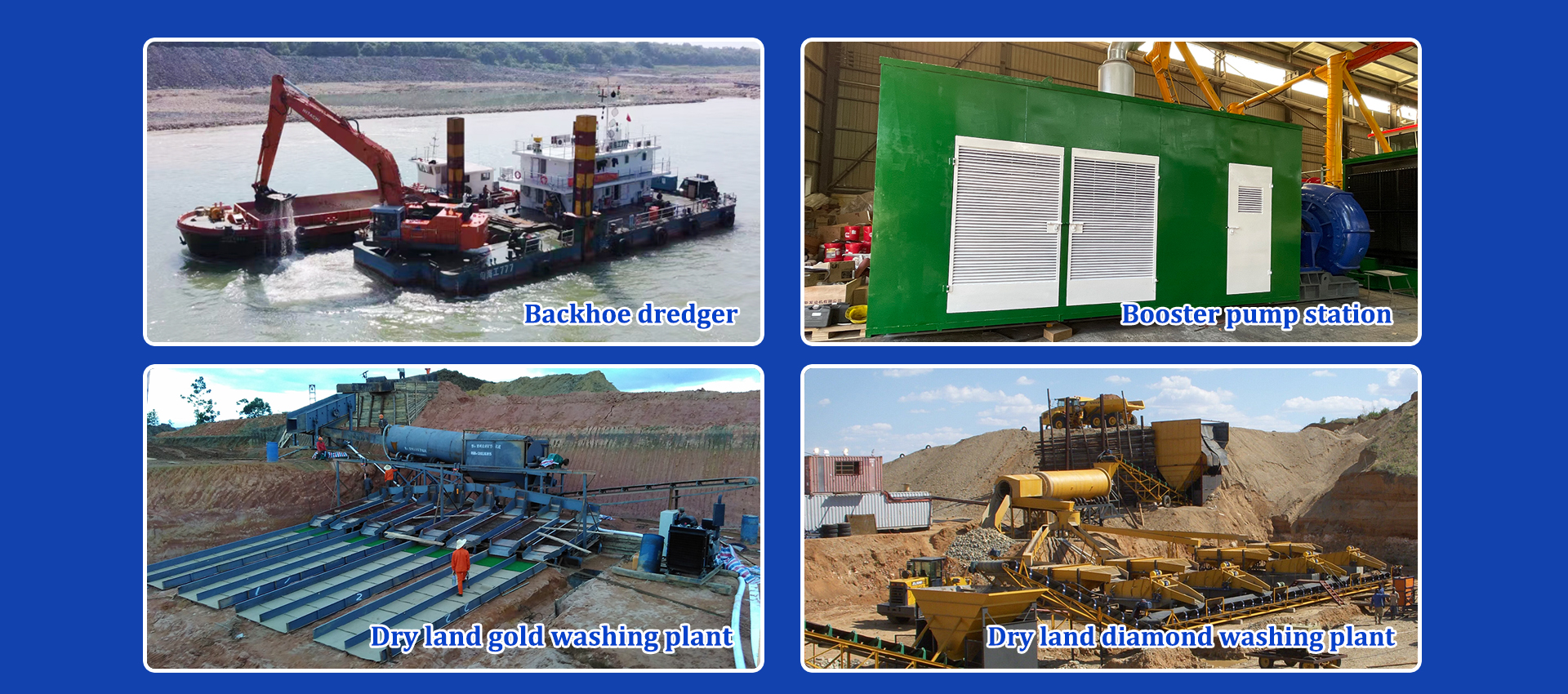

In the field of mineral processing equipment, Yongli Shipbuilding also excels, offering chain bucket dredgers, jet suction dredgers, and cutter suction dredgers for gold and diamond mining, land-based gold and diamond mining equipment, zircon sand and iron concentrate extraction equipment, and production lines for both offshore mining and land-based mineral processing. Adhering to a customer-first philosophy, Yongli Shipbuilding can customize equipment to meet specific customer requirements and various operational conditions.
