22 inch( 4000m3/h) Cutter Suction Dredger / Sand Dredging Ship
Cutter Suction Dredger Product Description
The core function of the cutter suction dredger lies in its unique cutter suction system, which uses a rotating cutter to excavate underwater soil. Combined with the negative pressure suction generated by a centrifugal mud pump, the slurry is extracted and discharged to a designated area through a long-distance pipeline.
This type of vessel integrates excavation, transportation, and discharge, offering continuous operation capabilities and significantly improving construction efficiency.
Key components include:
Cutter System: The cutter head, made of wear-resistant alloy, features replaceable teeth to adapt to various geological conditions (such as sand, clay, and even rock).
Positioning System: The stern is equipped with positioning spuds and lifting devices, which work in coordination with anchor winches and steel cables to secure the vessel and enable fan-shaped swinging, ensuring operational precision.
Power System: Powered by high-capacity diesel engines or electric drives, it provides the necessary energy for cutter rotation, mud pump suction, and vessel movement.
Discharge Pipeline: Made of corrosion-resistant materials like HDPE, it supports long-distance transportation (up to several kilometers), reducing intermediate transfer steps.
Modern cutter suction dredgers are also equipped with intelligent navigation and automated control systems, enabling real-time monitoring of operational depth, discharge distance, and other parameters to adapt to complex environments.
Their design emphasizes modular manufacturing, ensuring structural strength and durability through high-precision welding and segmented assembly.
CSD550 Cutter Suction Dredger Parameter
| Model | YLCSD-550 | Height | 2.2m |
| Slurry Capacity | 4000m3/h | Dredging Depth | 15m or more |
| Slurry Concentration | 15-20% | Discharge Distance | 1500m or more |
| Length Overall | 39m | Engine | Cummins or Weichai |
| Breadth | 7.5m | Self-propelled | Can be customized |

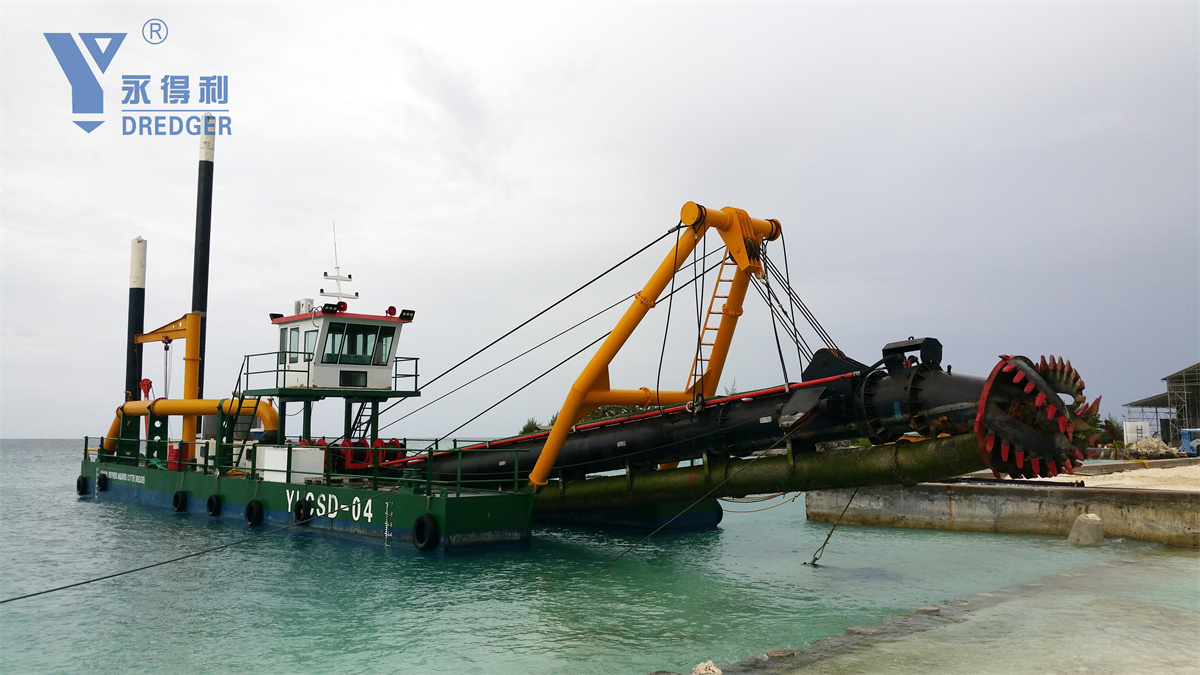

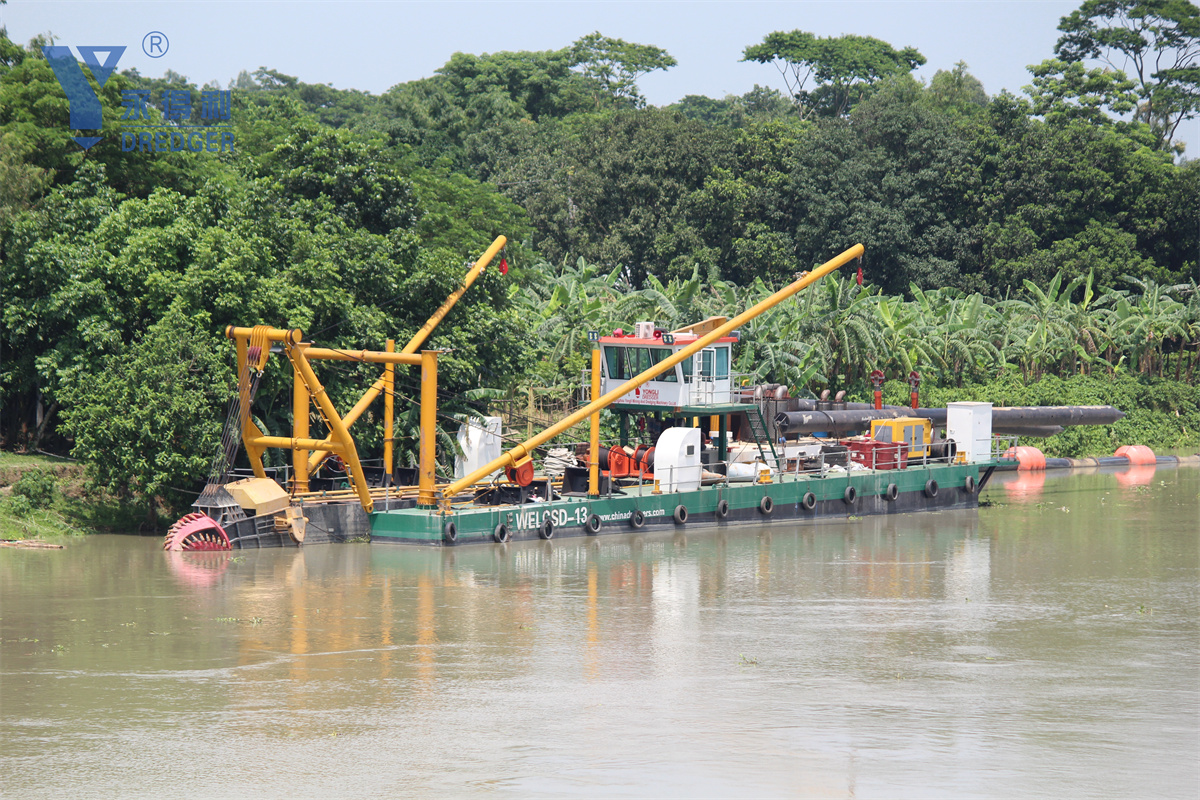

Cutter Suction Dredgers Detailed Photos
Cutter Suction Dredger Product Features
| Feature Category | Core Components | Functions & Characteristics |
|---|---|---|
| 🚜 Excavation System | Cutter System | Manufactured with wear-resistant alloy and equipped with replaceable cutter teeth. Available in various types (such as general-purpose, clay, rock-cutting, and heavy-duty rock-cutting cutters), capable of adapting to multiple geological conditions from sand, clay to rock with hardness up to 50 MPa. |
| 📤 Suction & Discharge System | Mud Pump & Pipeline | Utilizes centrifugal mud pumps to generate negative pressure suction. Features high-power configuration, with mud pump transmission power reaching up to 17,000 kW. Combined with discharge pipes made of corrosion-resistant materials like HDPE, it enables long distance transport (up to 15 km), reducing intermediate transfer steps. |
| 🎯 Positioning & Mobility | Positioning System | The stern is equipped with positioning spuds and lifting devices, which work together with anchor winches and steel cables to secure the vessel and enable fan-shaped swinging. Advanced models also adopt dual systems of spud carriage and three-wire positioning, significantly enhancing resistance to wind and waves and operational stability in complex sea conditions. |
| ⚙️ Power & Drive | Power System | Equipped with high-power diesel engines or adopts fully electric drive systems to provide power for the cutter, mud pump, and vessel movement. Features high total installed power , supporting heavy-duty operations. |
| 🧠 Intelligent Control | Automation System | Modern cutter suction dredgers are equipped with intelligent navigation and automated control systems, enabling real-time monitoring of operational depth, discharge distance, and other parameters. Some models can achieve automated dredging and unmanned operation. |
Successful Cases
Yongli Dredger Certifications
