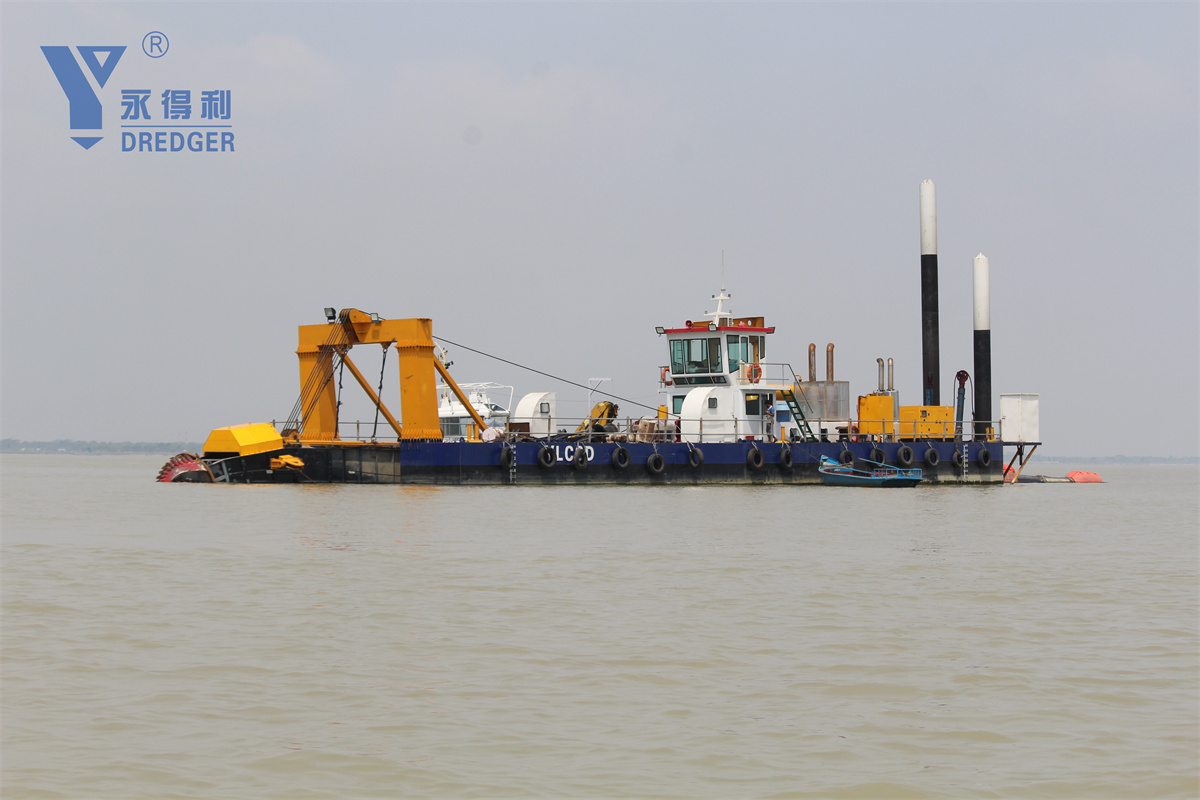

26 inch (6000 m3/h) Cutter Suction Dredger / Sand Dredging Ship
Cutter Suction Dredger Product Features
The Cutter Suction Dredger product features:
1.Completely assembled and fully tested before delivery. Simply, rapid assembly and dismantling.
2.Standard design, allowing early delivery and low price. Spare parts available from stock.
3.Can be delivered to any location where need dredging. Responsible for installation and training of operators in the dredging place.
4.Transportable by road, rail or sea. Reliable engine capability, dredging pump capability and hydraulic system.
The cutter suction dredger could work for full time in A/B type sheltered sailing area and inland waterways, lakes and reservoirs because of its high terrain adaptability.
The excavating and discharging processes are completed one time and without help of other machines and boats, so the project operating cost will be brought down dramatically.
Its hull consists of a main pontoon and two side pontoons which is to be easy to dismantle for transportation by road, rail or water, and is be easy to reassemble at project site. The engines and dredge pump are located in the center pontoon. Two side pontoons serve as fuel bunkers, ballast tanks and storage tanks.
CSD650 Cutter Suction Dredger Parameter
| Model | YLCSD-650 | Height | 3.0m |
| Slurry Capacity | 6000m3/h | Dredging Depth | 18m or more |
| Slurry Concentration | 15-20% | Discharge Distance | 1500m,2000m or more |
| Length Overall | 41m | Engine | Cummins or Weichai |
| Breadth | 10 m | Self-propelled | Can be customized |

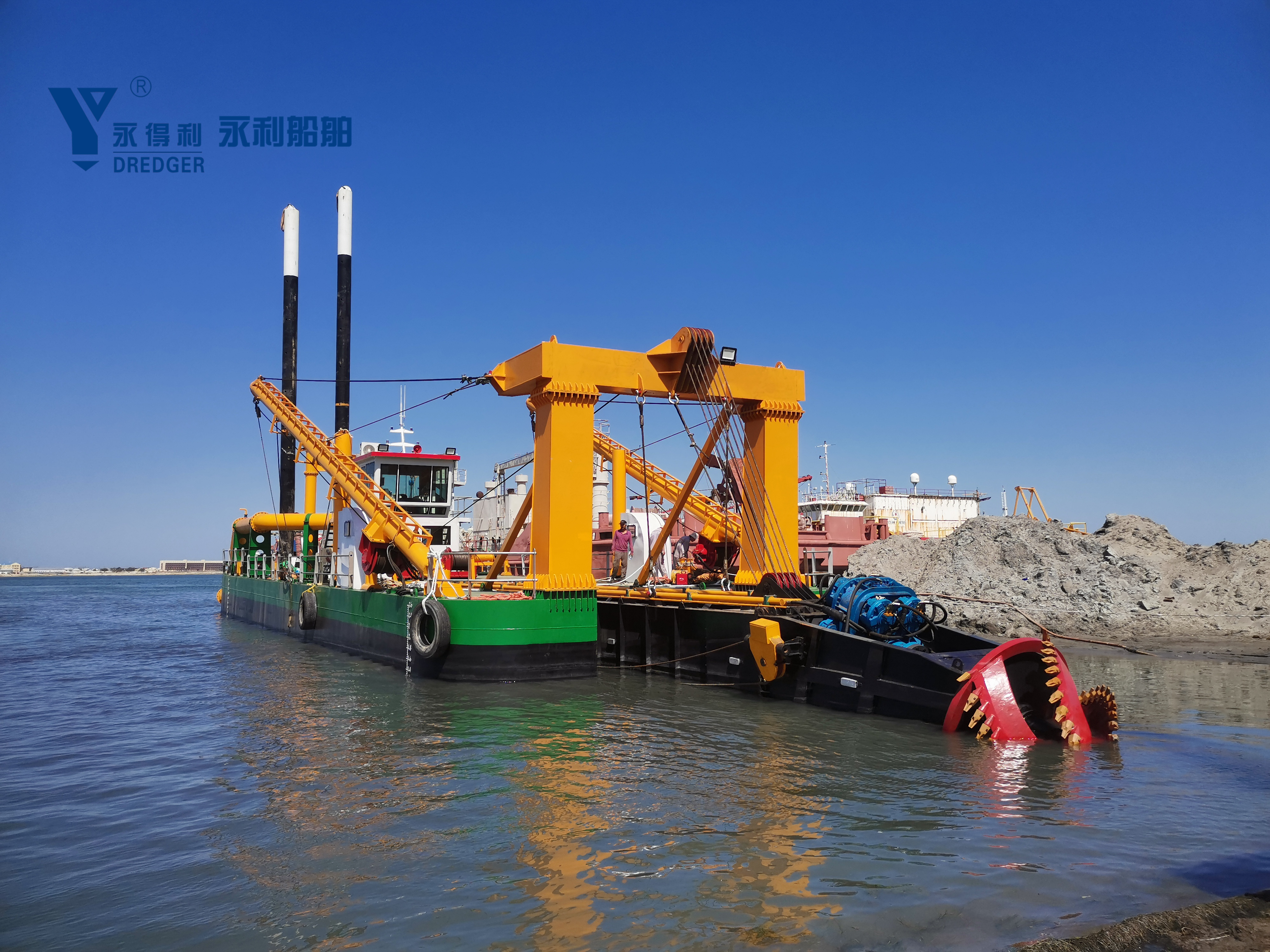

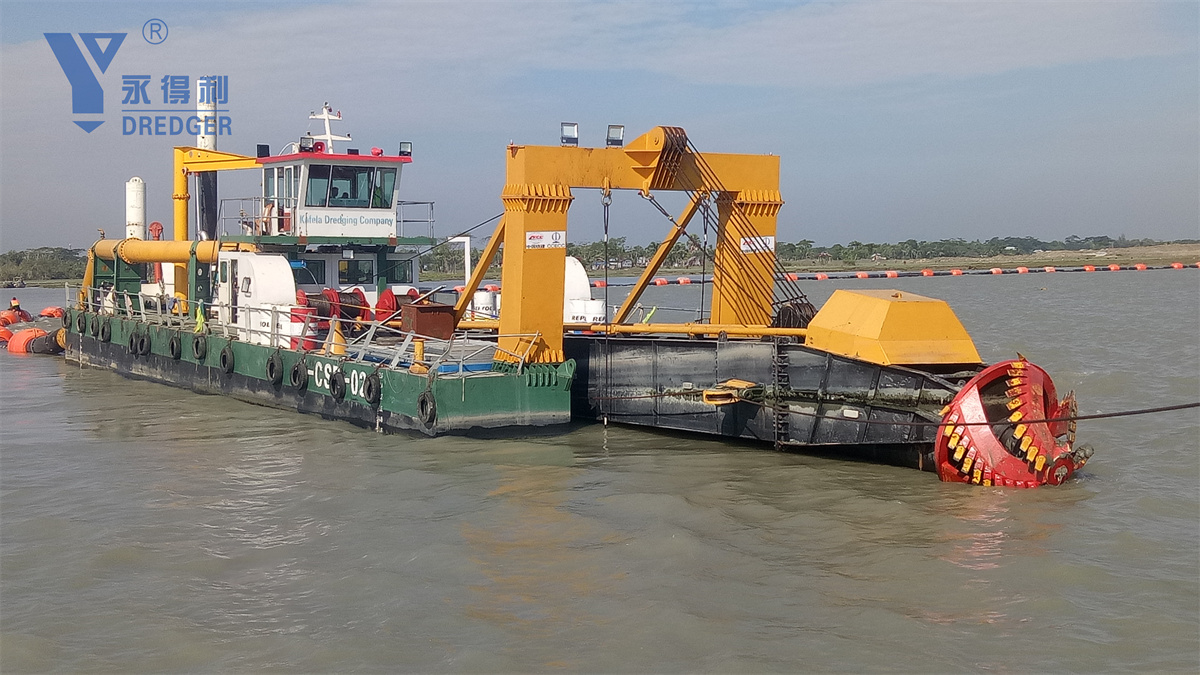

Cutter suction dredger Detailed Photos
Our Cooperative Equipment Partner
Cutter suction dredger Certifications
Yongli Company Profile
Being established in 1990,Our factory is professional manufacture of dredging and mining equipment. We are dedicated in R&D, designing, producing, assembling, testing, training and other services.
Our factory had dredging and mining machinery production experience more than 30 years.And we had exported to more than 60 countries, such as Bangladesh, India, the Democratic Republic of the Congo, South Africa etc.
Main dredging products:
Cutter suction dredger
Jet suction dredger
Bucket chain type/Bucket wheel type sand dredger
Amphibious dredger, Drilling suction sand dredger
Main Mining productions:
Bucket chain type gold/diamond dredger
Jet suction type/Cutter suction type gold/diamond dredger
Land-use stationary type /mobile type gold/diamond washing plant
Our company and products are certificated by the Quality Management System Certification (ISO9001:2015) because of our years of hard work. Our company also gets the Certificate of Vessel Inspection authorized by China MSA.
We have honored for first -class products quality and excellent after-sale services by customers worldwide.
