1.Brief Introduction
A dredging pump is an engineering device that operates on the principle of centrifugal force. It uses impeller rotation to generate suction, drawing in and transporting mixtures of silt, sediment, etc., to a designated location. Its core applications include:
River Management and Dredging:
Dredging and Flood Control:Removing silt from the bottom of river channels improves flood control capacity and reduces the risk of flooding. For example, in Suihua City, the use of sand dredging pump technology achieves a daily dredging capacity of 3,000-5,000 cubic meters, more than three times the efficiency of traditional excavators.
Ecological Protection:Closed-loop pipeline transportation reduces damage to riverbank vegetation and lowers the concentration of suspended solids in water by 62%.
Port and Waterway Construction:
Port Basin Excavation:Excavating port foundations, deepening waterways, and ensuring the passage of large vessels.
Maintenance Dredging:Regularly clearing silt from waterways to ensure navigation safety.
Mining and Land Engineering:
Slurry Transportation:Transporting slurry and other materials from mining sites to processing areas. Land leveling: Used for land excavation and leveling before agricultural or industrial construction.
Other fields: Water conservancy projects: Such as reservoir dredging and irrigation canal maintenance.
Environmental management: Using intelligent equipment such as underwater robots for dredging in confined spaces such as sewage pumping stations and drainage ducts.
2. Detailed Description
1. Horizontal, cantilevered, centrifugal, single stage slurry pump.
2.Long bearing life: The bearing assembly is with large diameter shaft and short overhang.
3. Wear resistant and anti abrasion wet parts: High chrome alloy and rubber etc. They are completely interchangeable with each other
4. Easily replaceable liners: Liners are bolted to the casing.
5. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.
6 Discharge direction can be positioned at intervals of 45 degrees
7. Simple maintenance throat bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.
8. Sealing type: pcking seal,impeller sealing and mechanical seal.
9. Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.

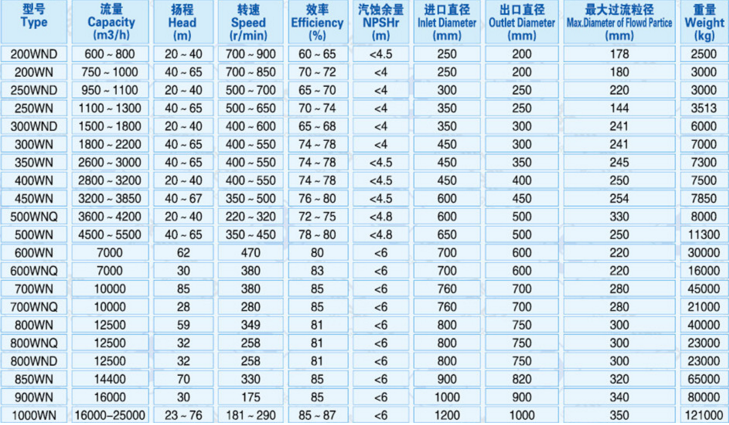

Technical Specification:
3. Picture Shows

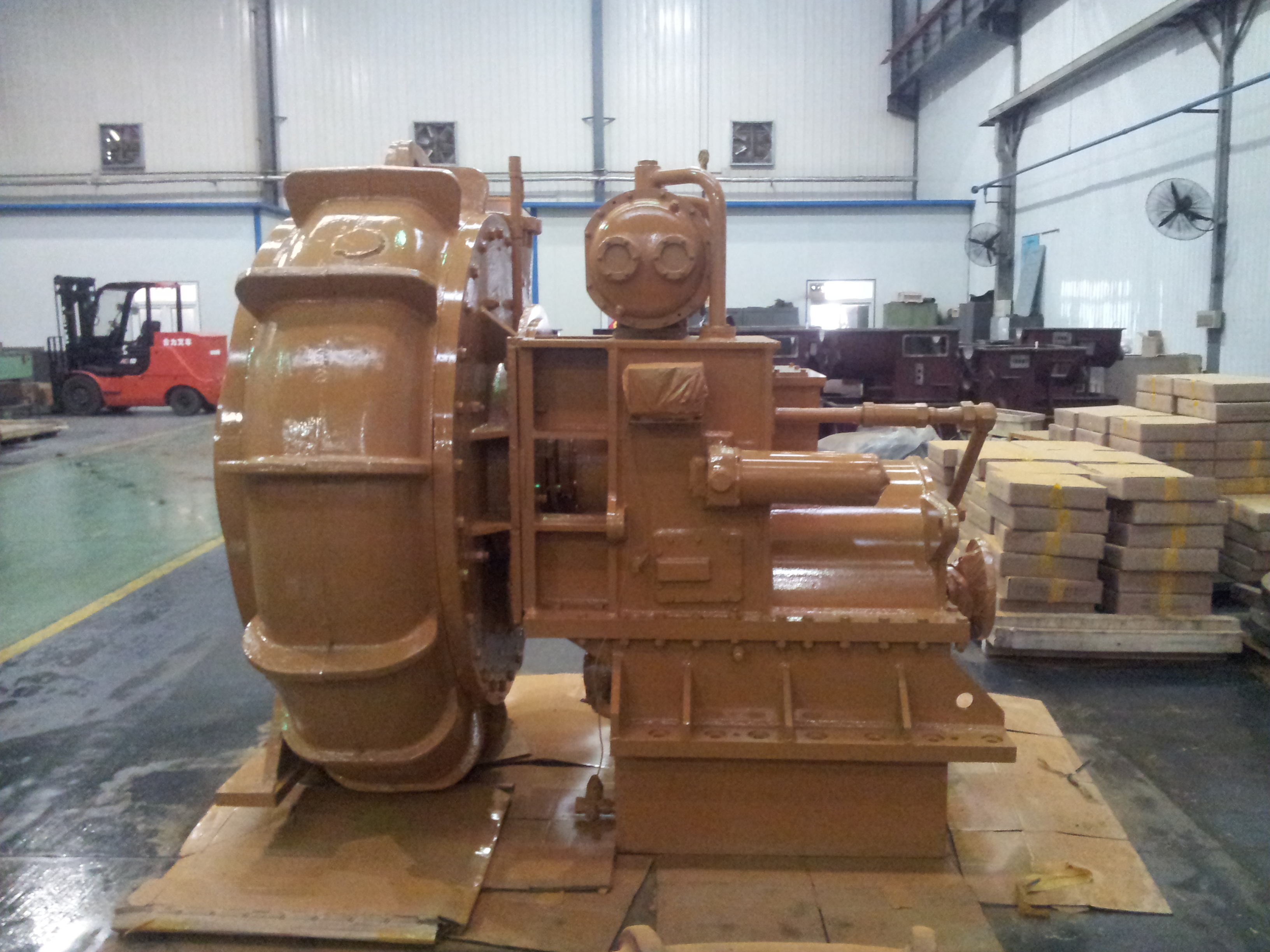

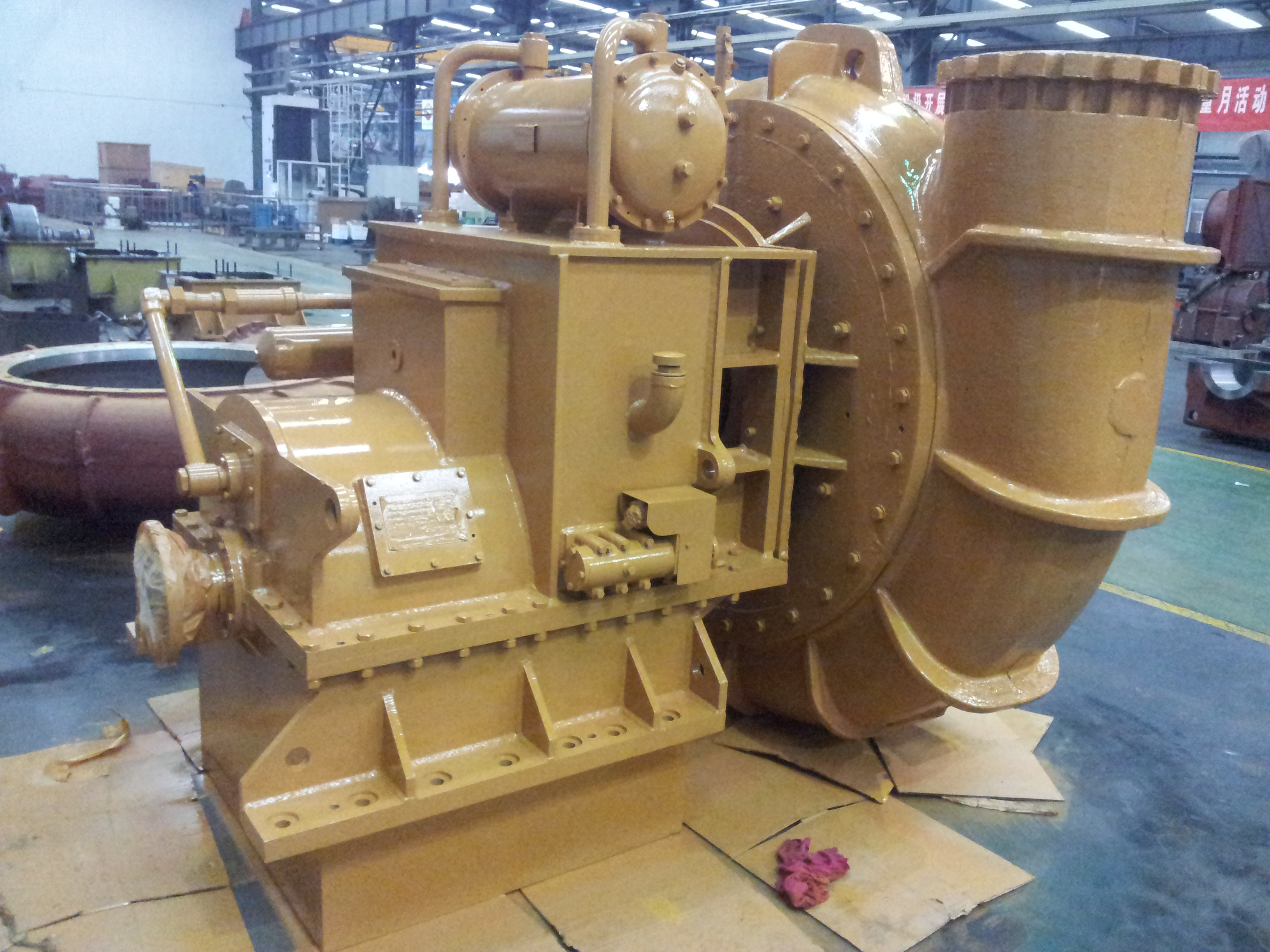

450WN Dredging pump

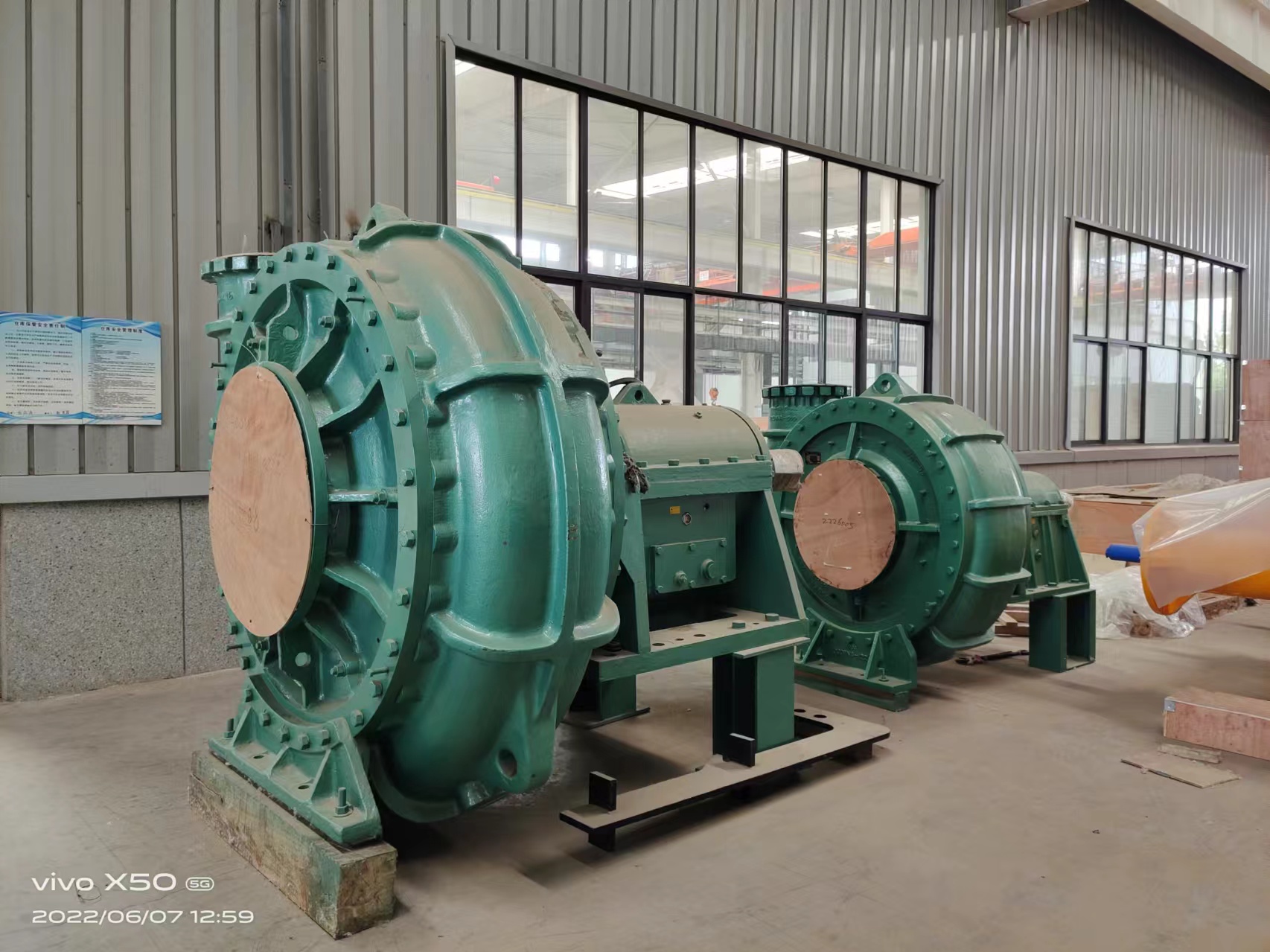

500WN Sand Pump
600WN Slurry Pump
