1.Product Features
1.This set of plant could be used to extract alluvial gold,diamond,zirconium and tailings after ball milling.
2. Iron ore needs to be retrieved firstly with magnetic separator if the percentage is high in the raw ore.Gold,diamond,zirconium will be concentrated later or the effectiveness will be affected.
3. This set of mining equipments are composed of several gravity concentrators.The concentration ratio could reach as high as 1:1000,and the recovery efficency about 90% after series of separation.
4. The key parts of gold washing plant:
a. feeding ore hopper
b. classifying screen with cutter teeth drum
c. pulsating sluice box
f. fixed sluice box with gold catching grass and gold catching carpet
g. we can also supply the skaing table and gold melting furnace based on the customer's requirements.
2. Model
| MODEL | CAPACITY (CBM/H) | POWER (KW) | WATER (CBM/H) | ORE SIZE (MM) | RECOVERY PERCENTAGE |
| YLGWP-100 | 100 | 92 | 200 | ≤300 | 85-90% |
| YLGWP-150 | 150 | 100 | 300 | ≤300 | 85-90% |
| YLGWP-200 | 200 | 106 | 400 | ≤300 | 85-90% |
| YLGWP-250 | 250 | 118 | 500 | ≤300 | 85-90% |
3. Our Services
a. Our team will design and produce the gold washing plant based on the customer's working condition and deal capacity and other requirements.
b. We could send our engineers to help the clinets with installation,trial operation,training and maintenance the gold washing equipment.
c. Warranty: it is usually one year except the wear spare parts.
4. Successful Cases

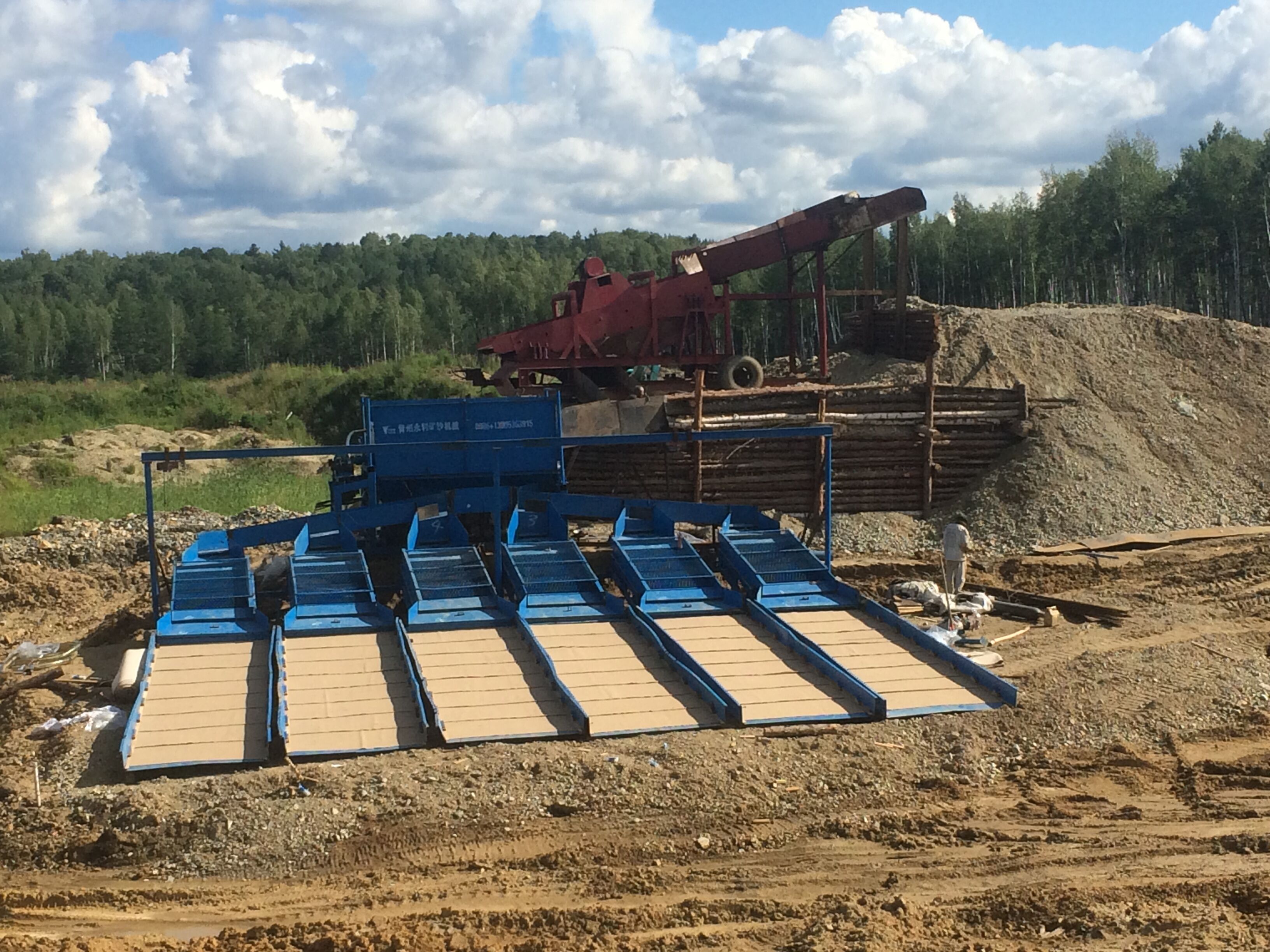

gold washing plant in Russia

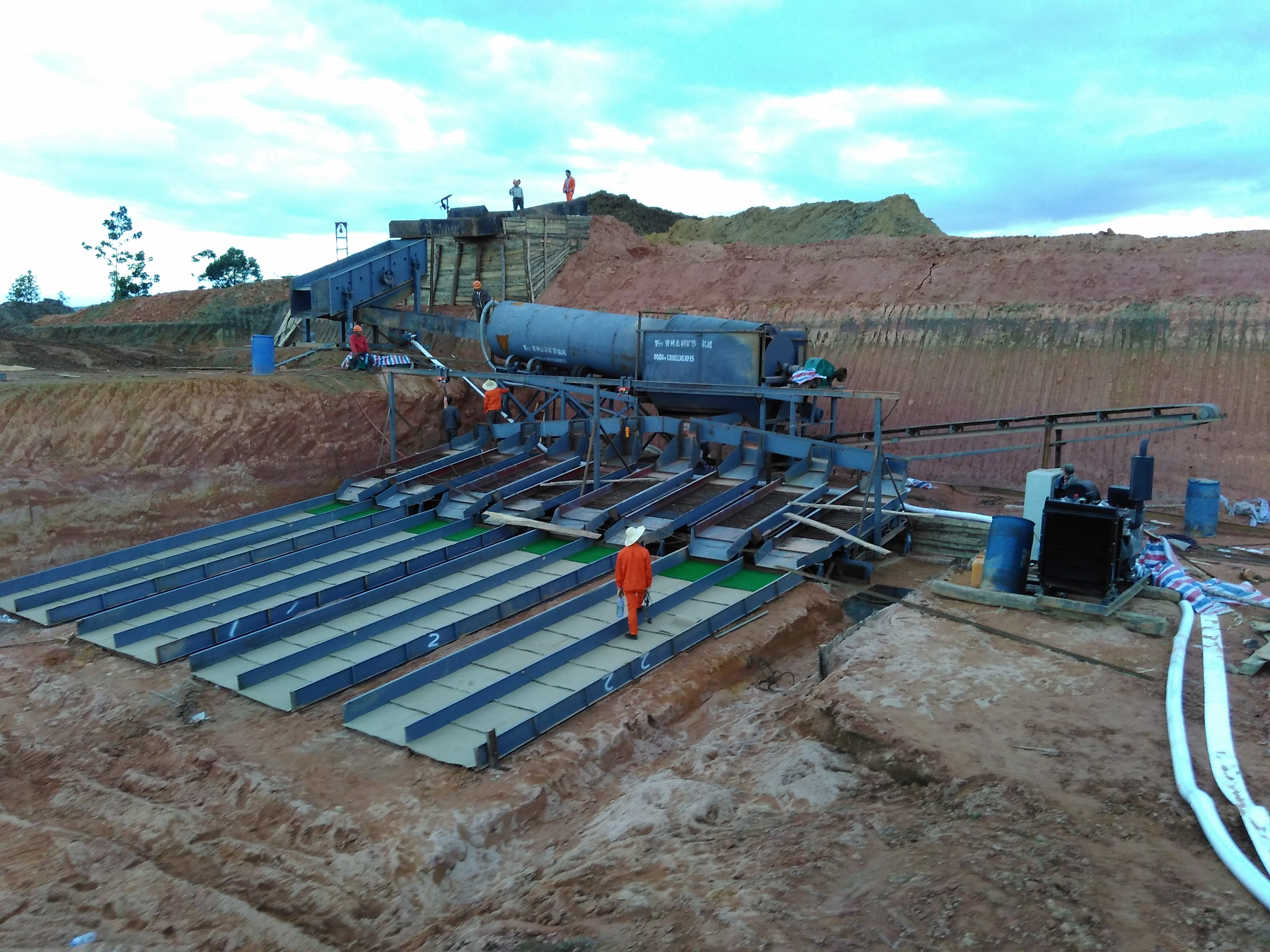

gold washing plant in Madagascar
