26inch(6000 m3/h) Cutter Suction Dredger Ship/ Sand Dredging Boat Used in River or Sea
Cutter Suction Dredger Product Description
1. The cutter suction dredger could work for full time in A/B type sheltered sailing area and inland waterways, lakes and reservoirs because of its high terrain adaptability.
2. The cutter suction dredger is of dis-mountable designing and structure, which makes it easy to disassembling and transportation by road. After simple on-site assembling and commissioning, the cutter suction dredger will be put into use.
3. The excavating and discharging processes are completed one time and without help of other machines and boats, so the project operating cost will be brought down dramatically.
26 Inch Cutter Suction Dredger Parameter
| Model | YLCSD-650 | Height | 2.8m |
| Slurry Capacity | 6000m3/h | Dredging Depth | 15m , 20m or more |
| Slurry Concentration | 15-20% | Discharge Distance | 1500m ,2000m or more |
| Length Overall | 39m | Engine | Cummins or Weichai |
| Breadth | 9.0m | Self-propelled | Can be customized |
| Model | YLCSD-800 | YLCSD-700 | YLCSD-650 | YLCSD-550 | YLCSD-500 | YLCSD-450 | YLCSD-400 | YLCSD-300 | YLCSD-250 | YLCSD-200 |
| Slurry capacity | 8000m³/h | 7000m³/h | 6000m³/h | 5000m³/h | 3500m³/h | 3000m³/h | 2200m³/h | 1200m³/h | 800m³/h | 500m³/h |
| Slurry concentration | 15-20% | 15-20% | 15-20% | 15-20% | 15-20% | 15-20% | 15-20% | 15-20% | 15-20% | 15-20% |
| Length overal | 41m | 41m | 39m | 39m | 37m | 37m | 36m | 29m | 26m | 22m |
| Breadth | 10m | 9.3m | 9.03m | 8.8m | 7.5m | 7.2m | 6.8m | 6m | 5m | 4.8m |
| Height | 3m | 2.8m | 2.75m | 2.75m | 2.2m | 2.0m | 1.8m | 1.5m | 1.26m | 1.26m |
| Dredging depth | 15m | 15m | 15m | 15m | 15m | 15m | 15m | 12m | 12m | 10m |
| Discharge distance | 1500m | 1500m | 1500m | 1500m | 1500m | 1000m | 1000m | 1000m | 800m | 500m |
| Total Power | 3600kw | 3365kw | 2446kw | 1640kw | 1193kw | 1007kw | 806kw | 648kw | 351kw | 224kw |
| Hyraulic winch | 250kn | 200kn | 150kn | 120kn | 100kn | 80kn | 60kn | 40kn | 40kn | 20kn |
| Cutter power at shaft | 600kw | 450kw | 300kw | 170kw | 115kw | 115kw | 78kw | 45kw | 30kw | 20kw |

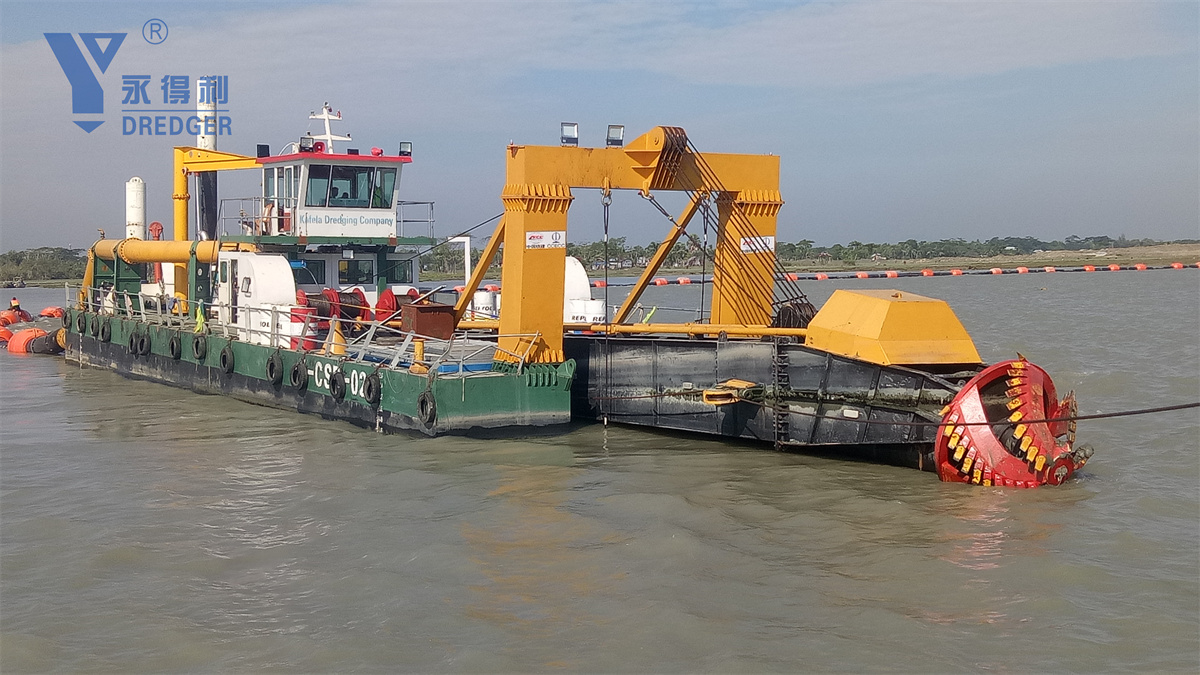

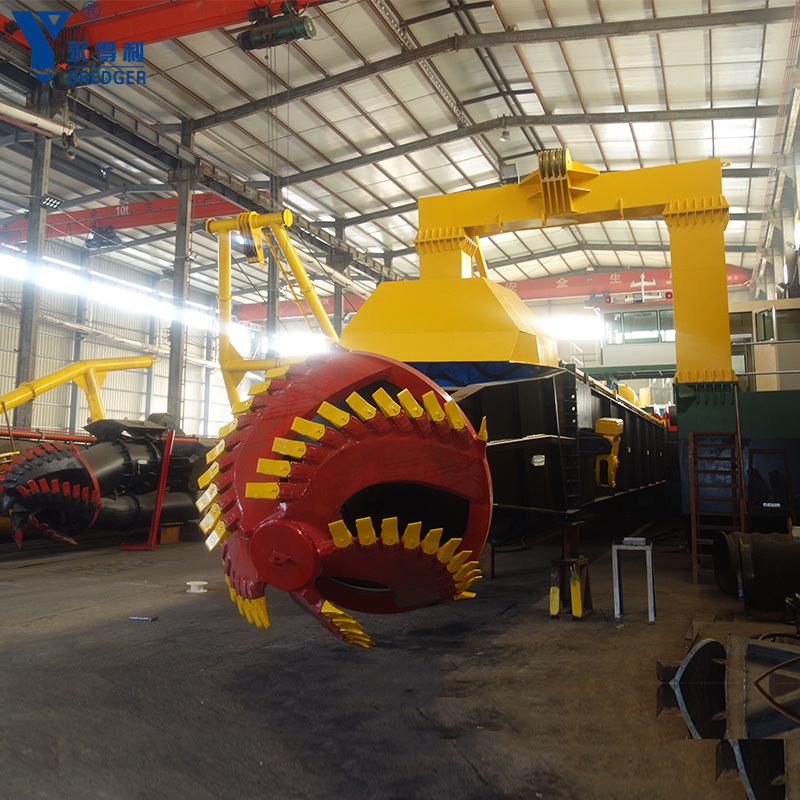

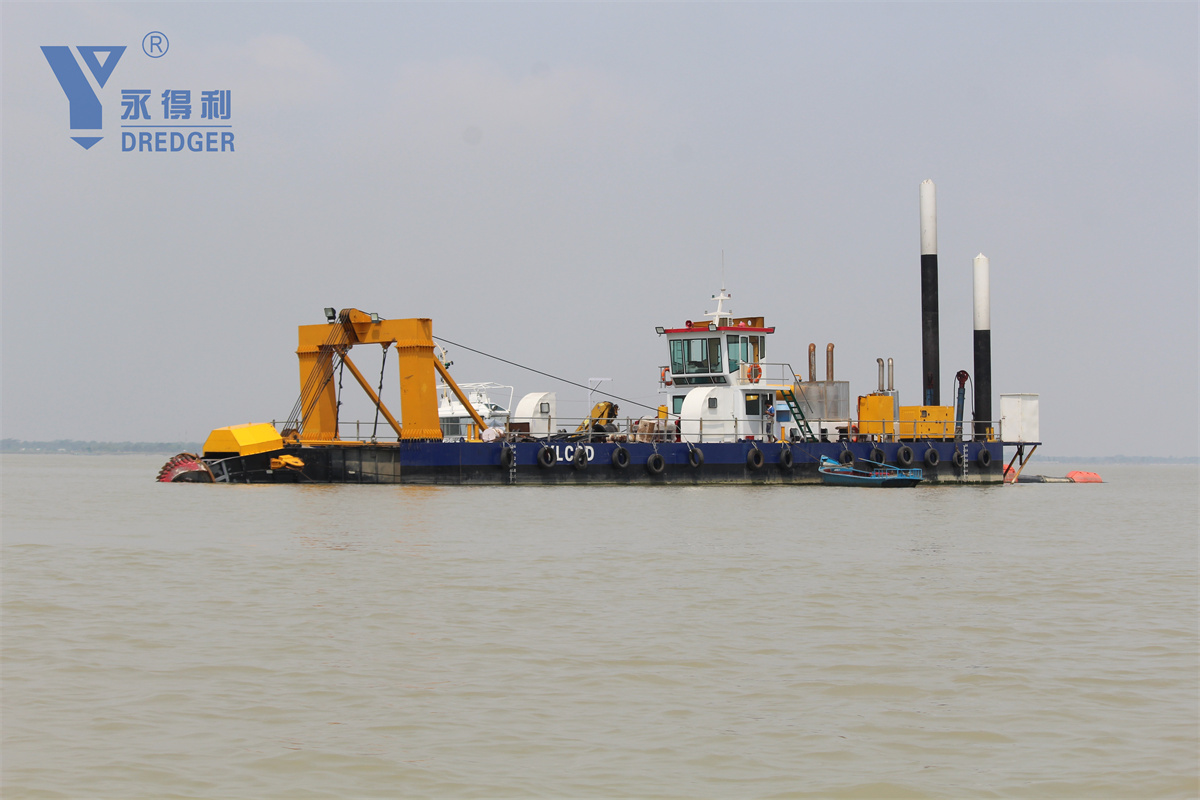

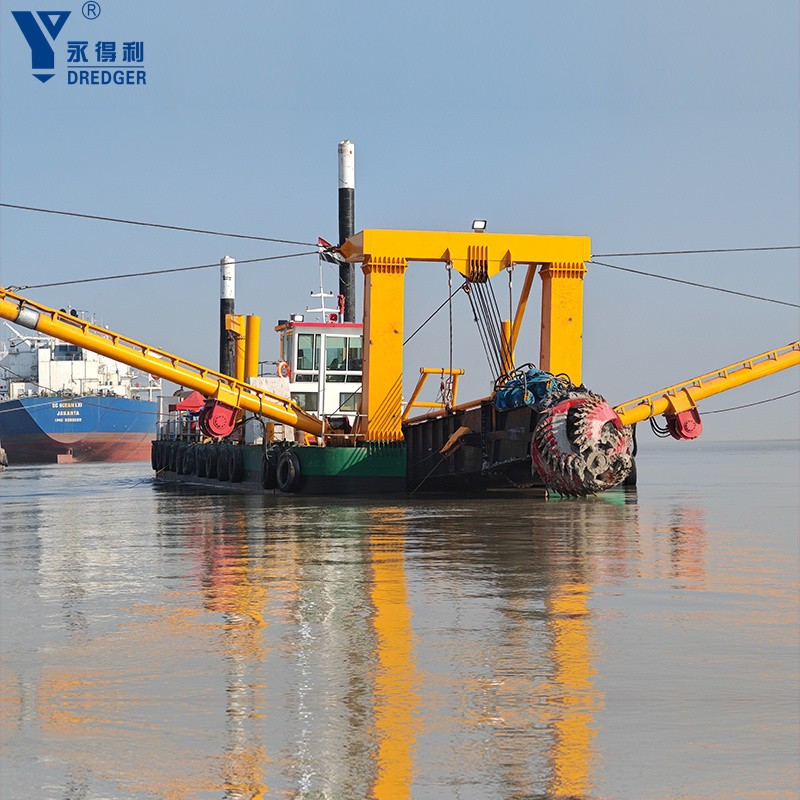

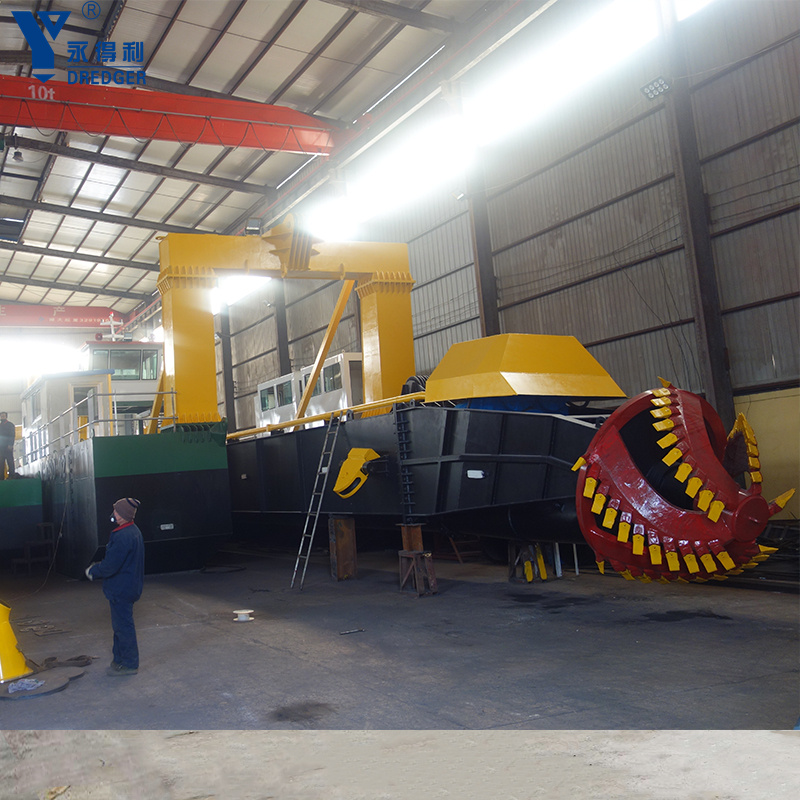

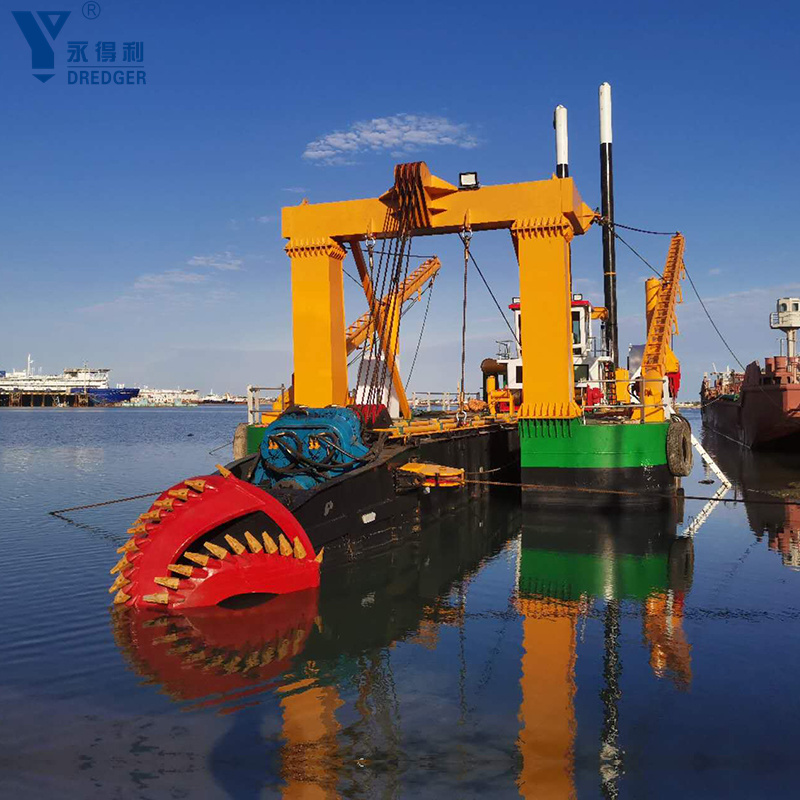

Cutter Suction Dredgers Detailed Photos
Product Features
l The cutter suction dredger could be used in inland waterways, lakes,coastal areas for projects of desilting and sand dredging.
l Customized according to dredging depth, working capacity and discharge distance.
l The cutter suction dredger is of dismountable structure, and can be divided into mechanical type, semi-hydraulic type, all- hydraulic type according to the different operating methods.
l Dredging pump is driven by main diesel engine placed in main central pontoon, and auxiliary engine provides power to cutter head, winches, spuds and lighting system.

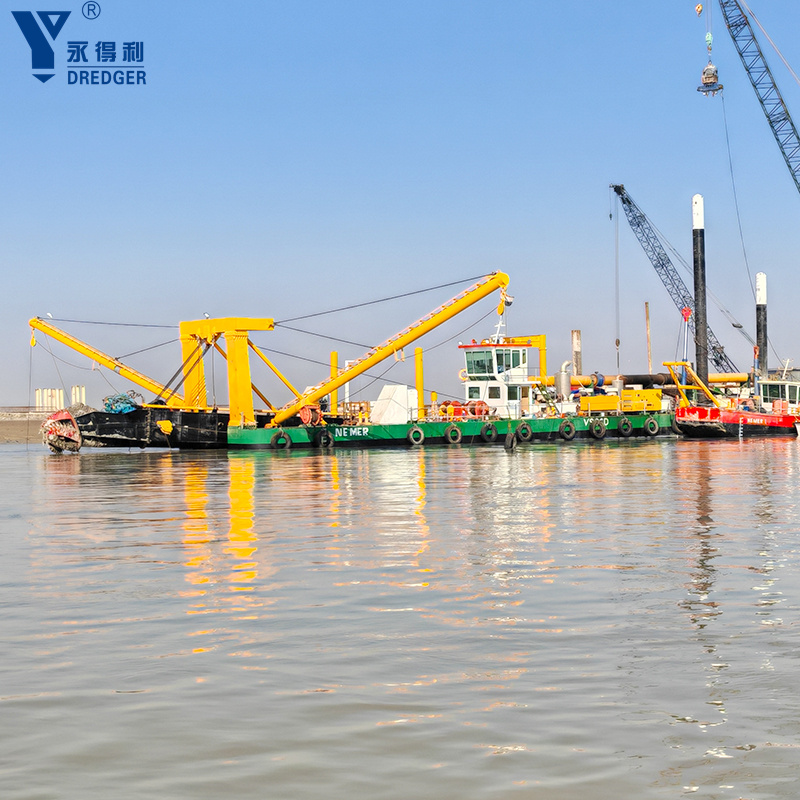

Successful cases
Our Cooperative Equipment Partner
Yongli Dredger Certifications

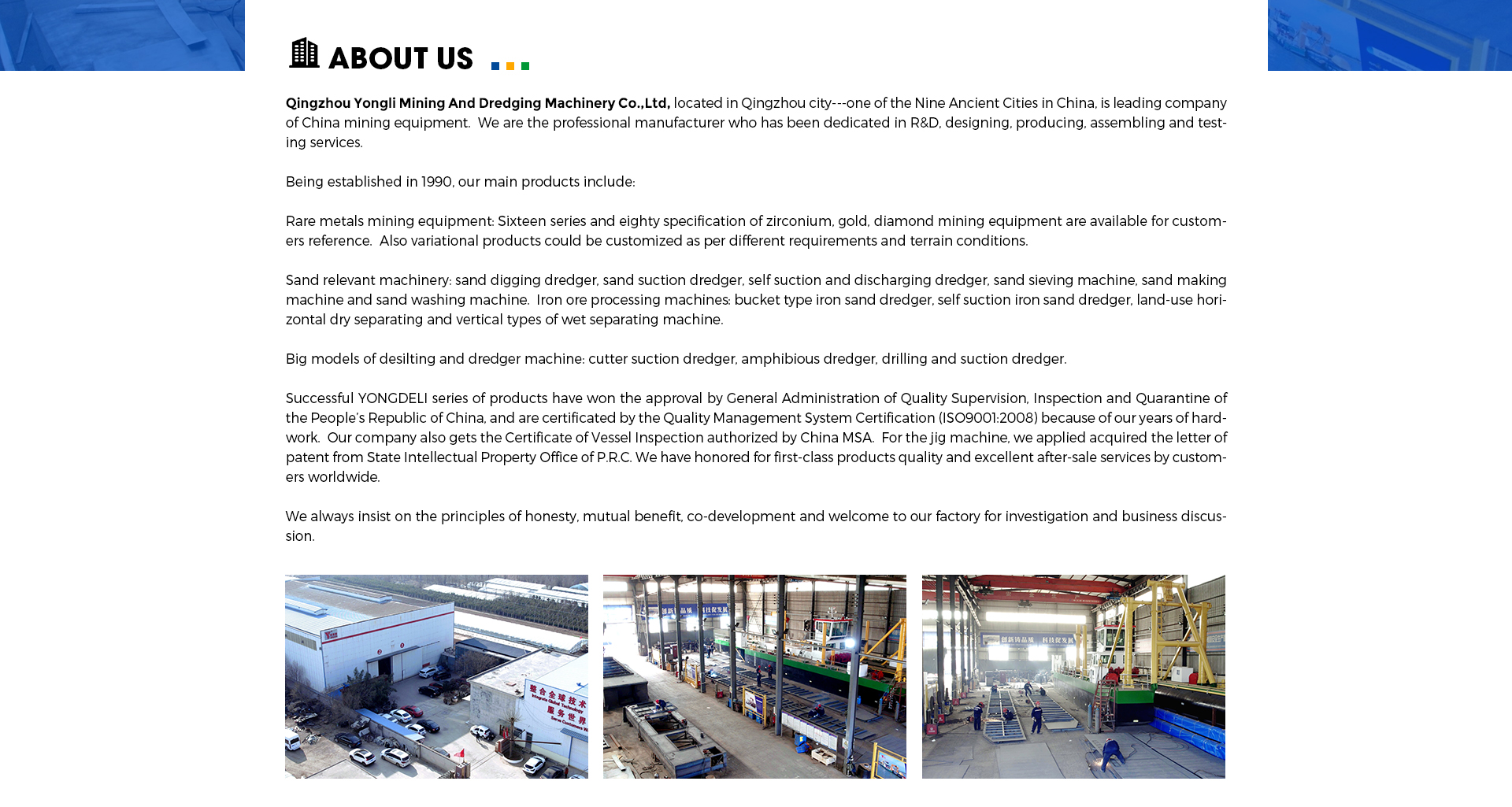

About us/Yongli Dredger Company Profile
Our factory had dredging machine production experience 34 years and exported to more than 60 Our factory had dredging machine production experience 35 years and exported to more than 60 countries.
