1.Brief Introduction
An amalgamation machine is a specialized device for extracting gold from ores. Its working principle is based on the affinity of mercury for metals. Stirring brings the mercury into contact with the gold in the ore, forming an amalgam (gold-mercury alloy). The amalgam is then separated using differences in physical properties, and finally, pure gold is obtained through processes such as distillation.
Key Features
1. Application Scope: Primarily used in the mining of gold, silver, and other metal ores; also suitable for laboratory research.
2. Technology Types:
Internal Amalgamation: Conducted inside an amalgamation cylinder or grinding mill, reducing mercury pollution.
External Amalgamation: Utilizes amalgamation plates and other equipment; commonly used for placer gold separation.
3. Advantages: Simple process, low cost, especially suitable for recovering coarse-grained native gold.
Safety and Environmental Protection: Due to the highly toxic nature of mercury, strict protective measures are required during operation (e.g., ventilation, wearing protective gear), and proper disposal of mercury waste is essential to minimize environmental pollution.
2. Product Description

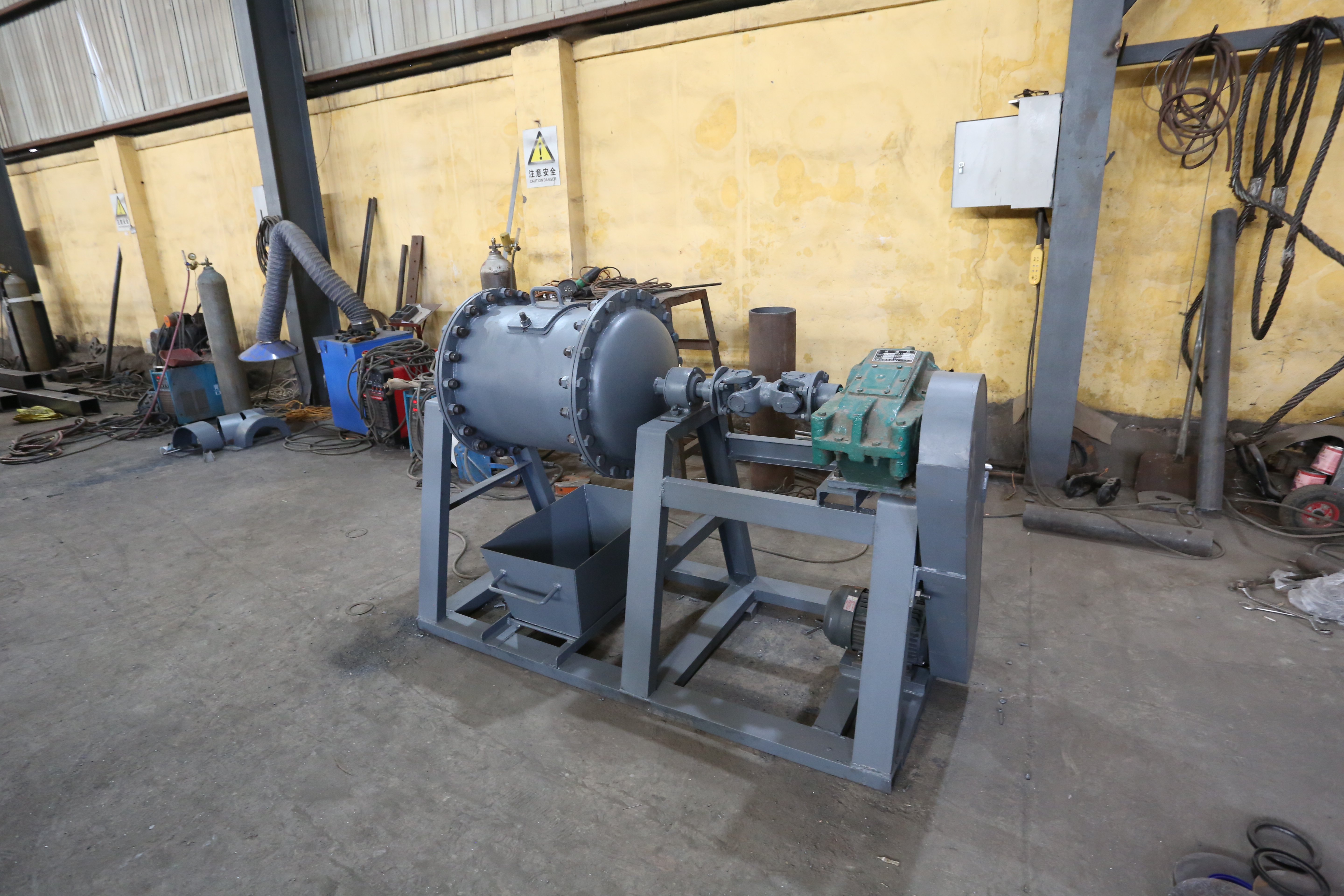

Gold mercury amalgamating machine is the traditional gold refining machine; it's been widely used to mix the mercury and gold concentrate from shaking table, sluice box or gold concentrator, in order to get the pure gold from black sand.
Our automatic mercury amalgamator is newly designed, use motor to drive the machine, instead of manual. use the stepper motor for easier operation; use stainless iron bareel to get a long service life and saving the mercury; reasonable structure make this machine neat and clean.
This machine is used for mixing the mercury and gold with black sand, get the gold amalgam. Then distill the gold amalgam in the mercury retort and get the pure gold.
3. Product Features
1. High recovery ratio more than 98% The loss rate of mercury
2. Total process automation, steady recovery performance
3. Center discharge design for fast, secure removal
4.Environmentally (requires no release mercury)
5.Low water and electricity requirements
6.Low production costs, durable wear parts, minimal maintenance requirements
7. Compact design requiring less space, easy merged into the existing mining processing
8. Quick payback on investment, typically lass than half year
9.movable ,easy to move
4. Technical Specification
| Model | 380*600 | 400*1000 |
| Capacity(kg/hour) | 20-50 | 80-100 |
| Power(KW) | 0.55 | 1.1 |
| Drum Diameter(mm) | 380 | 400 |
| Drum Length(mm) | 600 | 1000 |
| Application | gold,silver | copper,platinum |
| Dimension(mm) | 1650*450*750 | 2750*650*850 |
| Weight(Kg) | 350 | 650 |
5. Certifications
6. Related Products
7. Why choose us
Yongli will do the best in the field and one of the most important things is providing after-sales service and support. We promise to provide every customer with the highest level of service and 24/7 support to make sure that every machinery will run properly and every customer will be fully satisfied.
The following service can be provided by our high-quality team:
------ Signing a long-term after-service agreement with customers;
------ rational and practical design according to clients' project needs and requirements;
------ Engineers will be sent for installation, testing and commissioning of new machine;
------ Operation service & maintenance guidance (Training of new operators);
------ Troubleshooting & diagnosis;
------ Replacement suggestions & spare parts with competitive price;
------ Life time after sales service for all customers.
8. Company Profile
Qingzhou Yongli Mining And Dredging Machinery Co.,Ltd,located in Qingzhou city-one of the Nine Ancient Cities in China,is a professional manufacturer of dredging and mining equipment.We are dedicated in R&D,designing,producing,assembling,testing,training and other services.
Main products:
Cutter suction dredger;Jet suction sand dredger;
Bucket chain type/Bucket wheel type sand dredger;
Amphibious dredger,Drilling suction sand dredger;
Bucket chain type gold/diamond dredger;
Jet suction type/Cutter suction type gold/diamond dredger;
Land-use stationary type/mobile type gold/diamond washing plant.
Successful YONGLI series of products have won the approval by General Administration of Quality Supervision,Inspection and Quarantine of the People's Republic of China,and are certificated by the Quality Management System Certification (ISO9001:2015) because of our years of hard work.Our company also gets the Certificate of Vessel Inspection authorized by China MSA.For the jigger machine,we applied acquired the letter of patent from State Intellectual Property Office of P.R.C.We have honored for first-class products quality and excellent after-sale services by customers worldwide.
We always insist on the principles of honesty,mutual benefit,co-development and welcome to our factory for investigation and business discussion.
