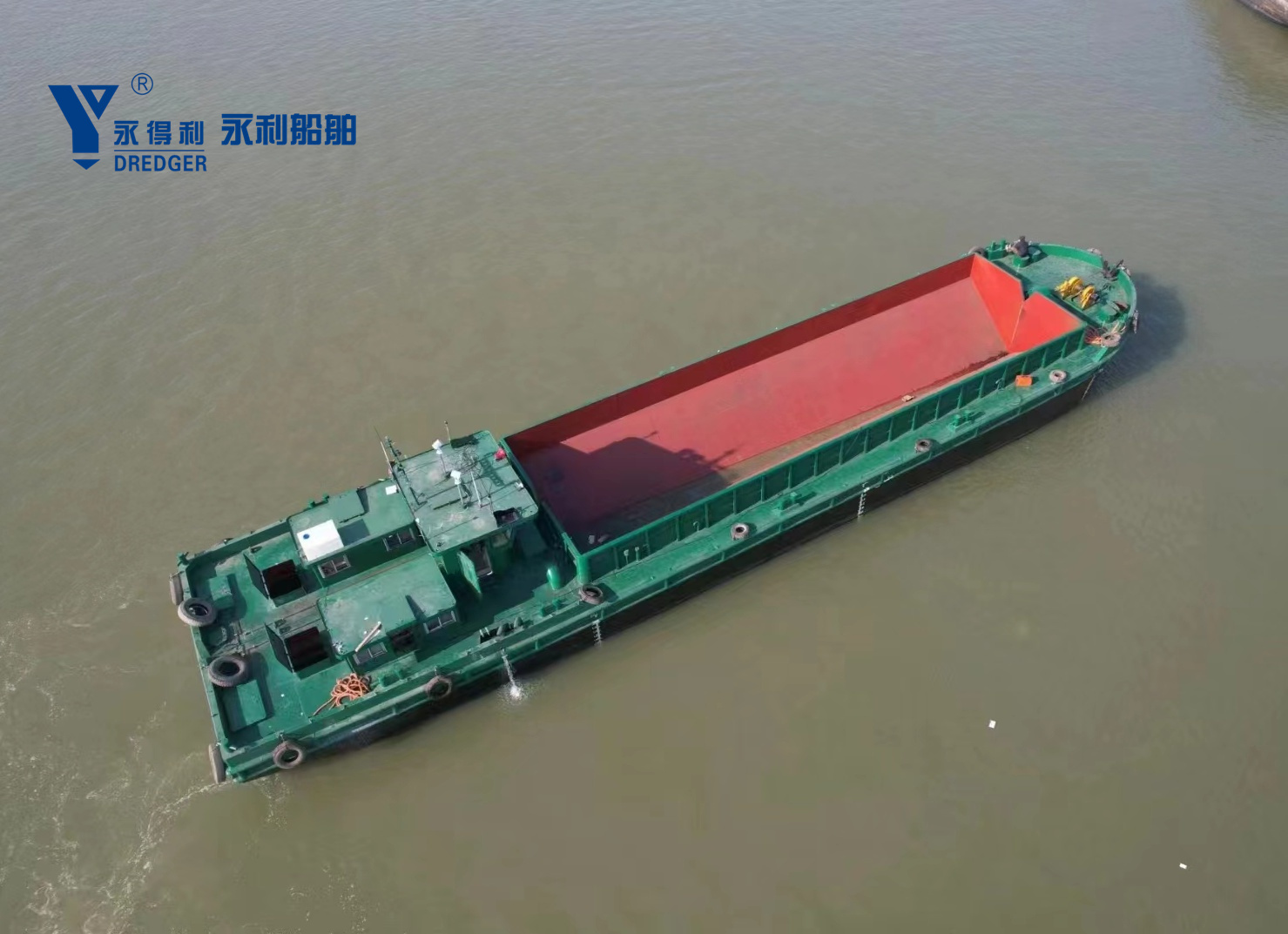

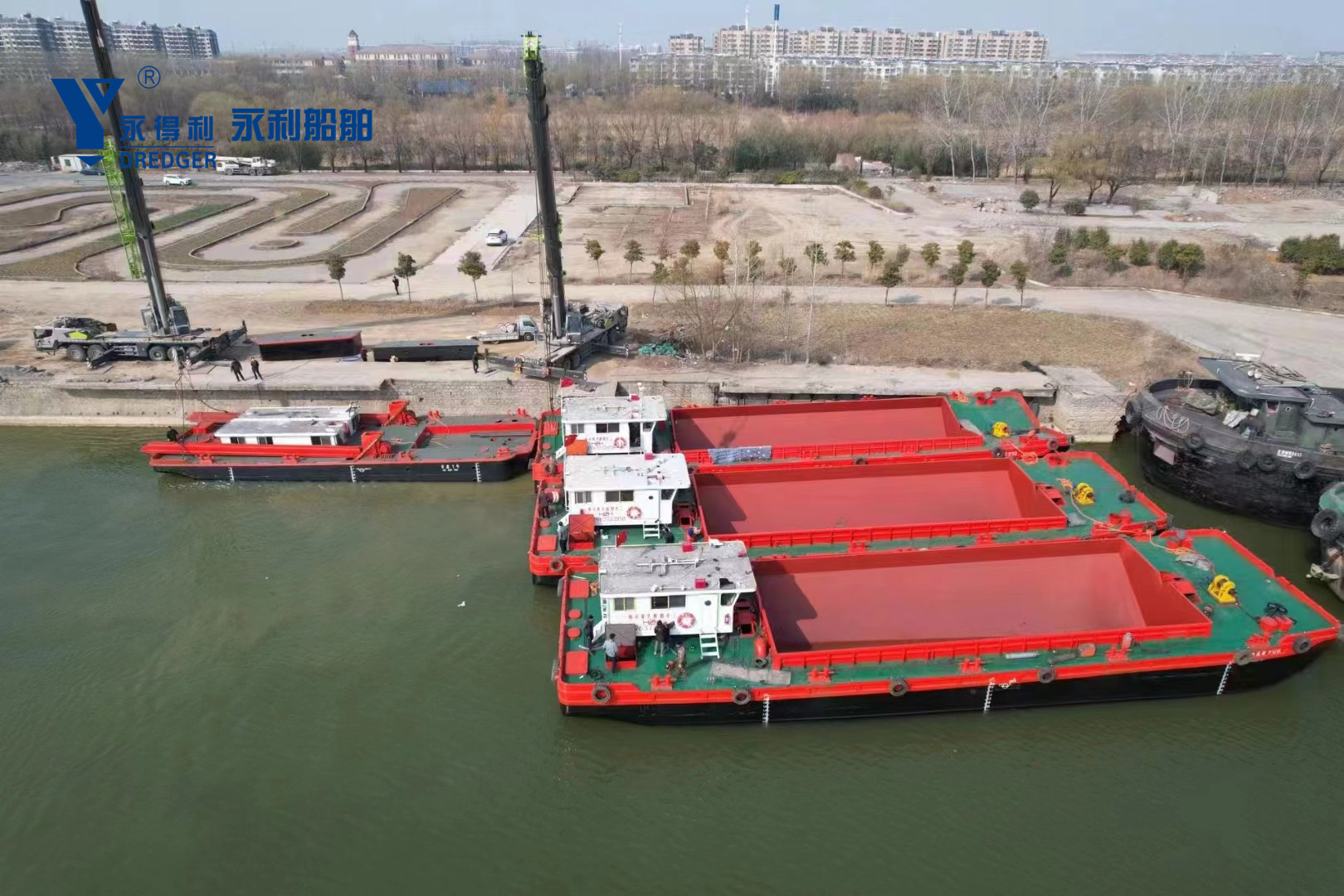

Introduction of split hopper barge
Yongli self propelled sand transport barge is designed and used for sand transport in river,lake,sea and channels. Usually it matches up with cutter suction sand dredger. After sand and gravels are digged up, and if the stock area has a long distance from the dredging area, you have to use the sand transportation barge to transport the sand and gravels. This split hopper barge can be equipped with one propeller or 2 propellers. The sands and gravels will be discharged onshore when the barge reaches the stock area and the unloading work will be very fast. We are the China professional split hopper barge supplier and manufacturer.
Technical specification
| No | Name | Technical parameters |
| 1 | Total length *Total width*Height | 20*7*4.3m |
| Loading capacity of sand trasnsport barge | 130m3 | |
| DWT | 240mt | |
| Empty load | 0.6-1.8m | |
| 2 | Hull size(L*W*H) | 20*7*2.5m |
| Deck plate thickness | 6mm | |
| Bottom plate thickness | 8mm | |
| Side plate thickness | 8mm | |
| Front & rear plate thickness | 12mm | |
| 3 | Cargo tank capacity(L*W*H) | 15*6*2.8m |
| Capacity | 130m3 | |
| Steel plate thickness | 8mm | |
| 4 | Generator set brand | Weichai,China |
| Power | 30 kw | |
| Voltage | 380v | |
| Rotation | 1500rpm | |
| Frequency | 50hz | |
| 5 | Cargo tank bottom open and closed system | |
| Hydraulic pump | 1 unit | |
| Hydraulic cylinders | 2 units | |
| 6 | Mooring equipment | |
| Double column bollard | Diameter 140mm 4 units | |
| Bow double post fairlead | 1 set | |
| Towing single column bollard at stern | 1 unit | |
| 7 | Corrosion resistant | |
| Steel sandblasting to rust.primer,2 layers,epoxy zinc rich paint.Topcoat, 2 layers,polyurethane paint. The bottom of the ship is protected by zinc anodes | ||
| Zinc block:anti corrosion zinc block welding on main pontoons. | ||
| 8 | Anchor | |
| Weight | 500kgs/piece | |
| Material | 35# steel | |
| Quantity | 1 pcs | |
| 9 | Saving equipment | |
| Life jacket | 4 pcs | |
| Life buoy | 4 pcs | |
| Portable powder type fire extinguisher | 2 pcs | |
| 10 | Free spare parts | |
| Coupling | 1 piece | |
| Diesel engine air/oil/fuel filters , | 8 sets | |
| High pressure oil pipes | 3 pieces | |
| Bolts | 50 pieces | |
| Fuel nozzles | 10 pieces |
Key feature
High Speed: From hull opening to complete sediment discharge, the process typically takes only a few minutes, significantly enhancing operational efficiency.
Thorough Discharge: Relying on gravity for natural unloading, residual material in thehold is minimal, eliminating the need for manual cleaning and ensuring loading efficiency.
Precise Discharge: Sediment can be unloaded relatively accurately at specified locations, which is crucial for managing marine disposal areas and certain land reclamation proiects.
Application range
Split hopper barges are used in a wide range of projects, including:
Deep-sea sand mining
River & channel deep dredging
Land reclamation & backfilling
Construction sand quarrying
