1. Brief Introduction

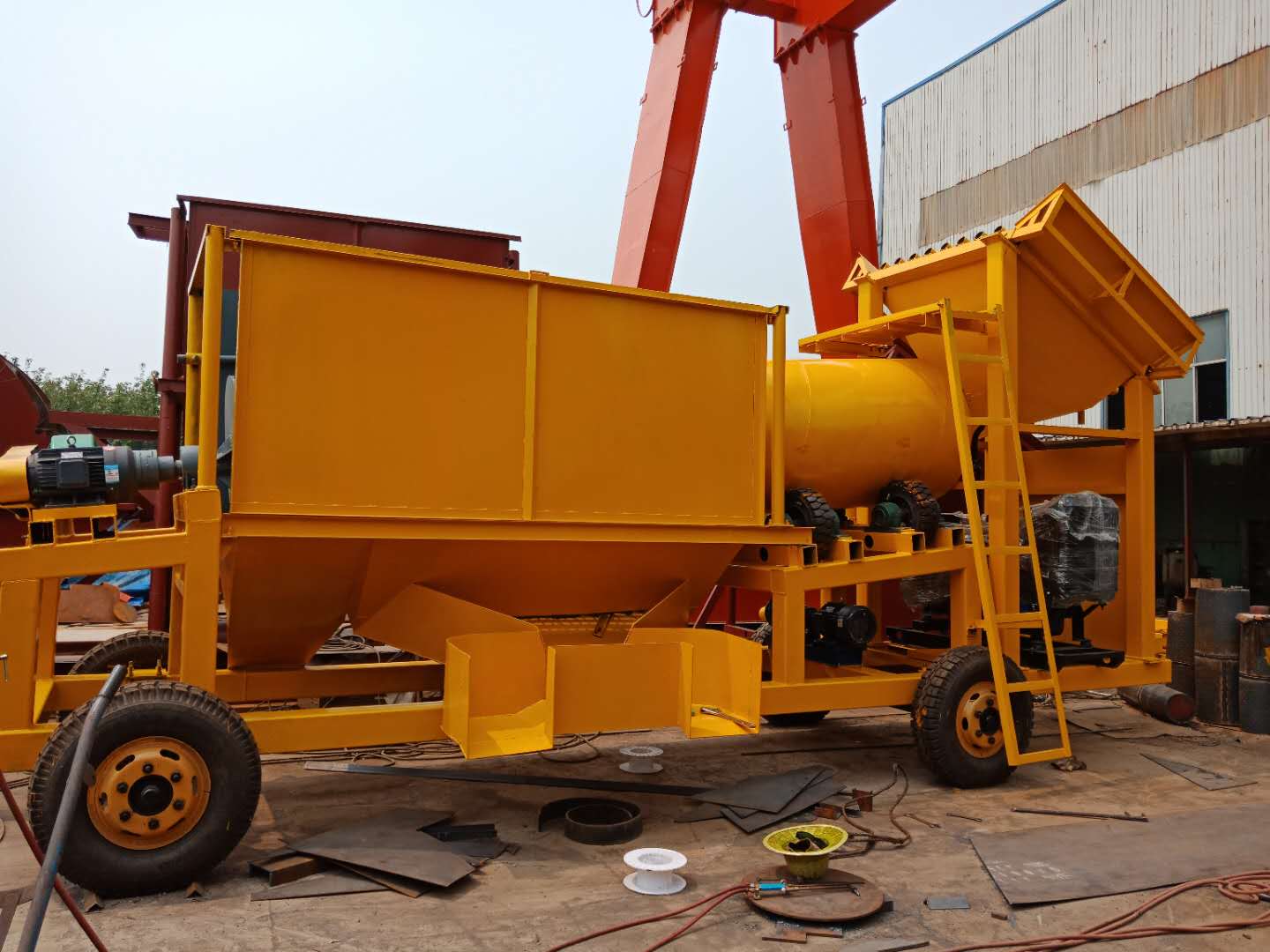

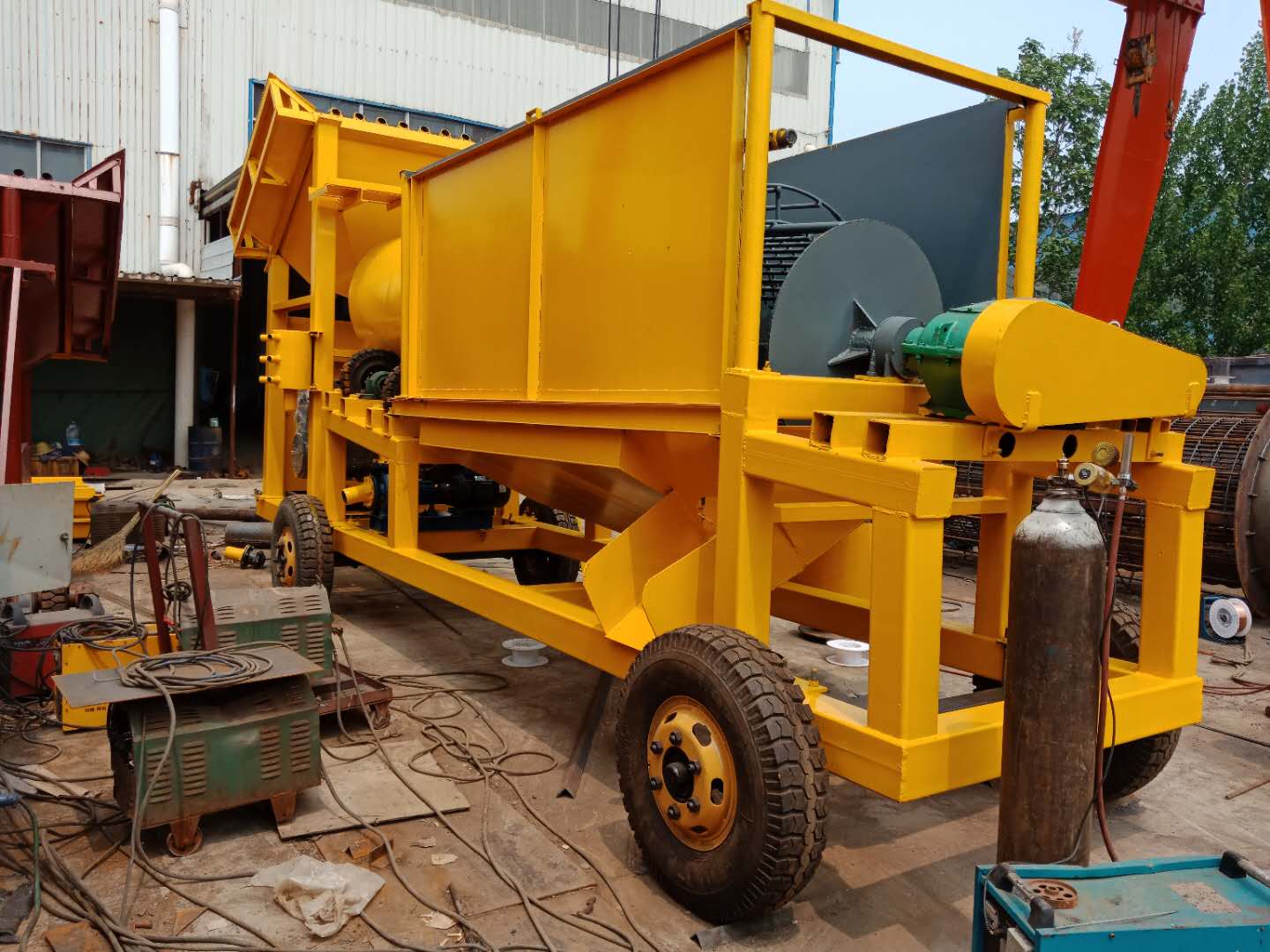

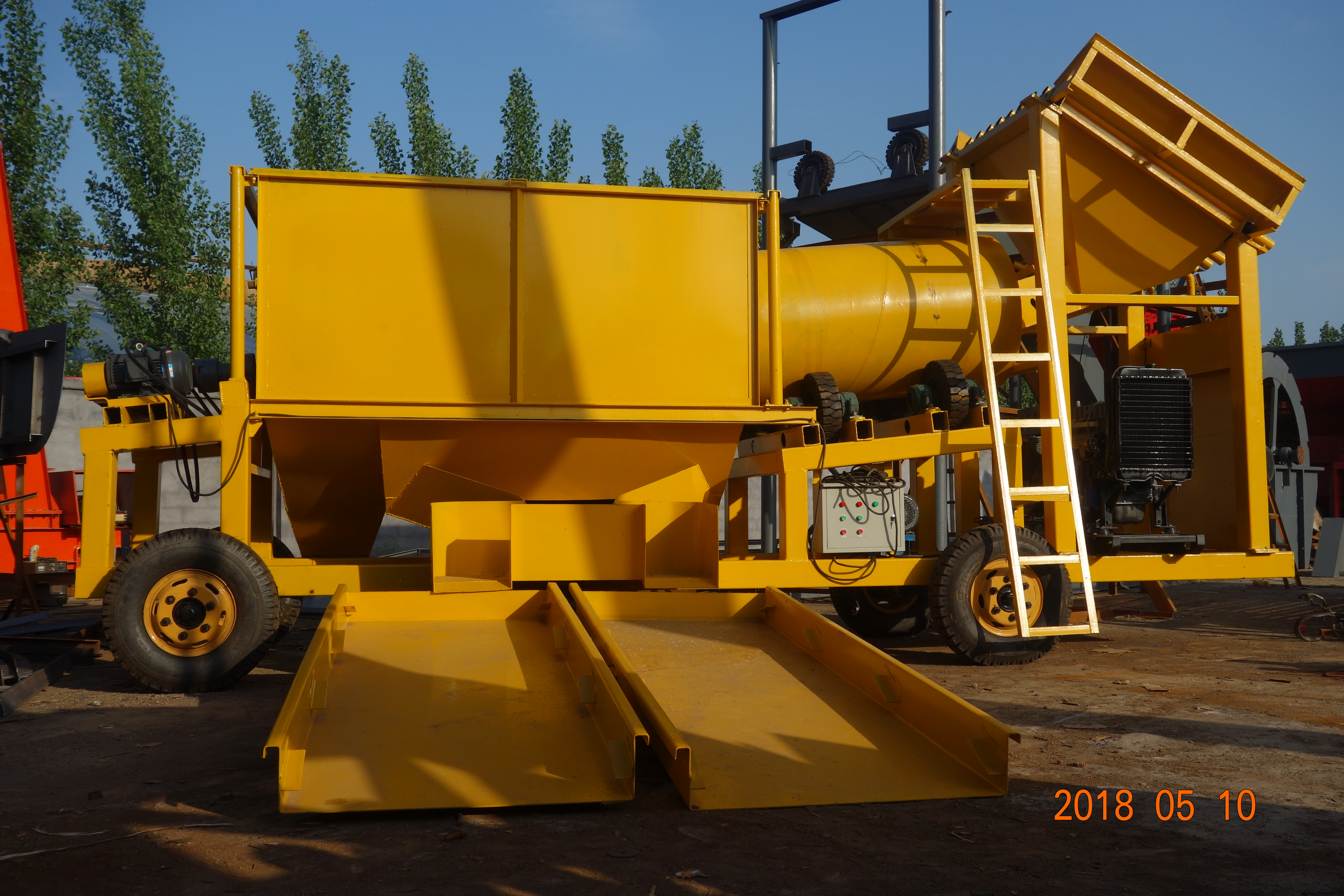

A mobile gold washing plant is a portable, self-contained unit designed for extracting gold from placer deposits (loose, unconsolidated material like riverbeds or alluvial soils). It typically integrates multiple stages of mineral processing, such as screening, washing, and gravity separation, into a single, transportable system.
Key Features
Mobility: Built on skids, trailers, or modular frames for easy relocation to mining sites.
Integrated Processing: Combines functions like ore screening, washing (often with trommel screens), and gold recovery (e.g., pulsating sluice boxes or fixed sluice boxes).
Scalability: Ranges from small-scale units (e.g., 5 TPH) to large-scale plants (100–200 TPH) for different mining needs.
Automation: Some models include PLC controls for efficient operation with minimal labor.
Common Components
Trommel Screens: Rotating drums with mesh to separate oversized material.
Centrifugal Separators: High-speed devices to isolate fine gold particles.
Shaking Tables: Sluice-like surfaces for final gold concentration.
Applications
Placer Mining: Ideal for riverbeds, beaches, or alluvial deposits.
Remote Sites: Enables operations in areas without fixed infrastructure.
Product Features:
1. Small size, small weight, easy to move or transport.
2. Could be loaded manually or by small wheel loader.
3. High efficient especially for fine gold dust.
2. Technical Specification
| Model | Capacity (t/h) | Water consumption （m³/h） | Power （kw） | Recovery |
| YLMGWP-2 | 2 | 4 | 1.1 | 90-95% |
| YLMGWP-4 | 4 | 8 | 1.5 | 90-95% |
| YLMGWP-5 | 5 | 8 | 2.2 | 90-95% |
| YLGWP-10 | 10 | 30 | 8.1 | 90 -95% |
| YLGWP-25 | 25 | 80 | 23 | 90-95% |

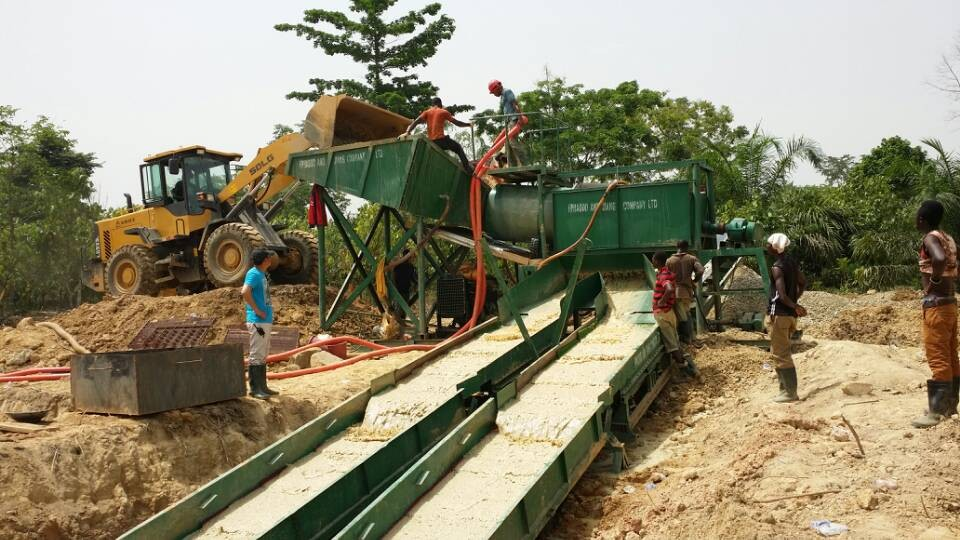

3. Successful Cases
10 tons/hour gold washing plant
25 tons/hour gold washing plant
50 tons per hour gold washing plant
4. Industry News
The processing capacity of mobile gold washing equipment varies significantly depending on the model and configuration, and can be mainly divided into the following levels:
Small to Medium-Sized Equipment (0-15 TPH)
These devices are typically compact and suitable for small-scale operations or scenarios requiring high mobility. For example, one JXSC device has a processing capacity of 0-10 TPH, while one Sinolion device can reach 15 TPH.
Medium-Sized Equipment (50 TPH)
This is a common processing capacity range, offered by many devices. For example, JXSC's 50 TPH model claims a separation efficiency of 98%, with a processing speed approximately 20% faster than traditional equipment. Sinolion also offers models with processing capacities ranging from 50 to 400 TPH.
Large-scale equipment (100-150 TPH and above): For large-scale operations, there are more powerful equipment options available. For example, a 150 TPH alluvial gold washing unit, and some processing lines specifically designed for vein gold.
In summary: Mobile gold washing equipment covers a wide range of capacities, from a few tons per hour to hundreds of tons per hour. Users can choose the appropriate model based on the actual mining scale, ore type, and site conditions.
