Product Introduction

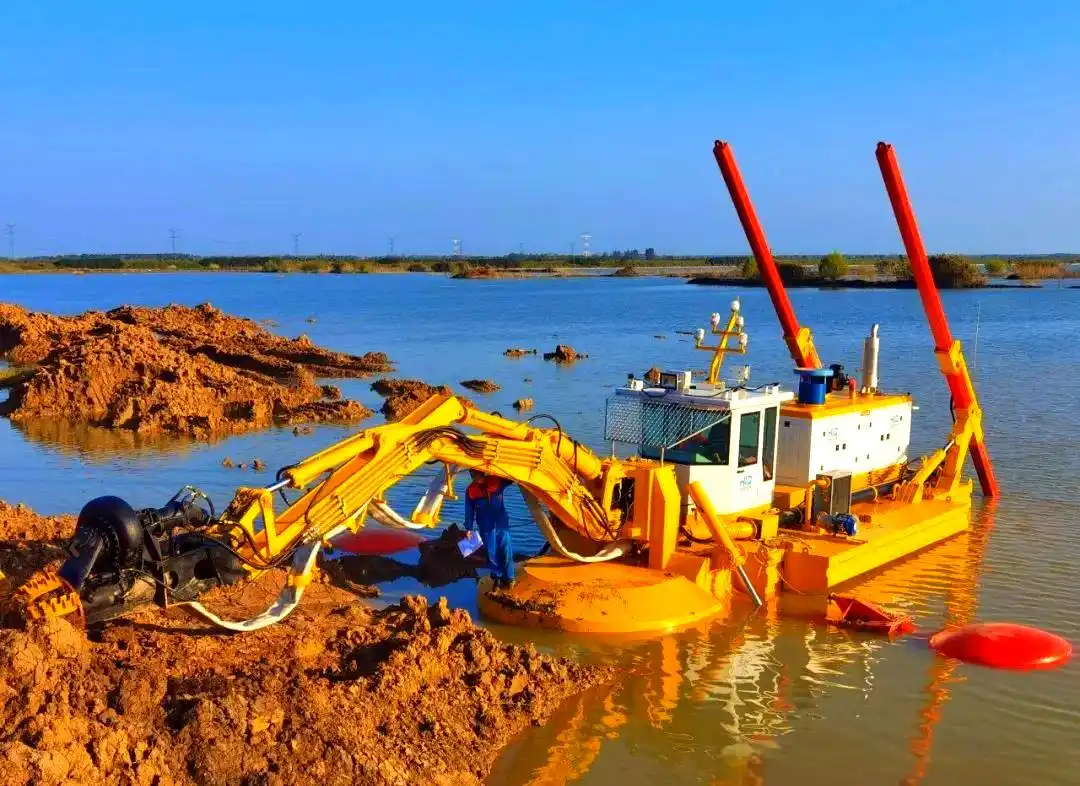

An amphibious dredger is a specialized machine designed to operate both on land and in water, combining the functions of a dredger and an excavator. It is typically equipped with caterpillar tracks that allow it to "wade" through shallow water (up to four feet deep) before floating, and it has an extended reach (up to 33 feet) for flexible dredging in areas inaccessible to traditional dredgers that require barges or hoppers
. This type of dredger is particularly useful for clearing and deepening small waterways, lakes, and other difficult-to-access areas.
Key features of amphibious dredgers include:
Mobility: Can be road-transported, enabling use in remote locations.
Versatility: Suitable for inland rivers, lakes, and water conservancy projects.
Environmental Friendliness: Some designs are multipurpose and eco-friendly, minimizing ecological impact
These machines are often employed in coastal stabilization projects, such as treating high-salinity dredger fill with stabilizers to enhance soil strength.
Technical Specification
| Dredging depth | 7.0m |
| Discharge pipe diameter | 250mm(10 inch) |
| Discharge distance | 500m |
| Water flow | 500m3/hour |
| Engine | diesel,water cooled |
| lifting capacity | 20KN |
| Total weight | 20 tons |
| Transport size (L*W*H) | 11.0*3.3*3.1m |
| Diesel engine power | 196kw @2200rpm |
| Fuel tank capacity | 2000L |
| Cutter head | installed |
| Dredging bucket | optional |
| Rake | optional |
| Clamshell bucket | optional |
| Vertical pile | optional |
| GPS | optional |
Product Shows

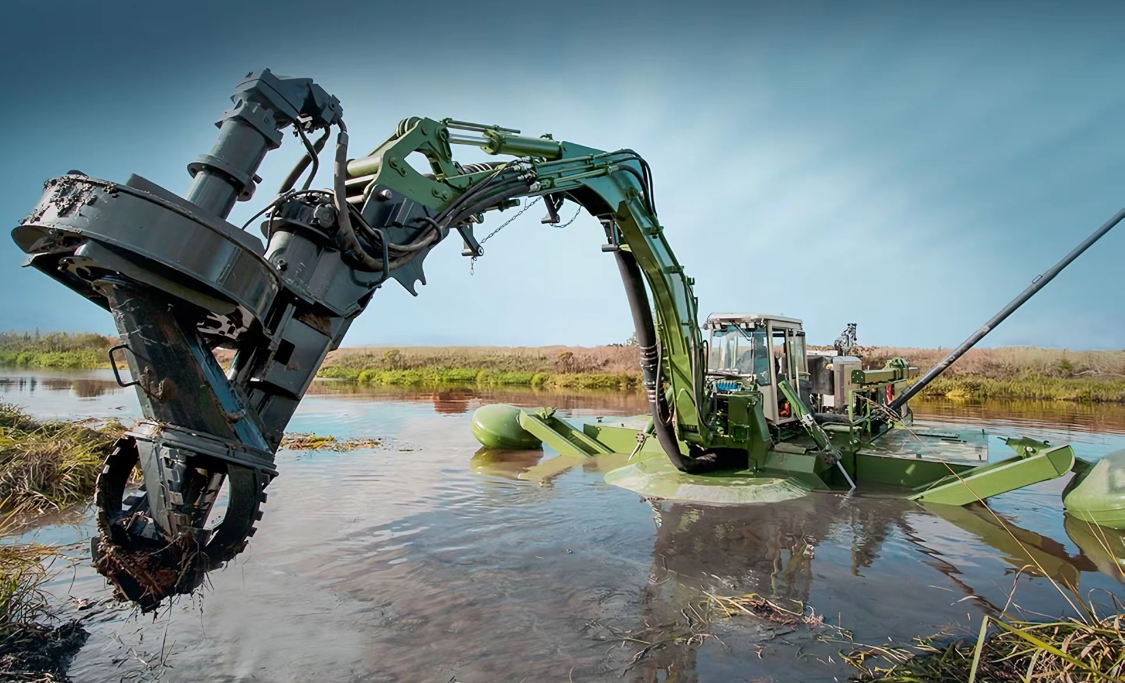

Watermaster dredger

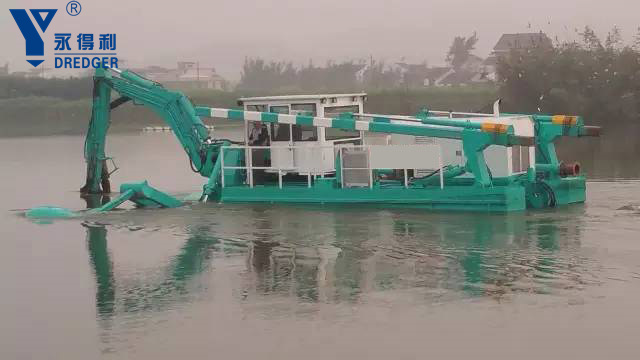

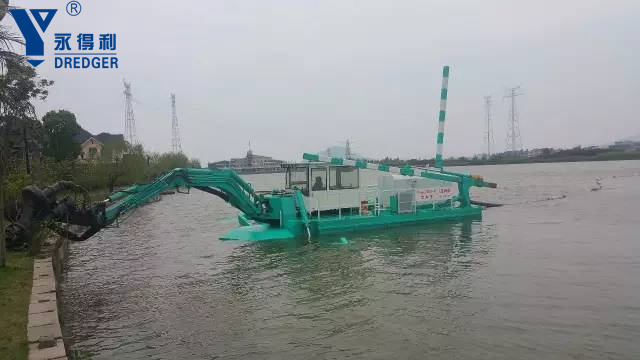

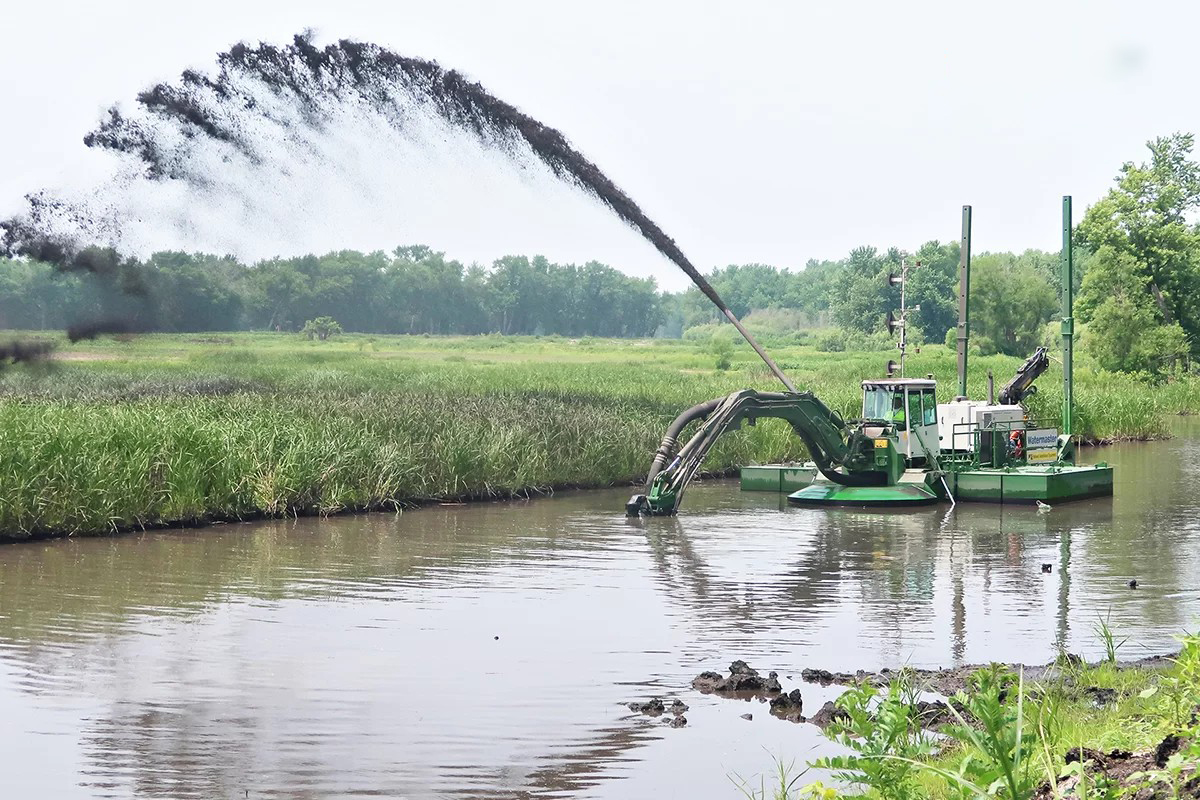

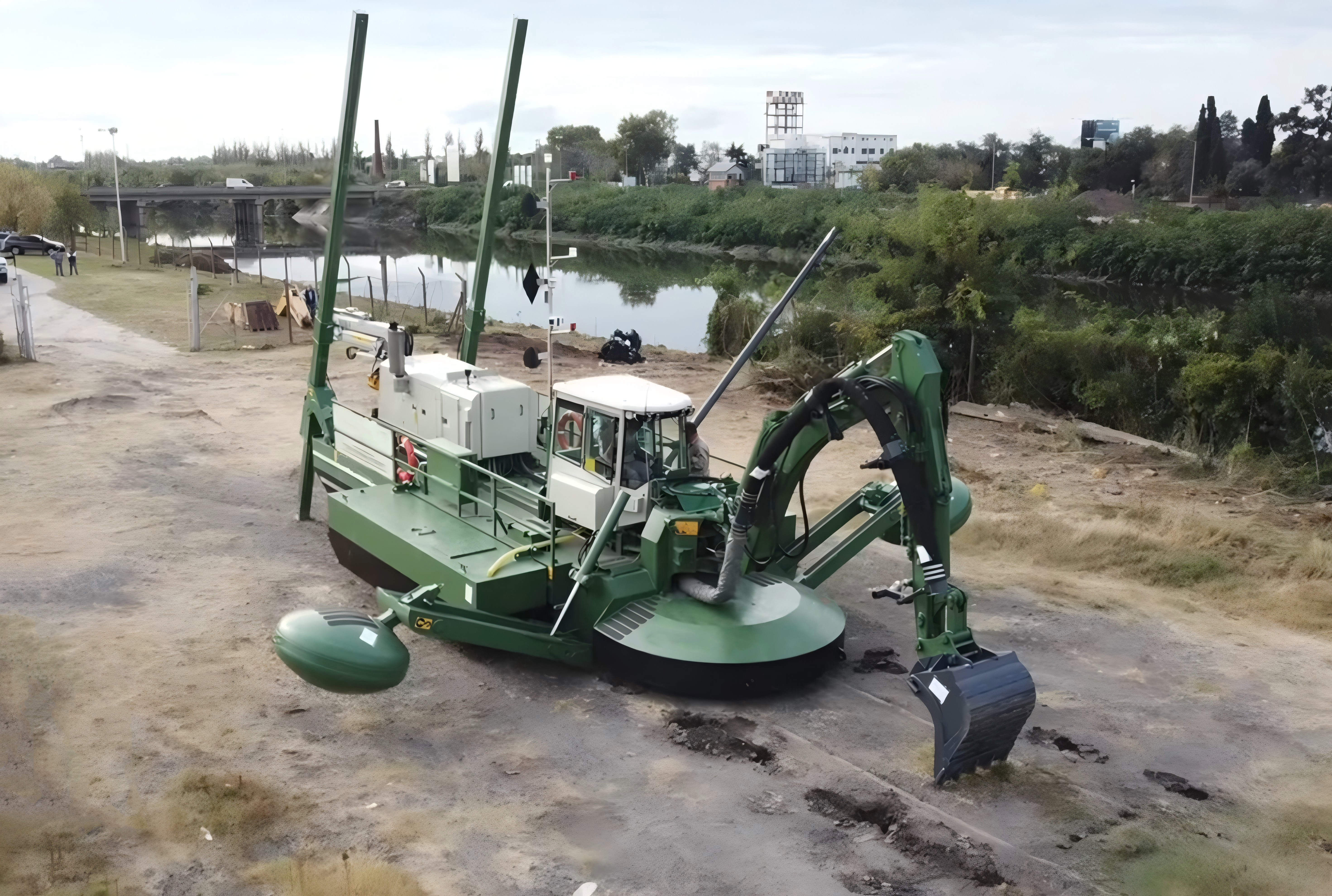

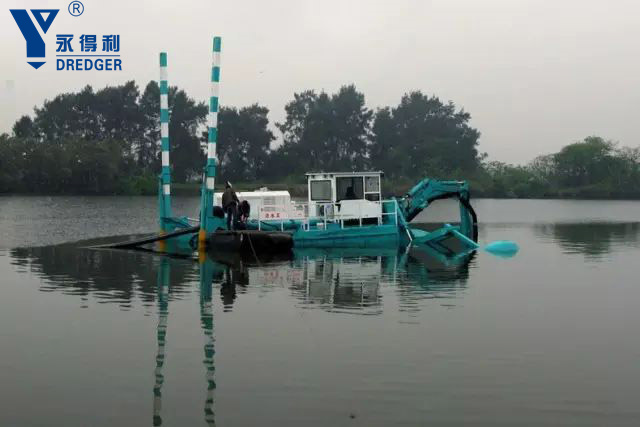

Multifunctional Amphibious Dredger
Amphibious dredger price
